Kenmore
Toaster

Model # 360634404 Official Kenmore toaster oven

Here are the diagrams and repair parts for Official Kenmore 360634404 toaster oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

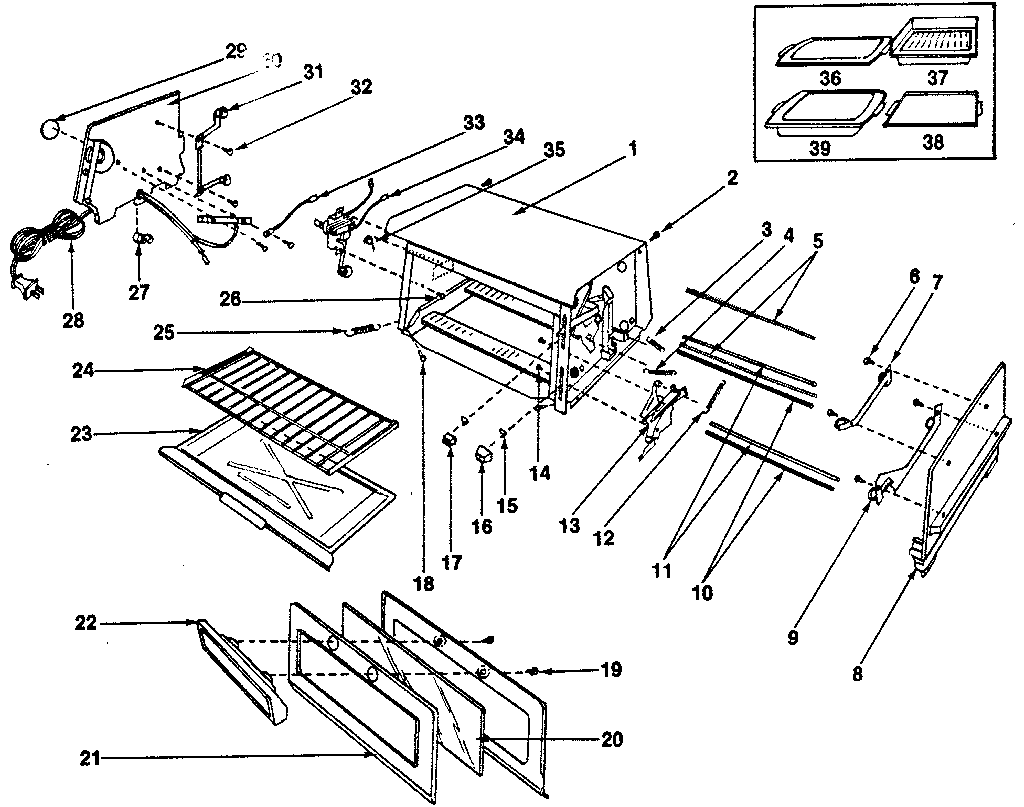

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Door Assembly 924016
#21

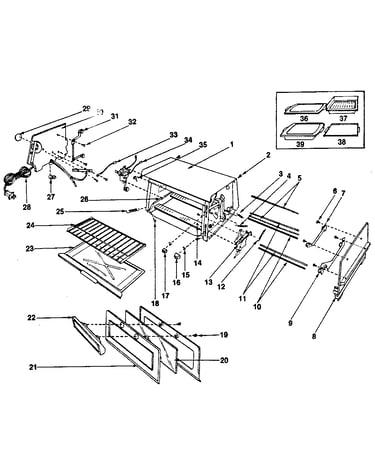

Replacement parts diagram

Door assembly

Part #924016

The manufacturer no longer makes this part, and there's no substitute part

Lwr Bus Bar 968002
#9

Replacement parts diagram

Lwr bus bar

Part #968002

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 620846
#34

Replacement parts diagram

Thermostat

Part #620846

The manufacturer no longer makes this part, and there's no substitute part

Knob 156794
Knob

Part #156794

The manufacturer no longer makes this part, and there's no substitute part

Screw 002732
#19

Replacement parts diagram

Screw

Part #002732

The manufacturer no longer makes this part, and there's no substitute part

Grille 621830
#24

Replacement parts diagram

Grille

Part #621830

The manufacturer no longer makes this part, and there's no substitute part

Cord 926767
#28

Replacement parts diagram

Cord

Part #926767

The manufacturer no longer makes this part, and there's no substitute part

Panel 926501
#30

Replacement parts diagram

Panel

Part #926501

The manufacturer no longer makes this part, and there's no substitute part

Baking Tray 135742
#38

Replacement parts diagram

Baking tray

Part #135742

The manufacturer no longer makes this part, and there's no substitute part

Latch Assembly 601594
#13

Replacement parts diagram

Latch assembly

Part #601594

The manufacturer no longer makes this part, and there's no substitute part
