Model # WEG515S0LS1 Official Whirlpool gas slide-in range

Here are the diagrams and repair parts for Official Whirlpool WEG515S0LS1 gas slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |
Range Screw W10200660
#15

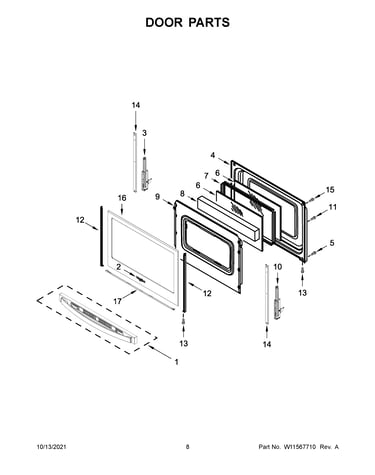

Door parts diagram

Range screw

Part #W10200660

Replaced by #WPW10200660

?
Manufacturer substitution
This part replaces W10200660. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.00 |
14% OFF Phone Price : $7.00
In Stock
Range Oven Door Handle Assembly (stainless) W11242950
#1

Door parts diagram

Range oven door handle assembly (stainless)

Part #W11242950

Replaced by #W11449263

?
Manufacturer substitution
This part replaces W11242950. Substitute parts can look different from the original.
$120.72 |
9% OFF Phone Price : $132.72
In Stock
Knob W10850033
#7

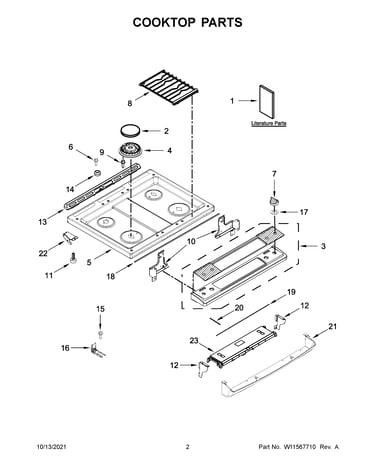

Cooktop parts diagram

Knob

Part #W10850033

Replaced by #W11517334

?
Manufacturer substitution
This part replaces W10850033. Substitute parts can look different from the original.
$30.68 |
16% OFF Phone Price : $36.68
In Stock
Range Oven Burner 9758078
#14

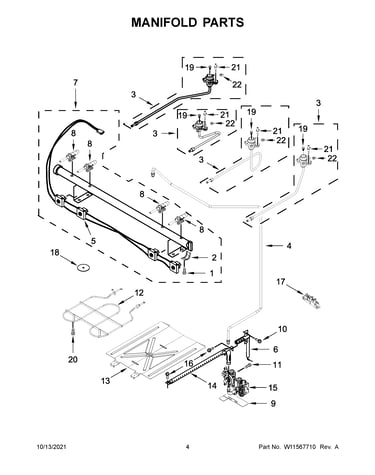

Manifold parts diagram

Range oven burner

Part #9758078

Replaced by #WP9758078

?
Manufacturer substitution
This part replaces 9758078. Substitute parts can look different from the original.
$97.18 |
11% OFF Phone Price : $109.18
In Stock
Badge, Whirl W10884775
#2

Door parts diagram

Badge, whirl

Part #W10884775

Replaced by #W11178521

?
Manufacturer substitution
This part replaces W10884775. Substitute parts can look different from the original.
$33.73 |
15% OFF Phone Price : $39.73
In Stock
Screw 3196169
Screw

Part #3196169

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 3196169. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw W10362924
#20

Manifold parts diagram

Screw

Part #W10362924

Replaced by #W11233072

?
Manufacturer substitution
This part replaces W10362924. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Range Oven Bottom Liner 3195097
#11

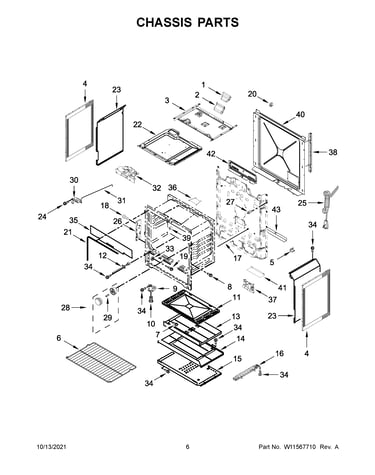

Chassis parts diagram

Range oven bottom liner

Part #3195097

Replaced by #WP3195097

?
Manufacturer substitution
This part replaces 3195097. Substitute parts can look different from the original.
$98.65 |
11% OFF Phone Price : $110.65
In Stock
Screw 3196178
Screw

Part #3196178

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 3196178. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Hinge Bracket W10289077
#26

Chassis parts diagram

Hinge bracket

Part #W10289077

Replaced by #W10647259

?
Manufacturer substitution
This part replaces W10289077. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
