Kenmore
Sewing Machine

Model # 15817810 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 15817810 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

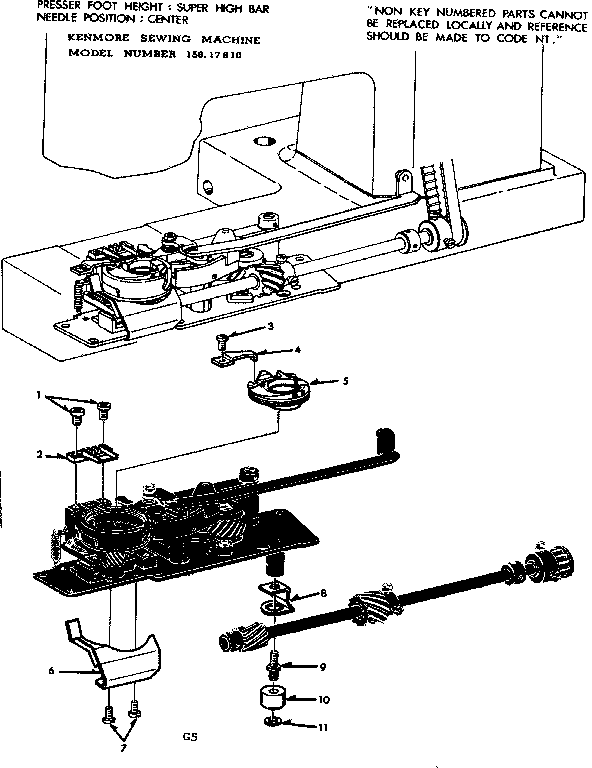

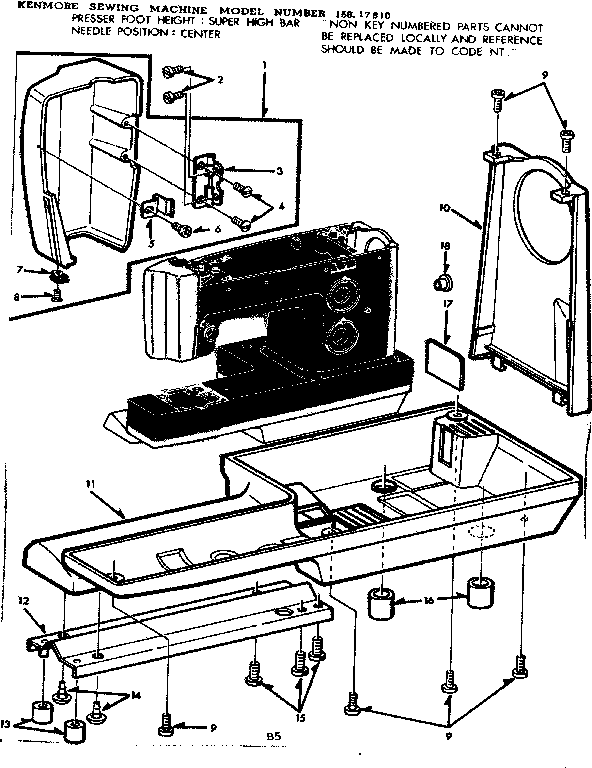

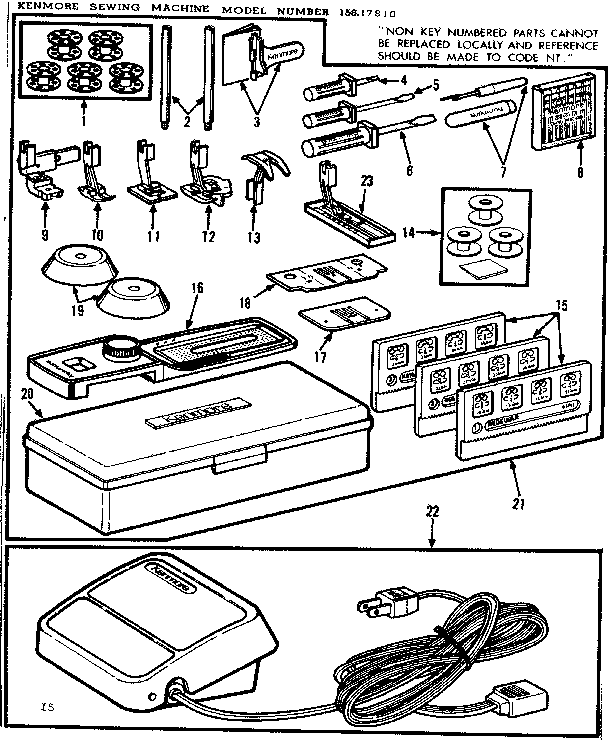

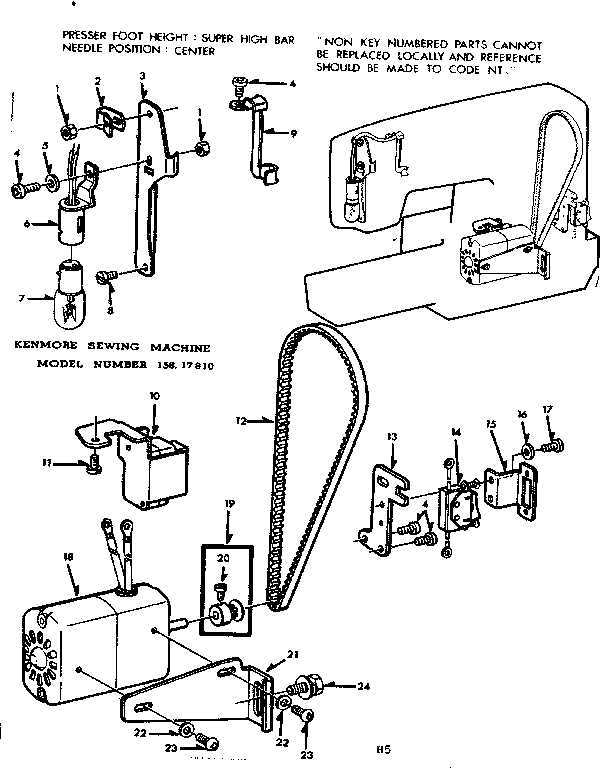

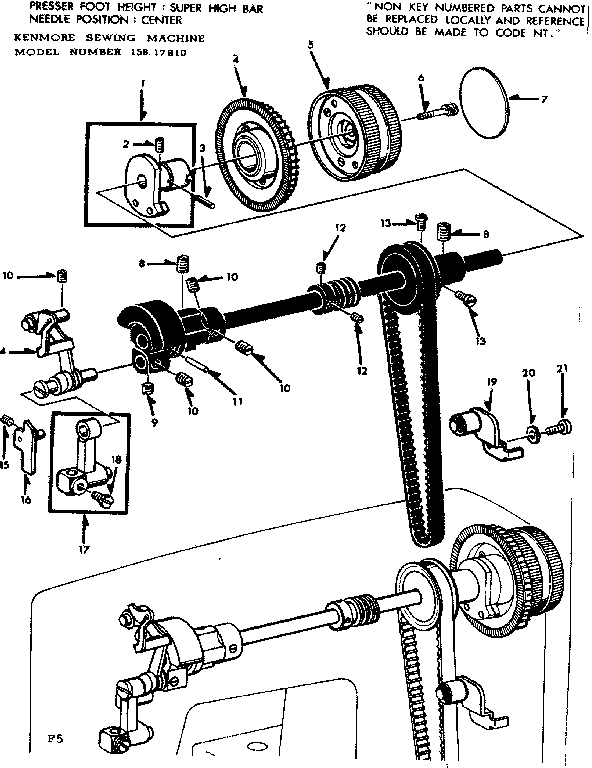

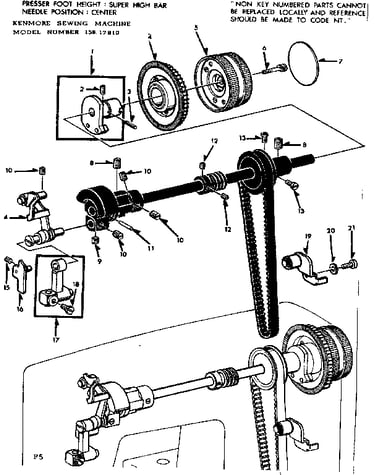

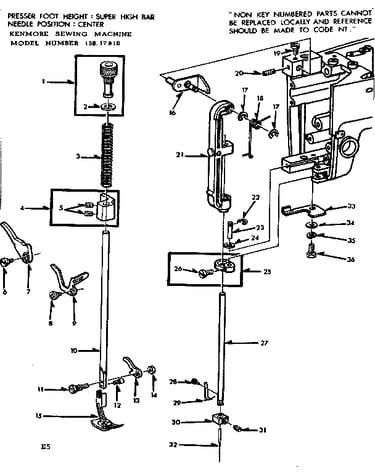

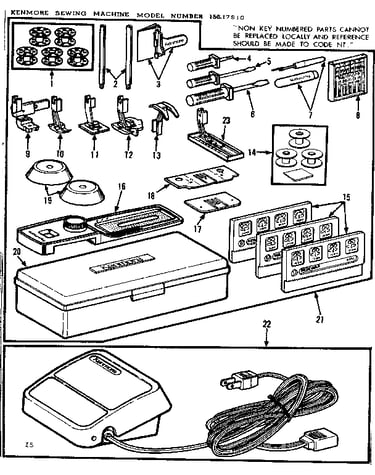

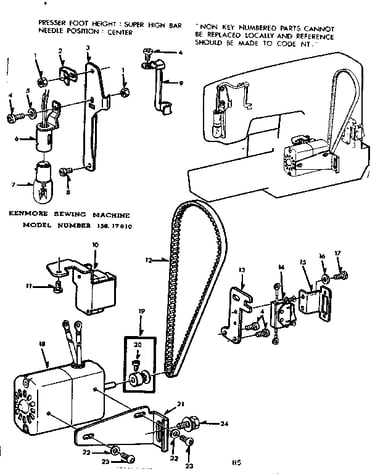

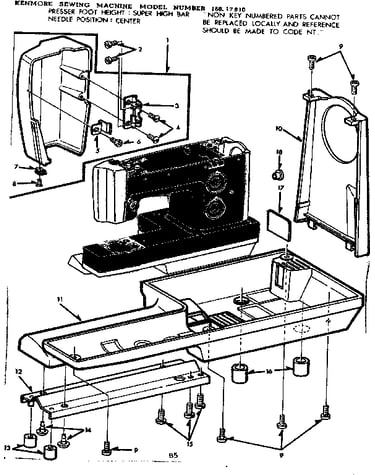

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 228 parts  |
Follower 49136
#12

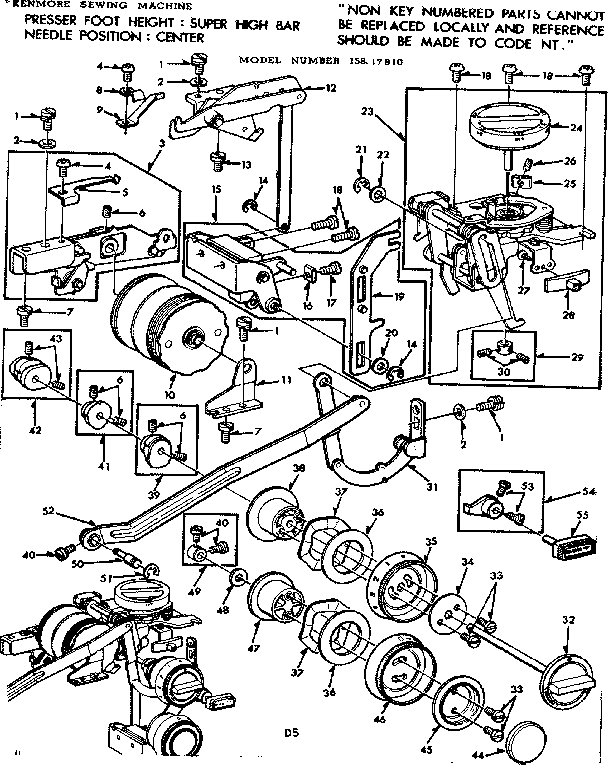

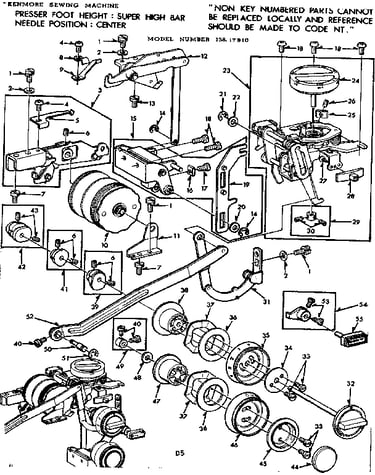

Feed regulator and dial control diagram

Follower

Part #49136

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 47950
#17

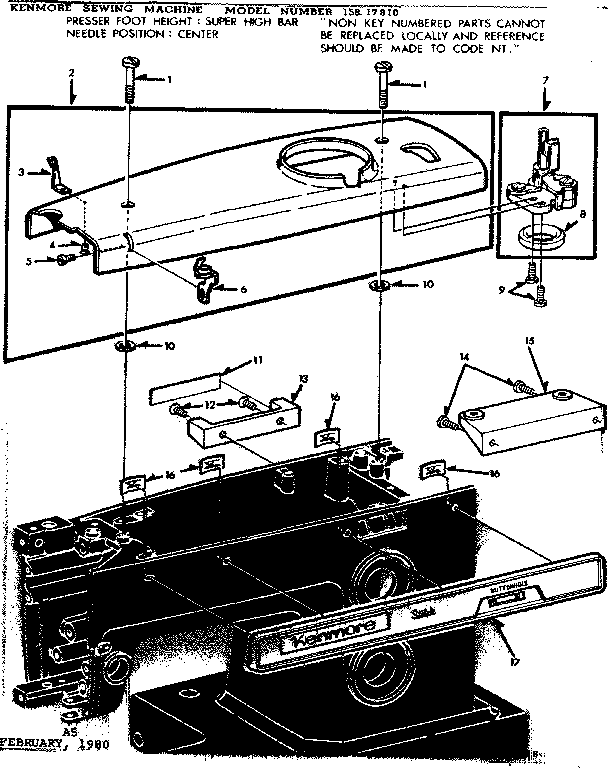

Bobbin winder and top plate diagram

Control panel

Part #47950

The manufacturer no longer makes this part, and there's no substitute part

Release Button 45038
#3

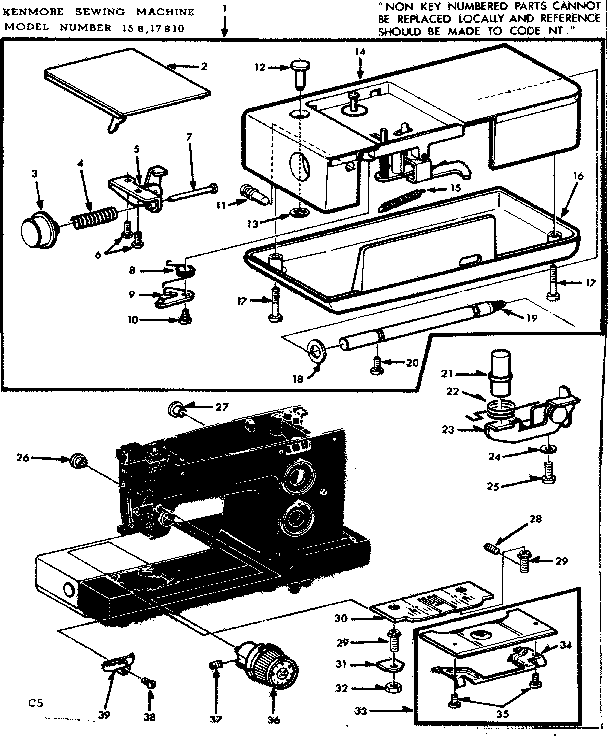

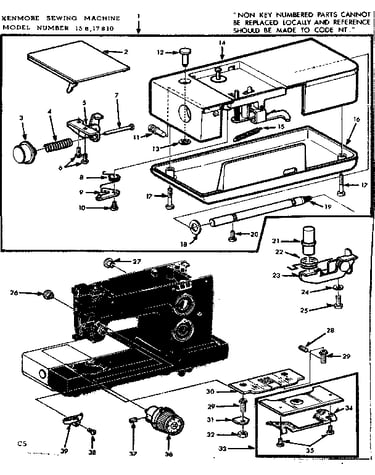

Needle plate and thread tension assembly diagram

Release button

Part #45038

The manufacturer no longer makes this part, and there's no substitute part

Washer 45618
#36

Feed regulator and dial control diagram

Washer

Part #45618

The manufacturer no longer makes this part, and there's no substitute part

Washer 45474
#37

Feed regulator and dial control diagram

Washer

Part #45474

The manufacturer no longer makes this part, and there's no substitute part

Spring 43522
#15

Needle plate and thread tension assembly diagram

Spring

Part #43522

The manufacturer no longer makes this part, and there's no substitute part

Lever Assembly 47632
#23

Needle plate and thread tension assembly diagram

Lever assembly

Part #47632

The manufacturer no longer makes this part, and there's no substitute part

Lever 48880
#54

Feed regulator and dial control diagram

Lever

Part #48880

The manufacturer no longer makes this part, and there's no substitute part

Push Button 42671
#12

Needle plate and thread tension assembly diagram

Push button

Part #42671

The manufacturer no longer makes this part, and there's no substitute part

Link Assembly 49137
#15

Feed regulator and dial control diagram

Link assembly

Part #49137

The manufacturer no longer makes this part, and there's no substitute part
