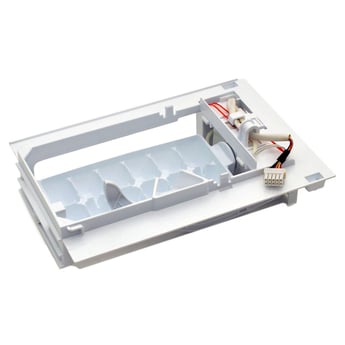

Ice Maker Assembly (AEQ72909602) - Refrigerator Ice Maker Part by LG (replaces AEQ72909601) AEQ72909602
Part #AEQ72909602
Online Only Price
$91.54 |Â
6% OFFÂ Phone Price : $97.54
In Stock
For ZIP codes near Edit
This part fits
Part Information
Basic Information
- Part Name: Ice Maker Assembly
- Manufacturer: LG Electronics
- Category: Refrigerator Appliance Part
- Primary Function: This ice maker assembly is responsible for producing and dispensing ice cubes in a refrigerator.
Technical Specifications
- Dimensions: Typically, the dimensions for an ice maker assembly like this one would be approximately: 11"" x 5.5"" x 5.75"" (Length x Width x Height in inches). However, one should refer to the service manual or manufacturer's specifications for precise dimensions.
- Power Rating: Usually operates on the refrigerator's internal power supply system; voltage and wattage are model-dependent.
- Material: Predominantly composed of high-quality plastics, metal mold, and electronic components.
Installation & Compatibility
- Compatible Models: The AEQ72909602 ice maker assembly is compatible with a range of LG refrigerator models. Customers would need to verify compatibility with their specific refrigerator model, often found on the inside of the fridge or user manual.
- Installation Difficulty: Medium - Installation requires basic knowledge of appliance repair and should be done according to the refrigerator?s manual instructions.
- Tools Required: Standard screwdriver, nut driver, and potentially a small wrench.
Additional Information
The AEQ72909602 ice maker assembly includes the ice mold and the control device that cycles the ice tray, filling it with water and ejecting the ice cubes once they are frozen. It is designed to replace a faulty or broken ice maker in your LG refrigerator.
A common issue that this part resolves is when the refrigerator no longer produces ice or when it leaks water into the ice bin, causing a clump of ice. It is crucial to ensure that the refrigerator is unplugged and the water supply is shut off before attempting installation. Customers should also be careful to handle the electronic components with care to avoid damage due to electrostatic discharge.
When installing the new ice maker, it is important to verify that the fill tube and the ice maker are properly aligned to prevent leaks. After installation, the first few batches of ice should be discarded to ensure that the ice maker is clean and functioning correctly. If your ice cubes seems small, it could be time for a new water filter. You can find your filter here.
Frequently Used Together
- $47.53 |Â11% OFFÂ Phone Price : $53.53
- $65.17 |Â8% OFFÂ Phone Price : $71.17
- $98.27 |Â11% OFFÂ Phone Price : $110.27
- $98.27 |Â11% OFFÂ Phone Price : $110.27
- $6.98 |Â13% OFFÂ Phone Price : $7.98
- $394.35 |Â$12.00 OFFÂ Phone Price : $406.35
- $64.90 |Â8% OFFÂ Phone Price : $70.90
- $62.67 |Â9% OFFÂ Phone Price : $68.67
- $52.52 |Â10% OFFÂ Phone Price : $58.52
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #LDC22720TT/02 LG bottom-mount refrigerator | LDC22720TT/02 | Ice maker parts |
| Model #LDC22720TT/03 LG bottom-mount refrigerator | LDC22720TT/03 | Ice maker parts |
| Model #LFC23760SB/03 LG bottom-mount refrigerator | LFC23760SB/03 | Water and ice maker parts |
| Model #79578279900 Kenmore bottom-mount refrigerator | 79578279900 | Water and ice maker parts |
| Model #79578274901 Kenmore bottom-mount refrigerator | 79578274901 | All parts |
| Model #79578274900 Kenmore bottom-mount refrigerator | 79578274900 | Water and ice maker parts |
| Model #79576204901 Kenmore bottom-mount refrigerator | 79576204901 | Water and icemaker parts |
| Model #79576209901 Kenmore bottom-mount refrigerator | 79576209901 | Water and icemaker part |
| Model #79576203900 Kenmore bottom-mount refrigerator | 79576203900 | Ice and water parts |
| Model #79576203901 Kenmore bottom-mount refrigerator | 79576203901 | Water and icemaker parts |
Reviews
Exact replacement
Two screws and a quick disconnect. Easy once you get the freezer bins out.
Sleepy, Portland, OR
1 person thought this review was helpful.
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
No instructions
The process of replacing the ice maker was straight forward: Unscrew two screws, pull forward out, and unhook power. However, the physical logistics in getting a screw driver in there, lowering the front and sliding it out and unhooking the power was strenuous.. Then re-hooking the power was physically challenging and required two people, one to hold it from pulling while the other person plugged in the power., and then trying to get it slid in just so took some doing. Overall the lack of detailed instructions and the location of screws and plug made it something for a young person's body to do as it required some gyrations. The ice maker started within a few hours..
IndyLady, Indianapolis
Did you find this review helpful?
- Ease of Installation
- Very Difficult
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Quick install
The installation required just a few simple steps. 1 - remove two screws at the front of the old icemaker. 2 - pull the old icemaker forward, then drop it down. 3 - unplug the wire connecting it to the fridge. To install the new icemaker, just reverse the process. The hardest part was unplugging the wire since it has a little clip on top and is hard to get your hands into. I looked at the wire connection on the new part to get an idea of how to unplug the old one.
Accountant, Boise, ID
2 people thought this review was helpful.
- Ease of Installation
- Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
Very easy to install
Just 2 screws and plug in. Make sure and check out the colors of wires on plug before disconnecting so you plug it back in the same way. After turning power on push test switch under ice maker to get it started. Takes a few hours to start making ice. Works like new again.
Jim7, Victoria, Texas
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
Ken more Elite icemaker
Install took less than half an hour. I viewed a YouTube video on the installation and it was very simple. The icemaker works perfectly.
Chas, Silver City NM
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Works as advertised!
Works well. It is fairly easy to replace once you empty the freezer and remove the baskets and shelves. It's hard to see where the electrical connection is until you remove the single screw holding the ice maker. BTW there are NO directions with the ice machine so pay attention to how you remove it. Also, before you replace this item recommend replacing the water flow control valve first.
JTJQ, Massachusetts
Did you find this review helpful?
- Ease of Installation
- Difficult
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Perfect replacement
Delivered quickly, exactly like the one we took out, installed easily. Hardest part was getting the right angle to put in the two screws that hold it on. Price was a little less than the one other site I found it on.
Connie, Florida
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
Finally replaced it. 5 minutes to install
Had the old one out twice. It had a stripped gear. Held back spending $150 for the new one but no regrets. Replacement works great. Quiet, makes great ice quick. Filled the bin in 24 hours. Love it.
ESES, Chewelah Wa
1 person thought this review was helpful.
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
