Model # 31517300 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 31517300 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Router Collet Nut 989985-003
#5

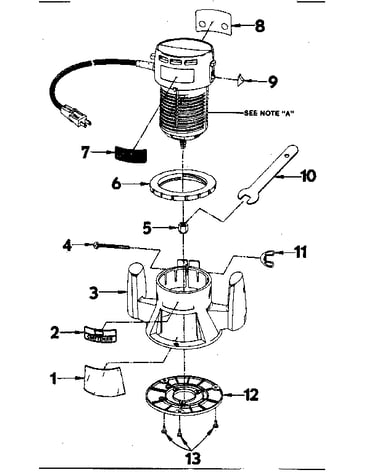

Base assembly diagram

Router collet nut

Part #989985-003

The manufacturer no longer makes this part, and there's no substitute part

Stator Pad 612027-001
#15

Field and armature assembly diagram

Stator pad

Part #612027-001

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate (canadian Users) 998330-001
#7A

Base assembly diagram

Logo plate (canadian users)

Part #998330-001

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 989989-001
#8

Base assembly diagram

Data plate

Part #989989-001

The manufacturer no longer makes this part, and there's no substitute part

Chip Shield 989983-001
#1

Base assembly diagram

Chip shield

Part #989983-001

The manufacturer no longer makes this part, and there's no substitute part

Adapter Plate 25326

#(NI)

All parts diagram

Adapter plate

Part #25326

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 990431-001
#3

Field and armature assembly diagram

Housing assembly

Part #990431-001

The manufacturer no longer makes this part, and there's no substitute part

Armature 989995-001
#12

Field and armature assembly diagram

Armature

Part #989995-001

The manufacturer no longer makes this part, and there's no substitute part

Base Assembly 990430-001
#3

Base assembly diagram

Base assembly

Part #990430-001

The manufacturer no longer makes this part, and there's no substitute part

Adj. Collar 612406-001
#6

Base assembly diagram

Adj. collar

Part #612406-001

The manufacturer no longer makes this part, and there's no substitute part
