Garage Door Opener

Model # 139651500 Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 139651500 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Screw 171A183
#1

Chassis assembly diagram

Screw

Part #171A183

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A15
#45

Chassis assembly diagram

Screw

Part #171A15

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A184
Screw

Part #171A184

The manufacturer no longer makes this part, and there's no substitute part

Bracket 12A197
#24

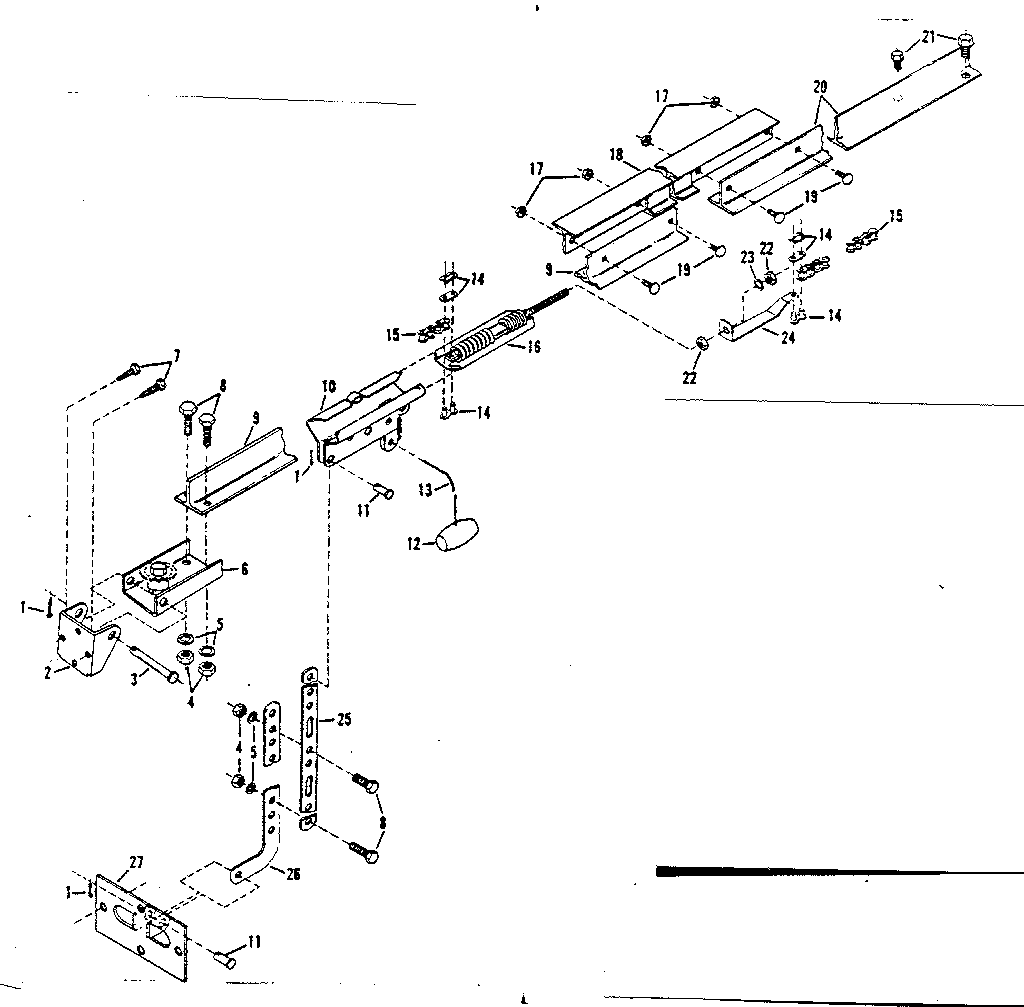

Rail assembly and parts list diagram

Bracket

Part #12A197

The manufacturer no longer makes this part, and there's no substitute part

Clamp 28A60
#52

Chassis assembly diagram

Clamp

Part #28A60

The manufacturer no longer makes this part, and there's no substitute part

Sprkt Idlr 81A9
#8

Chassis assembly diagram

Sprkt idlr

Part #81A9

The manufacturer no longer makes this part, and there's no substitute part

(specify N, W Or X) 1A974-X
#9B

Radio controls and gdo accessories diagram

(specify n, w or x)

Part #1A974-X

The manufacturer no longer makes this part, and there's no substitute part

Pulley 144B6
#30

Chassis assembly diagram

Pulley

Part #144B6

The manufacturer no longer makes this part, and there's no substitute part

T-rail End 183B36
#20

Rail assembly and parts list diagram

T-rail end

Part #183B36

The manufacturer no longer makes this part, and there's no substitute part

Lens 108C10
#16

Chassis assembly diagram

Lens

Part #108C10

The manufacturer no longer makes this part, and there's no substitute part
