Model # 133217540 Official Craftsman compucarve system

Here are the diagrams and repair parts for Official Craftsman 133217540 compucarve system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

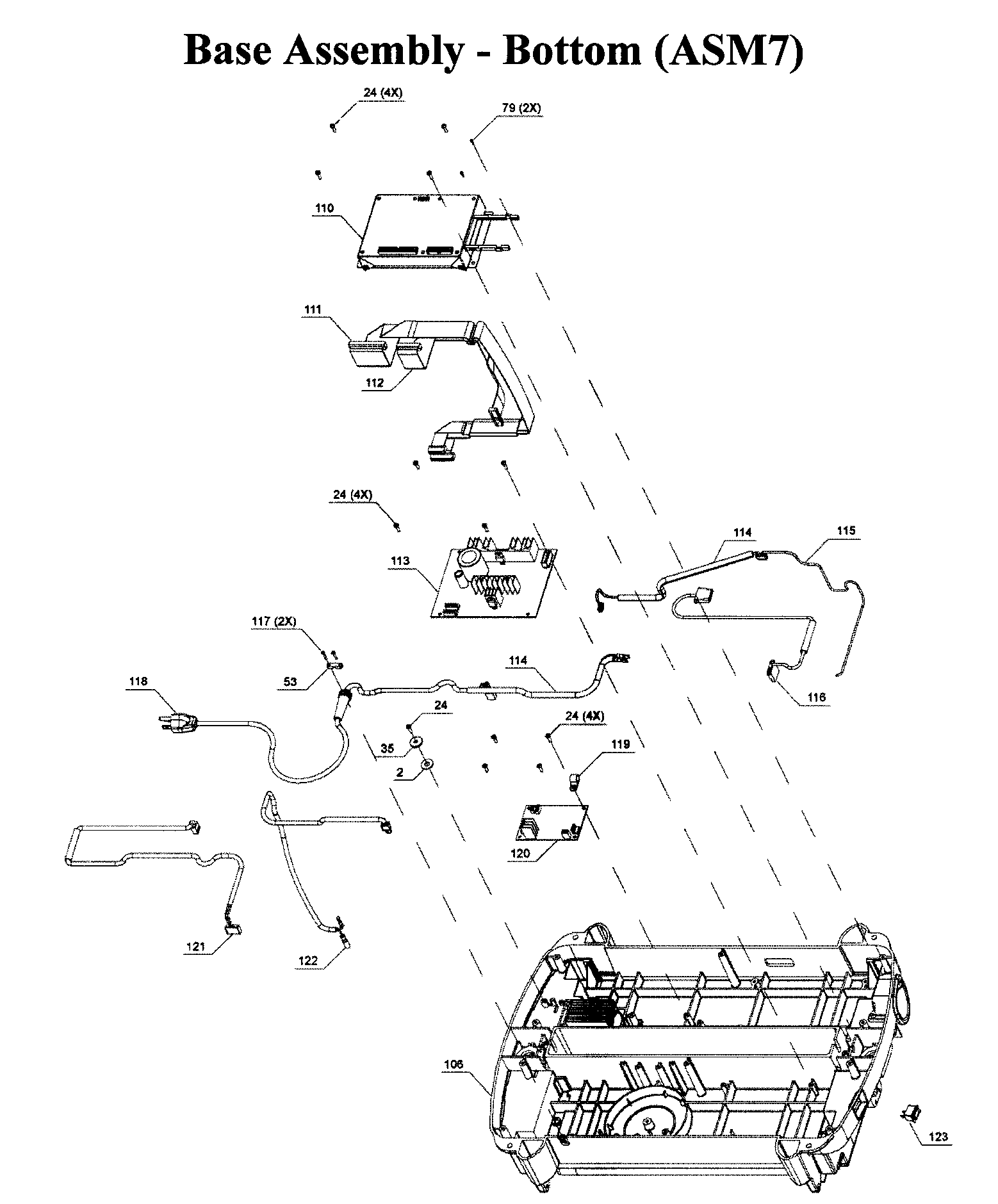

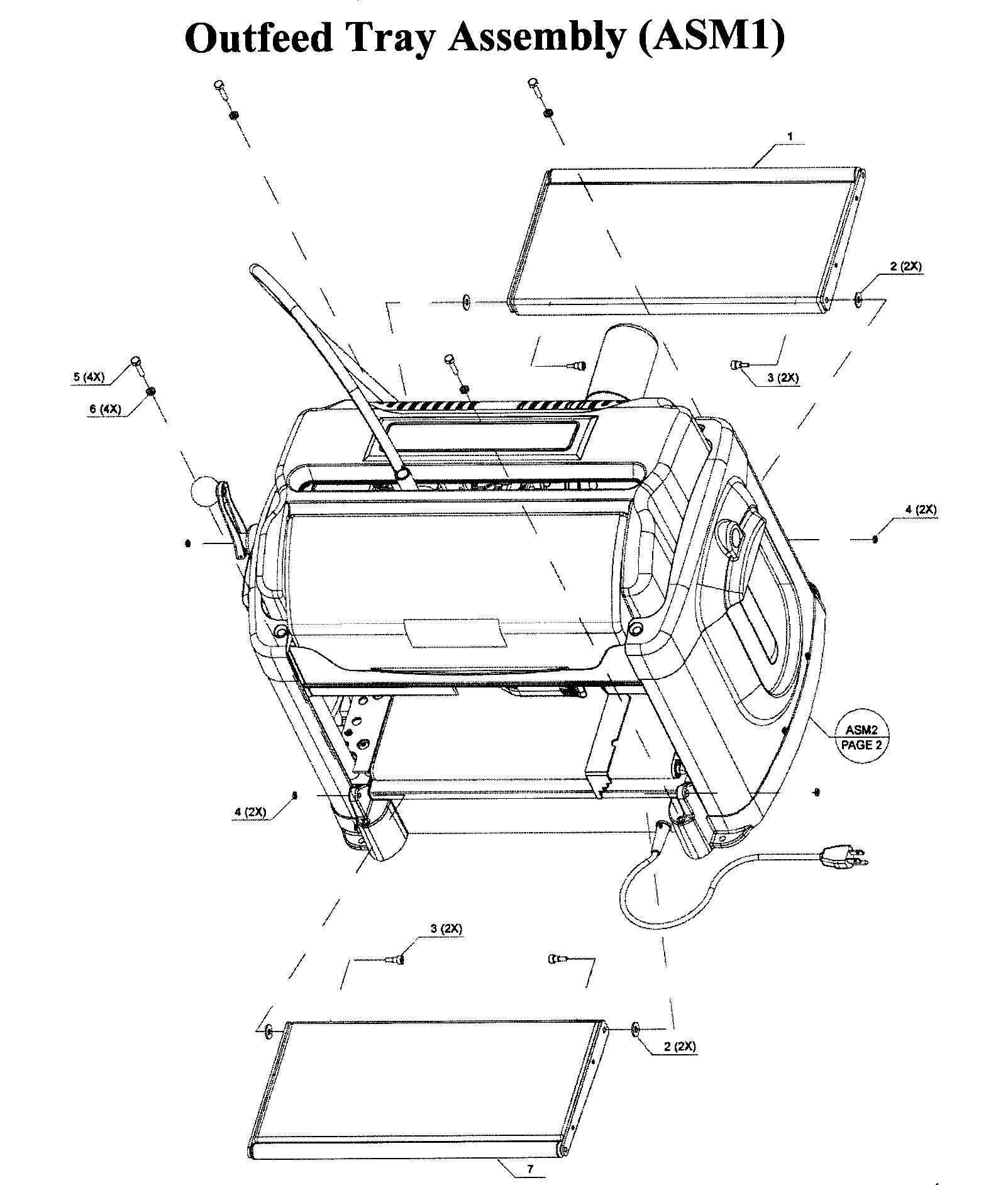

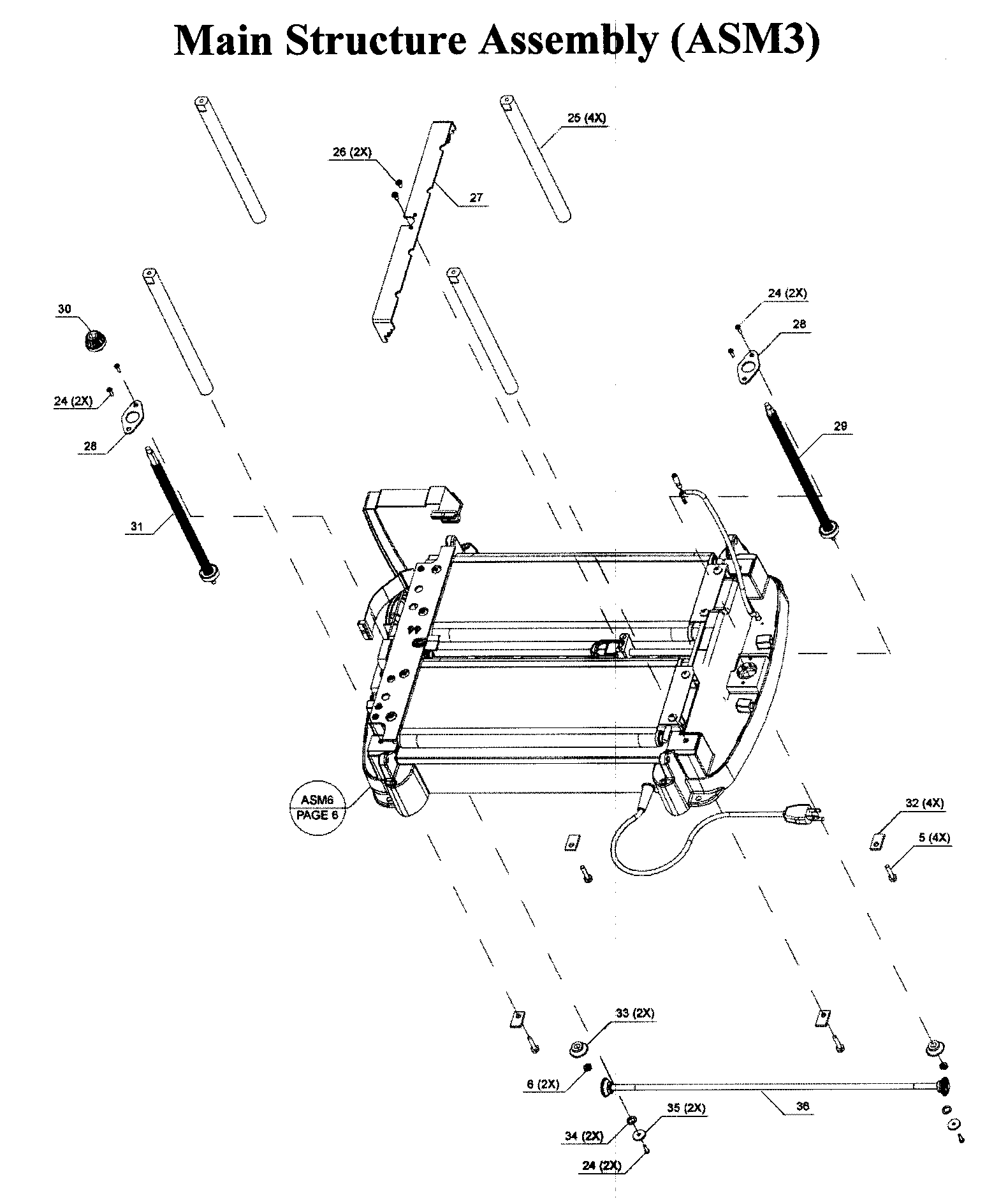

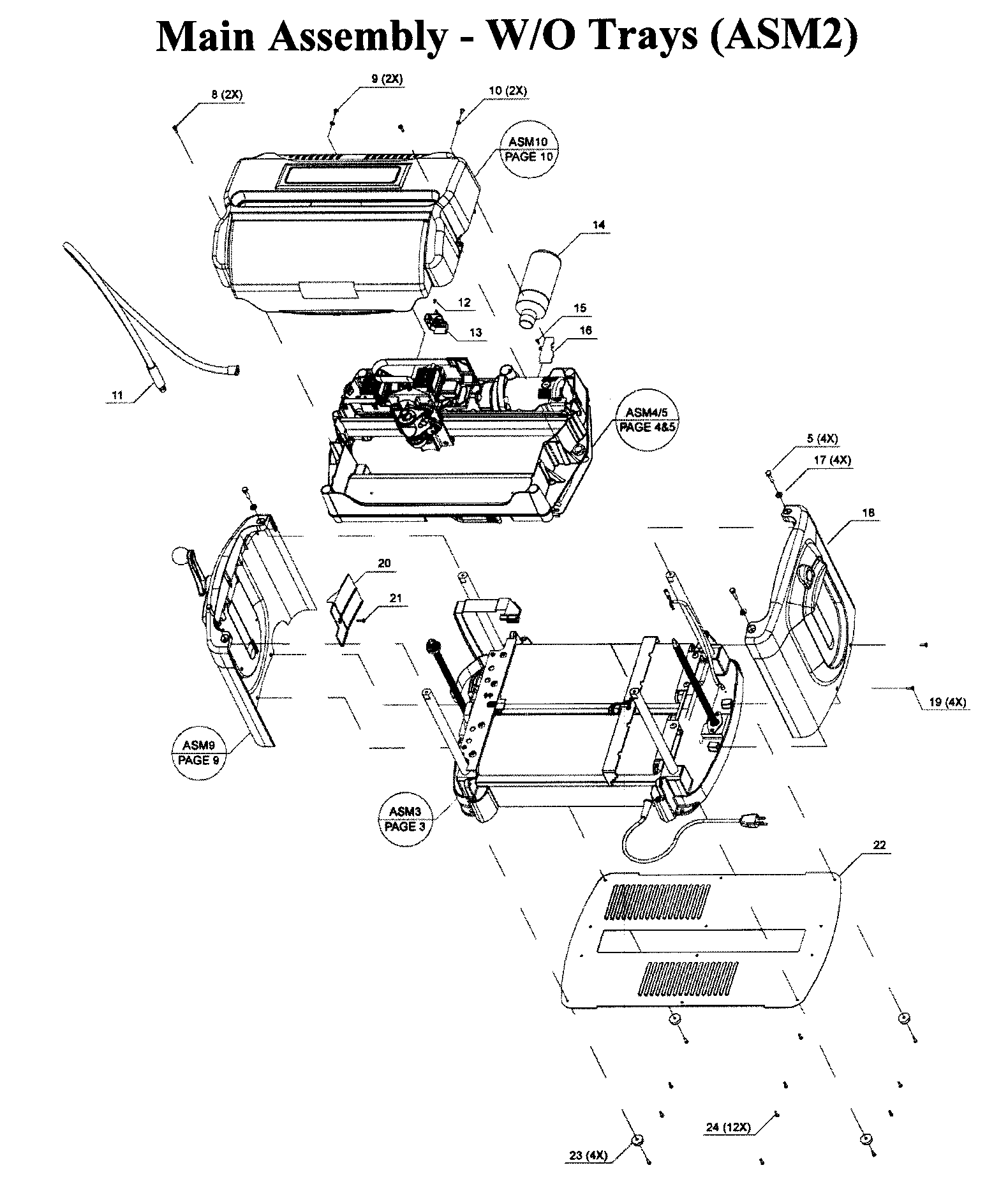

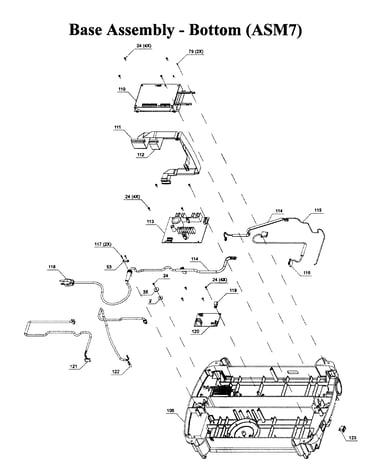

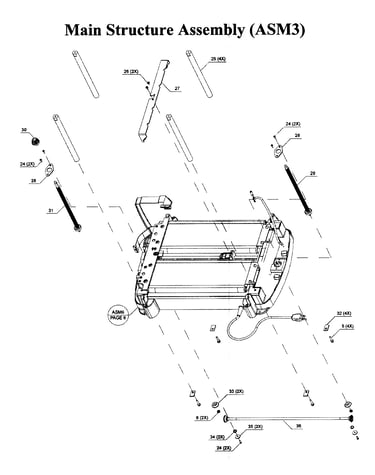

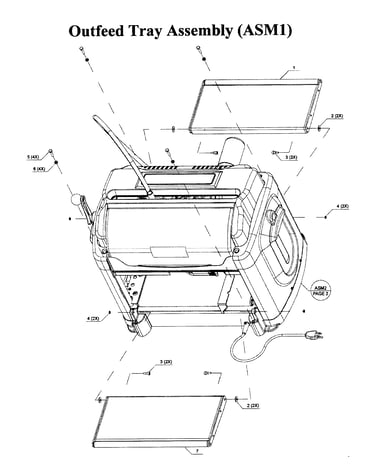

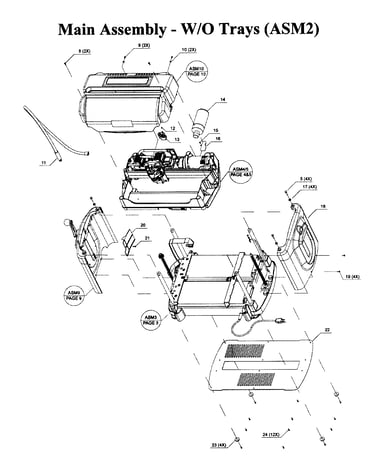

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 179 parts  |
O-ring MWMP1245
#71

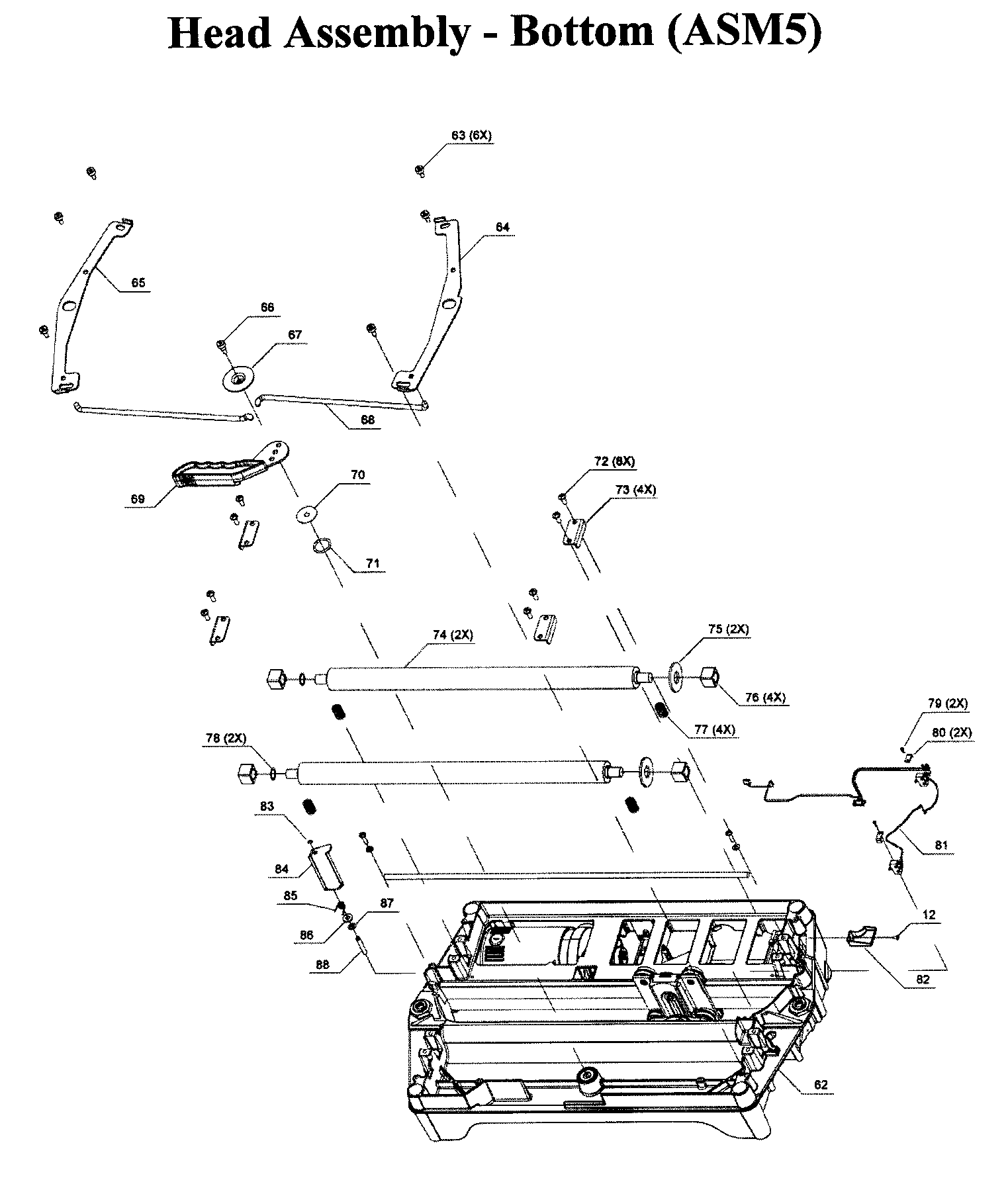

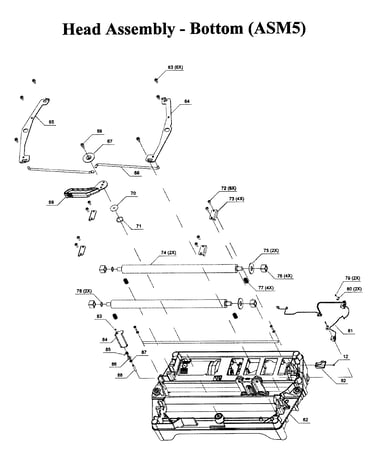

Head ast bottom diagram

O-ring

Part #MWMP1245

The manufacturer no longer makes this part, and there's no substitute part

Screw SCMT-4.0-0.70PA-20AB
#48

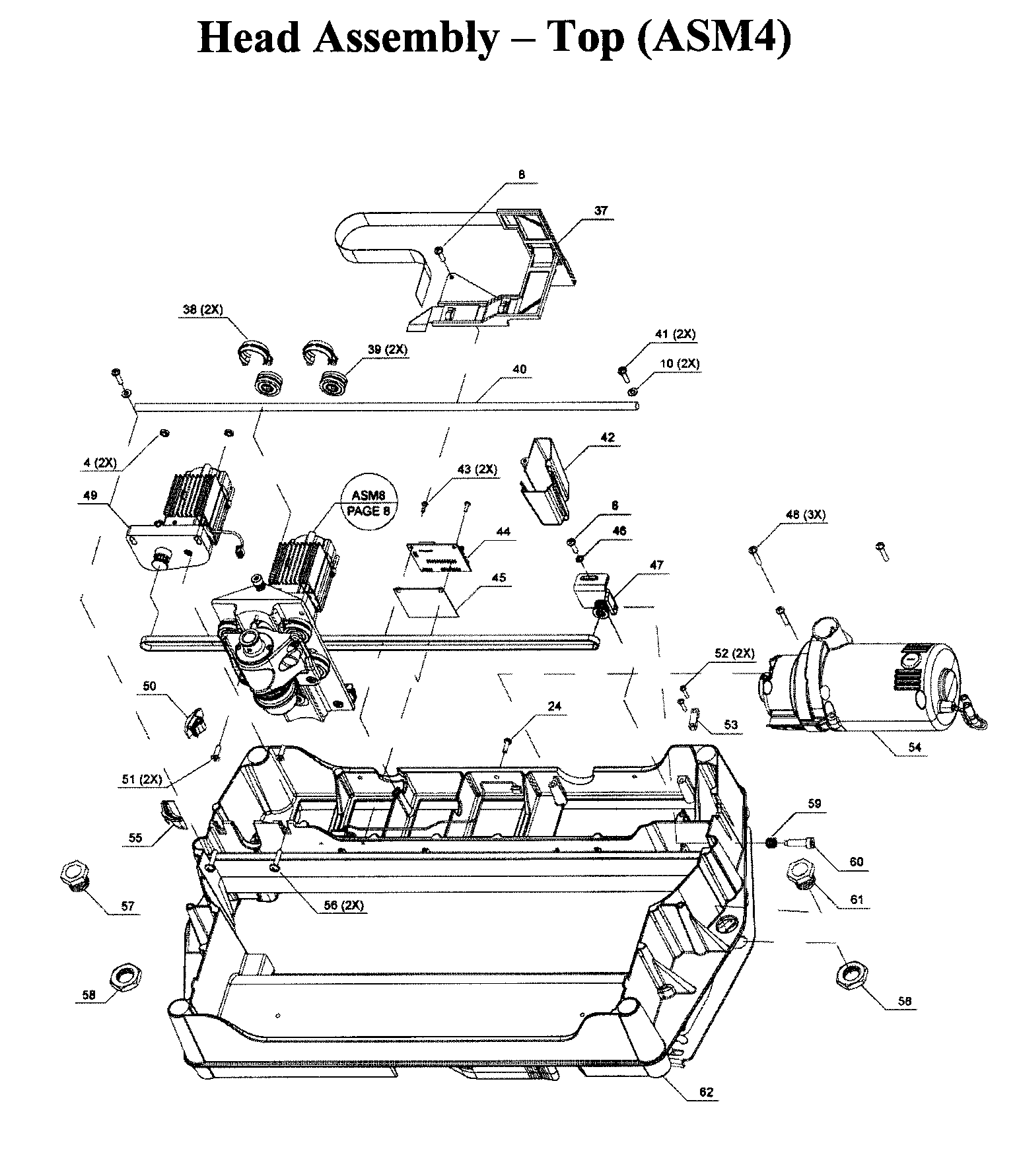

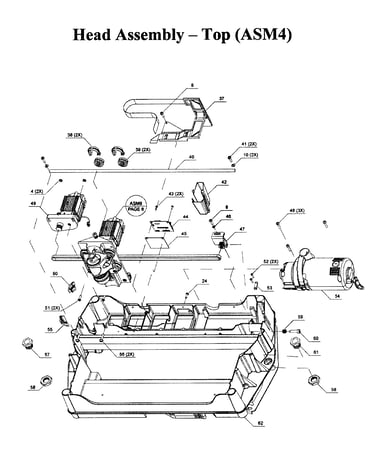

Head asy top diagram

Screw

Part #SCMT-4.0-0.70PA-20AB

The manufacturer no longer makes this part, and there's no substitute part

Screw SCMS-4.5-1.50PA-16AC
#102

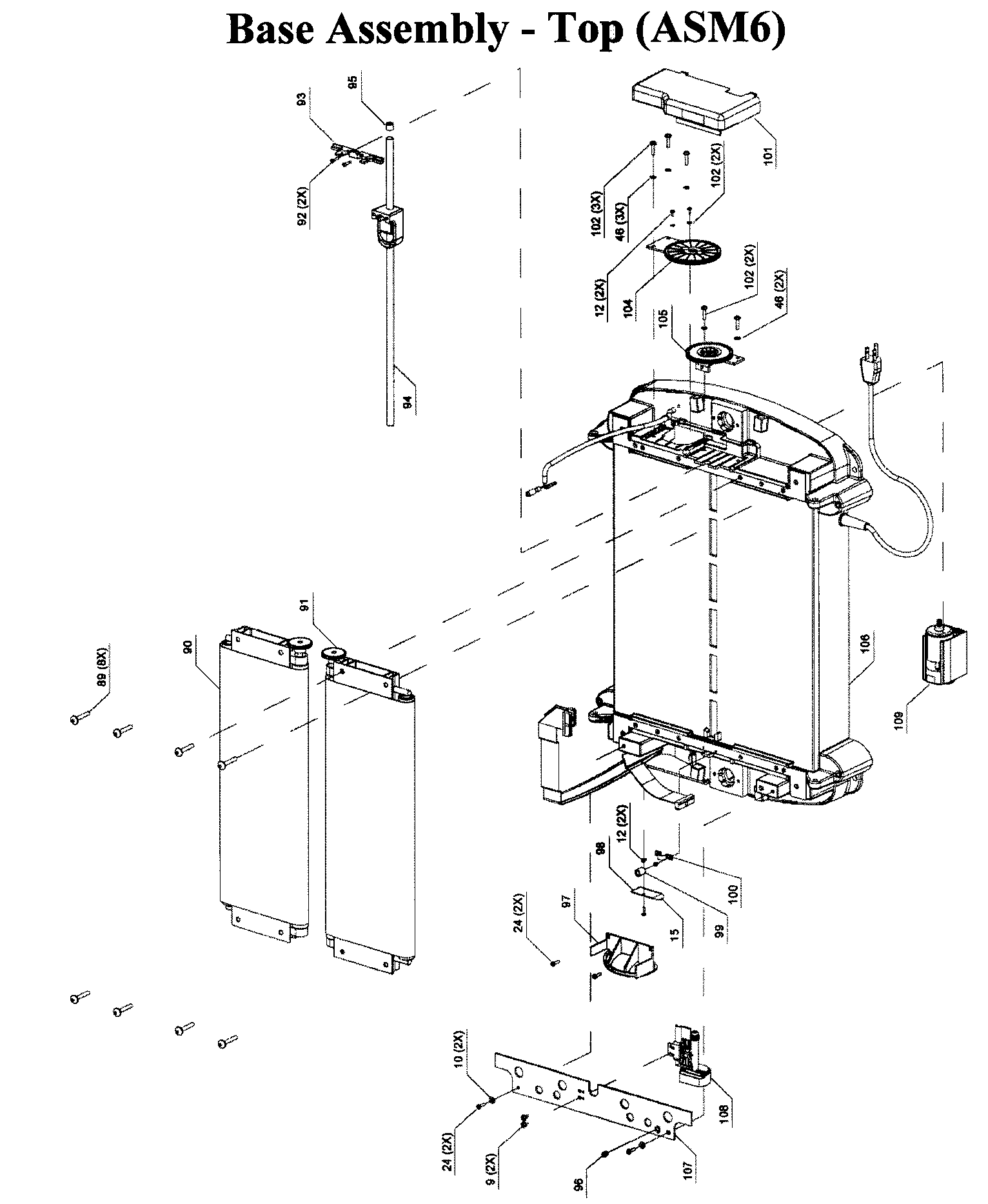

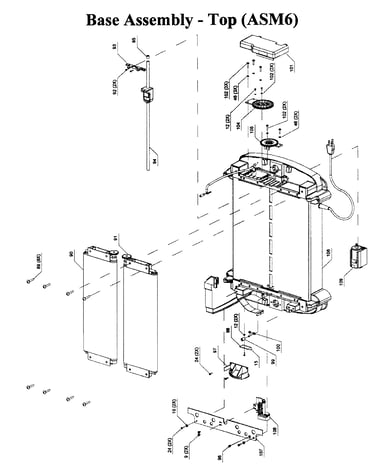

Base asy top diagram

Screw

Part #SCMS-4.5-1.50PA-16AC

The manufacturer no longer makes this part, and there's no substitute part

Ret.clamp MWMP1097
#140

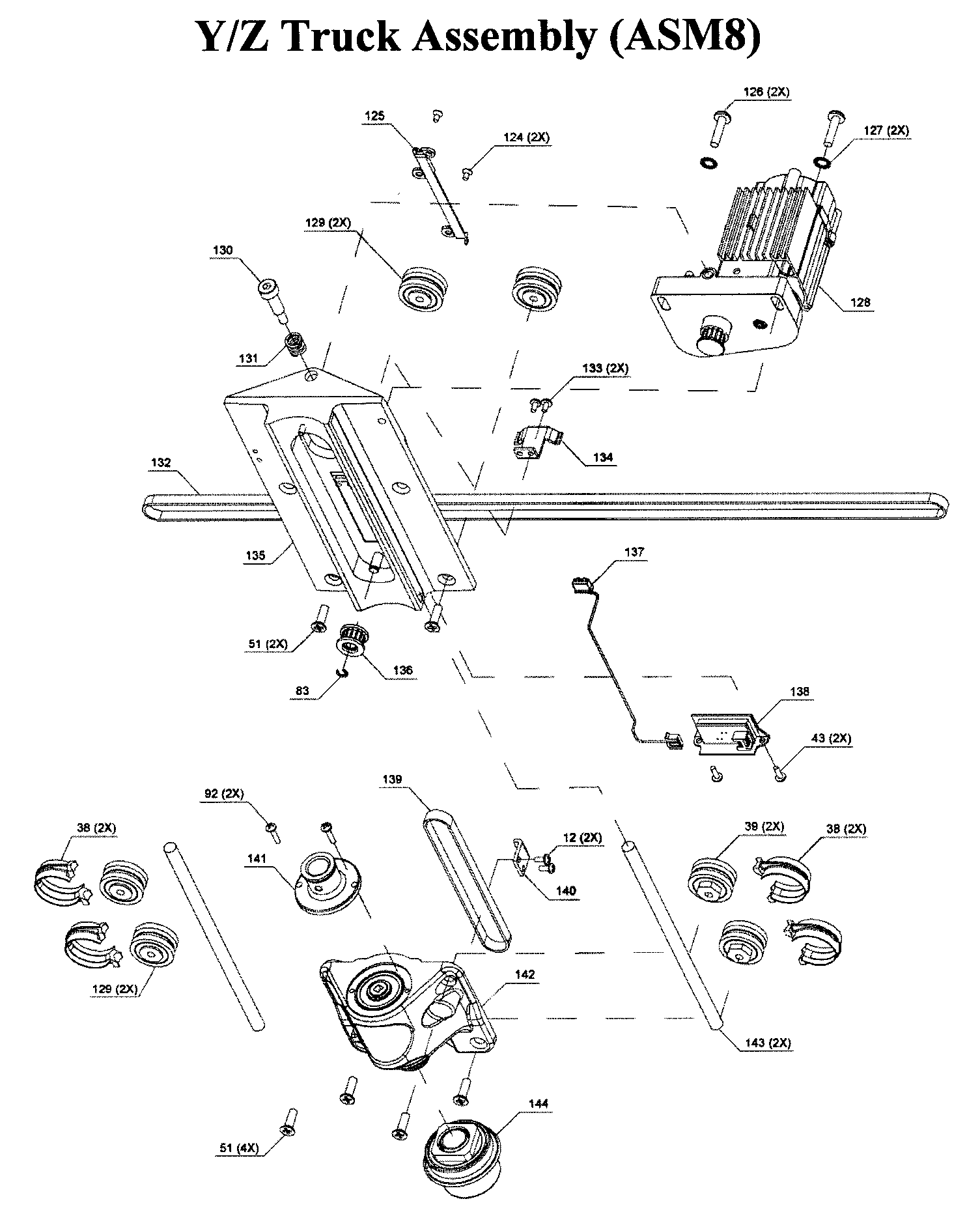

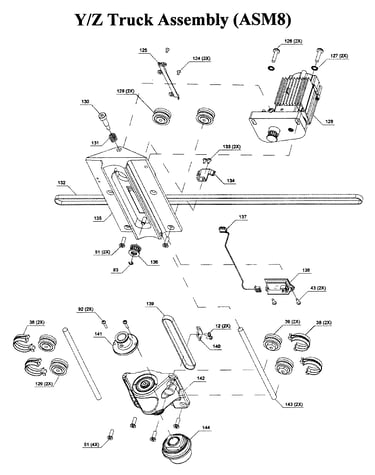

Truck asy diagram

Ret.clamp

Part #MWMP1097

The manufacturer no longer makes this part, and there's no substitute part

Jam Nut MWMP1307
#58

Head asy top diagram

Jam nut

Part #MWMP1307

The manufacturer no longer makes this part, and there's no substitute part

Retainer MWMP1202
#100

Base asy top diagram

Retainer

Part #MWMP1202

The manufacturer no longer makes this part, and there's no substitute part

Washer MWMP1314
#152

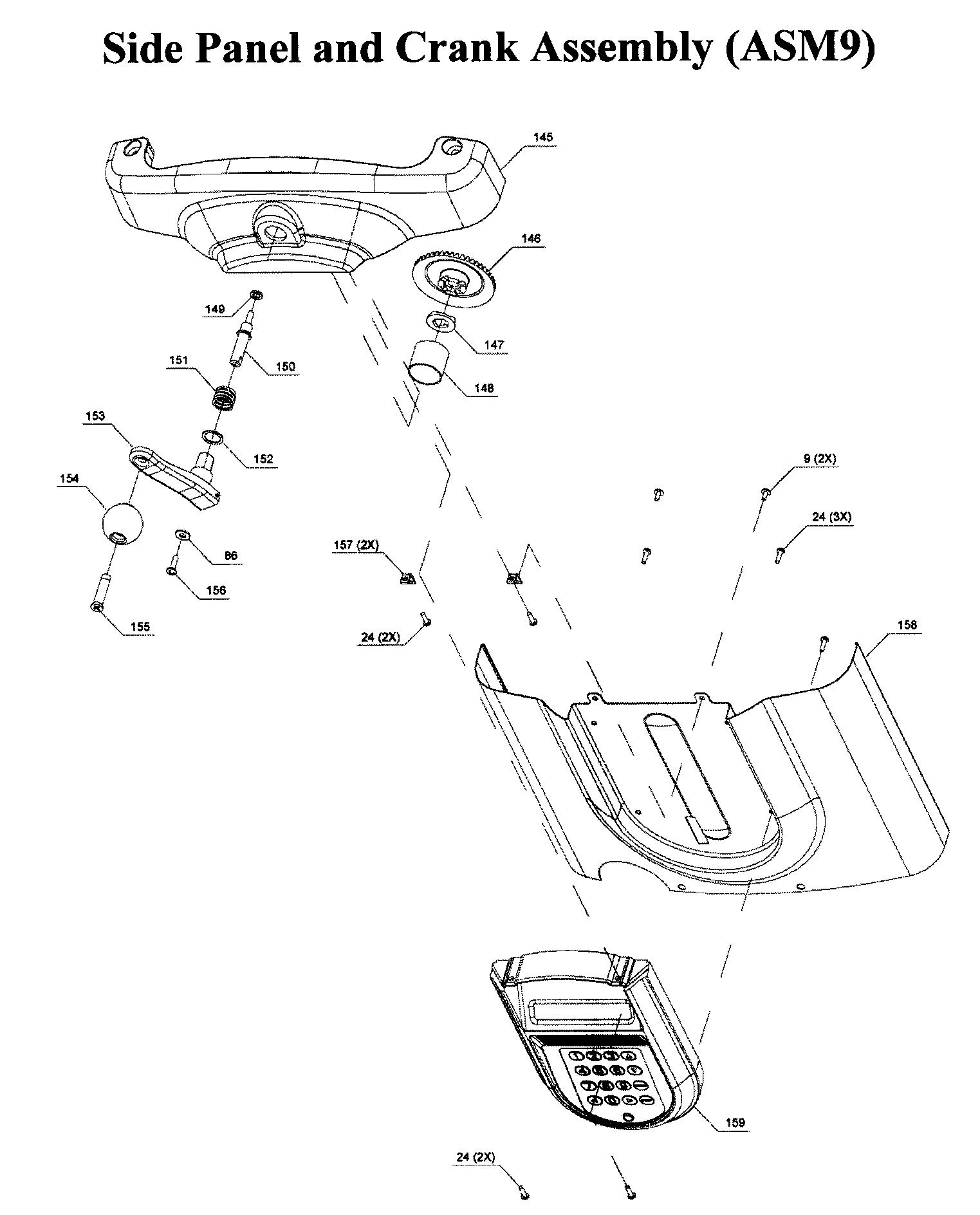

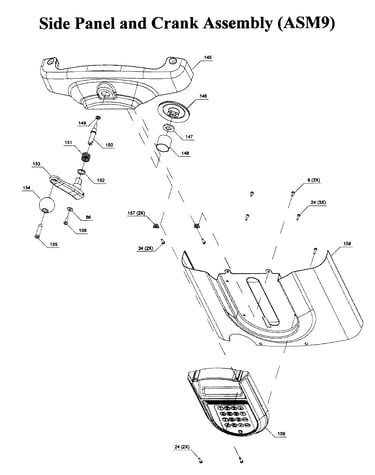

Side panel diagram

Washer

Part #MWMP1314

The manufacturer no longer makes this part, and there's no substitute part

Spring MWMP1303
#95

Base asy top diagram

Spring

Part #MWMP1303

The manufacturer no longer makes this part, and there's no substitute part

Mtr.mount MWMA2052
#49

Head asy top diagram

Mtr.mount

Part #MWMA2052

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch P007-00006
#169

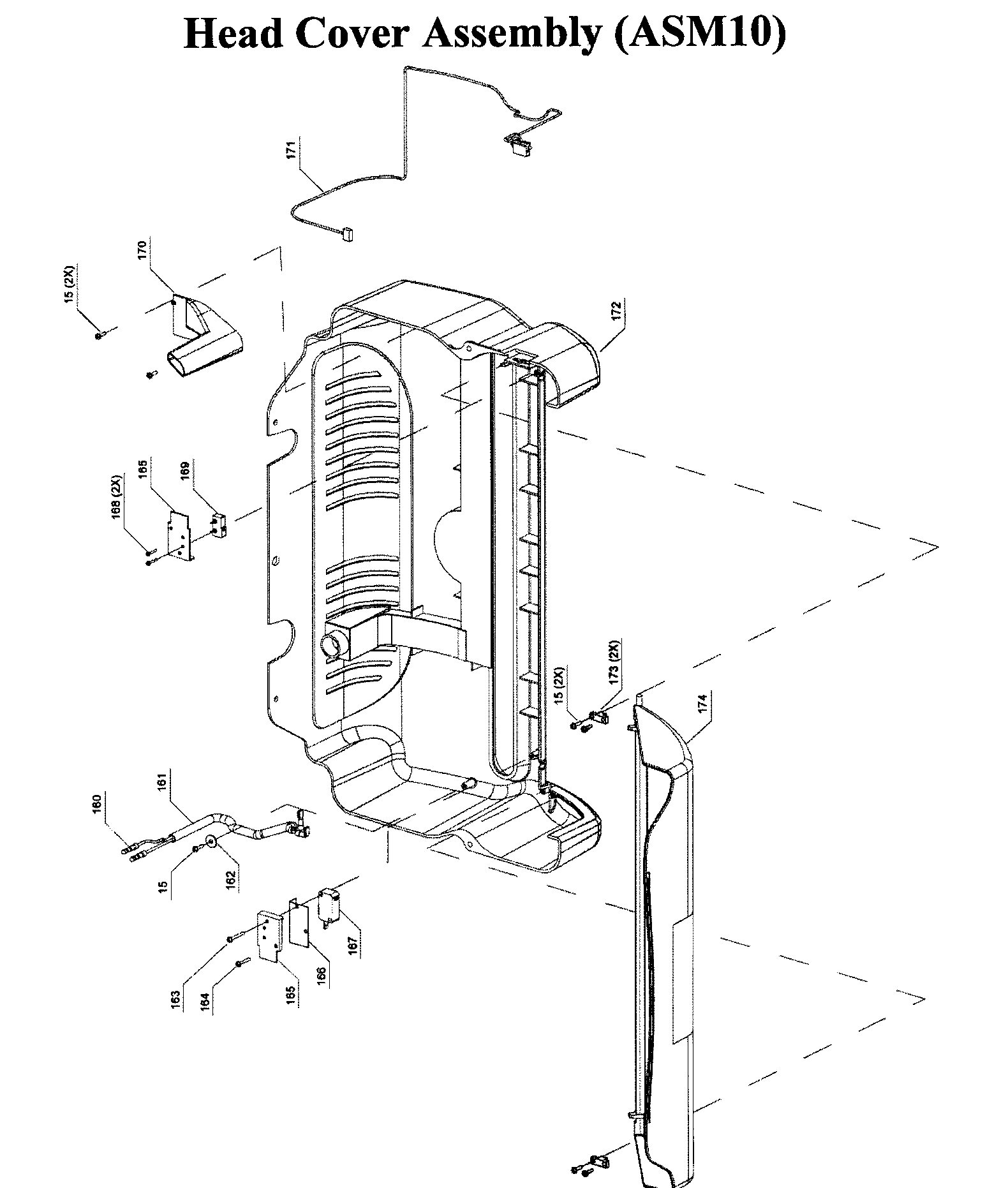

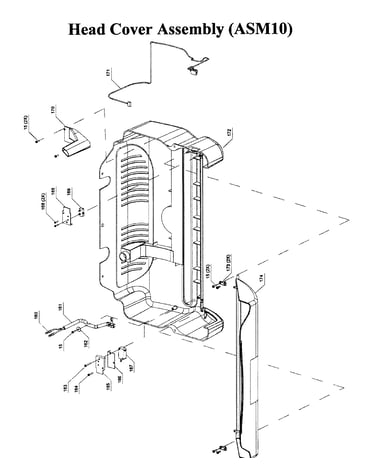

Head cover diagram

Micro-switch

Part #P007-00006

The manufacturer no longer makes this part, and there's no substitute part
