Model # 875198900 Official Craftsman riveter

Here are the diagrams and repair parts for Official Craftsman 875198900 riveter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

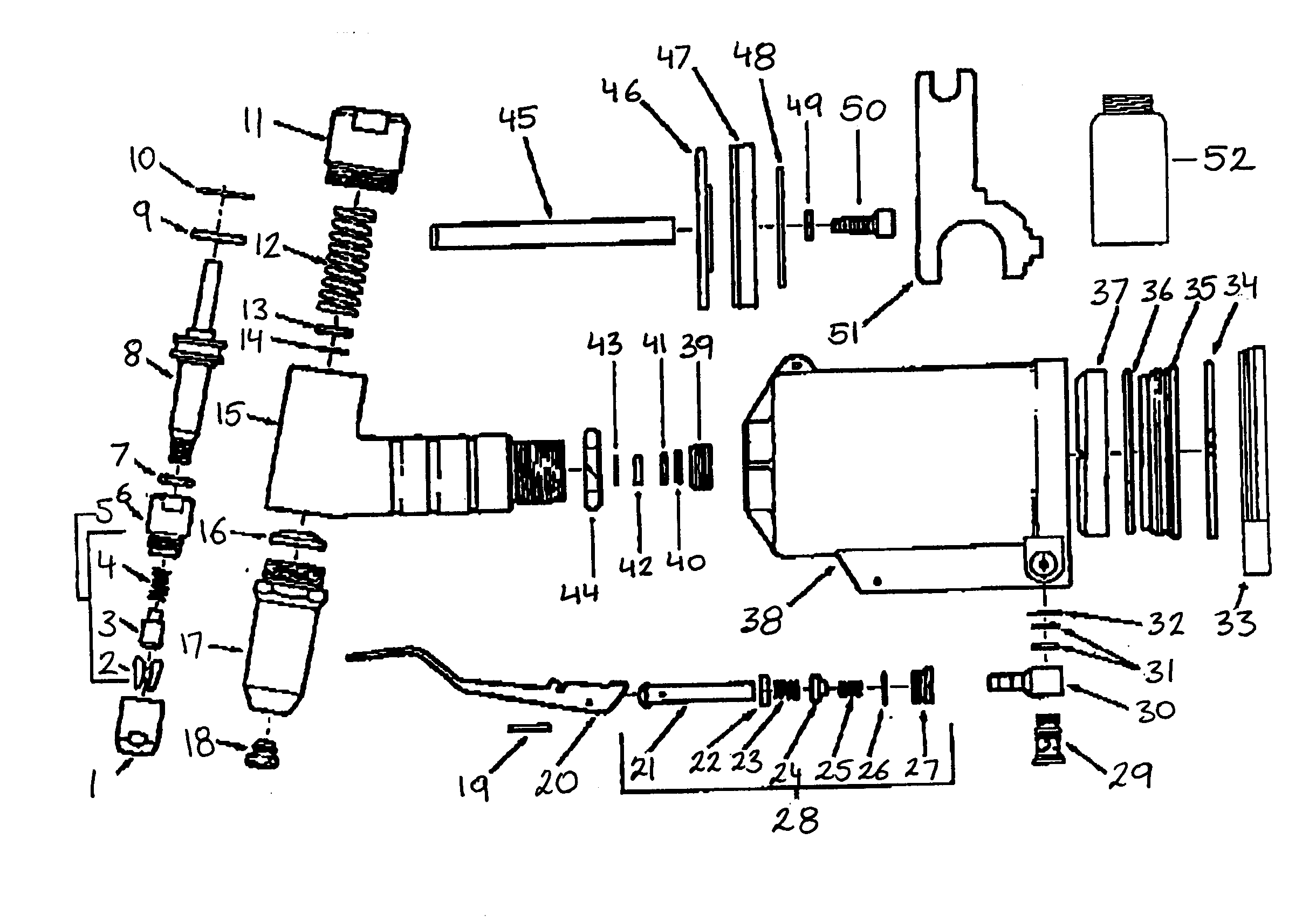

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Craftsman O-ring 9760119
#31

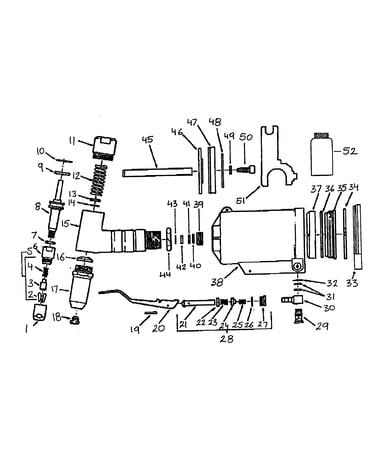

Riveter diagram

Craftsman o-ring

Part #9760119

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Jaw Pusher 9760077
#3

Riveter diagram

Craftsman jaw pusher

Part #9760077

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Inlet Plug 9760120
#29

Riveter diagram

Craftsman inlet plug

Part #9760120

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Lock Nut 9760100
#44

Riveter diagram

Craftsman lock nut

Part #9760100

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Front Pist 9760094
#46

Riveter diagram

Craftsman front pist

Part #9760094

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Ring 9760106
#37

Riveter diagram

Craftsman ring

Part #9760106

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Spring 9760085
#12

Riveter diagram

Craftsman spring

Part #9760085

The manufacturer no longer makes this part, and there's no substitute part

Craftsman O-ring 9760128
#22

Riveter diagram

Craftsman o-ring

Part #9760128

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Guide Wshr 9760102
#43

Riveter diagram

Craftsman guide wshr

Part #9760102

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Plunger Rod 9760104
#45

Riveter diagram

Craftsman plunger rod

Part #9760104

The manufacturer no longer makes this part, and there's no substitute part
