Model # RM978BXVW1 Official Whirlpool electric range

Here are the diagrams and repair parts for Official Whirlpool RM978BXVW1 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

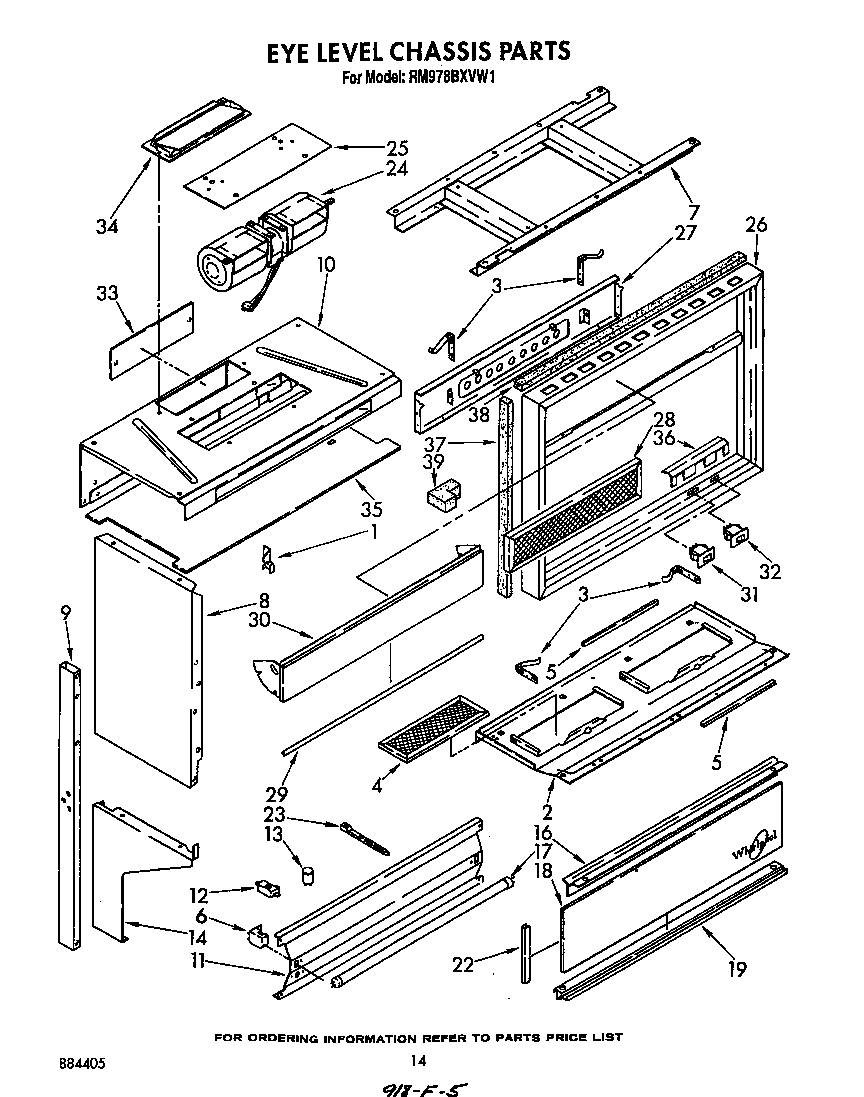

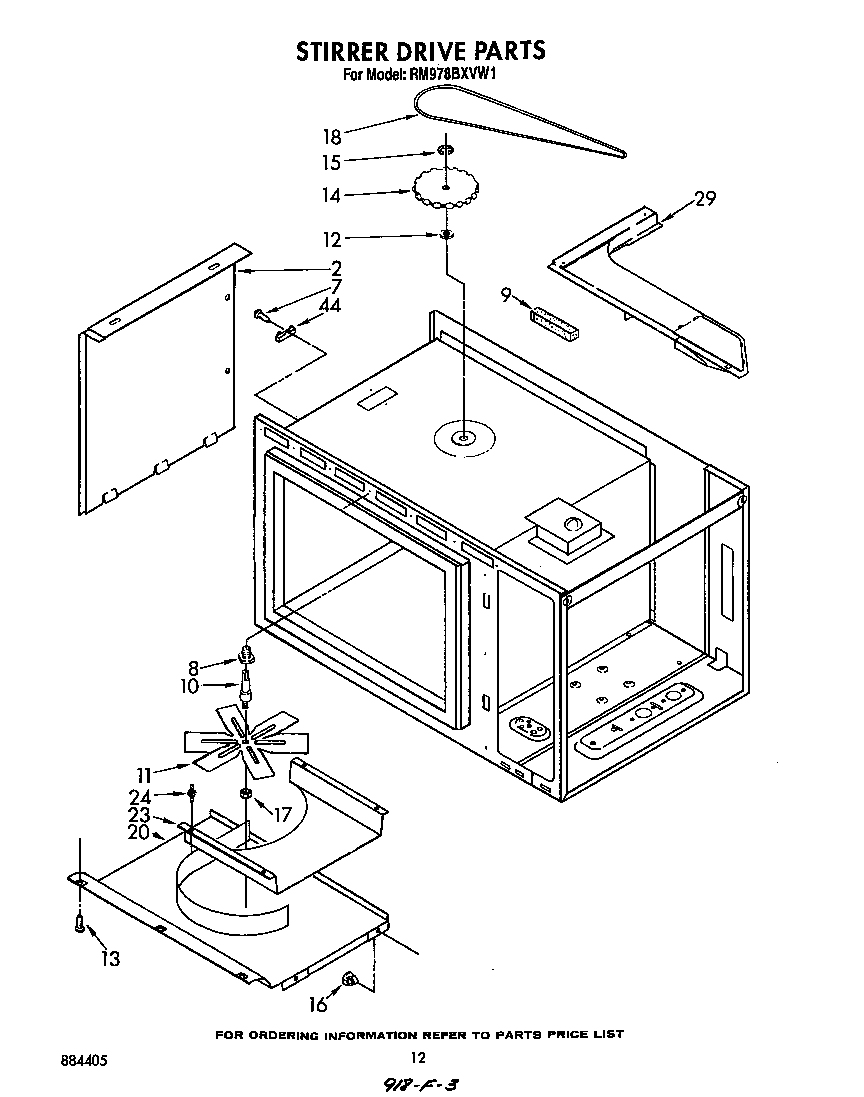

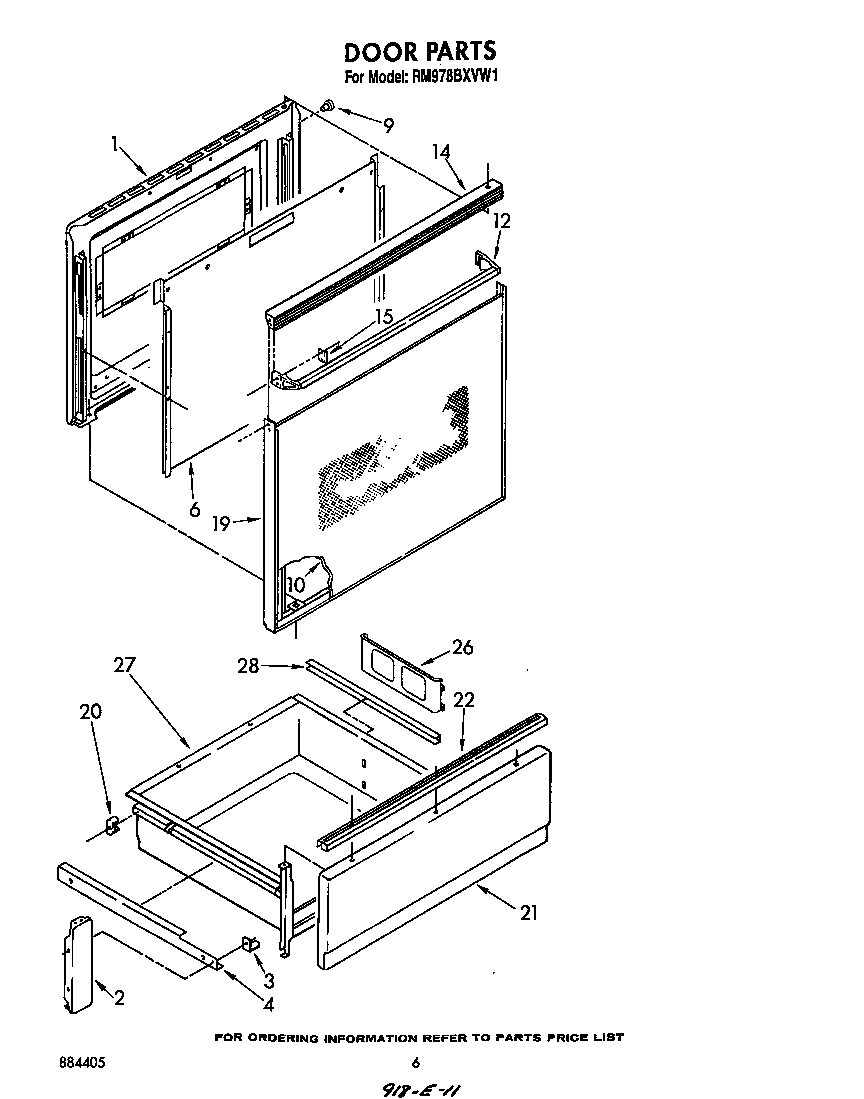

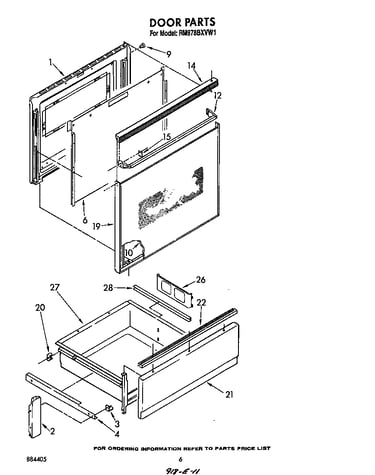

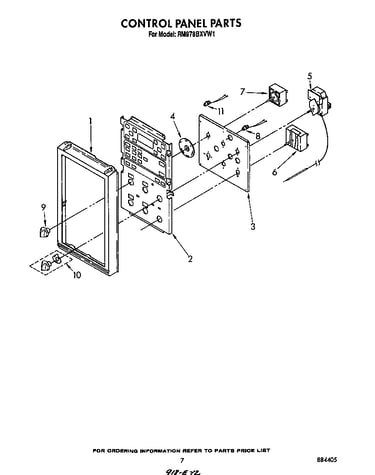

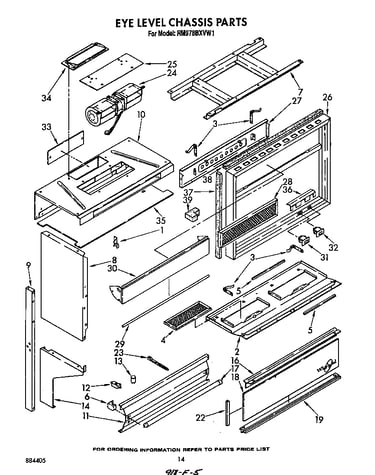

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 347 parts  |
Light Bulb 311255
#11

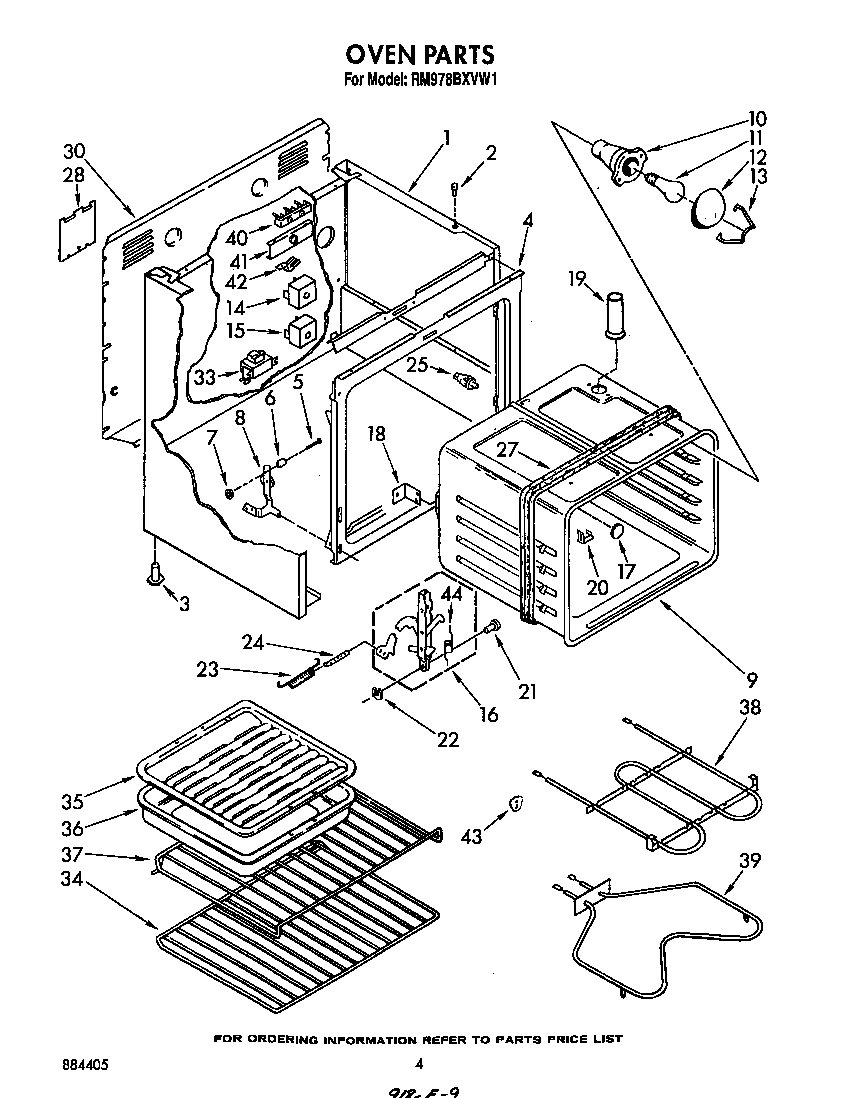

Oven diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Bake Element 661170
#39

Oven diagram

Bake element

Part #661170

Replaced by #WP308180

?
Manufacturer substitution
This part replaces 661170. Substitute parts can look different from the original.
BEST SELLER
$44.81 |
12% OFF Phone Price : $50.81
In Stock
Magnetron 660595
#26

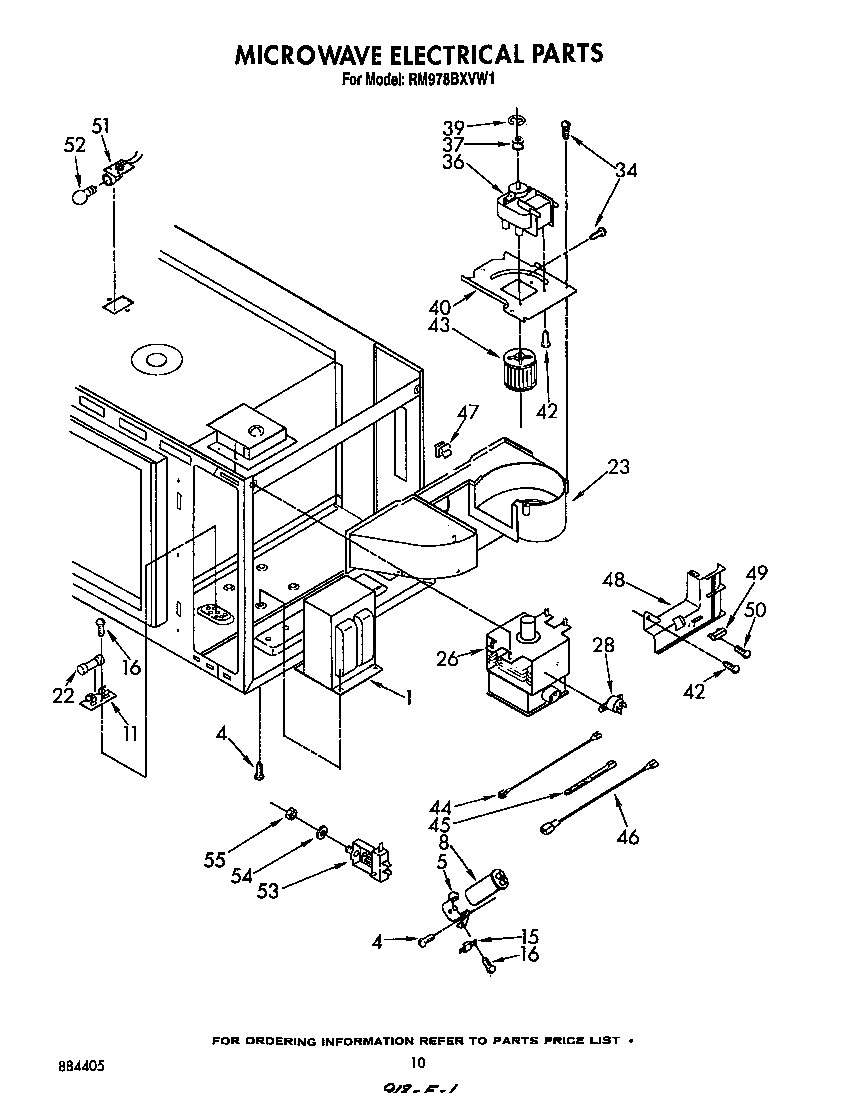

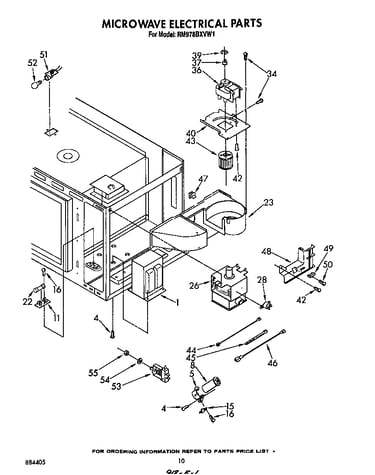

Microwave electrical diagram

Magnetron

Part #660595

The manufacturer no longer makes this part, and there's no substitute part

Screw 313638
Screw

Part #313638

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 313638. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Range Surface Element Receptacle (replaces W10841094) 330031
#25B

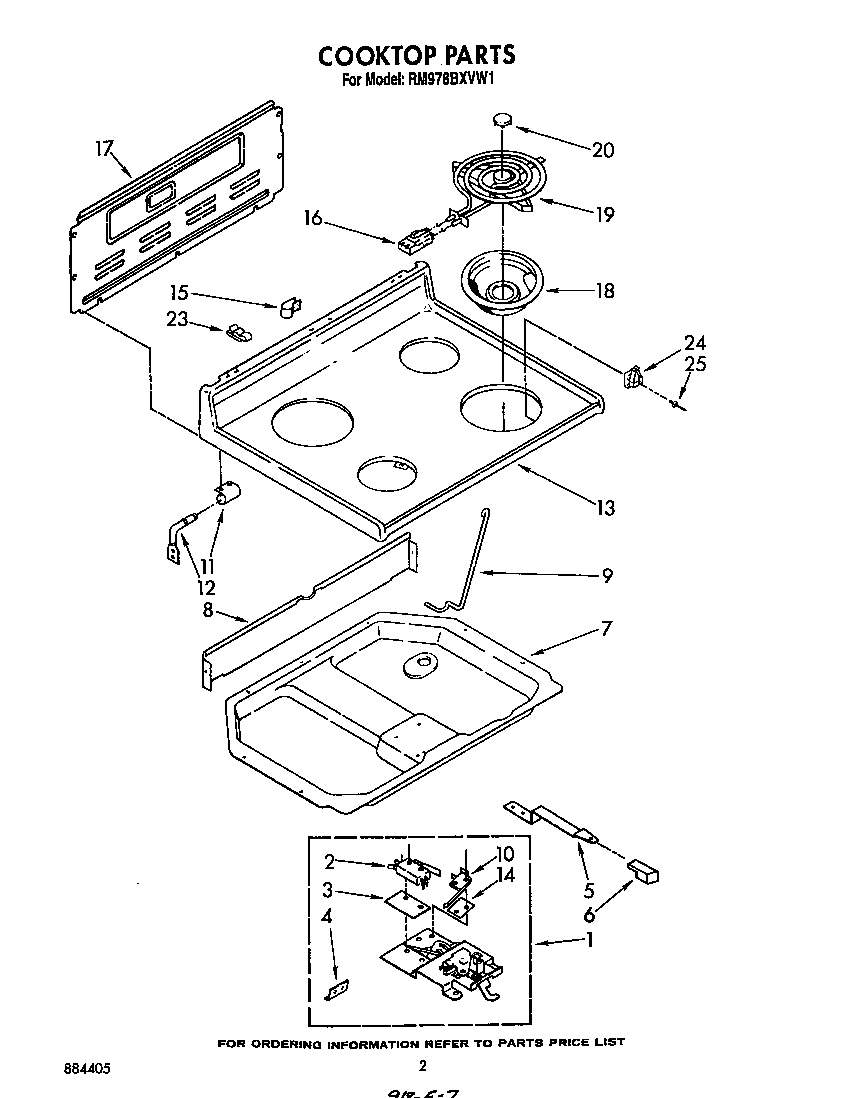

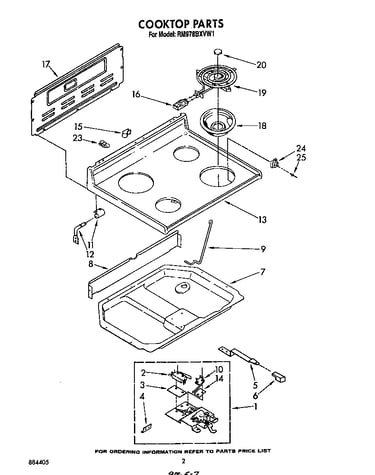

Cooktop diagram

Range surface element receptacle (replaces w10841094)

Part #330031

BEST SELLER
$10.32 |
16% OFF Phone Price : $12.32
In Stock
Appliance Touch-up Paint 72017
#38R

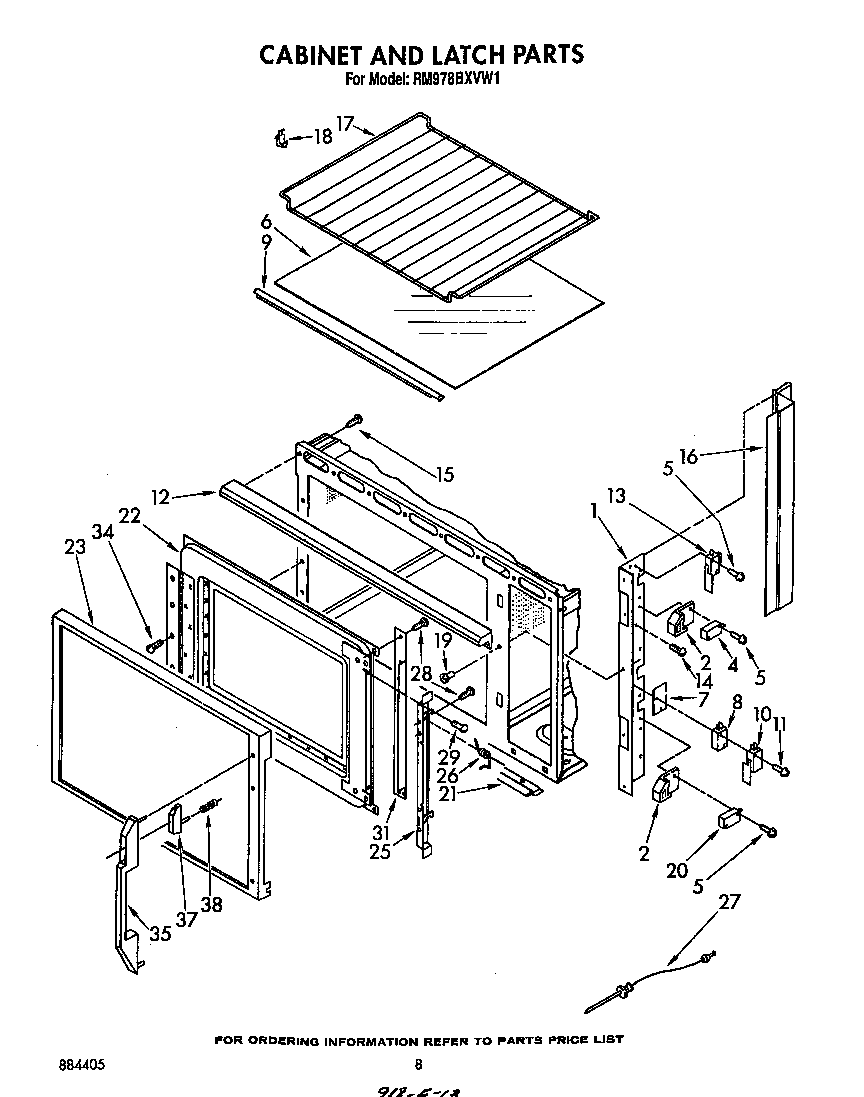

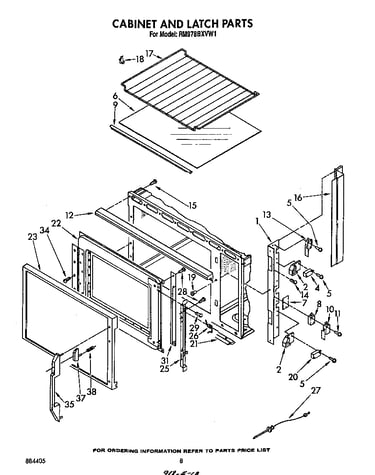

Cabinet and latch diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 799343
#38a

Cabinet and latch diagram

Spray w

Part #799343

Replaced by #350930

?
Manufacturer substitution
This part replaces 799343. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Touchup Al 72107
#38S

Cabinet and latch diagram

Touchup al

Part #72107

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces 72107. Substitute parts can look different from the original.
BEST SELLER
$15.00 |
12% OFF Phone Price : $17.00
In Stock
Adhesive 482338
Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Drip Bowl 3148357
#18A

Cooktop diagram

Drip bowl

Part #3148357

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 3148357. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
