Kenmore
Charcoal Grill

Model # 2581037180 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 2581037180 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Cotter Pin STD560907
#18

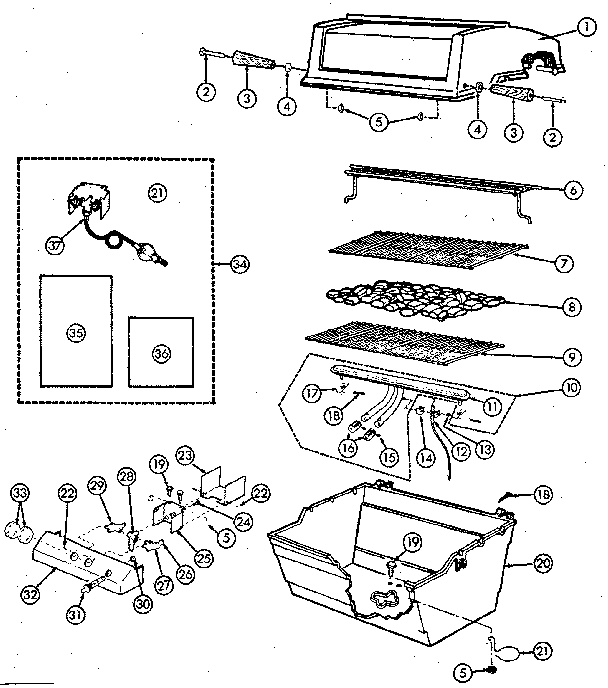

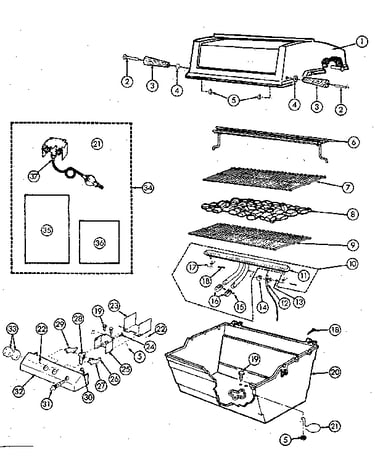

Grill diagram

Cotter pin

Part #STD560907

The manufacturer no longer makes this part, and there's no substitute part

Shelf 10711-115-1
#64

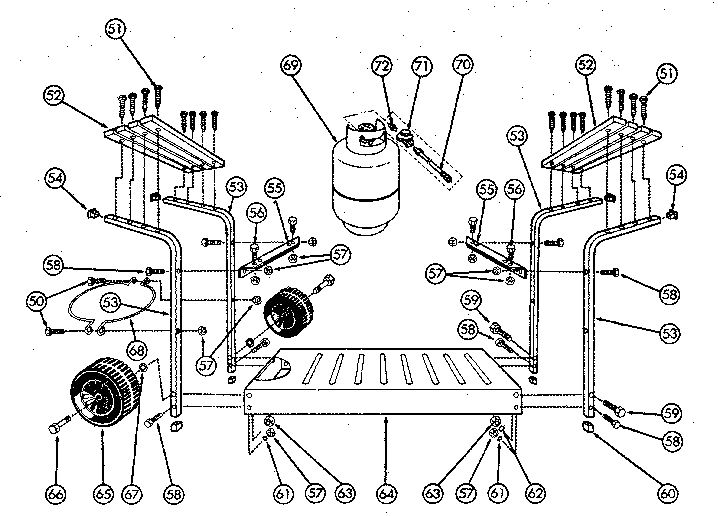

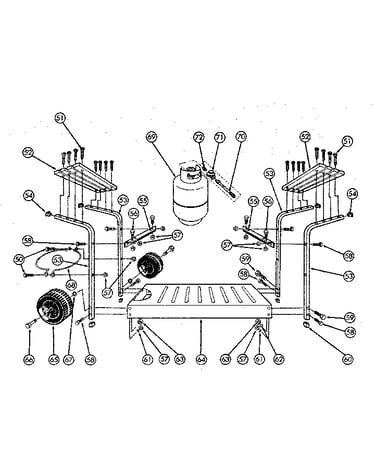

Main frame diagram

Shelf

Part #10711-115-1

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut STD541110
#13

Grill diagram

Hex nut

Part #STD541110

The manufacturer no longer makes this part, and there's no substitute part

Tank Support 10184-248
#68

Main frame diagram

Tank support

Part #10184-248

The manufacturer no longer makes this part, and there's no substitute part

Screw Y-12649
#15

Grill diagram

Screw

Part #Y-12649

The manufacturer no longer makes this part, and there's no substitute part

Board 10711-125
#52

Main frame diagram

Board

Part #10711-125

The manufacturer no longer makes this part, and there's no substitute part

Manifold 10152-29
Manifold

Part #10152-29

The manufacturer no longer makes this part, and there's no substitute part

Bolt STD523715
#59

Main frame diagram

Bolt

Part #STD523715

The manufacturer no longer makes this part, and there's no substitute part

Cup Holder 10578-12
#21

Grill diagram

Cup holder

Part #10578-12

The manufacturer no longer makes this part, and there's no substitute part

Grid 10225-134
#7

Grill diagram

Grid

Part #10225-134

The manufacturer no longer makes this part, and there's no substitute part
