Craftsman
Power Drill

Model # 315101211 Official Craftsman reversing drill

Here are the diagrams and repair parts for Official Craftsman 315101211 reversing drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

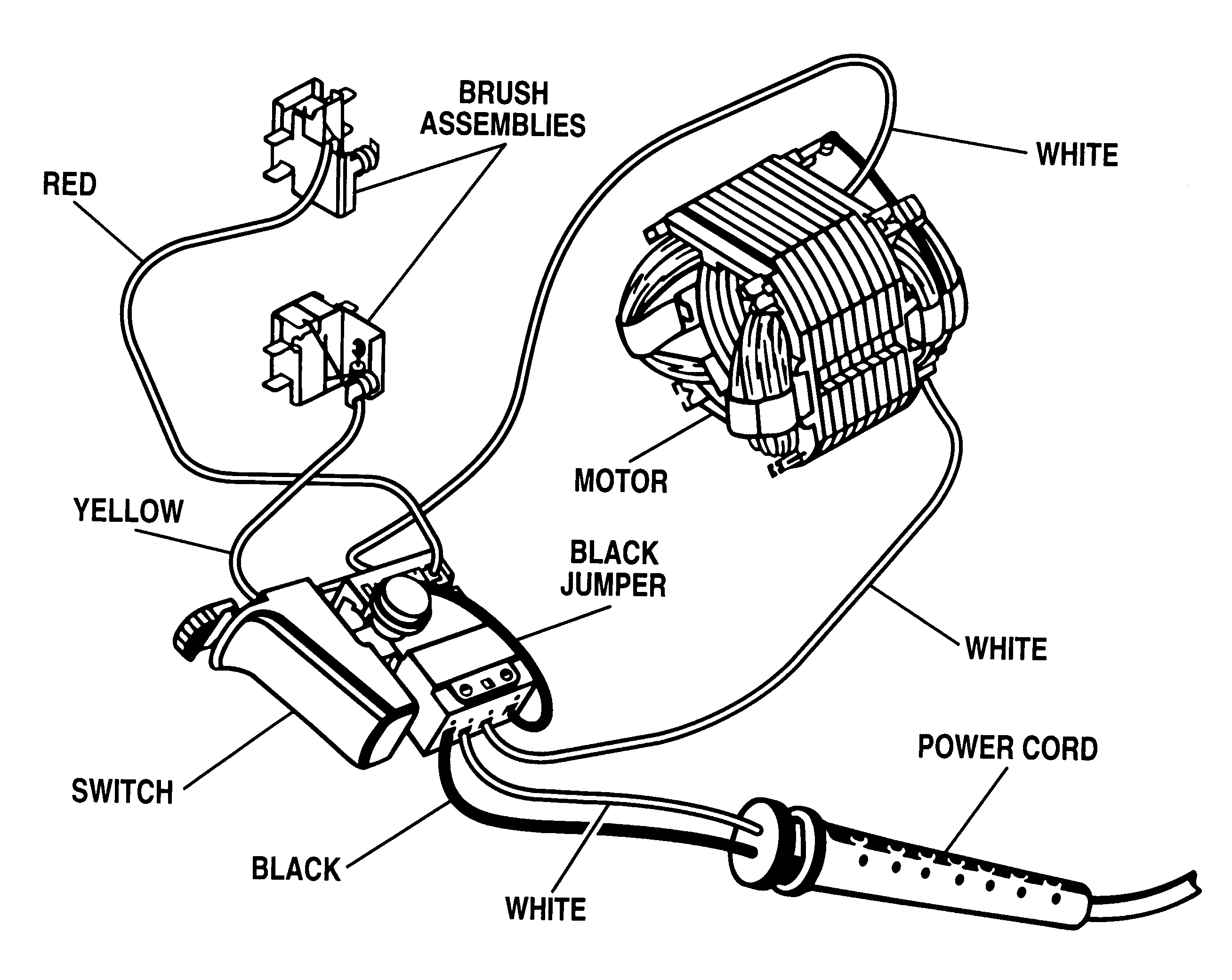

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Chuck 9-2975
#1

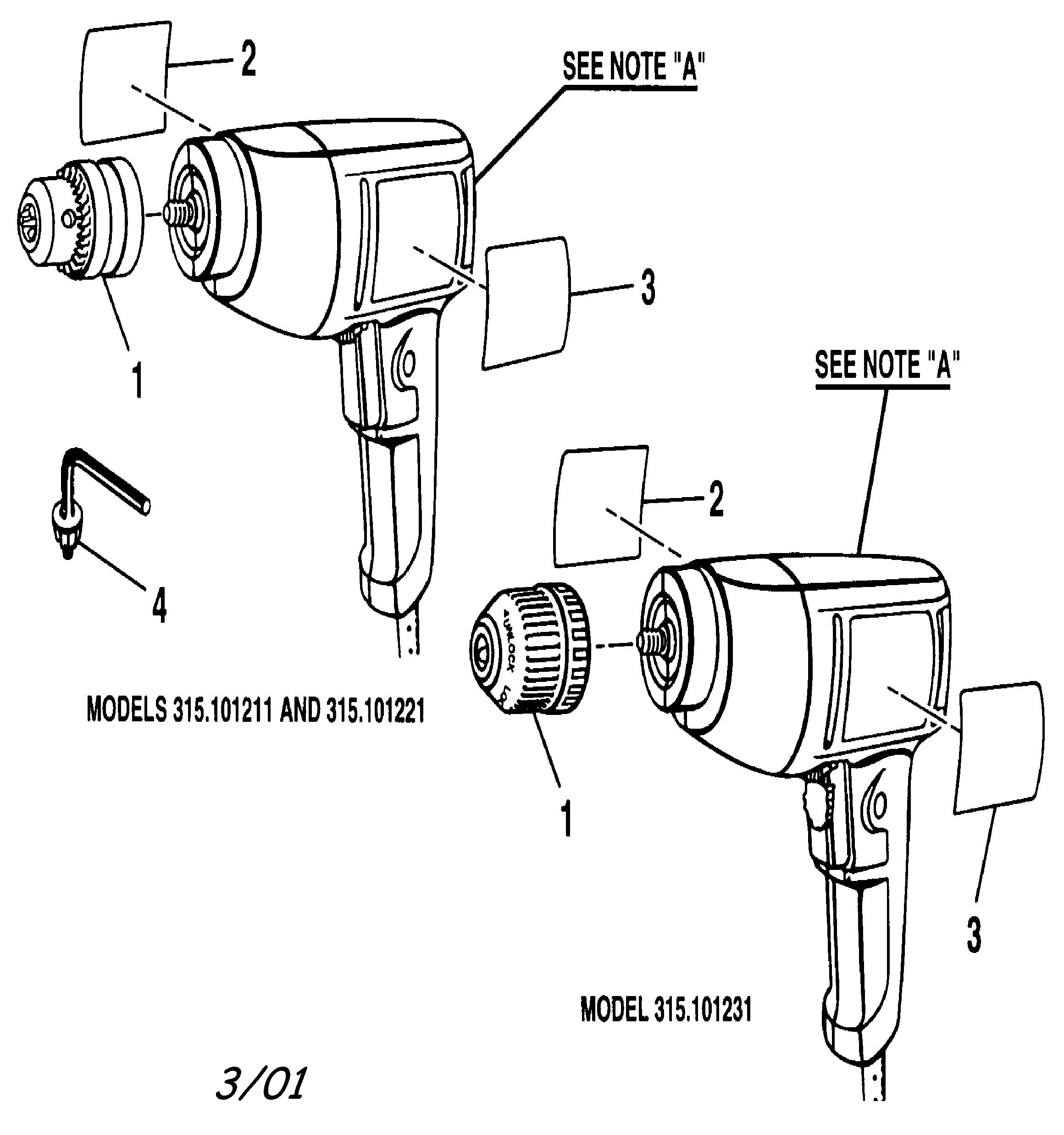

Cabinet diagram

Chuck

Part #9-2975

The manufacturer no longer makes this part, and there's no substitute part

Screw 990908-009
#17

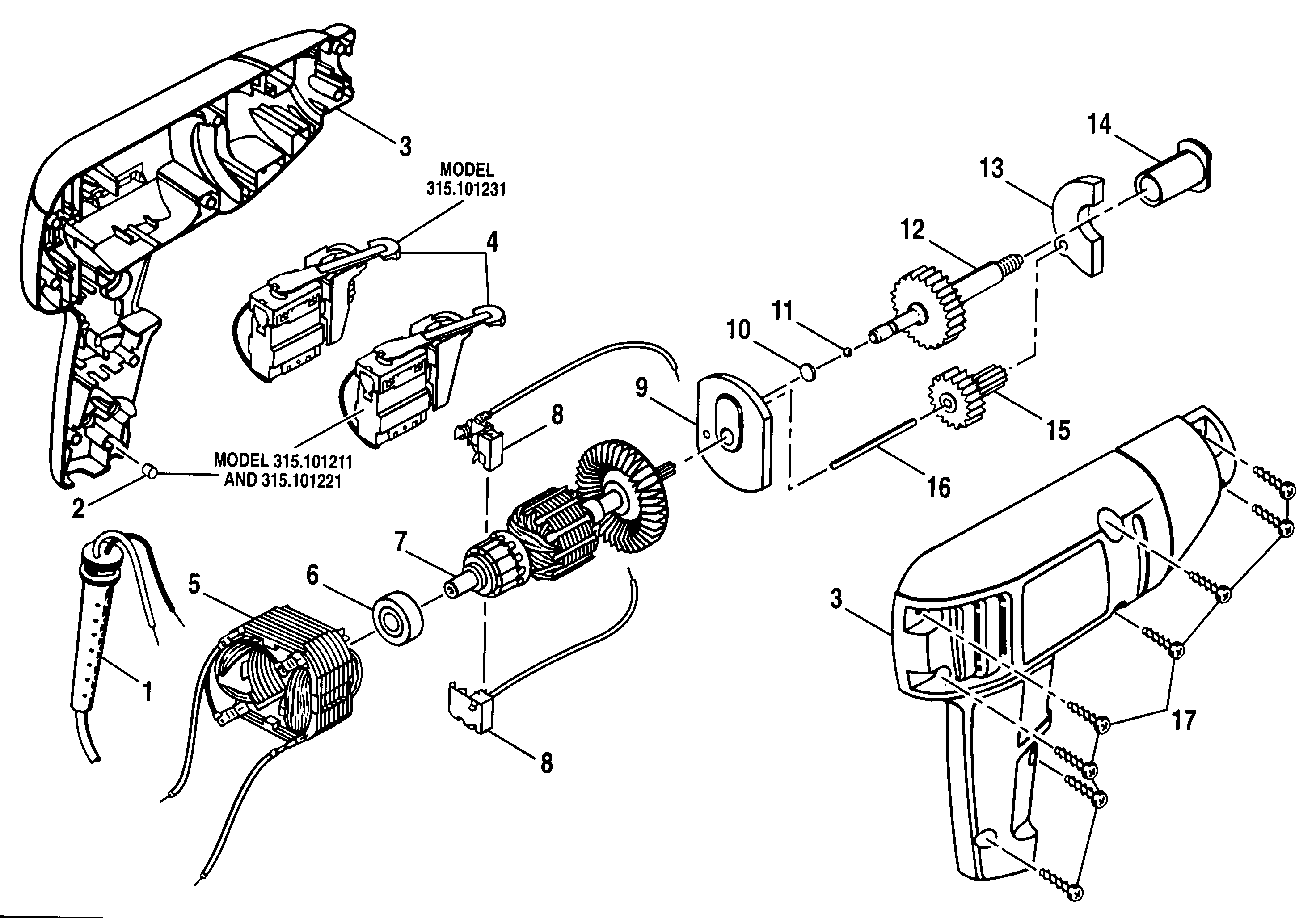

Cabinet parts diagram

Screw

Part #990908-009

The manufacturer no longer makes this part, and there's no substitute part

Armature 982018-001
#7

Cabinet parts diagram

Armature

Part #982018-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 989067-002
#10

Cabinet parts diagram

Washer

Part #989067-002

The manufacturer no longer makes this part, and there's no substitute part

Spdl Gear 972694-001
#12

Cabinet parts diagram

Spdl gear

Part #972694-001

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 982207-001
#2

Cabinet diagram

Data plate

Part #982207-001

The manufacturer no longer makes this part, and there's no substitute part

R Plug 623019-003
#2

Cabinet parts diagram

R plug

Part #623019-003

The manufacturer no longer makes this part, and there's no substitute part

Br Assy 969603-000
#8

Cabinet parts diagram

Br assy

Part #969603-000

The manufacturer no longer makes this part, and there's no substitute part

Chuck 9-20988
#1A

Cabinet diagram

Chuck

Part #9-20988

The manufacturer no longer makes this part, and there's no substitute part

Field 982019-001
#5

Cabinet parts diagram

Field

Part #982019-001

The manufacturer no longer makes this part, and there's no substitute part

Parts & More
