Craftsman
Front-Engine Lawn Tractor

Model # 917276621 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 917276621 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

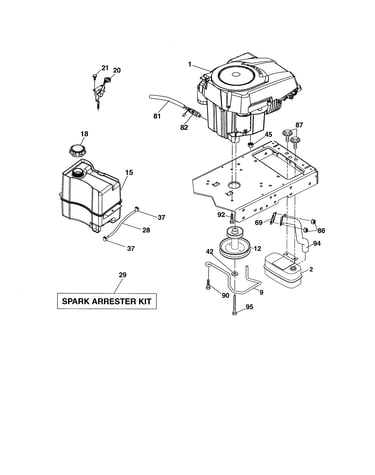

  View engine

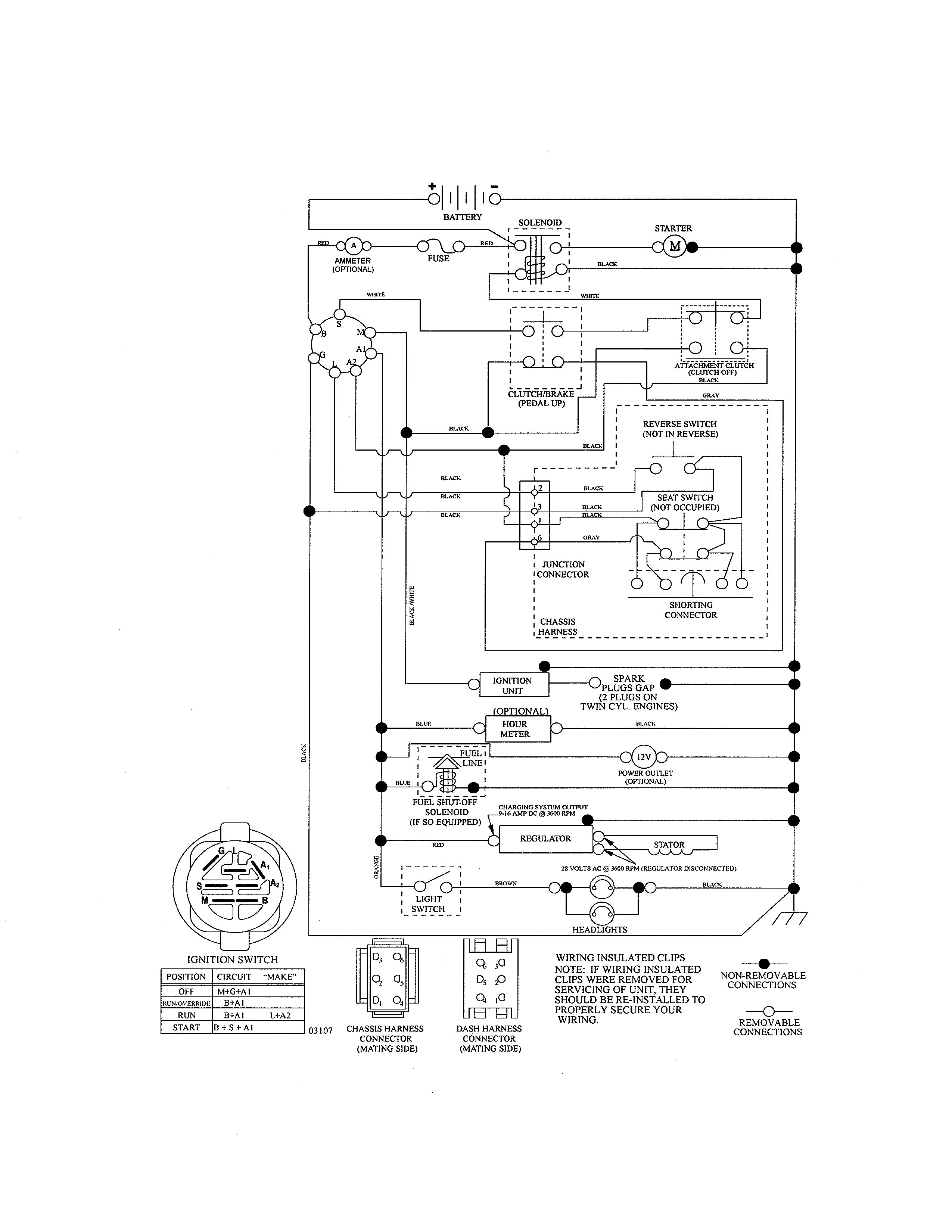

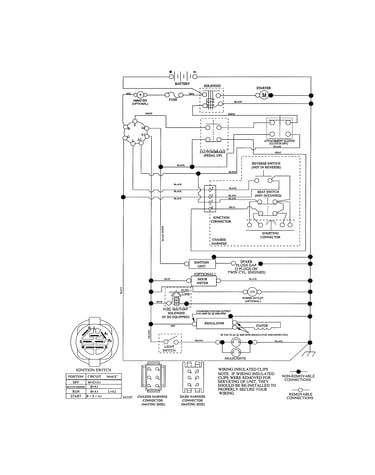

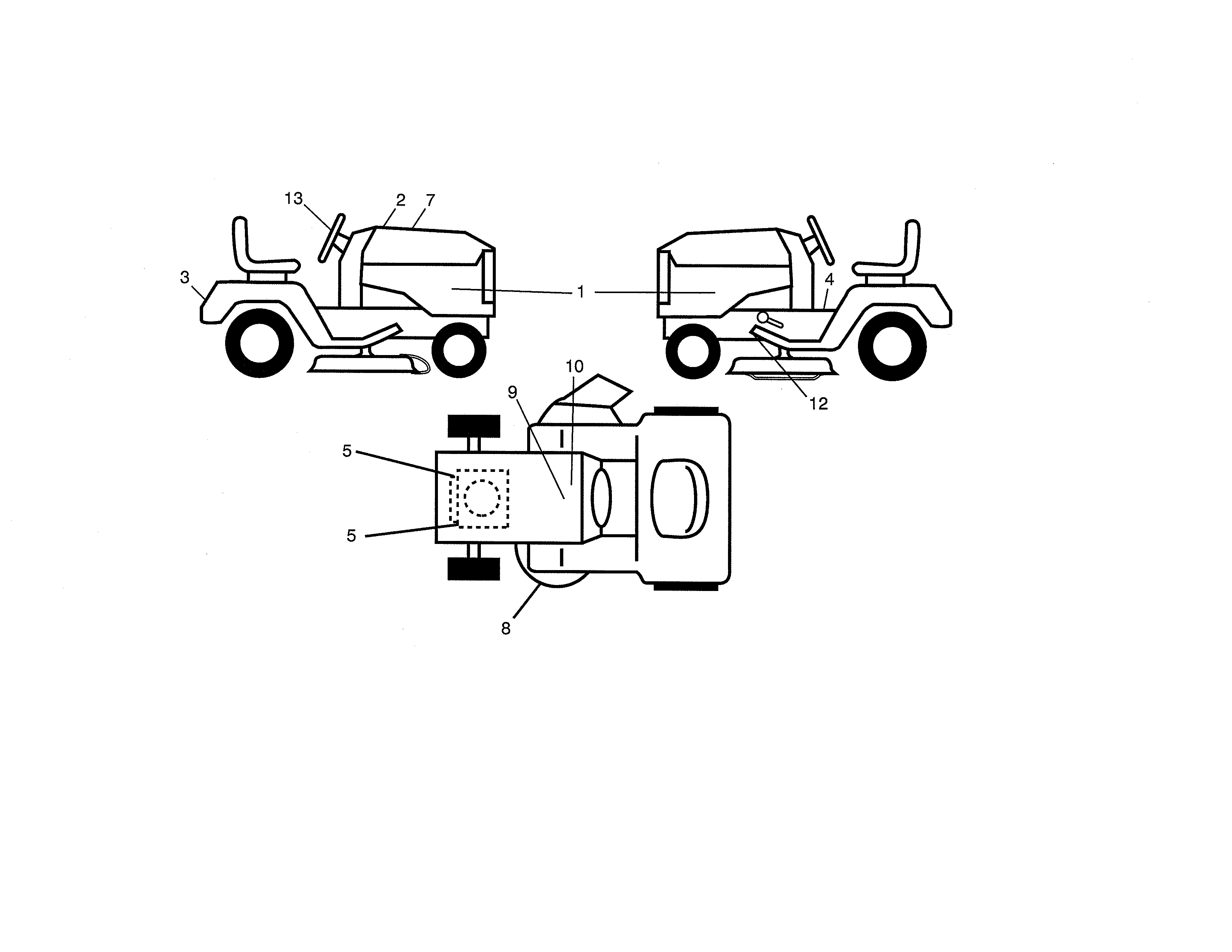

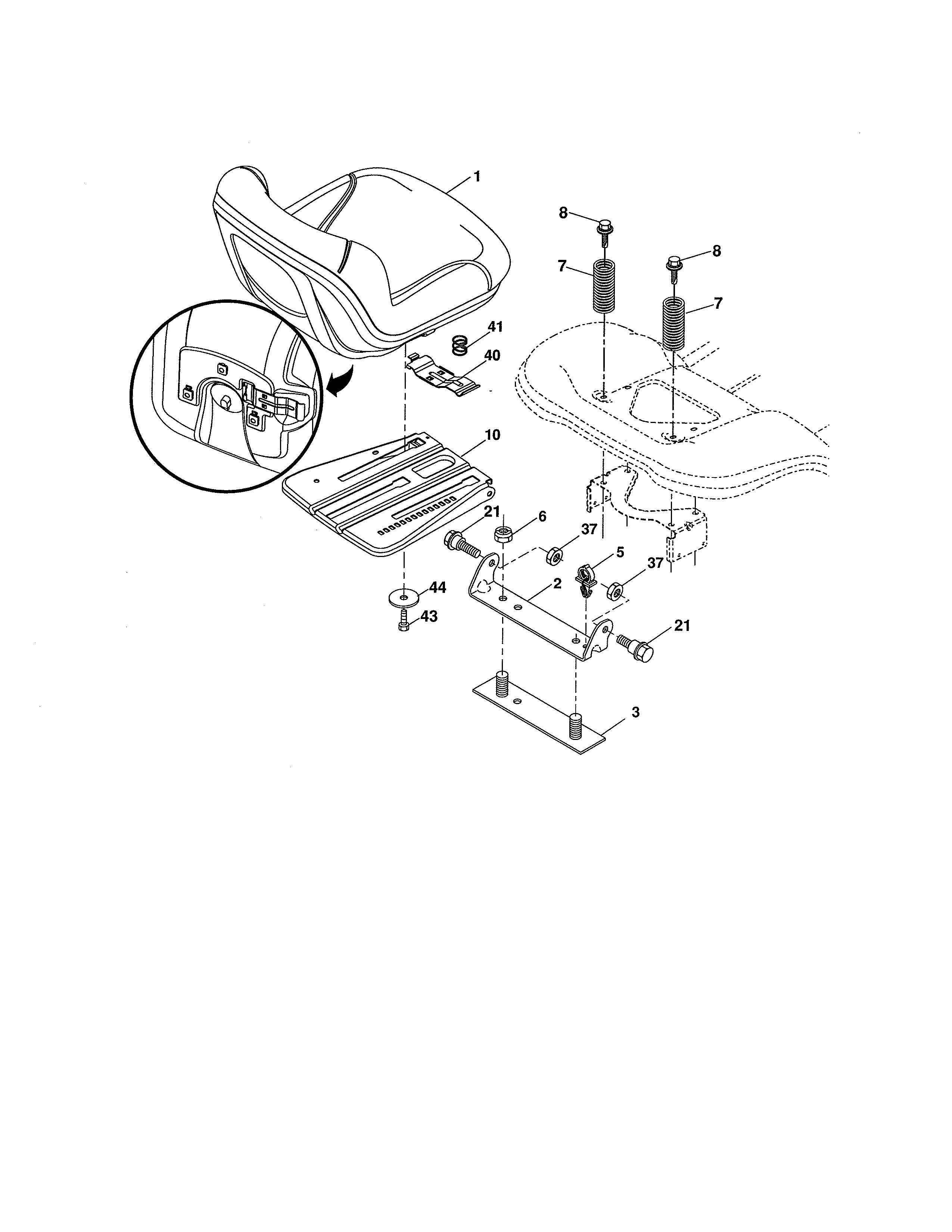

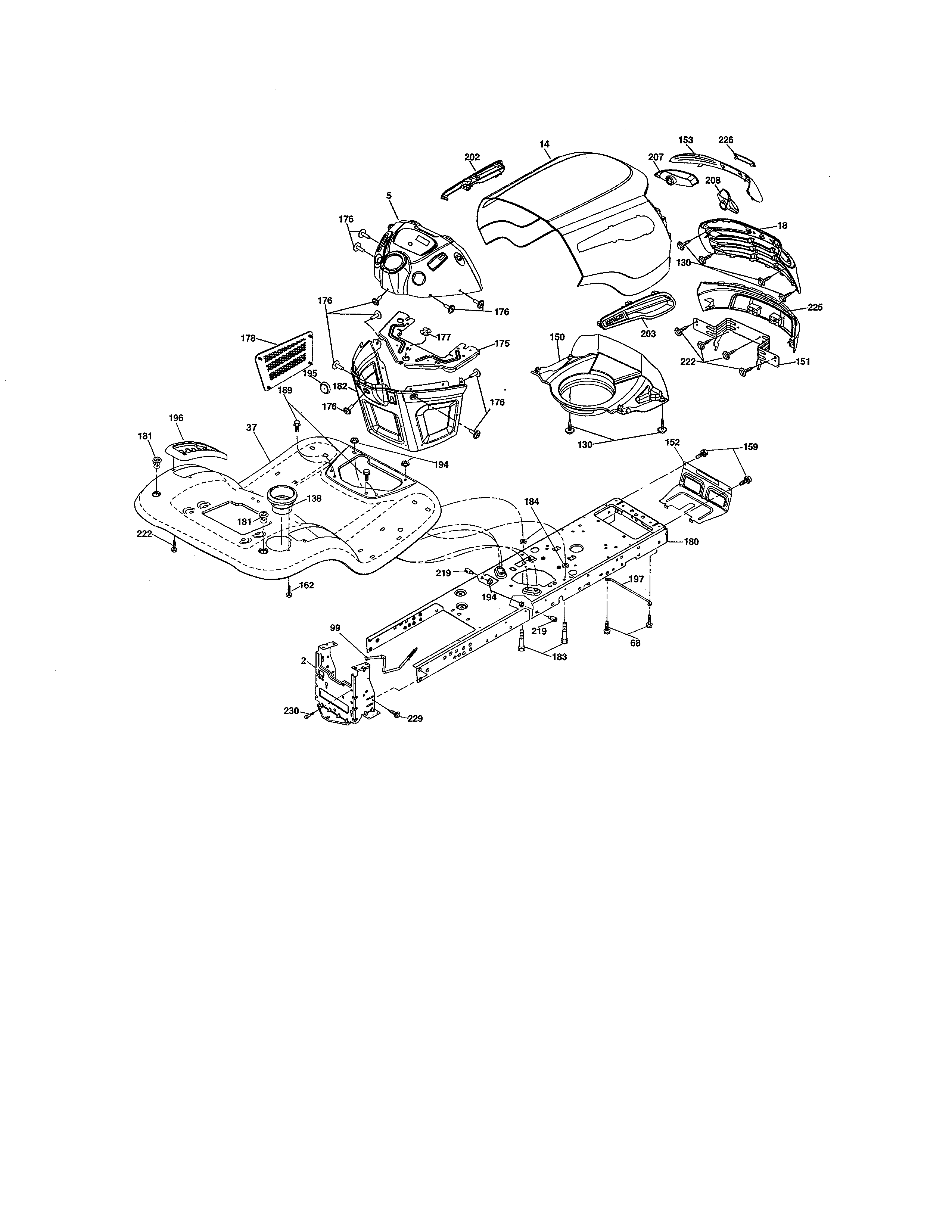

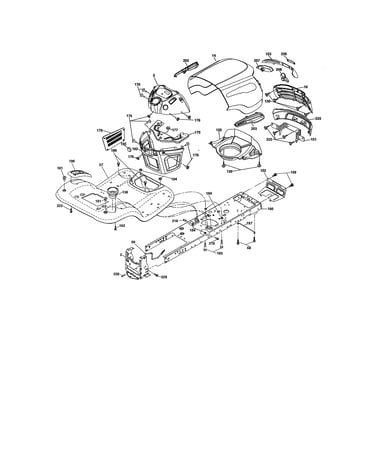

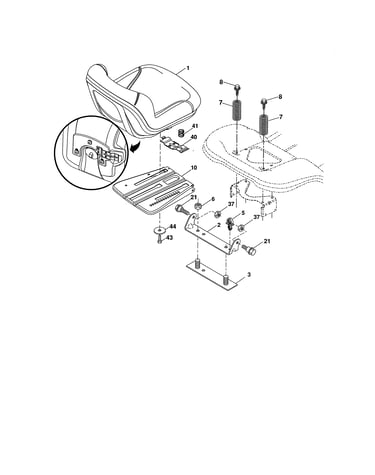

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 502 parts  |
Lawn Tractor Hub Cap 104757X645
#8

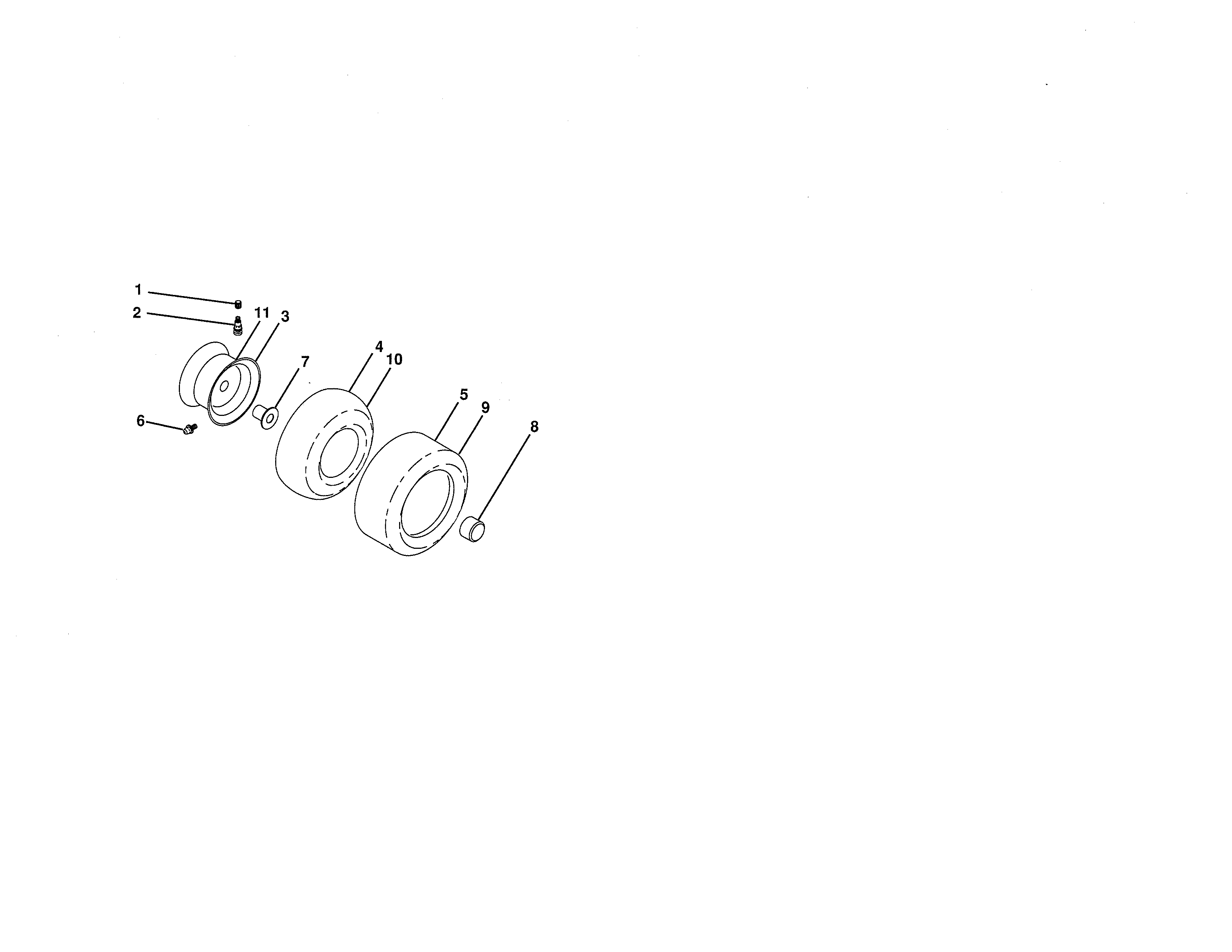

Wheels and tires diagram

Lawn tractor hub cap

Part #104757X645

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X645. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lock Nut 73900600
Lock nut

Part #73900600

Replaced by #532409149

?
Manufacturer substitution
This part replaces 73900600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Wizard Lawn Tractor Axle Flange Bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, P-1246, P-1622) 9040H
#7

Wheels and tires diagram

Wizard lawn tractor axle flange bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, p-1246, p-1622)

Part #9040H

BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Starter Solenoid 192507
#43

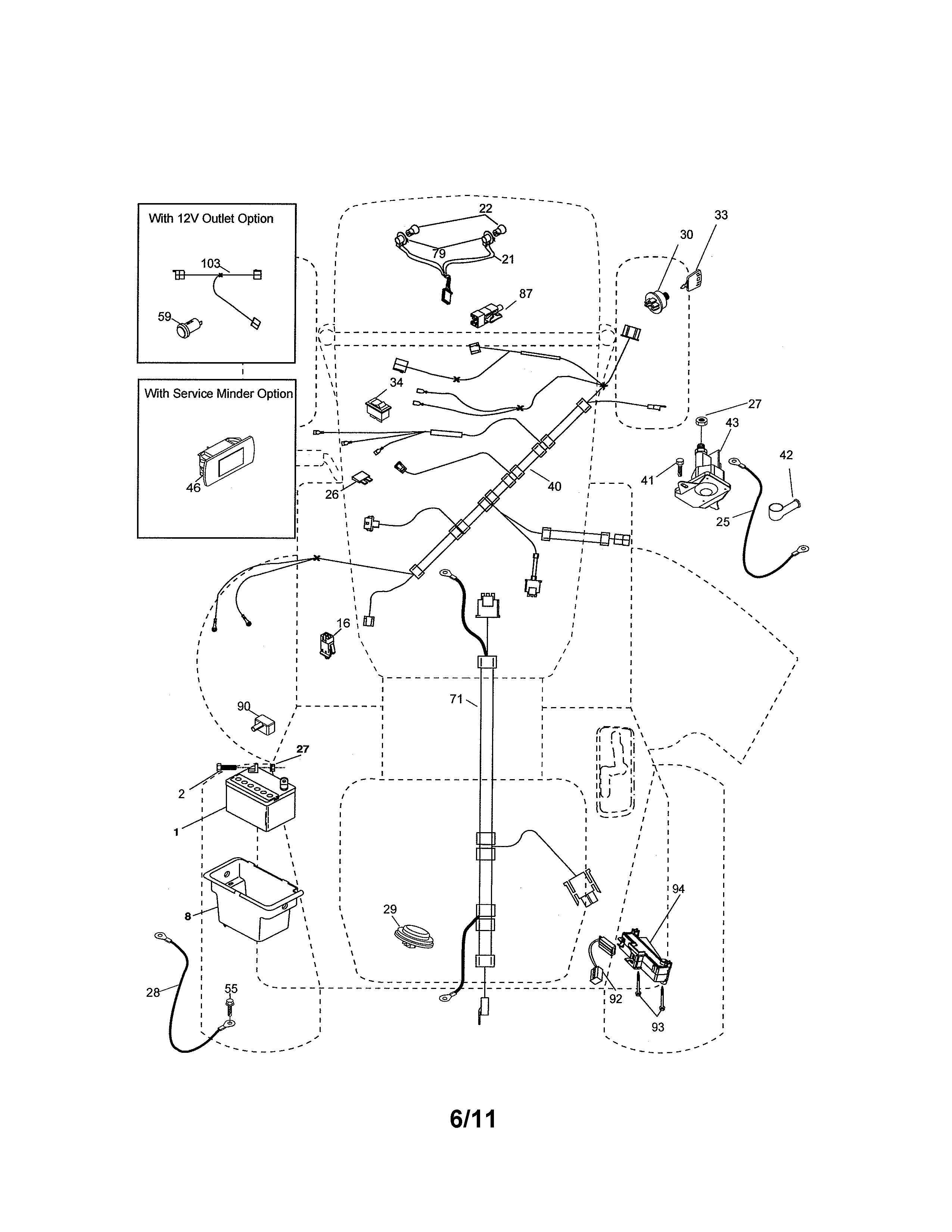

Electrical diagram

Lawn tractor starter solenoid

Part #192507

Replaced by #582042802

?
Manufacturer substitution
This part replaces 192507. Substitute parts can look different from the original.
BEST SELLER
$30.64 |
16% OFF Phone Price : $36.64
In Stock
Tire 106222X
#5

Wheels and tires diagram

Tire

Part #106222X

Replaced by #532122073

?
Manufacturer substitution
This part replaces 106222X. Substitute parts can look different from the original.
BEST SELLER
$59.79 |
9% OFF Phone Price : $65.79
In Stock
Lawn Tractor Deck Link 195270
#98

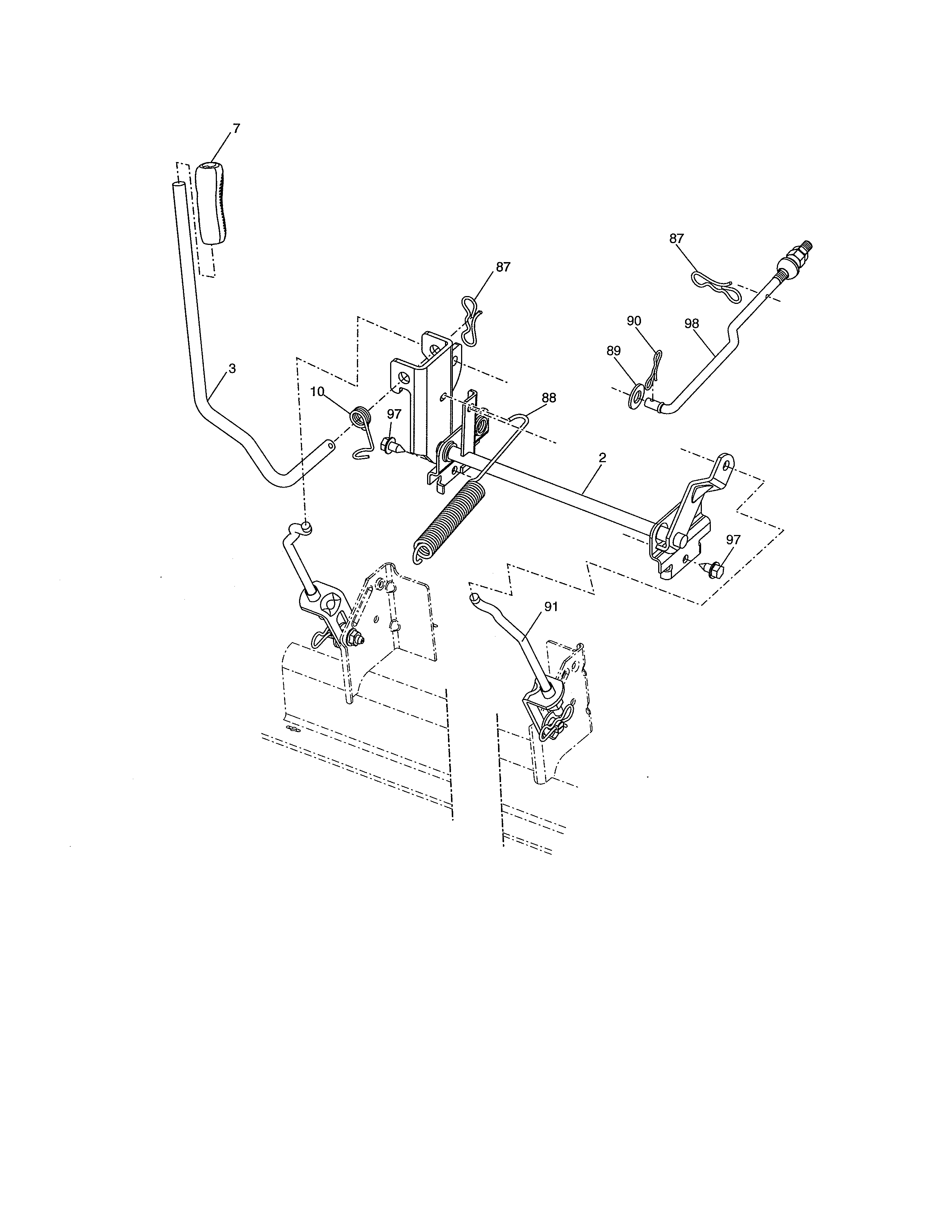

Lift diagram

Lawn tractor deck link

Part #195270

Replaced by #581506903

?
Manufacturer substitution
This part replaces 195270. Substitute parts can look different from the original.
BEST SELLER
$13.70 |
13% OFF Phone Price : $15.70
In Stock
Lawn Tractor Flange Nut 400234
#33

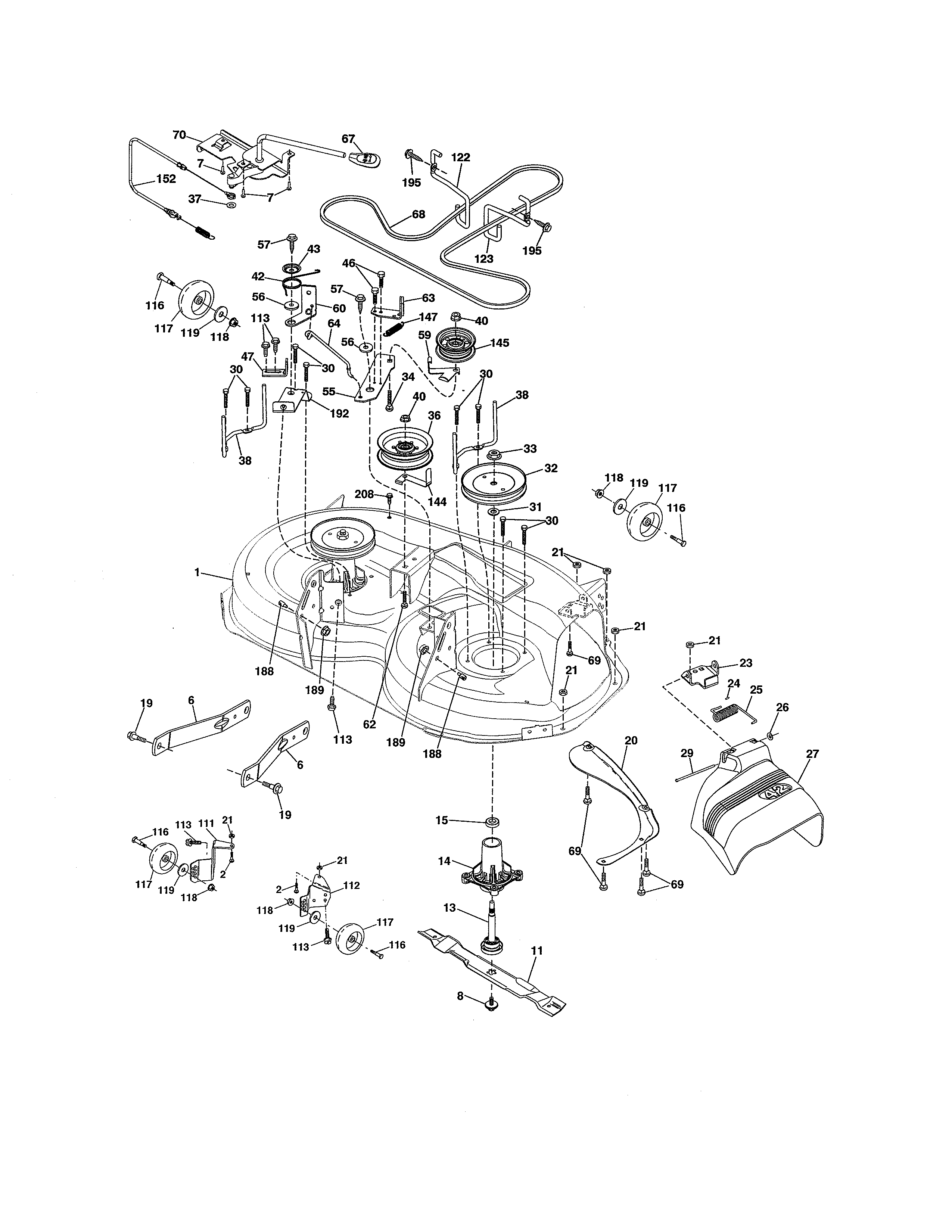

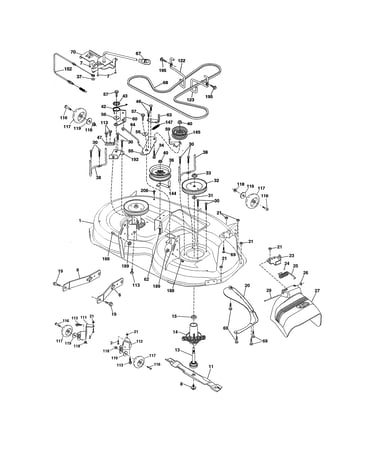

Mower deck diagram

Lawn tractor flange nut

Part #400234

Replaced by #596134801

?
Manufacturer substitution
This part replaces 400234. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock

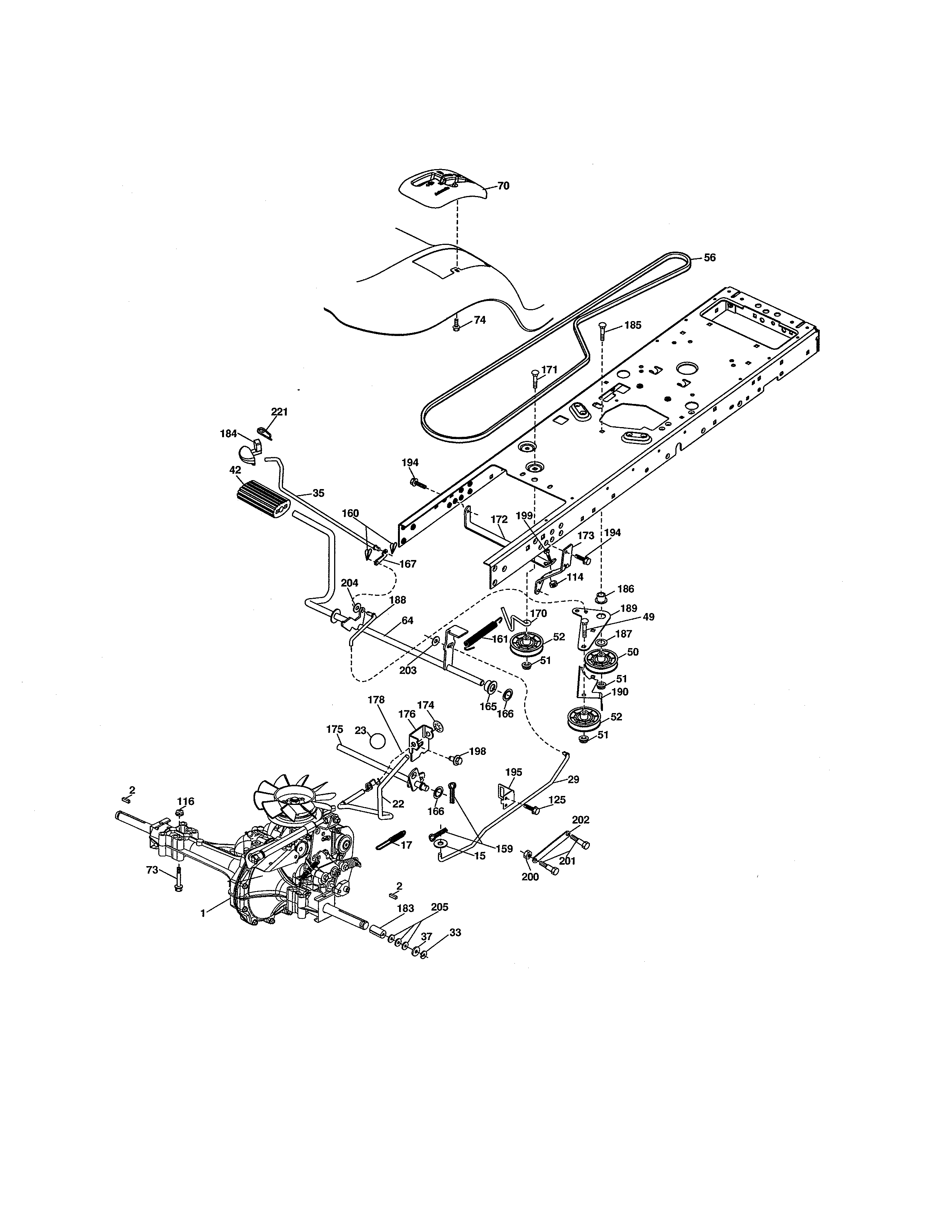

Lawn Tractor Ground Drive Belt, 1/2 X 84-1/2-in 140218
#56

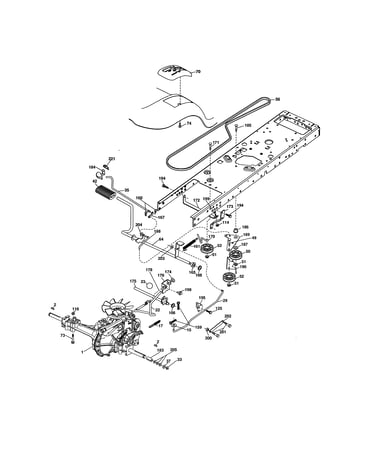

Ground drive diagram

Lawn tractor ground drive belt, 1/2 x 84-1/2-in

Part #140218

Replaced by #532140218

?
Manufacturer substitution
This part replaces 140218. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$49.99 |
11% OFF Phone Price : $55.99
In Stock
Lawn Tractor Drag Link, Left 194740
#61

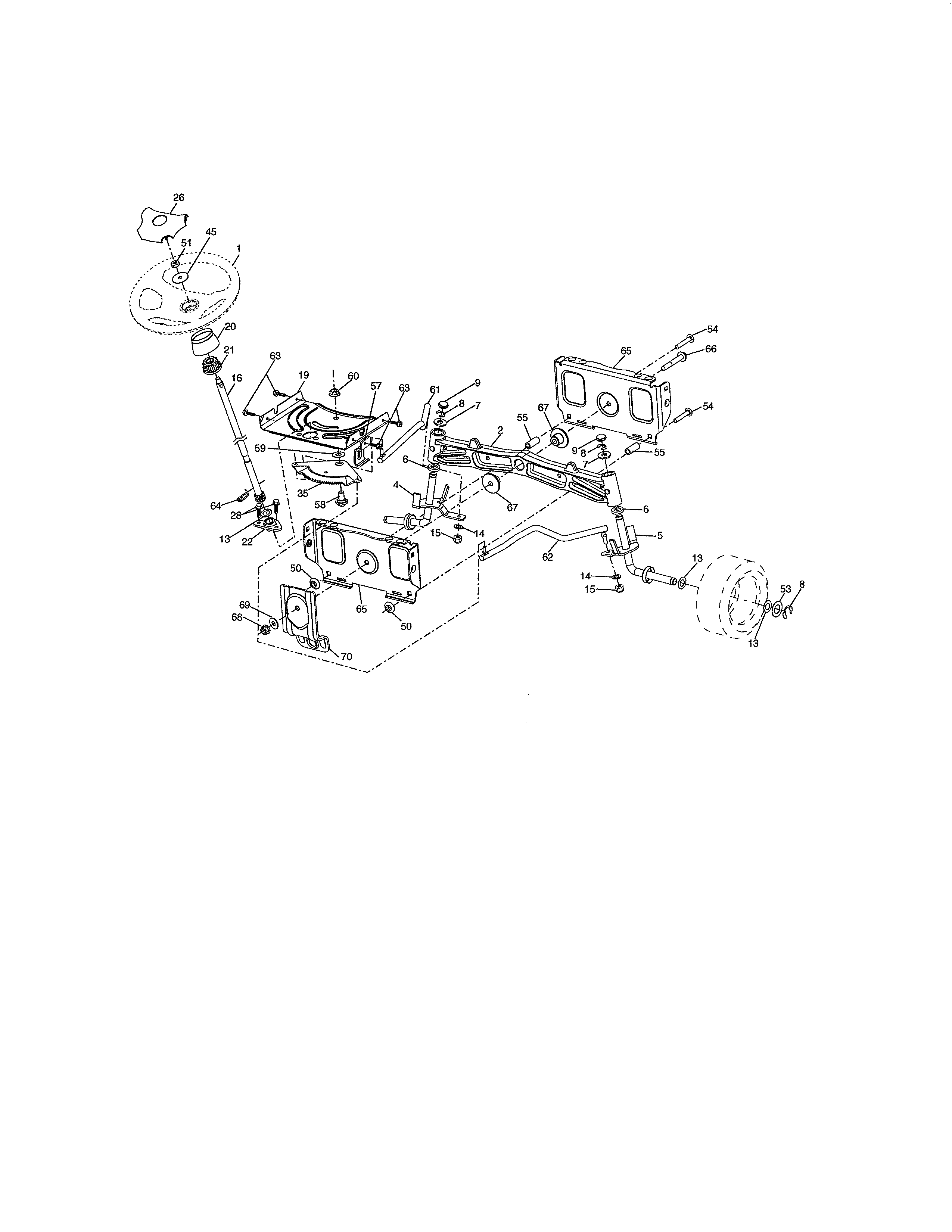

Steering diagram

Lawn tractor drag link, left

Part #194740

Replaced by #597047802

?
Manufacturer substitution
This part replaces 194740. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Washer 19121414
#119

Mower deck diagram

Washer

Part #19121414

Replaced by #596134901

?
Manufacturer substitution
This part replaces 19121414. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
