Upright Freezer

Model # 2539287413 Official Kenmore upright freezer

Here are the diagrams and repair parts for Official Kenmore 2539287413 upright freezer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for2539287413 Freestanding Freezers

  • Filter Drier 216634500
    #4

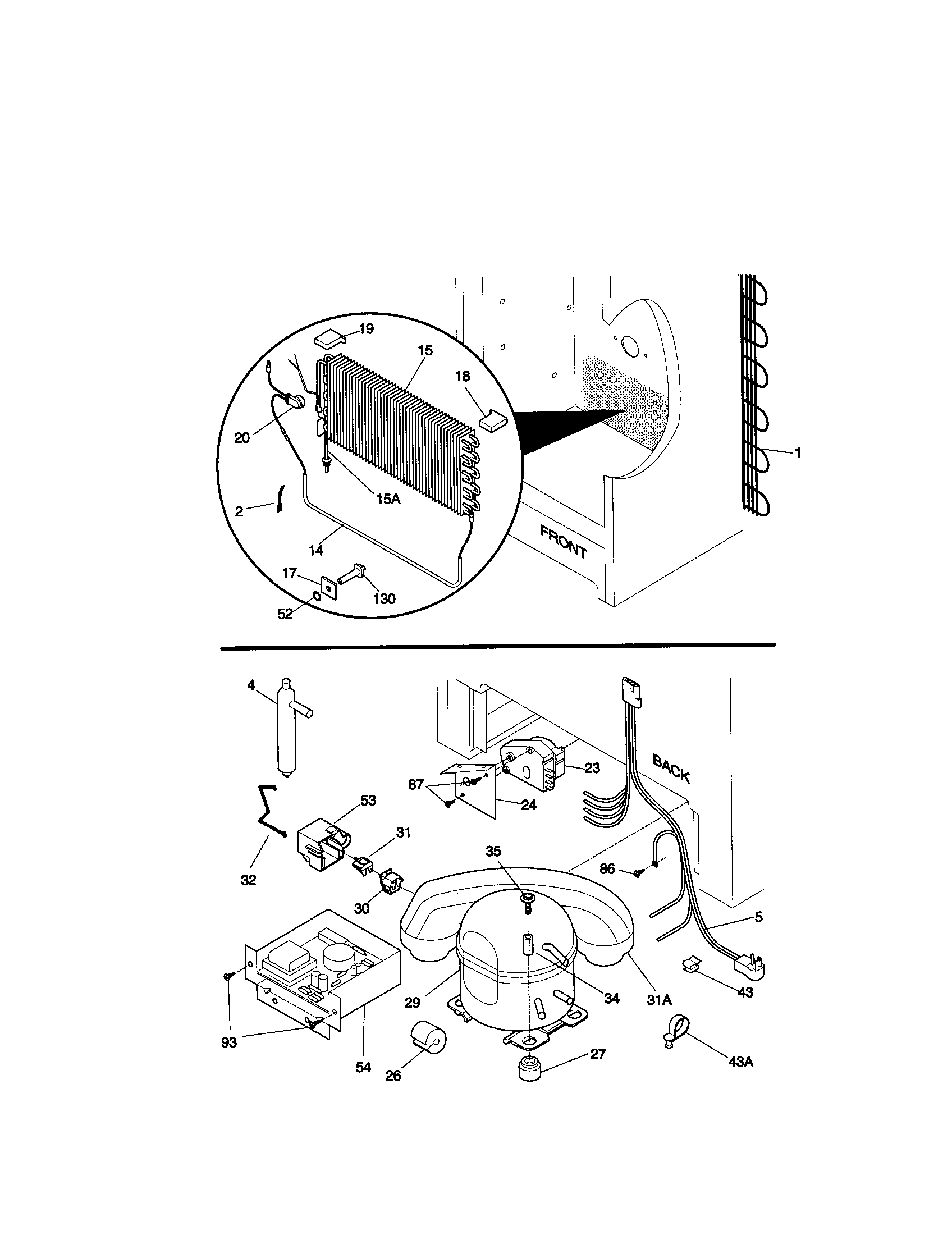

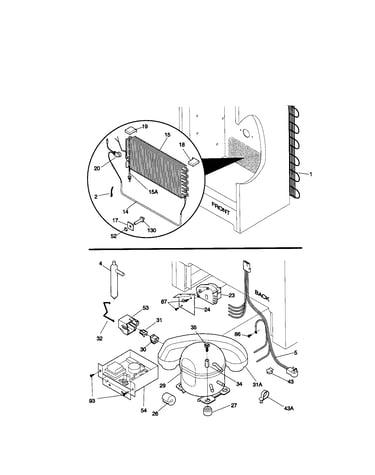

    System diagram

    Filter drier

    Part #216634500

    Replaced by #5303305677

    ?
    Manufacturer substitution
    This part replaces 216634500. Substitute parts can look different from the original.
    BEST SELLER
    $12.47 |
    14% OFF Phone Price : $14.47
    In Stock
  • Key 216388700
    #5

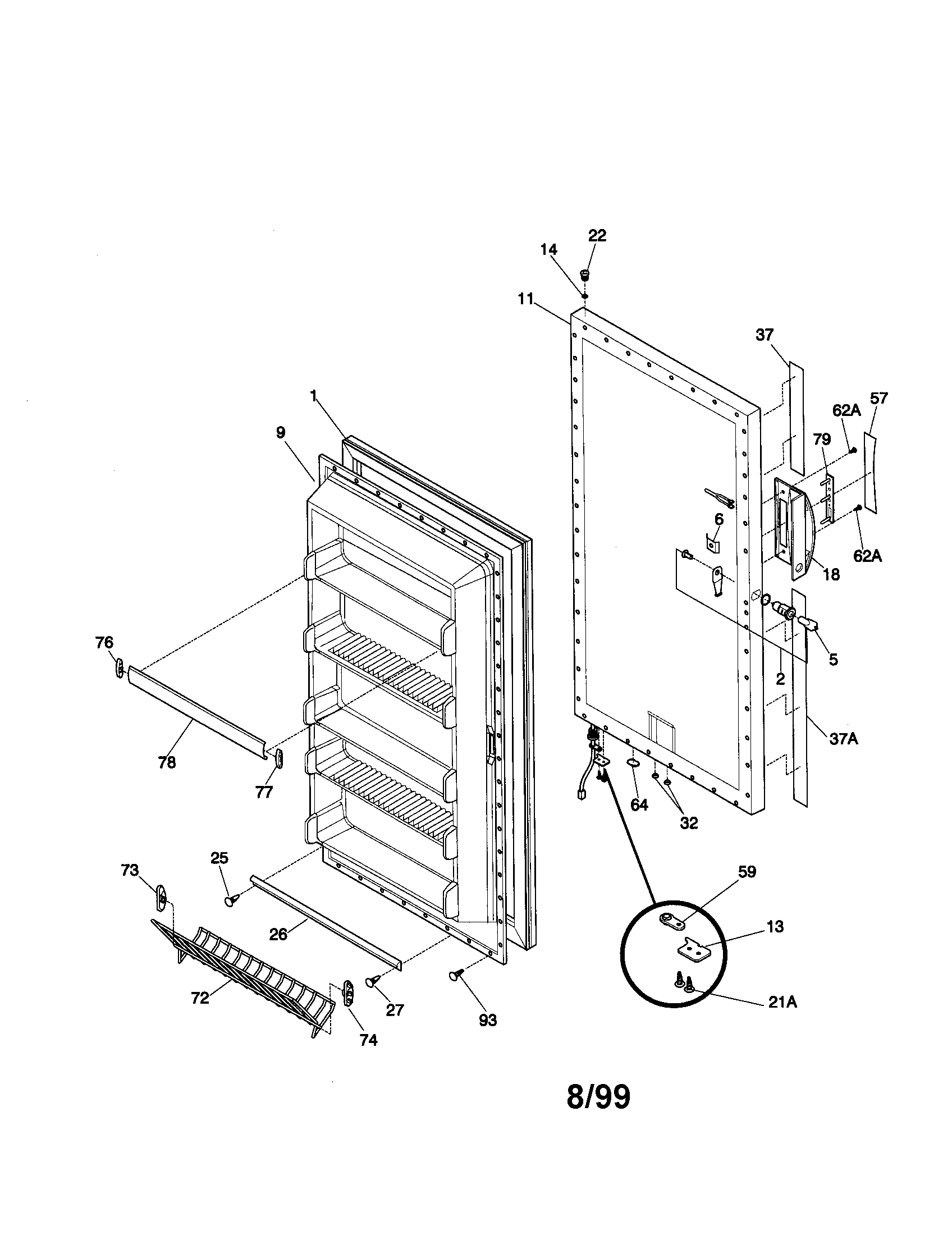

    Door diagram

    Key

    Part #216388700

    Replaced by #297147700

    ?
    Manufacturer substitution
    This part replaces 216388700. Substitute parts can look different from the original.
    3.82 (51)
    BEST SELLER
    $9.31 |
    10% OFF Phone Price : $10.31
    In Stock
  • Blade 216325600
    #5

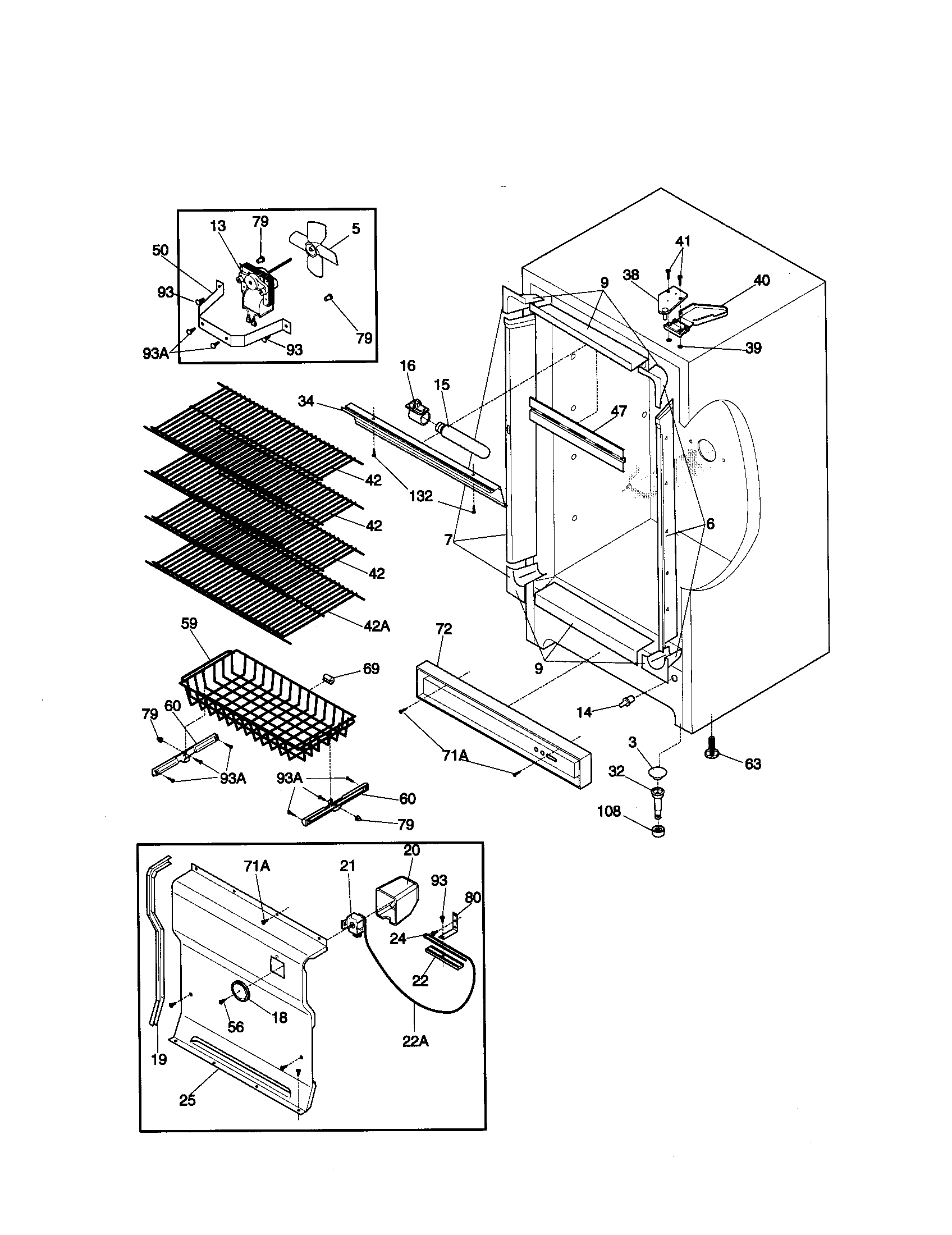

    Cabinet diagram

    Blade

    Part #216325600

    Replaced by #5308000010

    ?
    Manufacturer substitution
    This part replaces 216325600. Substitute parts can look different from the original.
    4 (4)
    BEST SELLER
    $42.00 |
    13% OFF Phone Price : $48.00
    In Stock
  • Upright Freezer Defrost Timer 216517400
    #23

    System diagram

    Upright freezer defrost timer

    Part #216517400

    Replaced by #5304518034

    ?
    Manufacturer substitution
    This part replaces 216517400. Substitute parts can look different from the original.
    4.57 (7)
    BEST SELLER
    $33.50 |
    15% OFF Phone Price : $39.50
    In Stock
  • Universal/multiflex (frigidaire) Refrigerator Defrost Bi-metal Thermostat 5303917954
    #20

    System diagram

    Universal/multiflex (frigidaire) refrigerator defrost bi-metal thermostat

    Part #5303917954

    2.5 (2)
    BEST SELLER
    $25.58 |
    19% OFF Phone Price : $31.58
    In Stock
  • Evaporator Fan Motor 216690400
    #13

    Cabinet diagram

    Evaporator fan motor

    Part #216690400

    Replaced by #5304442620

    ?
    Manufacturer substitution
    This part replaces 216690400. Substitute parts can look different from the original.
    5 (4)
    $166.13 |
    7% OFF Phone Price : $178.13
    In Stock
  • Light Plunger 216472300
    #14

    Cabinet diagram

    Light plunger

    Part #216472300

    Replaced by #297243800

    ?
    Manufacturer substitution
    This part replaces 216472300. Substitute parts can look different from the original.
    4.6 (5)
    $19.42 |
    9% OFF Phone Price : $21.42
    In Stock
  • Freezer Condenser Coil 5300083897
    #1

    System diagram

    Freezer condenser coil

    Part #5300083897

    This item is not returnable
    $433.68 |
    $12.00 OFF Phone Price : $445.68
    In Stock
  • Lamp Bulb 216222700
    #15

    Cabinet diagram

    Lamp bulb

    Part #216222700

    Replaced by #216846400

    ?
    Manufacturer substitution
    This part replaces 216222700. Substitute parts can look different from the original.
    3.8 (10)
    $42.27 |
    12% OFF Phone Price : $48.27
    In Stock
  • Refrigerator Thermostat Sensor Barrier 5303916855
    #22A

    Cabinet diagram

    Refrigerator thermostat sensor barrier

    Part #5303916855

    1 (1)
    $48.96 |
    11% OFF Phone Price : $54.96
    In Stock
