Model # KESC300BBL9 Official KitchenAid 30" electronic slide-in range
Here are the diagrams and repair parts for Official KitchenAid KESC300BBL9 30" electronic slide-in range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

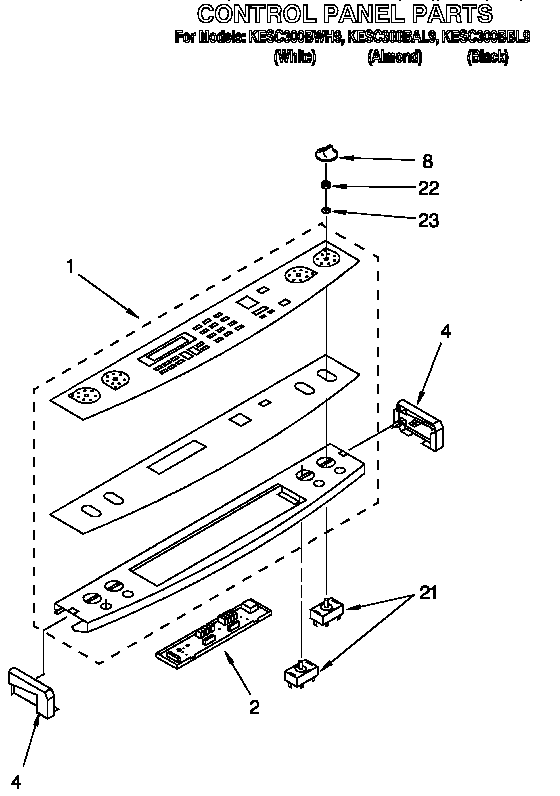

SELECT DIAGRAM
Browse Parts forKESC300BBL9 Ranges
#NI
All parts diagram
CleanerPart #9780196
Replaced by #W10355051
?Manufacturer substitutionThis part replaces 9780196. Substitute parts can look different from the original.This item is not returnableGet free shipping with Automatic Reorder
$10.88 |16% OFF Phone Price : $12.88In Stock- #18B

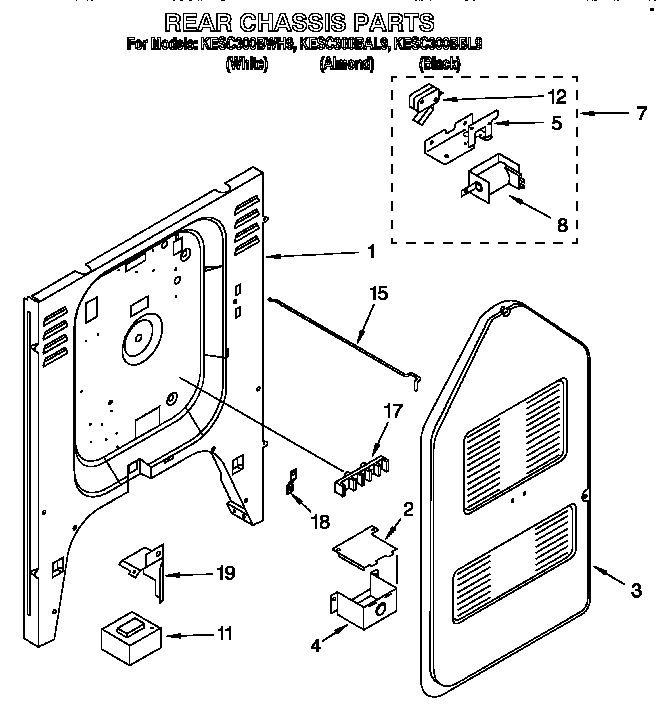

Rear chassis diagram
ScrewPart #690989
Replaced by #WP681414
?Manufacturer substitutionThis part replaces 690989. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock #NI
All parts diagram
ScraperPart #3183488
Replaced by #WA906B
?Manufacturer substitutionThis part replaces 3183488. Substitute parts can look different from the original.This item is not returnableGet free shipping with Automatic Reorder
$6.29 |14% OFF Phone Price : $7.29In Stock- #23

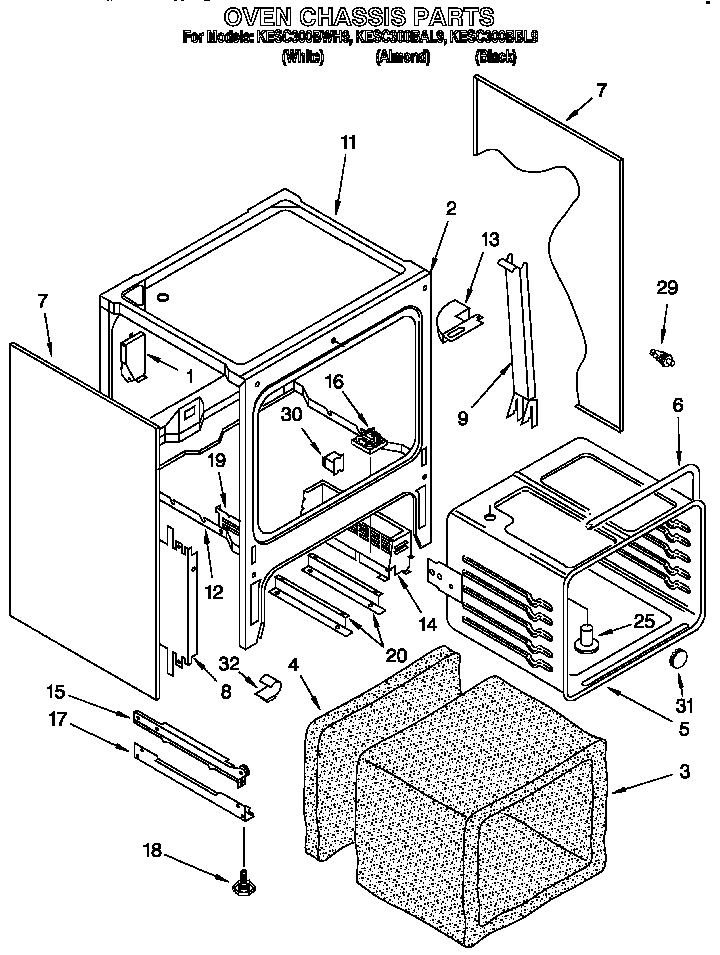

Oven diagram
Range oven light lensPart #9781049
Replaced by #WP9781049
?Manufacturer substitutionThis part replaces 9781049. Substitute parts can look different from the original.$49.49 |11% OFF Phone Price : $55.49In Stock - #20

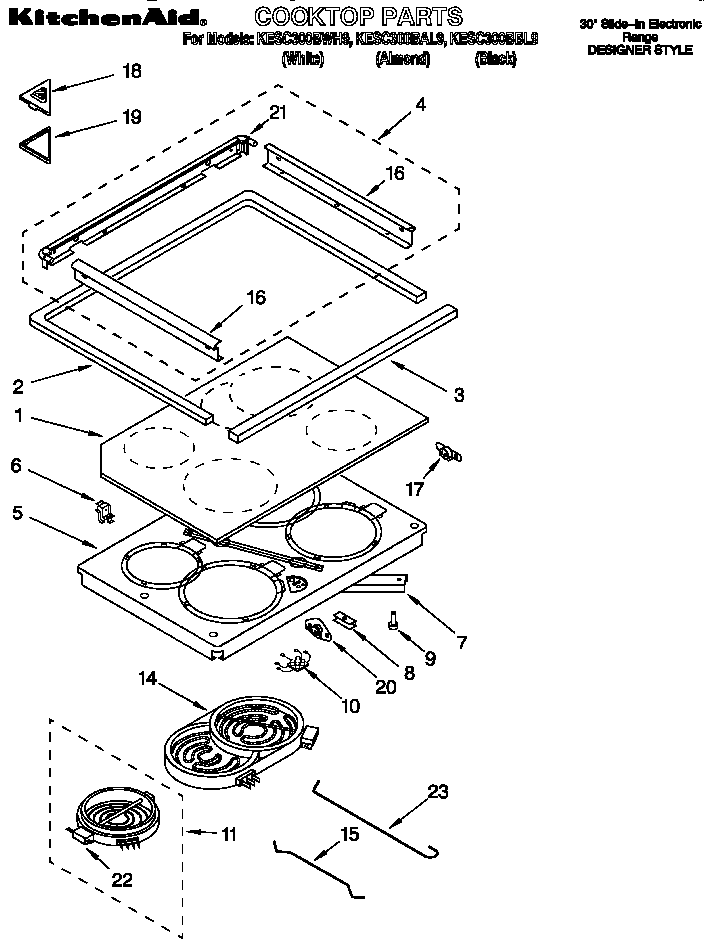

Cooktop diagram
ThermostatPart #9751984
Replaced by #WP9759944
?Manufacturer substitutionThis part replaces 9751984. Substitute parts can look different from the original.$80.61 |7% OFF Phone Price : $86.61In Stock #NI
All parts diagram
Touchup ngPart #72110
Replaced by #72110
?Manufacturer substitutionThis part replaces 72110. Substitute parts can look different from the original.This item is not returnable$13.24 |13% OFF Phone Price : $15.24In Stock- #18

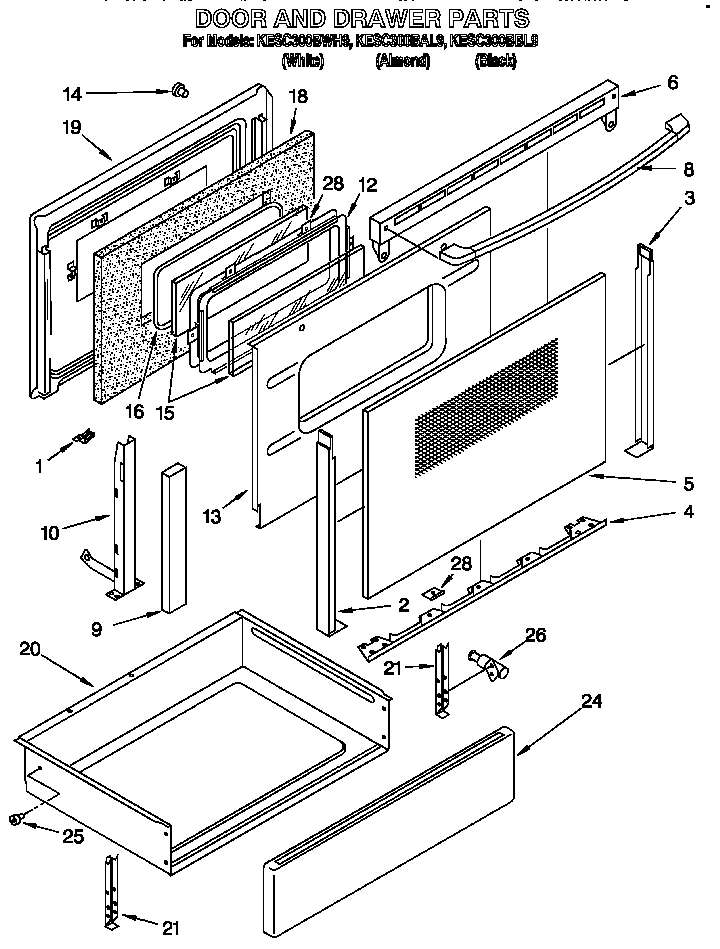

Door and drawer diagram
InsulationPart #9750231
Replaced by #WPW10208653
?Manufacturer substitutionThis part replaces 9750231. Substitute parts can look different from the original.$39.39 |13% OFF Phone Price : $45.39In Stock #NI
All parts diagram
Appliance spray paint (black)Part #285006
This item is not returnable$37.46 |14% OFF Phone Price : $43.46In Stock- #17B
Rear chassis diagram
NutPart #65034700
Replaced by #WP112432
?Manufacturer substitutionThis part replaces 65034700. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock #NI
All parts diagram
Paint whPart #206922
Replaced by #350942
?Manufacturer substitutionThis part replaces 206922. Substitute parts can look different from the original.$96.13In Stock
