Model # SF315EERW0 Official Whirlpool gas range

Here are the diagrams and repair parts for Official Whirlpool SF315EERW0 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

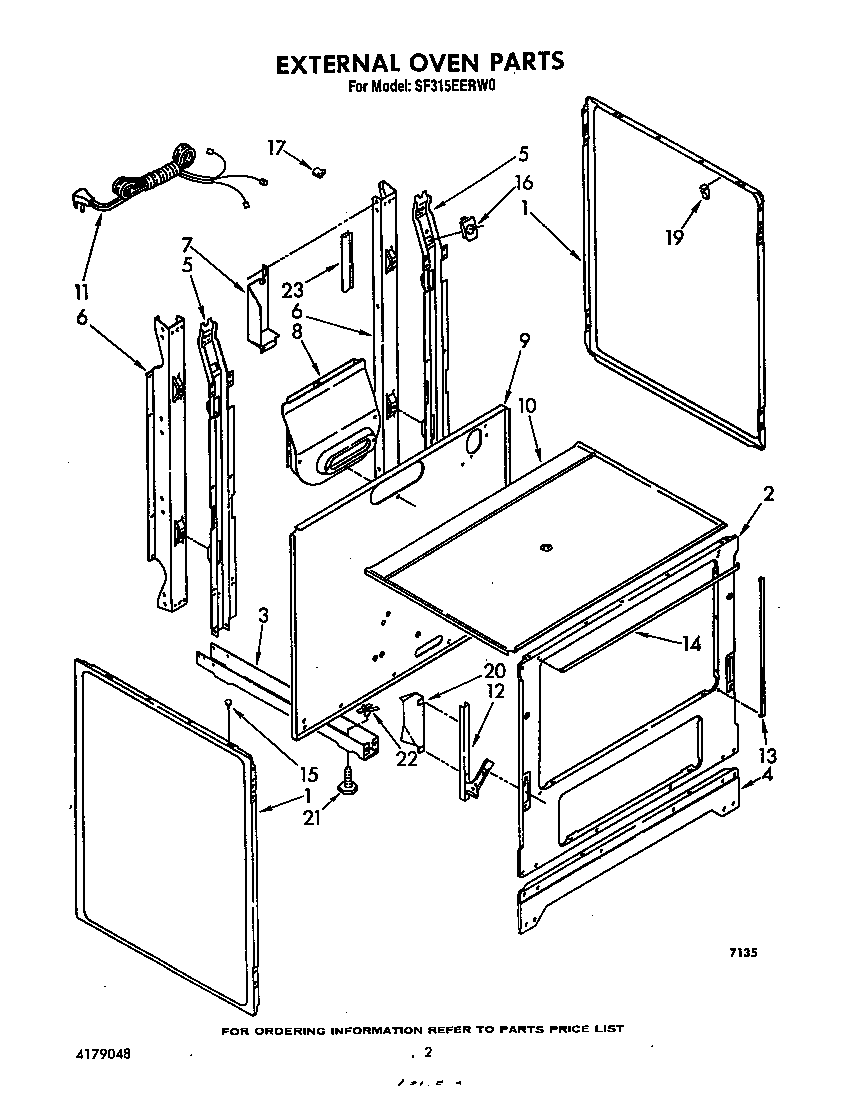

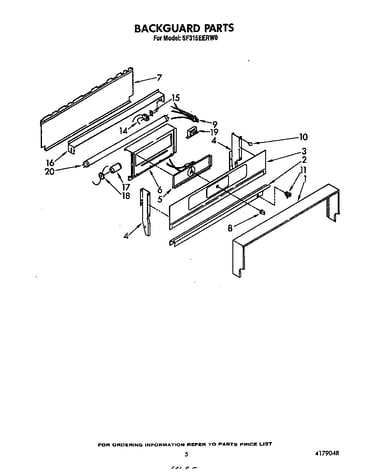

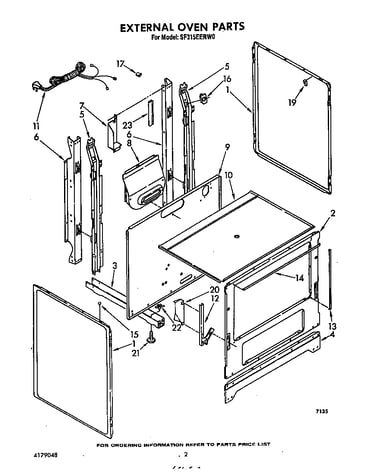

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |
Light Bulb 4157019
#8

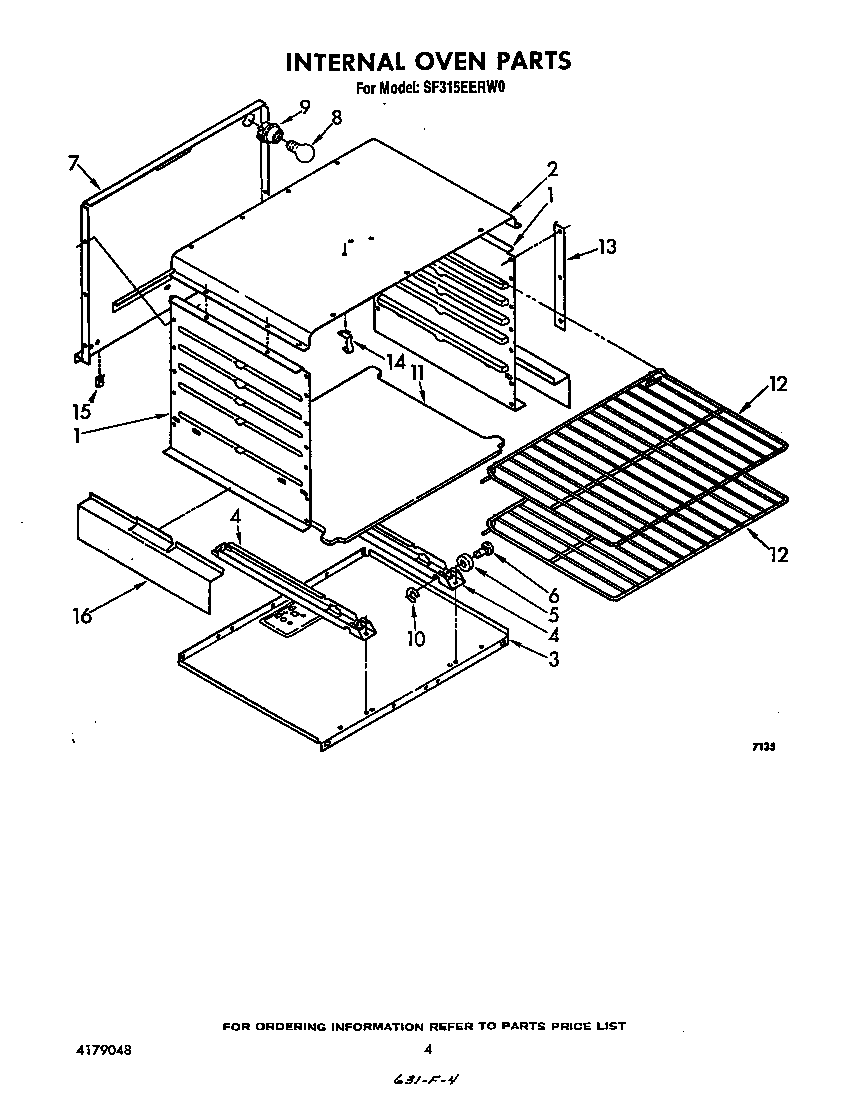

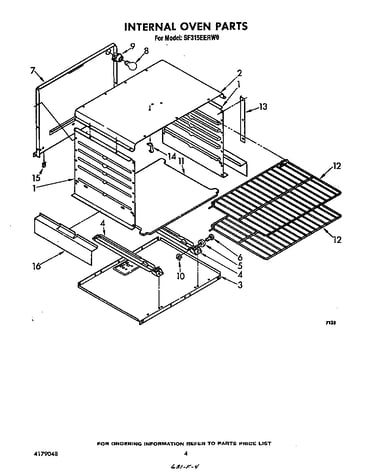

Internal oven diagram

Light bulb

Part #4157019

Replaced by #40A15

?
Manufacturer substitution
This part replaces 4157019. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Screw 4157111
Screw

Part #4157111

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 4157111. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 4157117
Screw

Part #4157117

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 4157117. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 4157125
#22A

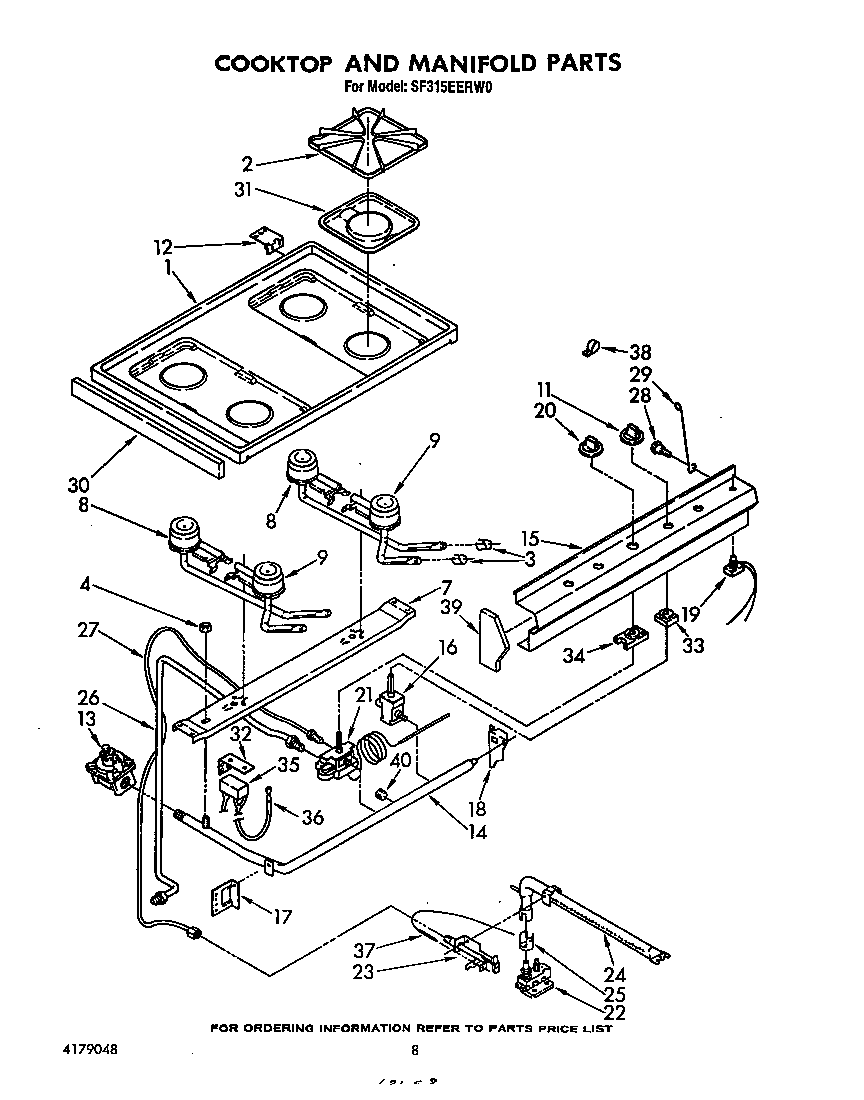

Cook top and manifold diagram

Screw

Part #4157125

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 4157125. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Nut 4157052
#24

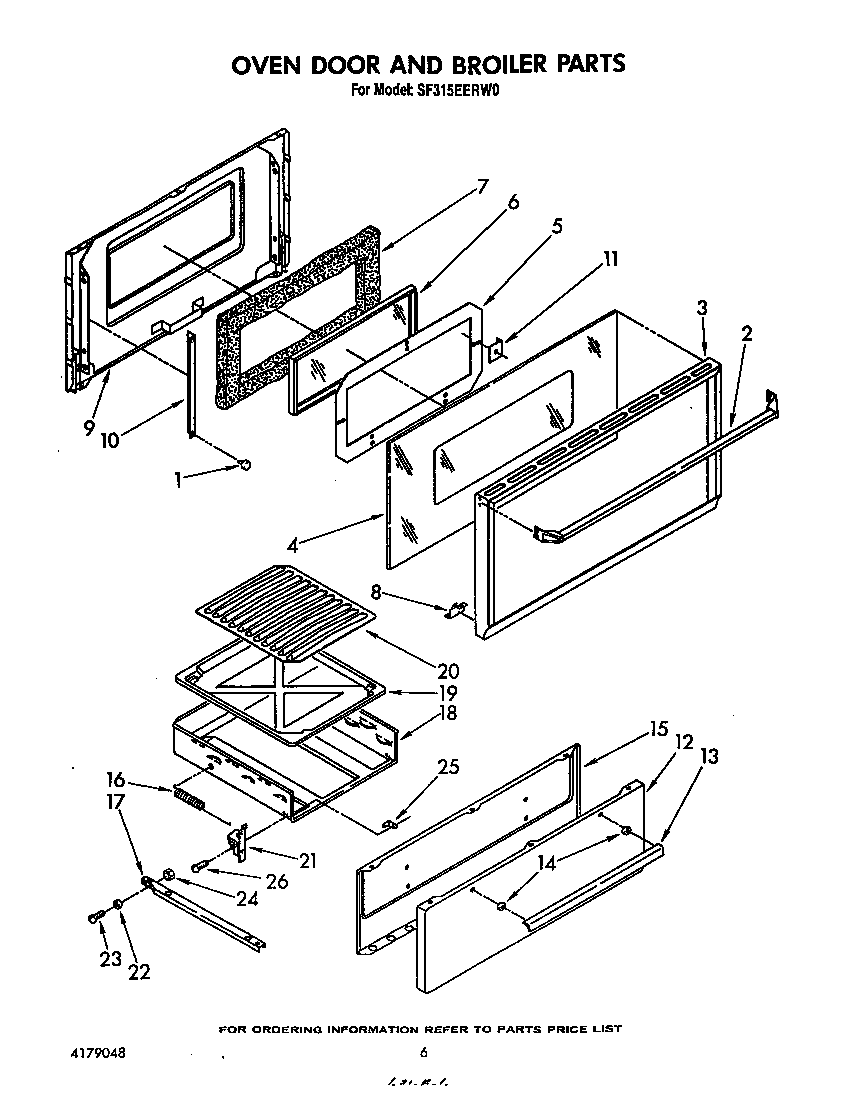

Oven door and broiler diagram

Nut

Part #4157052

Replaced by #W10080180

?
Manufacturer substitution
This part replaces 4157052. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Thermostat Knob 4157100
#20

Cook top and manifold diagram

Thermostat knob

Part #4157100

Replaced by #WPY07506601

?
Manufacturer substitution
This part replaces 4157100. Substitute parts can look different from the original.
$35.27
In Stock
Screw 4157114
Screw

Part #4157114

Replaced by #WP681414

?
Manufacturer substitution
This part replaces 4157114. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Surface Knob 4157192
#11

Cook top and manifold diagram

Surface knob

Part #4157192

Replaced by #WP4179282

?
Manufacturer substitution
This part replaces 4157192. Substitute parts can look different from the original.
$20.69 |
22% OFF Phone Price : $26.69
In Stock
Broiler Pan 4157046
#19

Oven door and broiler diagram

Broiler pan

Part #4157046

Replaced by #4396923

?
Manufacturer substitution
This part replaces 4157046. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Nut 4157120
#21D

Oven door and broiler diagram

Nut

Part #4157120

Replaced by #W10080180

?
Manufacturer substitution
This part replaces 4157120. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
