Jenn-Air
Electric Cooktop

Model # JED7430AAB Official Jenn-Air electric counter unit

Here are the diagrams and repair parts for Official Jenn-Air JED7430AAB electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

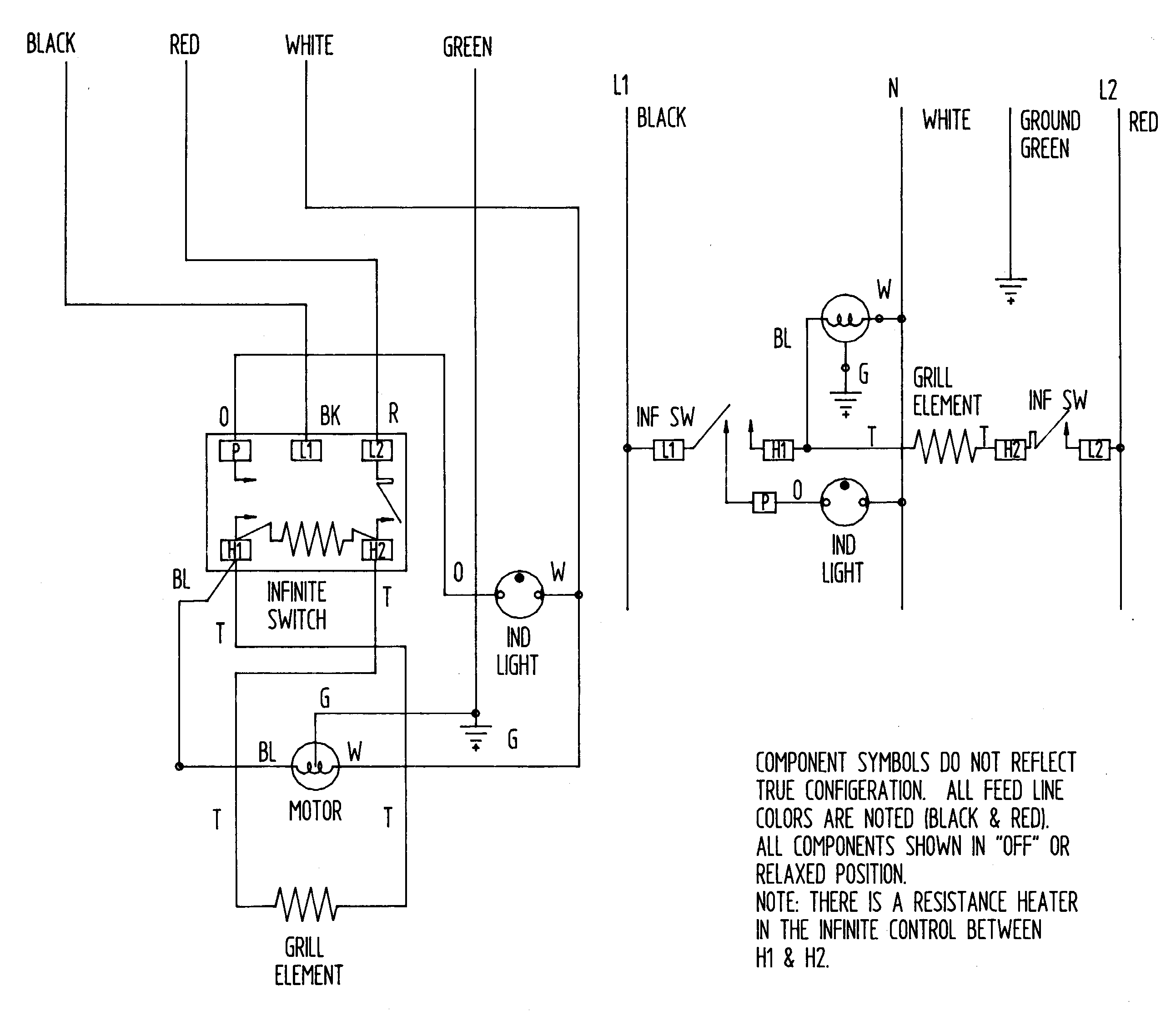

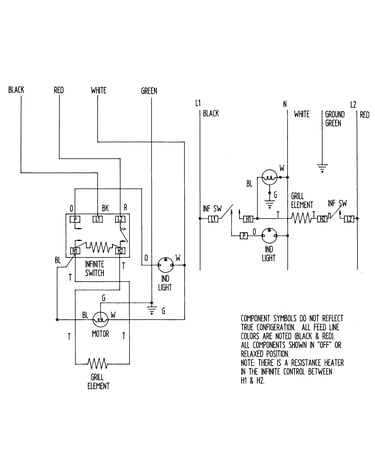

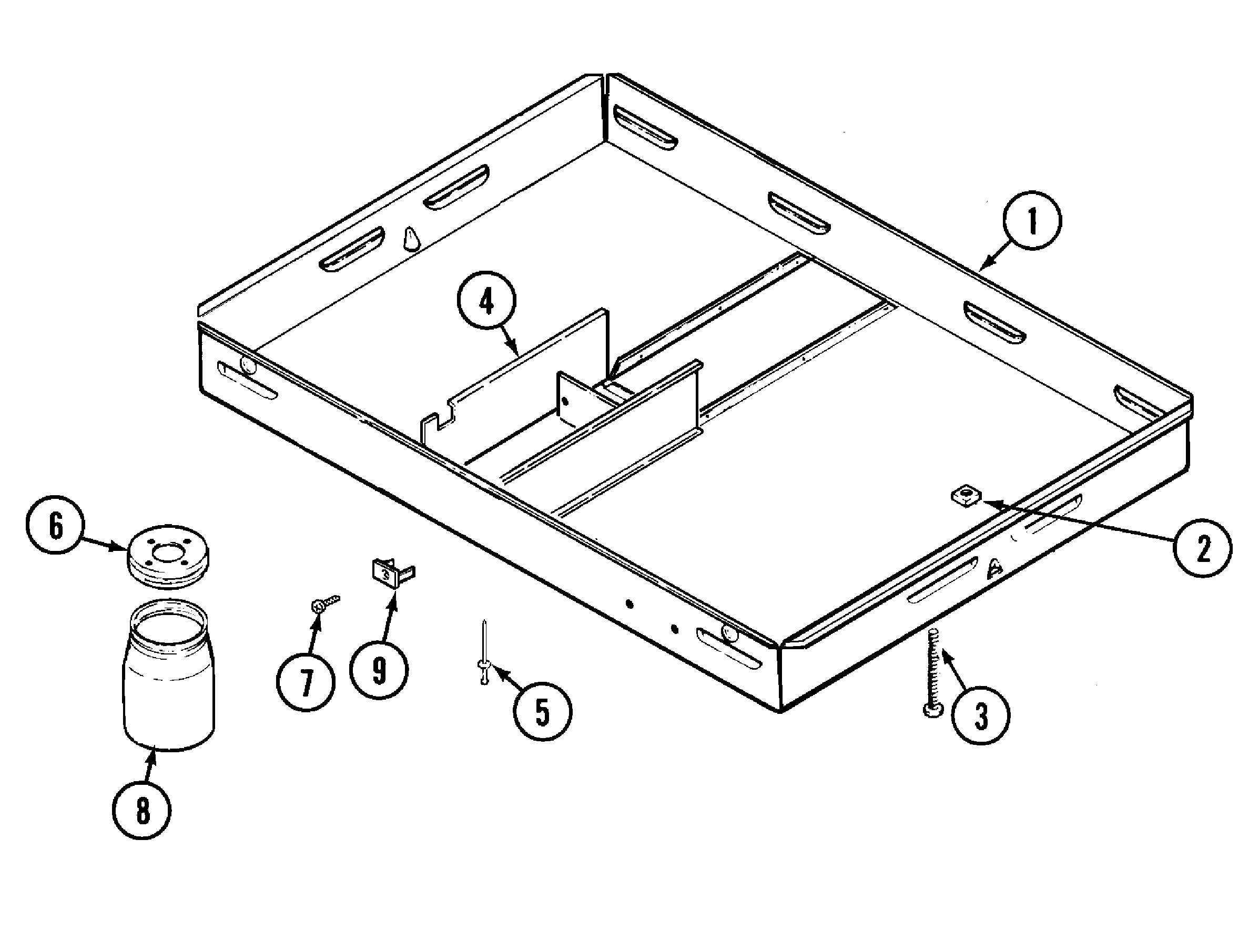

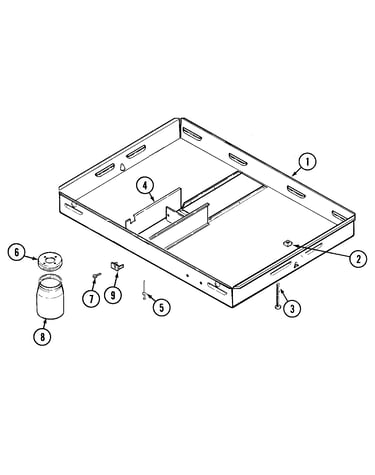

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Screw 7101P290-60
#19A

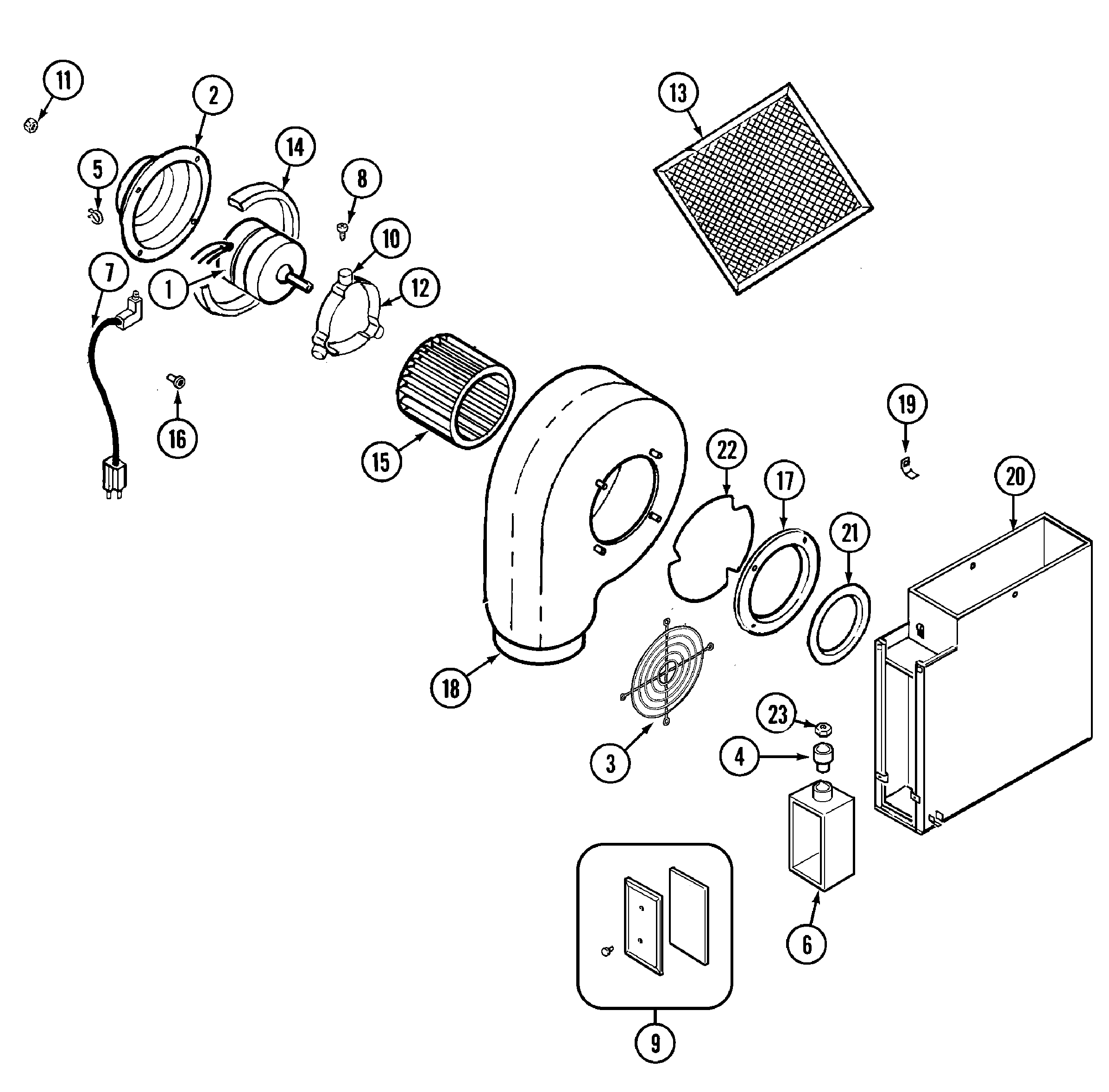

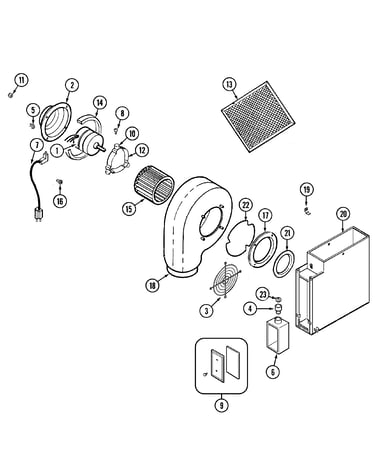

Blower motor-blower/plenum diagram

Screw

Part #7101P290-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P290-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw (#8ab) 71001183
#1A

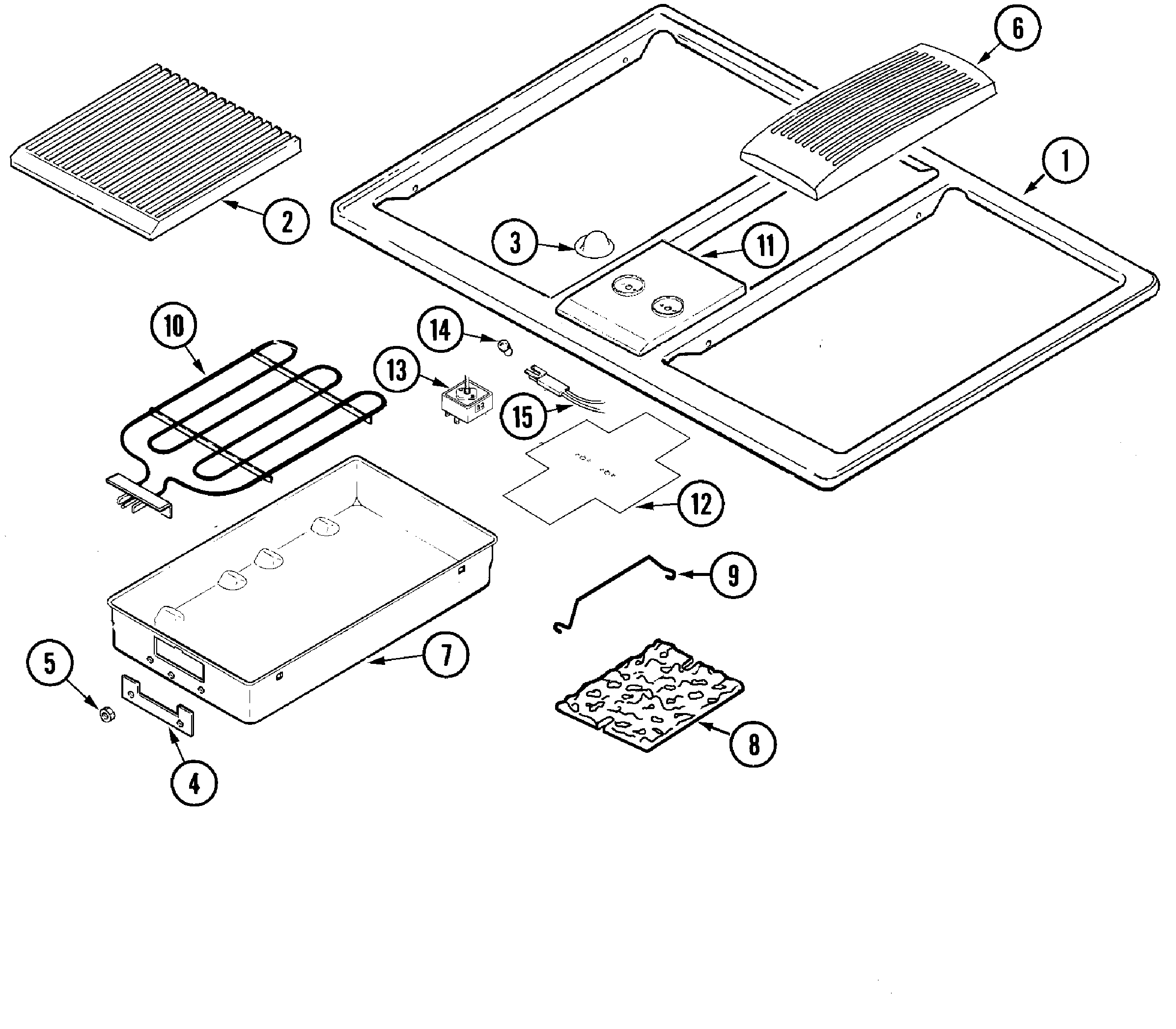

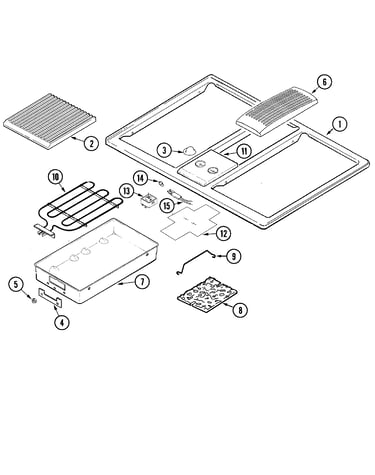

Top assembly diagram

Screw (#8ab)

Part #71001183

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 71001183. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw Isolator 71003542
#8

Blower motor-blower/plenum diagram

Screw isolator

Part #71003542

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 71003542. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Magic Chef Cooktop Grill Rock Plate Support 700819
#9

Top assembly diagram

Magic chef cooktop grill rock plate support

Part #700819

$33.59 |
15% OFF Phone Price : $39.59
In Stock
Lock Nut 707702
#11

Blower motor-blower/plenum diagram

Lock nut

Part #707702

Replaced by #WPY707702

?
Manufacturer substitution
This part replaces 707702. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Range Surface Element Control Switch 705190
#13

Top assembly diagram

Range surface element control switch

Part #705190

Replaced by #W11121638

?
Manufacturer substitution
This part replaces 705190. Substitute parts can look different from the original.
$78.19 |
7% OFF Phone Price : $84.19
In Stock
Griddle Element 71003237
#10

Top assembly diagram

Griddle element

Part #71003237

Replaced by #WP7406P229-60

?
Manufacturer substitution
This part replaces 71003237. Substitute parts can look different from the original.
$162.08 |
7% OFF Phone Price : $174.08
In Stock
Magic Chef Range Screw 707407
#2A

Blower motor-blower/plenum diagram

Magic chef range screw

Part #707407

This item is not returnable
$5.09
In Stock
Escutcheon 705189
#11

Top assembly diagram

Escutcheon

Part #705189

$58.22
In Stock
Range Downdraft Vent Grease Filter 707929
#13

Blower motor-blower/plenum diagram

Range downdraft vent grease filter

Part #707929

Replaced by #WP707929

?
Manufacturer substitution
This part replaces 707929. Substitute parts can look different from the original.
$25.09 |
19% OFF Phone Price : $31.09
In Stock
