Model # 13953609 Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 13953609 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 47 parts |

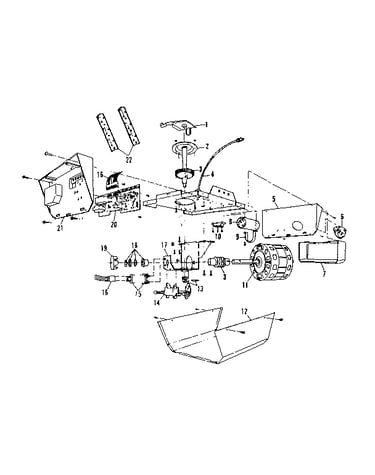

Chassis assembly parts diagram

Garage door opener drive and worm gear kit (replaces 3002375, 65409)

Part #41A2817

The manufacturer no longer makes this part, and there's no substitute part

#15

Chassis assembly parts diagram

Rpm assy

Part #41C3005

The manufacturer no longer makes this part, and there's no substitute part

#14

Chassis assembly parts diagram

Lim sw assy

Part #41D3013

The manufacturer no longer makes this part, and there's no substitute part

#12

Chassis assembly parts diagram

Cover

Part #41D2748

The manufacturer no longer makes this part, and there's no substitute part

Installation parts diagram

Door bracket

Part #12B374

The manufacturer no longer makes this part, and there's no substitute part

#10

Installation parts diagram

Door arm

Part #178B32

The manufacturer no longer makes this part, and there's no substitute part

#20

Chassis assembly parts diagram

Logic board

Part #41A3090

The manufacturer no longer makes this part, and there's no substitute part

Rail assembly parts diagram

Outer troley

Part #41B2617

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Garage door opener hardware bag

Part #41A2825

The manufacturer no longer makes this part, and there's no substitute part

Installation parts diagram

Control assembly

Part #41D2736

The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your garage door openers

Choose a symptom to see related garage door opener repairs.

View all

Why does my garage door opener open and close by itself?

Main causes: neighbor's remote programmed at the same time as yours, faulty wall control wiring, bad wall control unit…

Why doesn't my garage door opener work?

Main causes: faulty logic control board, bad RPM sensor, broken gears in the drive system, bad drive motor…

Why is my garage door opener noisy?

Main causes: loose fasteners, broken brackets, need preventive maintenance, worn drive gears, loose or worn belt, loose …

What preventive maintenance does my garage door opener need?

Things to do: check garage door travel, tighten brackets and fasteners, test safety sensors, check travel limits and for…

Why won't my garage door opener fully open or close the garage door?

Main causes: garage door opener misaligned, travel limits need adjustment, bad travel limit switches, faulty logic contr…

Why won't my garage door opener open the garage door?

Main causes: garage door locked, damaged garage door tracks, up-force setting needs adjustment, RPM sensor failure, bad …

Why does my garage door opener work intermittently?

Main causes: radio interference, weak remote batteries, sunlight interference with safety sensor beams, safety sensors n…

Why does my garage door opener reverse on its own?

Main causes: safety sensor beams blocked, safety sensors not aligned, downforce setting needs adjustment, damaged garage…

Most common repair guides to help fix your garage door openers

These step-by-step repair guides will help you safely fix what’s broken on your garage door opener.

View all

How to replace a garage door opener battery

The garage door won't move during a power outage if the battery is dead. Here’s how to replace it.…

Repair difficulty

Time required

15 minutes or less

How to replace a garage door opener wall control

If you push the control button on the wall control and the garage door doesn’t move, the control is defective. Replace i…

Repair difficulty

Time required

15 minutes or less

How to replace a chain-drive garage door opener RPM sensor

Learn how to replace the RPM sensor if the door only moves 6 to 8 inches at a time and the LED light flashes 5 times. …

Repair difficulty

Time required

60 minutes or less

Effective articles & videos to help repair your garage door openers

Use the advice and tips in these articles and videos to get the most out of your garage door opener.

View all

How to enjoy all the online benefits we offer on our Sears PartsDirect website

Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…

Top questions about Sears and Sears PartsDirect

How to repair broken or damaged wires video

Learn how to repair broken, frayed or damaged wires in your appliances.…
