Model # DLL3480SBLAD Official Hotpoint gas dryer
Here are the diagrams and repair parts for Official Hotpoint DLL3480SBLAD gas dryer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

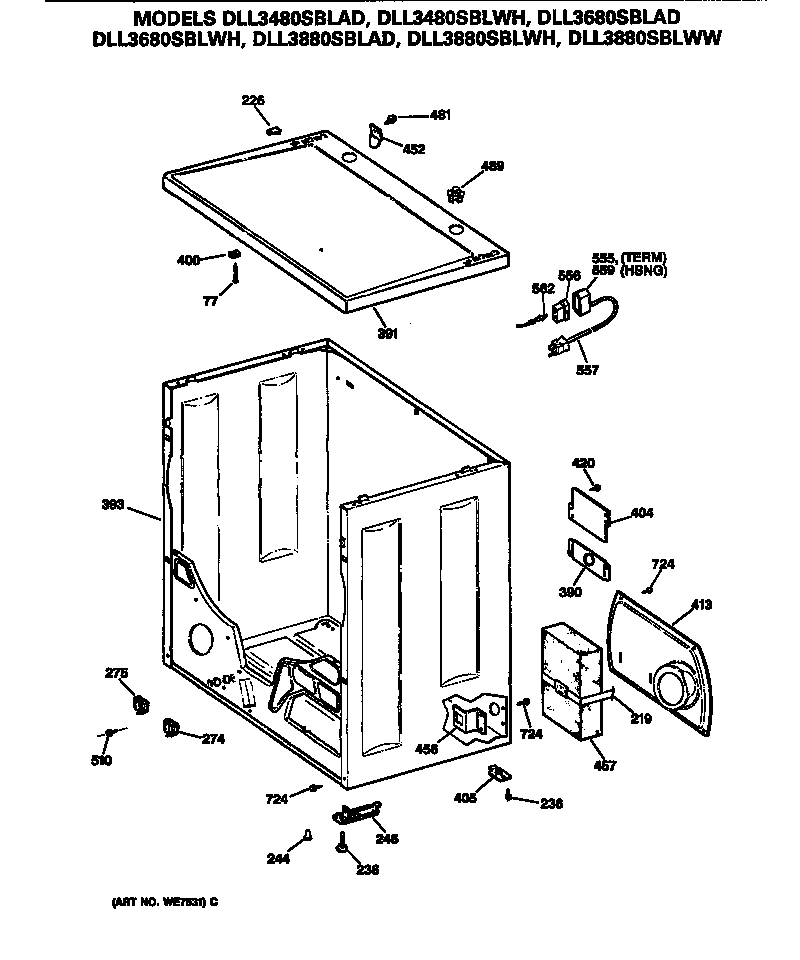

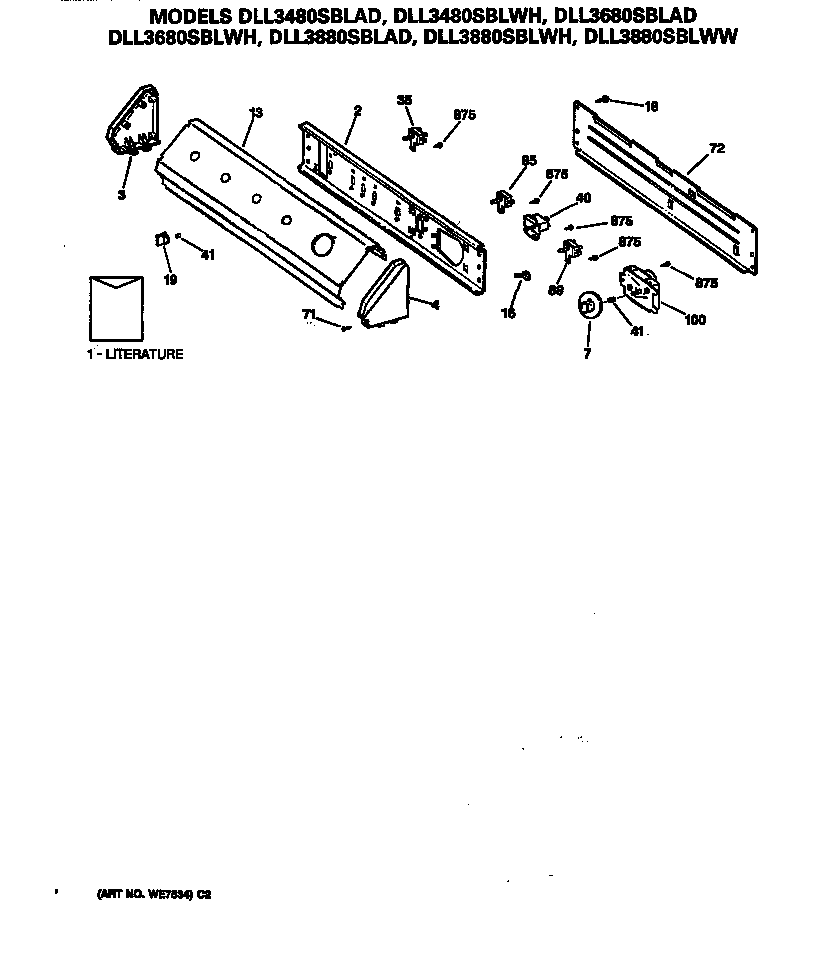

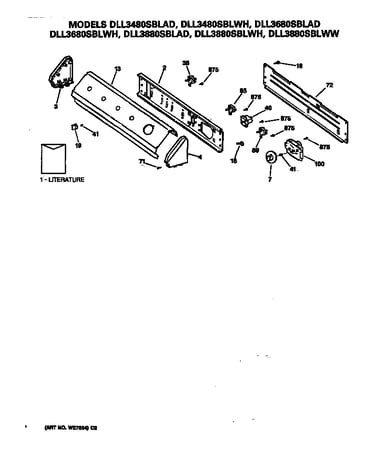

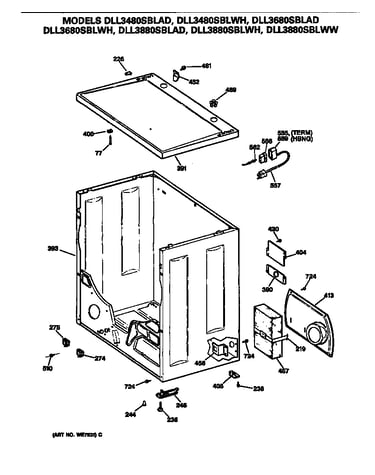

SELECT DIAGRAM
Browse Parts forDLL3480SBLAD Gas Dryer
- #717

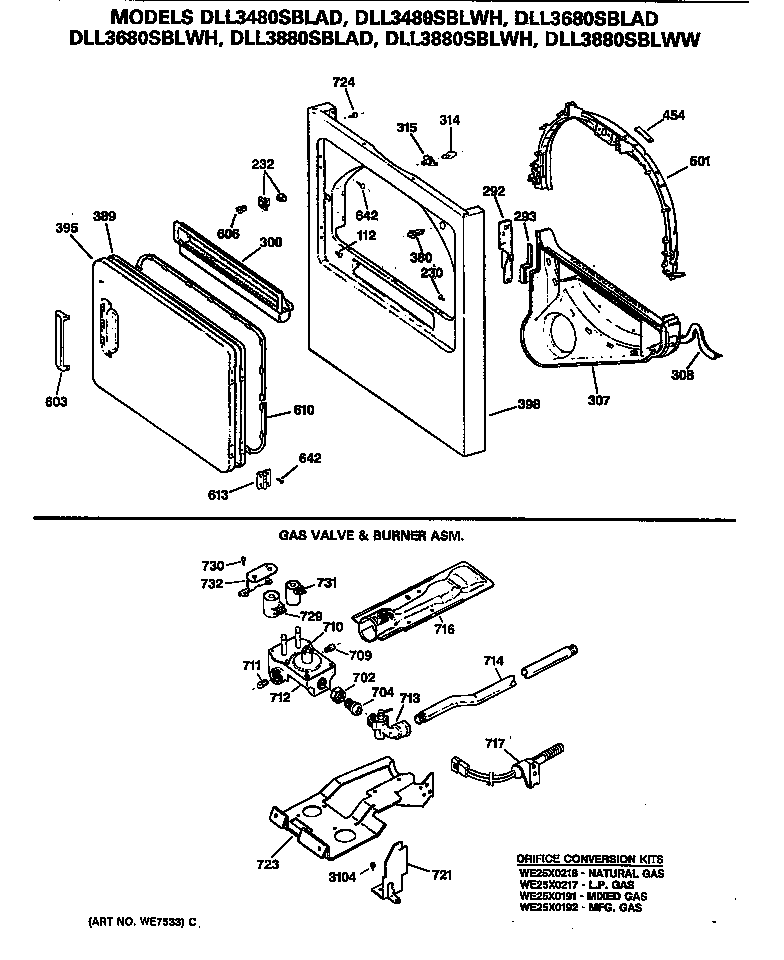

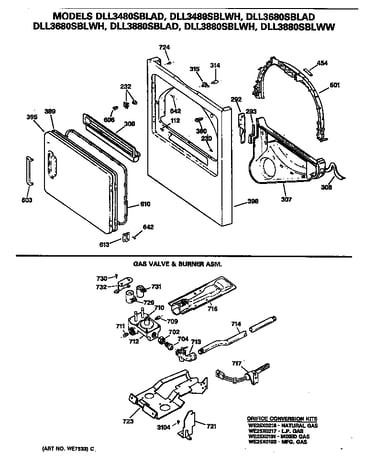

Door diagram
Dryer burner igniterPart #WE4X739
Replaced by #WE04X25996
?Manufacturer substitutionThis part replaces WE4X739. Substitute parts can look different from the original.$50.30 |11% OFF Phone Price : $56.30In Stock - #630

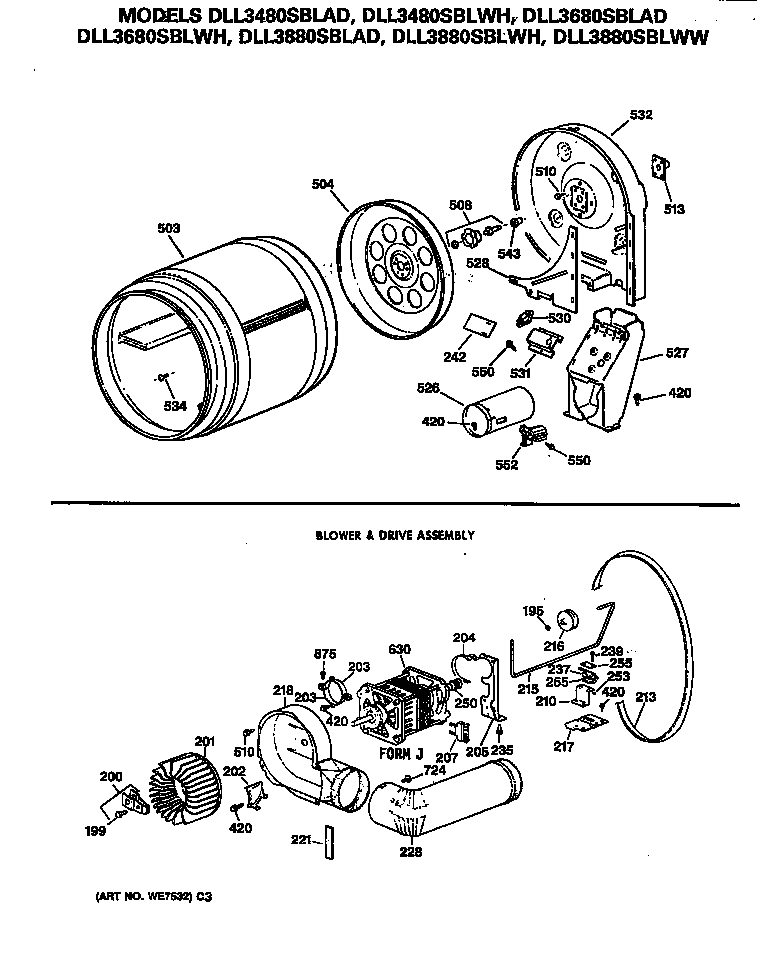

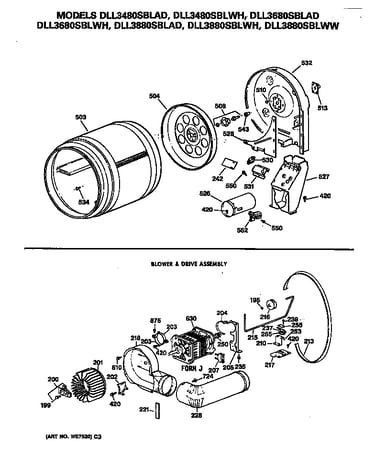

Blower & drive assembly diagram
MotorPart #WE17X32
Replaced by #WE17X10010
?Manufacturer substitutionThis part replaces WE17X32. Substitute parts can look different from the original.$209.34 |5% OFF Phone Price : $221.34In Stock - #207
Blower & drive assembly diagram
MotorPart #WE4X710
Replaced by #WE17X10010
?Manufacturer substitutionThis part replaces WE4X710. Substitute parts can look different from the original.$209.34 |5% OFF Phone Price : $221.34In Stock - #201
Blower & drive assembly diagram
Blower wheelPart #WE16X17
Replaced by #WE16M15
?Manufacturer substitutionThis part replaces WE16X17. Substitute parts can look different from the original.$61.61 |9% OFF Phone Price : $67.61In Stock - #300
Door diagram
G.e. dryer lint screenPart #WE18X54
$62.15 |9% OFF Phone Price : $68.15In Stock - #603
Door diagram
Handle,dooPart #WE1X1188
Replaced by #WE01X20419
?Manufacturer substitutionThis part replaces WE1X1188. Substitute parts can look different from the original.This item is not returnable$21.88 |22% OFF Phone Price : $27.88In Stock - #454B
Door diagram
Slide bearingPart #WE3X84
Replaced by #WE3X87
?Manufacturer substitutionThis part replaces WE3X84. Substitute parts can look different from the original.$10.64 |16% OFF Phone Price : $12.64In Stock - #454A
Door diagram
Slide bearingPart #WE3X83
Replaced by #WE3X87
?Manufacturer substitutionThis part replaces WE3X83. Substitute parts can look different from the original.$10.64 |16% OFF Phone Price : $12.64In Stock - #603
Door diagram
Door handlePart #WE1X1201
Replaced by #WE01X20580
?Manufacturer substitutionThis part replaces WE1X1201. Substitute parts can look different from the original.This item is not returnable$19.73 |9% OFF Phone Price : $21.73In Stock - #200
Blower & drive assembly diagram
Dryer blower wheel retainer assemblyPart #WE1X688
This item is not returnable$19.44 |9% OFF Phone Price : $21.44In Stock
