Model # FFFC05M2KW Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFFC05M2KW freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 6 of 6 parts |

#59

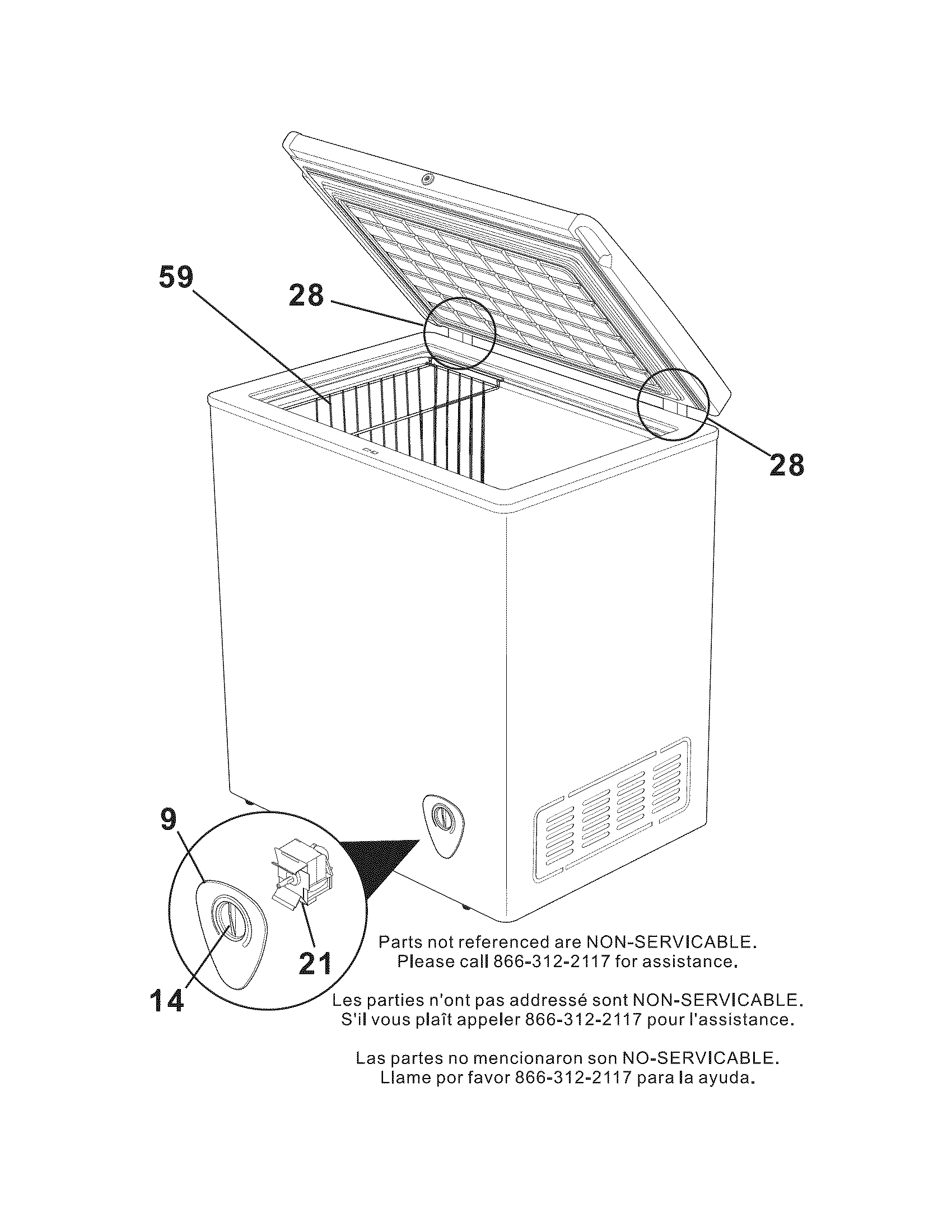

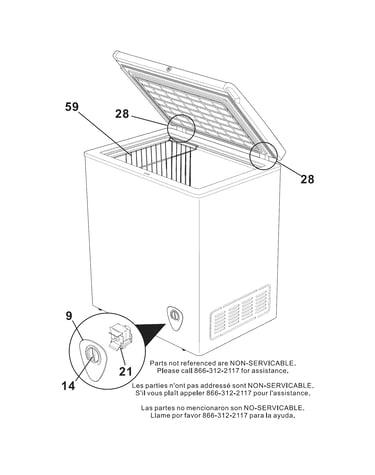

Replacement parts diagram

Freezer basket

Part #5304439835

$46.20 |

11% OFF Phone Price : $52.20

In Stock

Qty

Freezer Temperature Control Thermostat 5304476700

#21

Replacement parts diagram

Freezer temperature control thermostat

Part #5304476700

$68.37 |

8% OFF Phone Price : $74.37

Back Order

Qty

Replacement parts diagram

Freezer control panel cover

Part #5304476699

The manufacturer no longer makes this part, and there's no substitute part

#14

Replacement parts diagram

Control knob

Part #5304439839

The manufacturer no longer makes this part, and there's no substitute part

#28

Replacement parts diagram

Freezer lid hinge and spring

Part #5304439831

The manufacturer no longer makes this part, and there's no substitute part

#NI

Replacement parts diagram

Hinge

Part #5304439834

The manufacturer no longer makes this part, and there's no substitute part
