Water Pump

Model # 390262551 Official Craftsman pump

Here are the diagrams and repair parts for Official Craftsman 390262551 pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
0-ring U9-226
#13

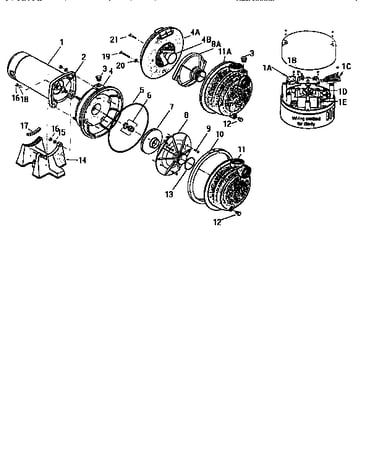

Replacement parts diagram

0-ring

Part #U9-226

$10.71
In Stock
Pump Body, Front C176-53P
#11

Replacement parts diagram

Pump body, front

Part #C176-53P

$400.17
In Stock
Pipe Plug WC78-40T
#12

Replacement parts diagram

Pipe plug

Part #WC78-40T

$14.00
In Stock
Pump Motor Base C4-42P
#14

Replacement parts diagram

Pump motor base

Part #C4-42P

$118.62
In Stock
Pump Impeller C105-92PBBB
#7

Replacement parts diagram

Pump impeller

Part #C105-92PBBB

$182.49 |
6% OFF Phone Price : $194.49
In Stock
Overload Protector U18-1342
#1A

Replacement parts diagram

Overload protector

Part #U18-1342

$191.53
In Stock
Pad Motor C35-11
#17

Replacement parts diagram

Pad motor

Part #C35-11

This item is not returnable
$6.27
In Stock
Pump Impeller Housing Clamp C19-54SS
#10

Replacement parts diagram

Pump impeller housing clamp

Part #C19-54SS

$231.69 |
5% OFF Phone Price : $243.69
In Stock
Pump Contactor U18-1098
#1C

Replacement parts diagram

Pump contactor

Part #U18-1098

$161.62 |
7% OFF Phone Price : $173.62
In Stock
Pump Diffuser C1-258PCA
#8

Replacement parts diagram

Pump diffuser

Part #C1-258PCA

$148.39 |
7% OFF Phone Price : $160.39
In Stock
