Model # DRT366SNGH Official Dacor cooktop

Here are the diagrams and repair parts for Official Dacor DRT366SNGH cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

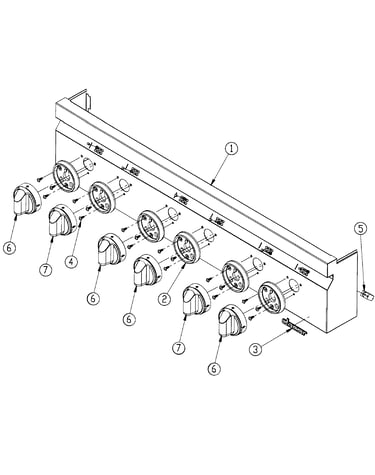

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |

Nut 83308
#6

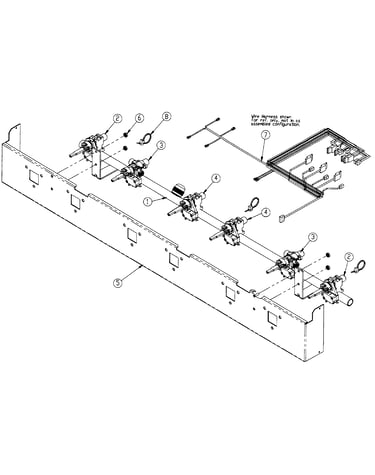

Manifold diagram

Nut

Part #83308

This item is not returnable
In Stock
Range Surface Burner Cap 102593
#16

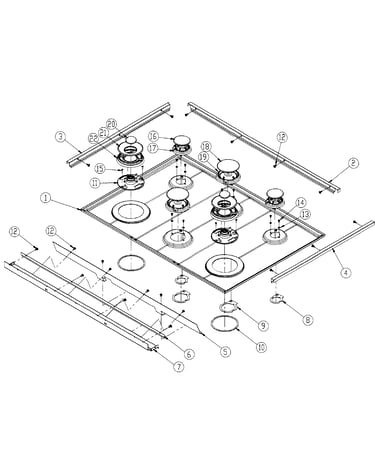

Upper cooktop diagram

Range surface burner cap

Part #102593

In Stock
Valve 103689-03
#3

Manifold diagram

Valve

Part #103689-03

In Stock
Oven Insulation 100910
#11

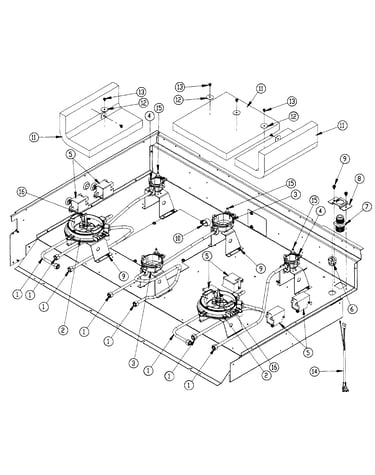

Sub cooktop diagram

Oven insulation

Part #100910

This item is not returnable
In Stock
Range Surface Burner Head, Outer 102588
#22

Upper cooktop diagram

Range surface burner head, outer

Part #102588

In Stock
Screw 83001
#13

Sub cooktop diagram

Screw

Part #83001

This item is not returnable
In Stock
Range Screw 103696
#14

Upper cooktop diagram

Range screw

Part #103696

This item is not returnable
In Stock
Cable Clamp 83167
#10

Sub cooktop diagram

Cable clamp

Part #83167

This item is not returnable
In Stock
Cable Tie 83138
#8

Manifold diagram

Cable tie

Part #83138

This item is not returnable
In Stock
Cooktop Burner Base Gasket 103551
#8

Upper cooktop diagram

Cooktop burner base gasket

Part #103551

This item is not returnable
In Stock
