Model # 113213212 Official Craftsman 20" industrial rated drill press

Here are the diagrams and repair parts for Official Craftsman 113213212 20" industrial rated drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Drill Press Quill Tube Drift Key 817326
#7

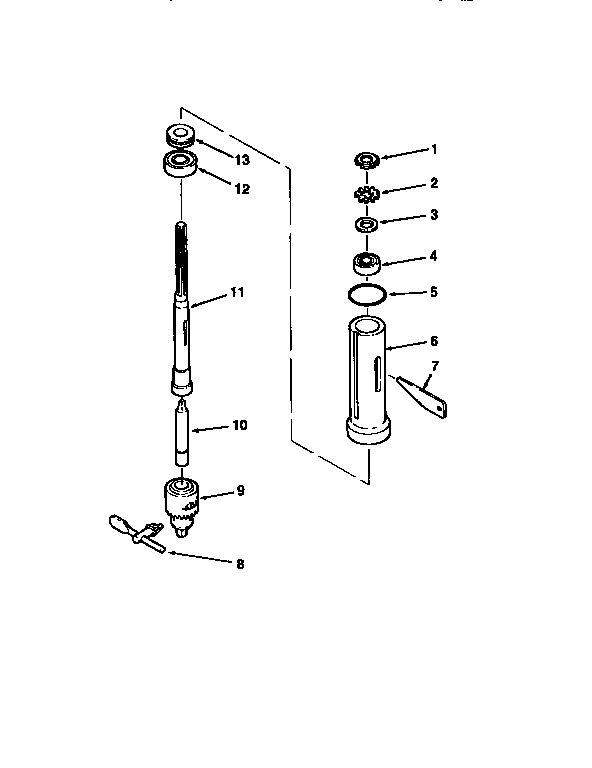

Spindle assembly diagram

Drill press quill tube drift key

Part #817326

The manufacturer no longer makes this part, and there's no substitute part

Crank Handle 817713
#5

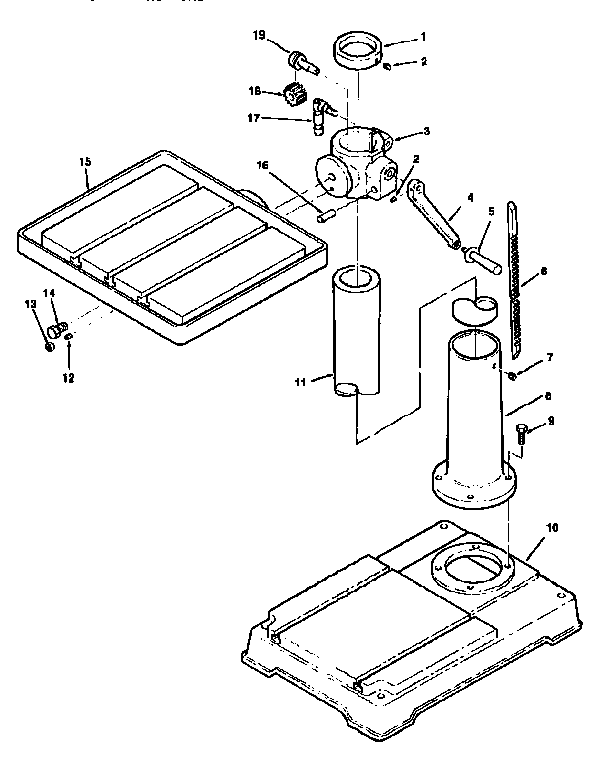

Table assembly diagram

Crank handle

Part #817713

The manufacturer no longer makes this part, and there's no substitute part

Pan Screw 820240-3
#25

Head assembly diagram

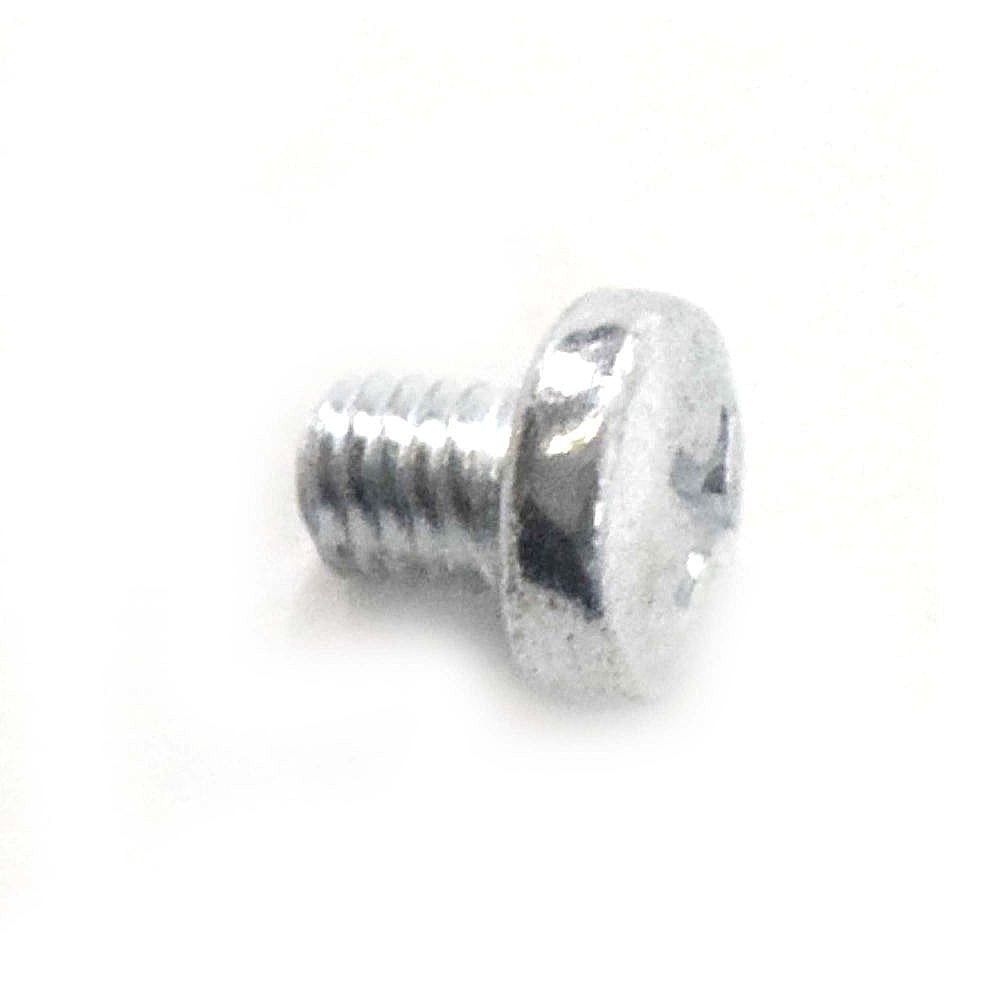

Pan screw

Part #820240-3

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 813249-53
#44

Head assembly diagram

Roll pin

Part #813249-53

The manufacturer no longer makes this part, and there's no substitute part

Drill Press Knob 817711
#18

Head assembly diagram

Drill press knob

Part #817711

The manufacturer no longer makes this part, and there's no substitute part

Socket Hex Screw 820239
#35

Head assembly diagram

Socket hex screw

Part #820239

The manufacturer no longer makes this part, and there's no substitute part

Screw 816755-3
#7

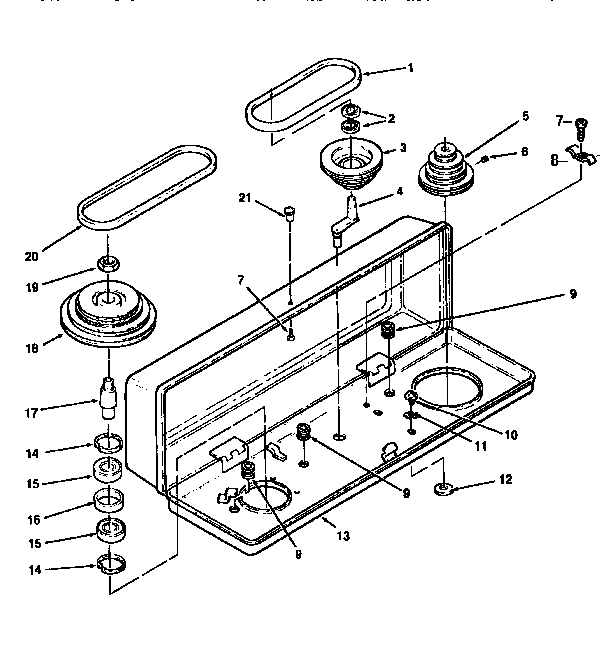

Guard assembly diagram

Screw

Part #816755-3

The manufacturer no longer makes this part, and there's no substitute part

Hex Socket Screw Set, M6-1 X 10 (black) 817391-1
#2

Table assembly diagram

Hex socket screw set, m6-1 x 10 (black)

Part #817391-1

The manufacturer no longer makes this part, and there's no substitute part

Drill Press On/off Switch 817354
#32

Head assembly diagram

Drill press on/off switch

Part #817354

The manufacturer no longer makes this part, and there's no substitute part

Screw 817391
#7

Table assembly diagram

Screw

Part #817391

The manufacturer no longer makes this part, and there's no substitute part
