Model # AZ65H12DADW1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AZ65H12DADW1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Room Air Conditioner Evaporator Fan Blade WP73X20970
#221

Motor & chassis parts diagram

Room air conditioner evaporator fan blade

Part #WP73X20970

$163.01 |
7% OFF Phone Price : $175.01
In Stock
Room Air Conditioner Louver WP71X20866
#104

Grille & control parts diagram

Room air conditioner louver

Part #WP71X20866

$26.38 |
19% OFF Phone Price : $32.38
In Stock
Room Air Conditioner Heater Assembly, 230-volt WP70X24594
#225

Motor & chassis parts diagram

Room air conditioner heater assembly, 230-volt

Part #WP70X24594

Replaced by #WP27X24982

?
Manufacturer substitution
This part replaces WP70X24594. Substitute parts can look different from the original.
$131.53 |
8% OFF Phone Price : $143.53
In Stock
Thermistor I WP26X20982
#318

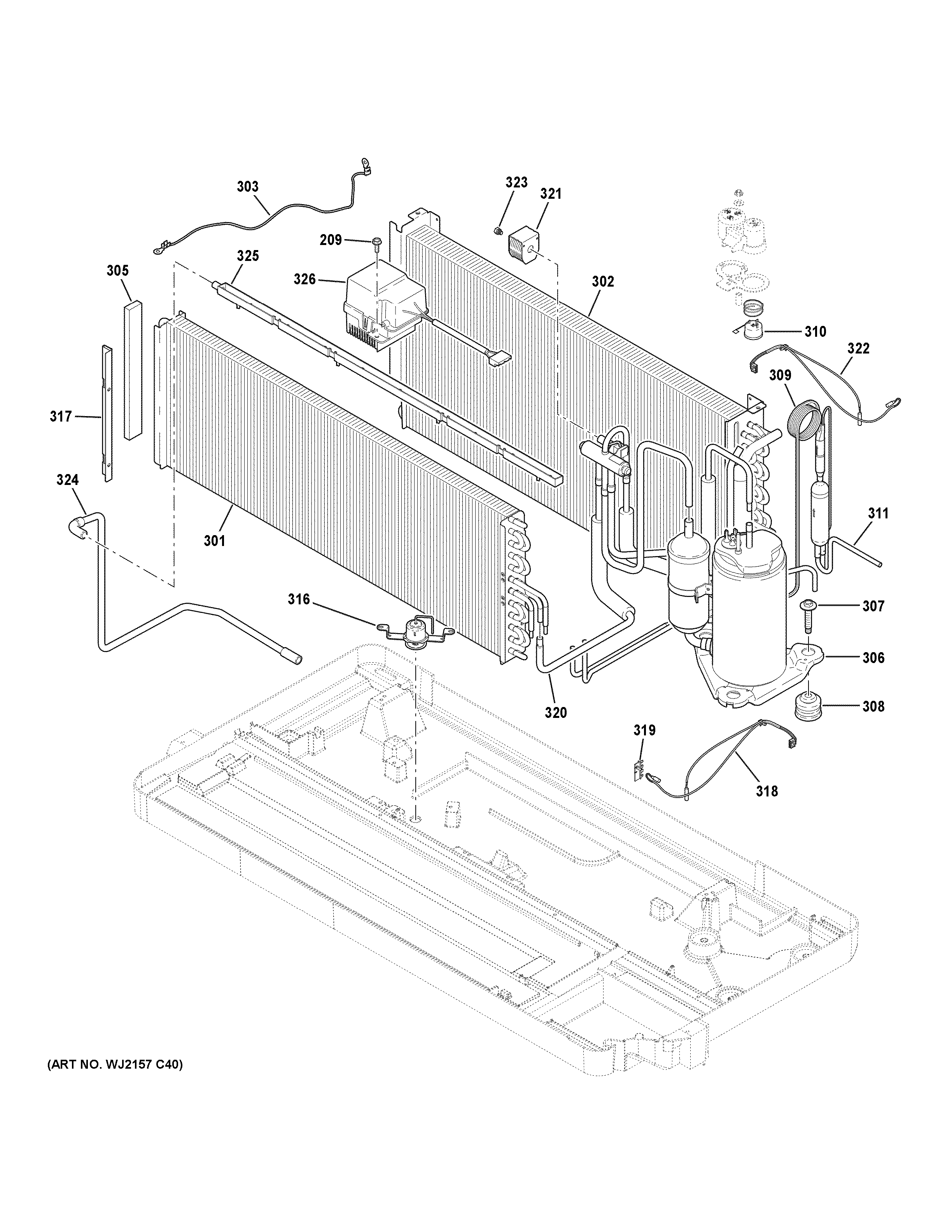

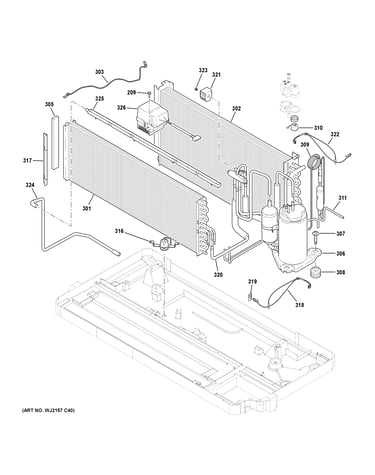

Sealed system diagram

Thermistor i

Part #WP26X20982

$20.28 |
23% OFF Phone Price : $26.28
In Stock
Housing Assembly WP76X20864
#116

Grille & control parts diagram

Housing assembly

Part #WP76X20864

Replaced by #WP76X24978

?
Manufacturer substitution
This part replaces WP76X20864. Substitute parts can look different from the original.
$38.73 |
13% OFF Phone Price : $44.73
In Stock
Motor Id Dc WP94X20869
#220

Motor & chassis parts diagram

Motor id dc

Part #WP94X20869

Replaced by #WP49X22362

?
Manufacturer substitution
This part replaces WP94X20869. Substitute parts can look different from the original.
$97.94 |
11% OFF Phone Price : $109.94
In Stock
Wick Reservoir WP76X21520
#325

Sealed system diagram

Wick reservoir

Part #WP76X21520

$12.91
In Stock
Coil Outdoor Asm WP87X25583
#302

Sealed system diagram

Coil outdoor asm

Part #WP87X25583

$338.87
In Stock
15a Non-lcdi Cord RAK315SP
#409

Optional accessories diagram

15a non-lcdi cord

Part #RAK315SP

$57.78
In Stock
Scr M8-125 B WP01X21031
#307

Sealed system diagram

Scr m8-125 b

Part #WP01X21031

$8.11
In Stock
