Craftsman
Power Saw

Model # 3201820 Official Craftsman saw

Here are the diagrams and repair parts for Official Craftsman 3201820 saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Spring 3660375000
#16

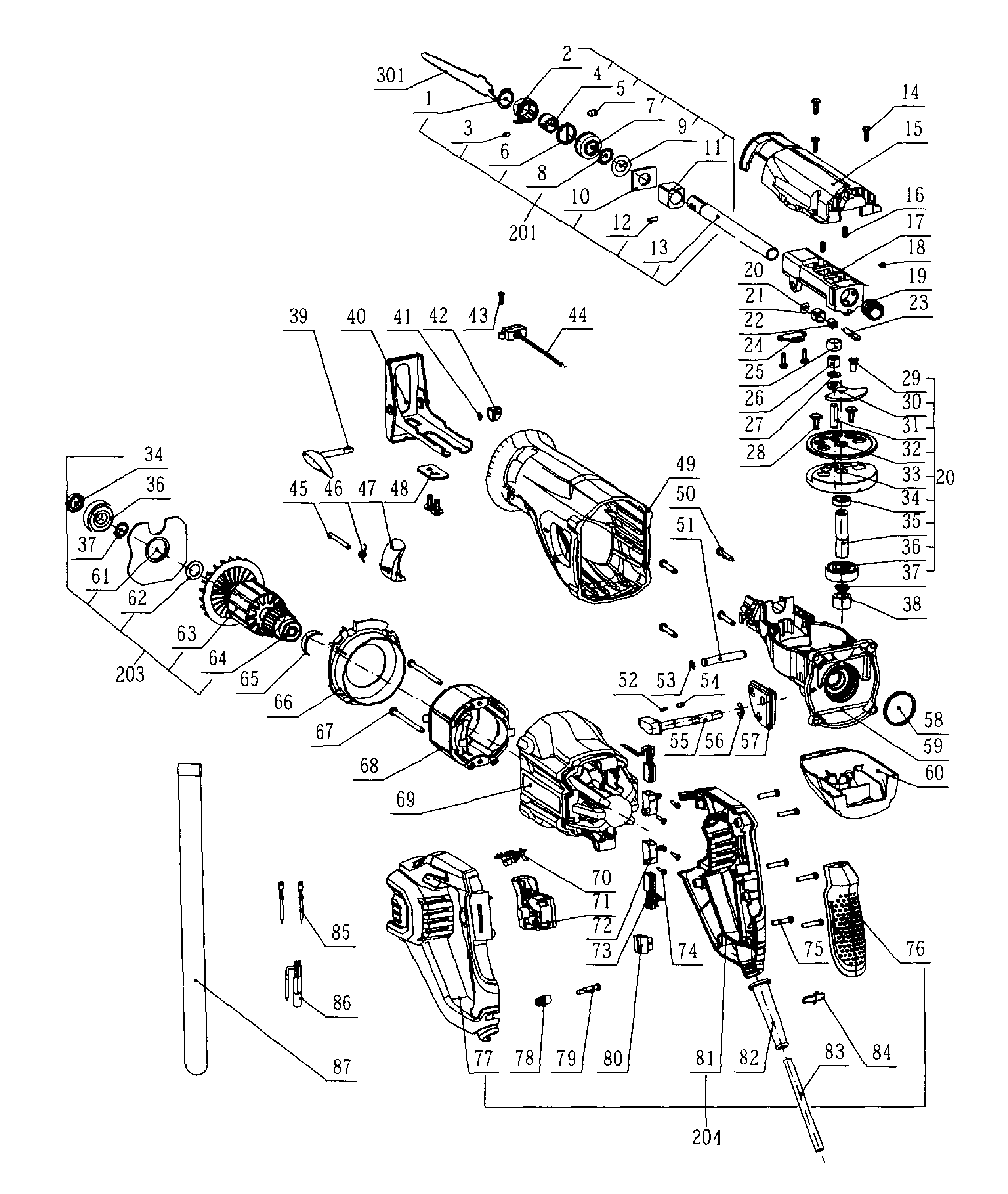

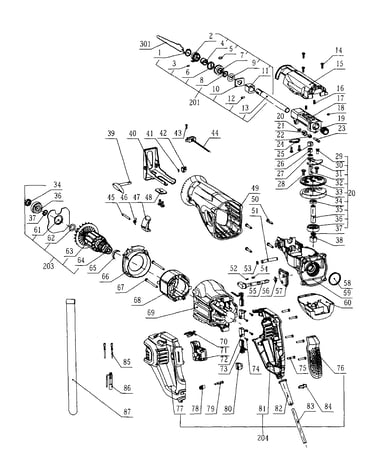

Main asy diagram

Spring

Part #3660375000

The manufacturer no longer makes this part, and there's no substitute part

Cord Anch 3120234000
#78

Main asy diagram

Cord anch

Part #3120234000

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Reciprocating Saw Handle Assembly 2824202000
#204

Main asy diagram

Craftsman reciprocating saw handle assembly

Part #2824202000

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Reciprocating Saw Light Seal 3127830000
#42

Main asy diagram

Craftsman reciprocating saw light seal

Part #3127830000

The manufacturer no longer makes this part, and there's no substitute part

Spring 3660050000
#52

Main asy diagram

Spring

Part #3660050000

The manufacturer no longer makes this part, and there's no substitute part

Reciprocating Saw Trigger Switch 4870543000
#71

Main asy diagram

Reciprocating saw trigger switch

Part #4870543000

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Reciprocating Saw Pivot Shoe 2823896000
#40

Main asy diagram

Craftsman reciprocating saw pivot shoe

Part #2823896000

The manufacturer no longer makes this part, and there's no substitute part

Limit Plat 3124150000
#57

Main asy diagram

Limit plat

Part #3124150000

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Reciprocating Saw Motor Rotor Assembly 2823930000
#203

Main asy diagram

Craftsman reciprocating saw motor rotor assembly

Part #2823930000

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Reciprocating Saw Motor Wire Harness 4860289000
#85

Main asy diagram

Craftsman reciprocating saw motor wire harness

Part #4860289000

The manufacturer no longer makes this part, and there's no substitute part
