Band Saw

Model # 113244421 Official Craftsman 10" band saw

Here are the diagrams and repair parts for Official Craftsman 113244421 10" band saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Band Saw Tire 69117
#1

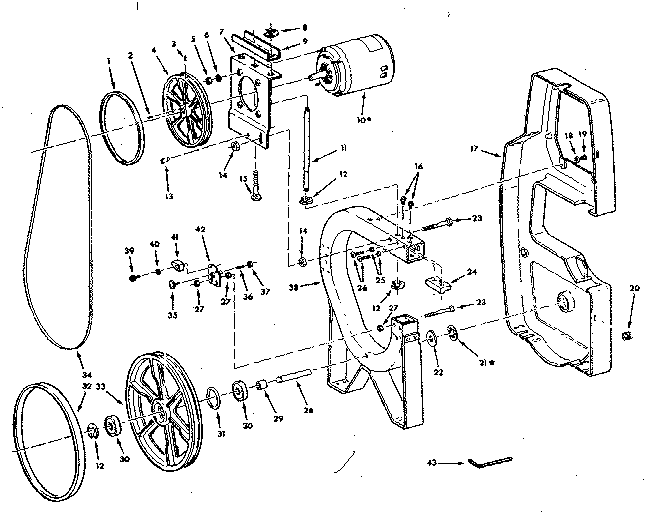

Frame and motor mount assembly diagram

Band saw tire

Part #69117

The manufacturer no longer makes this part, and there's no substitute part

Emerson Screw 9416390
#26

Frame and motor mount assembly diagram

Emerson screw

Part #9416390

The manufacturer no longer makes this part, and there's no substitute part

Screw 273229
Screw

Part #273229

The manufacturer no longer makes this part, and there's no substitute part

Sears Band Saw Blade Thrust Roller 18232
Sears band saw blade thrust roller

Part #18232

The manufacturer no longer makes this part, and there's no substitute part

Ryobi Table Saw Washer 37838
#22

Frame and motor mount assembly diagram

Ryobi table saw washer

Part #37838

The manufacturer no longer makes this part, and there's no substitute part

Band Saw Screw 193250
Band saw screw

Part #193250

The manufacturer no longer makes this part, and there's no substitute part

Band Saw Tire (replaces 13033, 13571, 13611) 41815
#32

Frame and motor mount assembly diagram

Band saw tire (replaces 13033, 13571, 13611)

Part #41815

The manufacturer no longer makes this part, and there's no substitute part

Table Insert 69133
#25

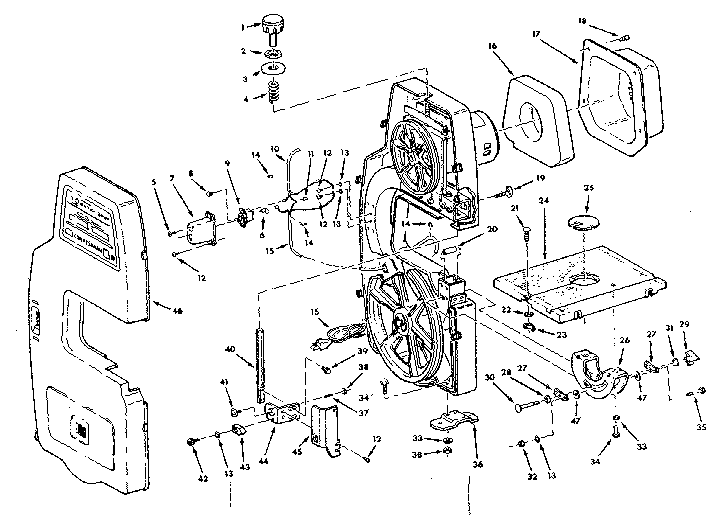

Unit breakdown diagram

Table insert

Part #69133

The manufacturer no longer makes this part, and there's no substitute part

Bracket Assembly, Upper 69112
#44

Unit breakdown diagram

Bracket assembly, upper

Part #69112

The manufacturer no longer makes this part, and there's no substitute part

Connector STD375006
#11

Unit breakdown diagram

Connector

Part #STD375006

The manufacturer no longer makes this part, and there's no substitute part
