Kenmore
Gas Cooktop

Model # 79032412900 Official Kenmore cooktop

Here are the diagrams and repair parts for Official Kenmore 79032412900 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

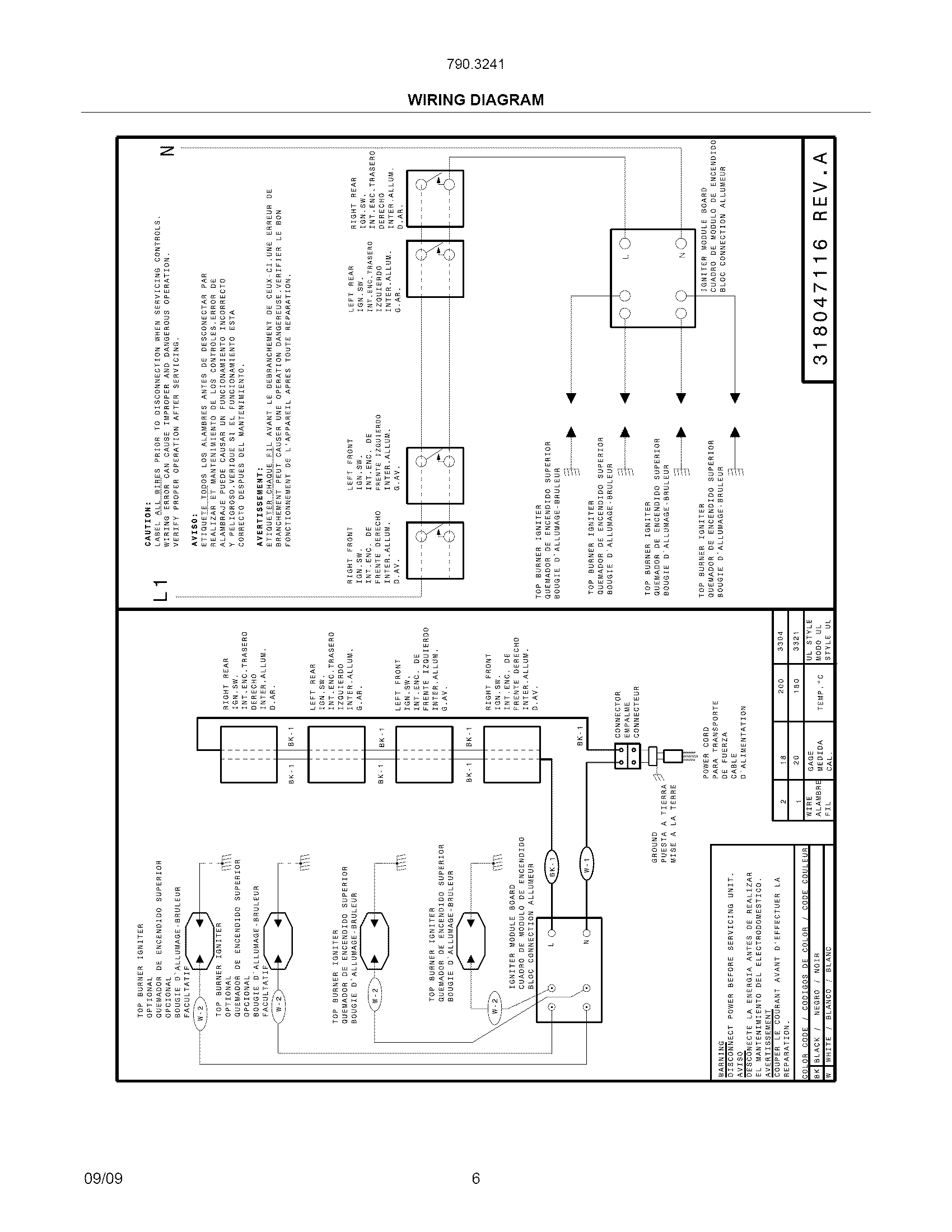

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Range Screw 5304472956
#NI

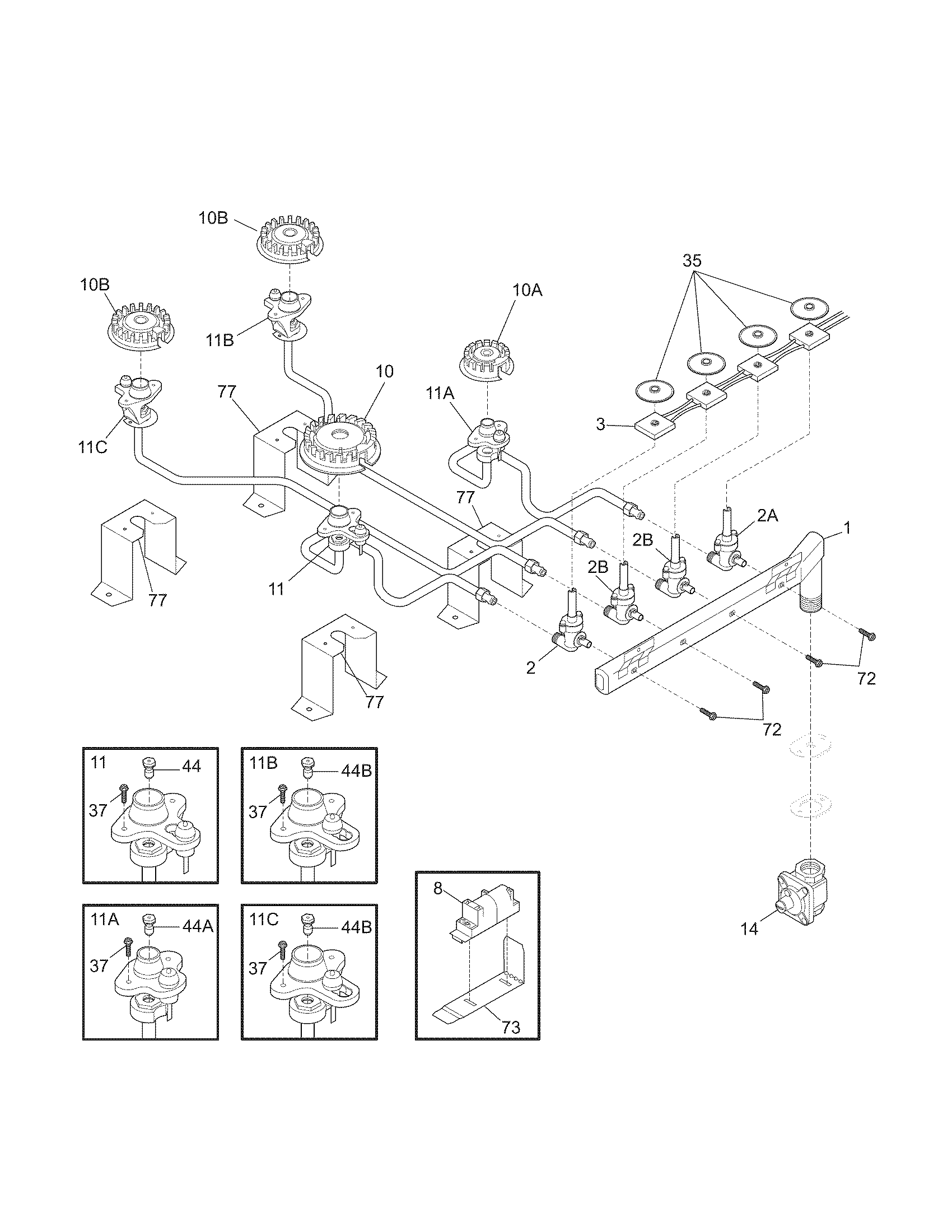

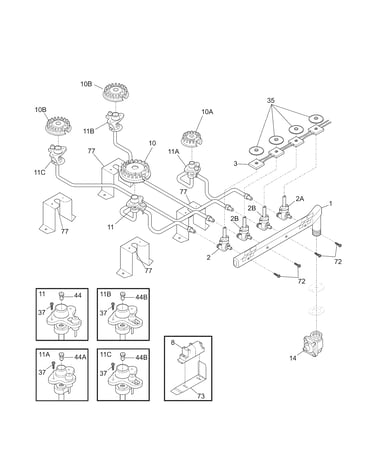

Burner diagram

Range screw

Part #5304472956

Replaced by #316240600

?
Manufacturer substitution
This part replaces 5304472956. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Electrolux Range Sealed Surface Burner (replaces 316206400, 7316206401) 316206401
#10A

Burner diagram

Electrolux range sealed surface burner (replaces 316206400, 7316206401)

Part #316206401

BEST SELLER
$58.89 |
9% OFF Phone Price : $64.89
In Stock
Range Surface Burner Orifice (replaces 7316237902) 316237902
#44B

Burner diagram

Range surface burner orifice (replaces 7316237902)

Part #316237902

$38.99 |
13% OFF Phone Price : $44.99
In Stock
Range Spark Module (replaces 316135701, 7316135701, 7316135702) 316135702
#8

Burner diagram

Range spark module (replaces 316135701, 7316135701, 7316135702)

Part #316135702

Replaced by #5304505695

?
Manufacturer substitution
This part replaces 316135702. Substitute parts can look different from the original.
$46.80
In Stock
Range Surface Burner Orifice (replaces 7316237900) 316237900
#44

Burner diagram

Range surface burner orifice (replaces 7316237900)

Part #316237900

$57.44 |
9% OFF Phone Price : $63.44
In Stock
Cooktop Burner Valve 318233900
#2A

Burner diagram

Cooktop burner valve

Part #318233900

$96.67 |
11% OFF Phone Price : $108.67
In Stock
Cooktop Firebox Support 318264301
#136

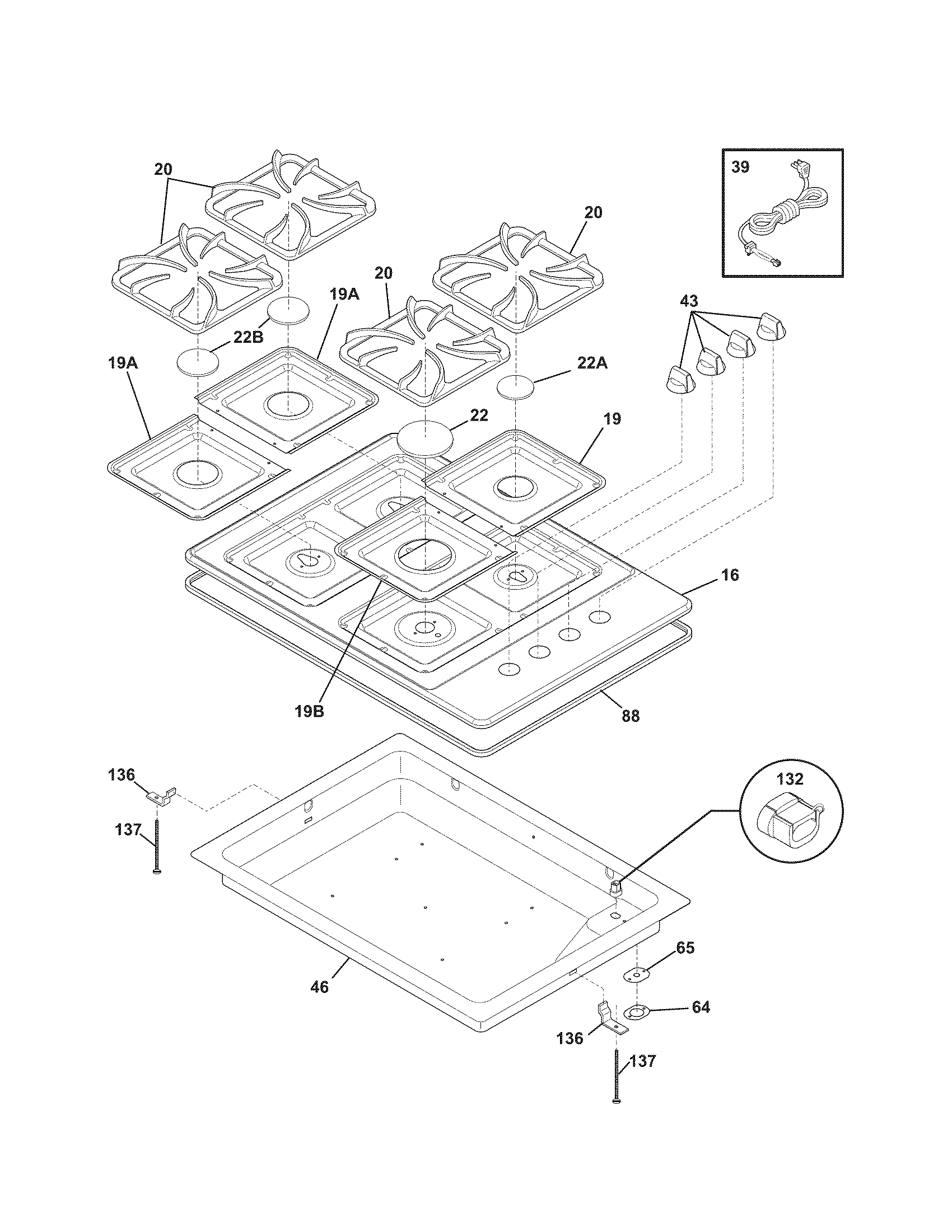

Maintop diagram

Cooktop firebox support

Part #318264301

$36.11 |
14% OFF Phone Price : $42.11
In Stock
Range Screw 5303300195
Range screw

Part #5303300195

Replaced by #5300803416

?
Manufacturer substitution
This part replaces 5303300195. Substitute parts can look different from the original.
This item is not returnable
$6.26
In Stock
Cooktop Igniter Switch And Harness Assembly 318232645
#3

Burner diagram

Cooktop igniter switch and harness assembly

Part #318232645

$67.51
In Stock
Range Screw 5303323140
Range screw

Part #5303323140

$11.17
In Stock
