Makita
Power Nailer

Model # AN922 Official Makita framing nailer

Here are the diagrams and repair parts for Official Makita AN922 framing nailer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |

Spring Pin 258004-8
#46

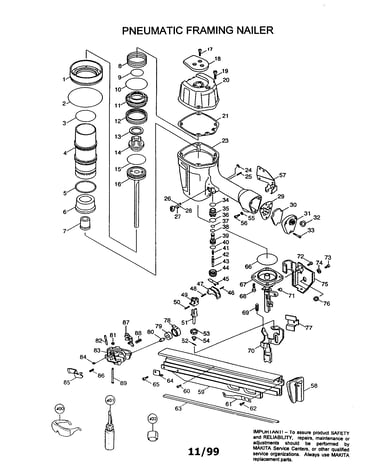

Pneumatic framing nailer diagram

Spring pin

Part #258004-8

The manufacturer no longer makes this part, and there's no substitute part

Bolt 265962-1
#73

Pneumatic framing nailer diagram

Bolt

Part #265962-1

The manufacturer no longer makes this part, and there's no substitute part

O-ring 213809-3
#2

Pneumatic framing nailer diagram

O-ring

Part #213809-3

The manufacturer no longer makes this part, and there's no substitute part

Bolt 922216-6
#62

Pneumatic framing nailer diagram

Bolt

Part #922216-6

The manufacturer no longer makes this part, and there's no substitute part

Bolt 922342-1
#19

Pneumatic framing nailer diagram

Bolt

Part #922342-1

The manufacturer no longer makes this part, and there's no substitute part

Stp Rng E-4 961011-9
#24

Pneumatic framing nailer diagram

Stp rng e-4

Part #961011-9

The manufacturer no longer makes this part, and there's no substitute part

Washer 941101-4
#55

Pneumatic framing nailer diagram

Washer

Part #941101-4

The manufacturer no longer makes this part, and there's no substitute part

Ring 213654-6
#66

Pneumatic framing nailer diagram

Ring

Part #213654-6

The manufacturer no longer makes this part, and there's no substitute part

O-ring 213262-3
#36

Pneumatic framing nailer diagram

O-ring

Part #213262-3

The manufacturer no longer makes this part, and there's no substitute part

Steel Ball 216008-6
#28

Pneumatic framing nailer diagram

Steel ball

Part #216008-6

The manufacturer no longer makes this part, and there's no substitute part
