Model # CET9100GQ0 Official Whirlpool laundry center/combo
Here are the diagrams and repair parts for Official Whirlpool CET9100GQ0 laundry center/combo, as well as links to manuals and error code tables, if available.
Installation guide
Error CodesBy Schematic
By Part

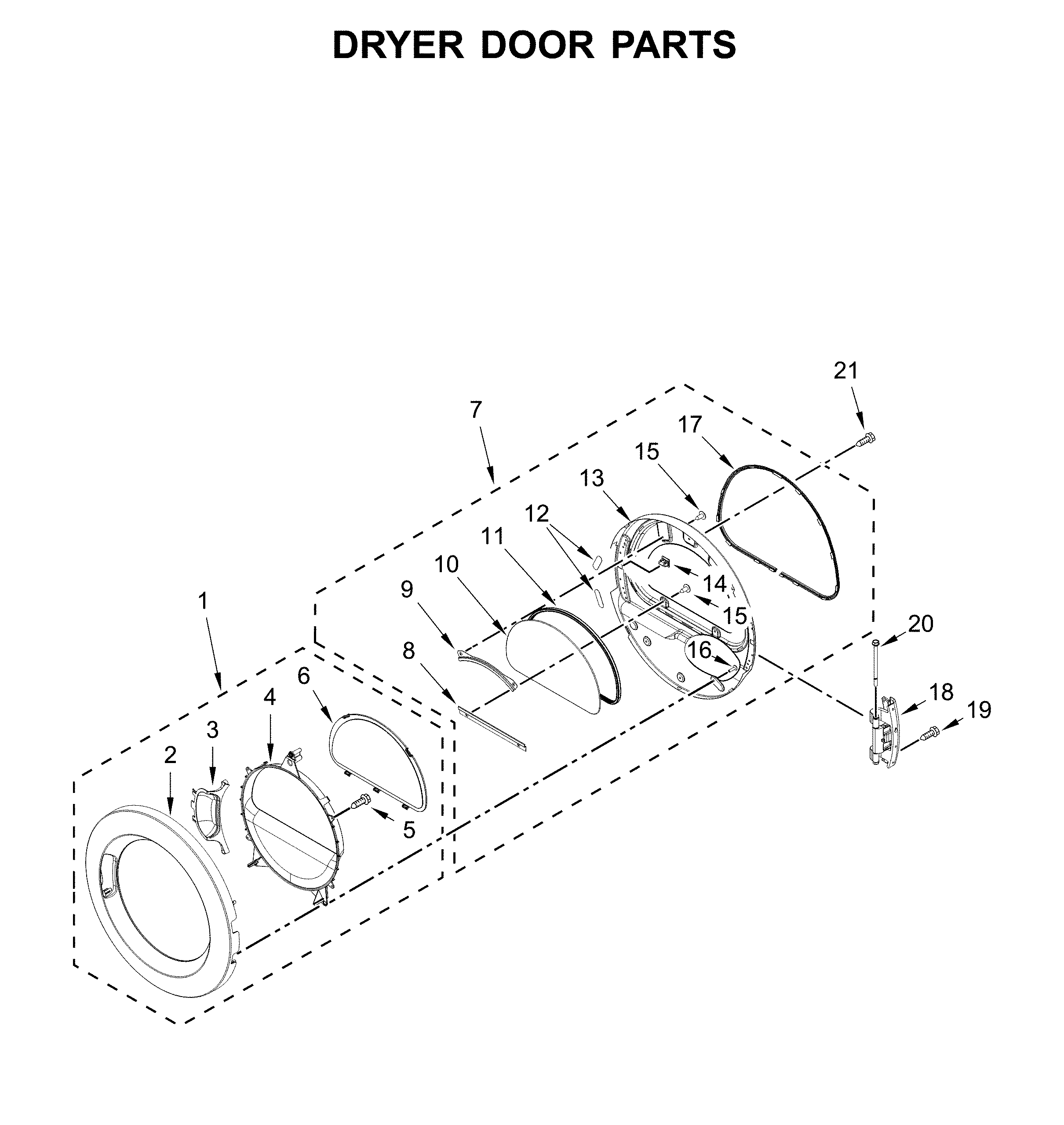

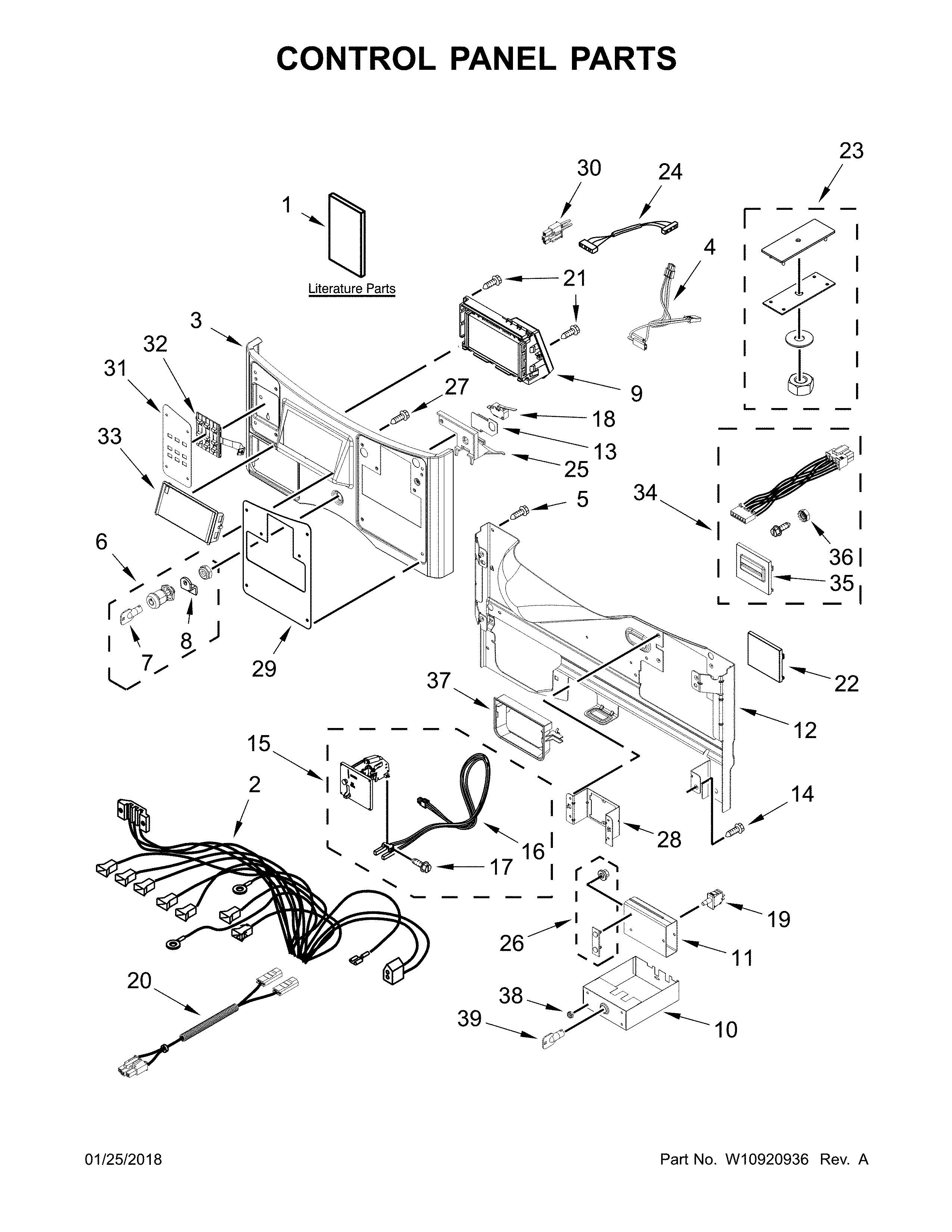

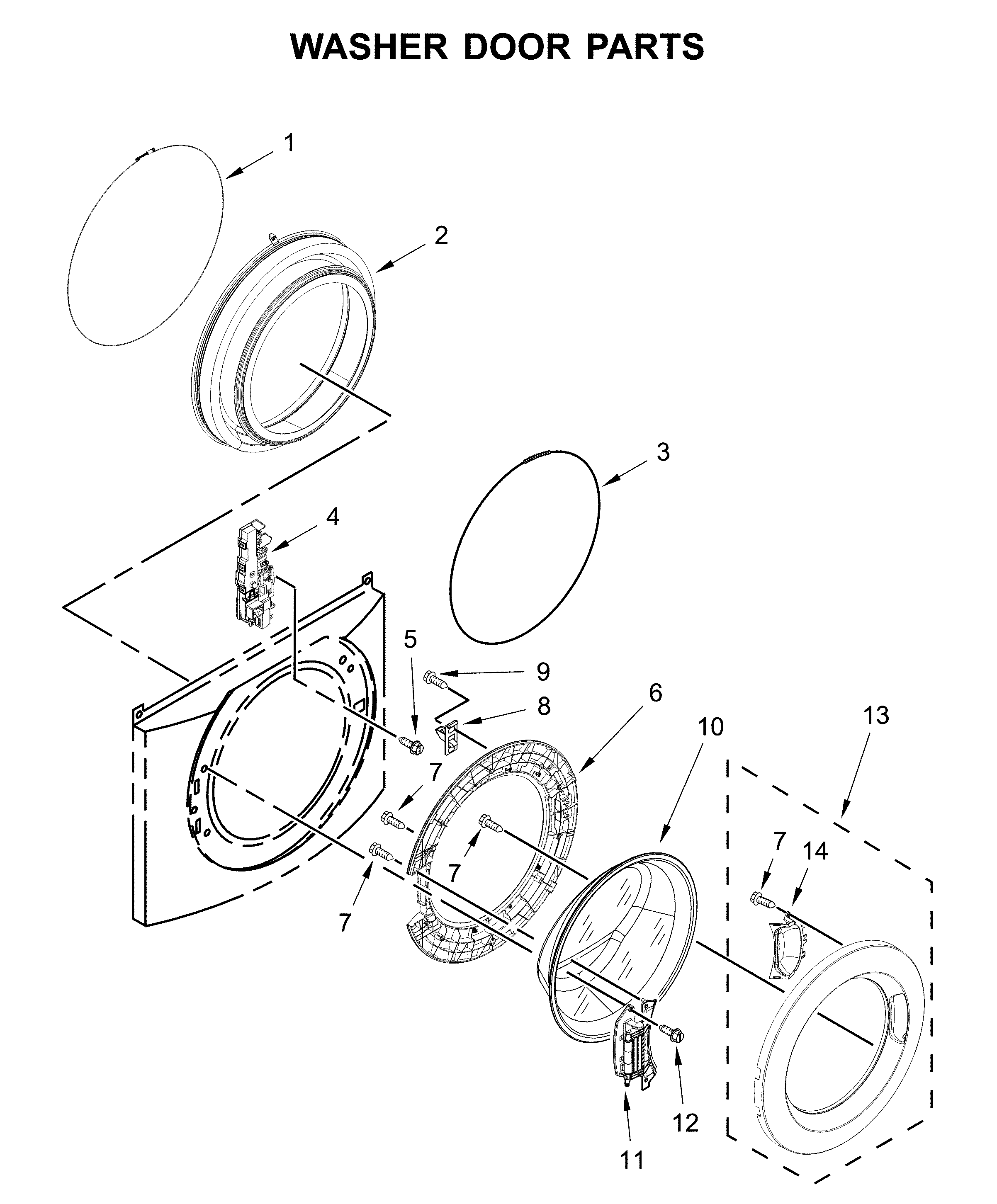

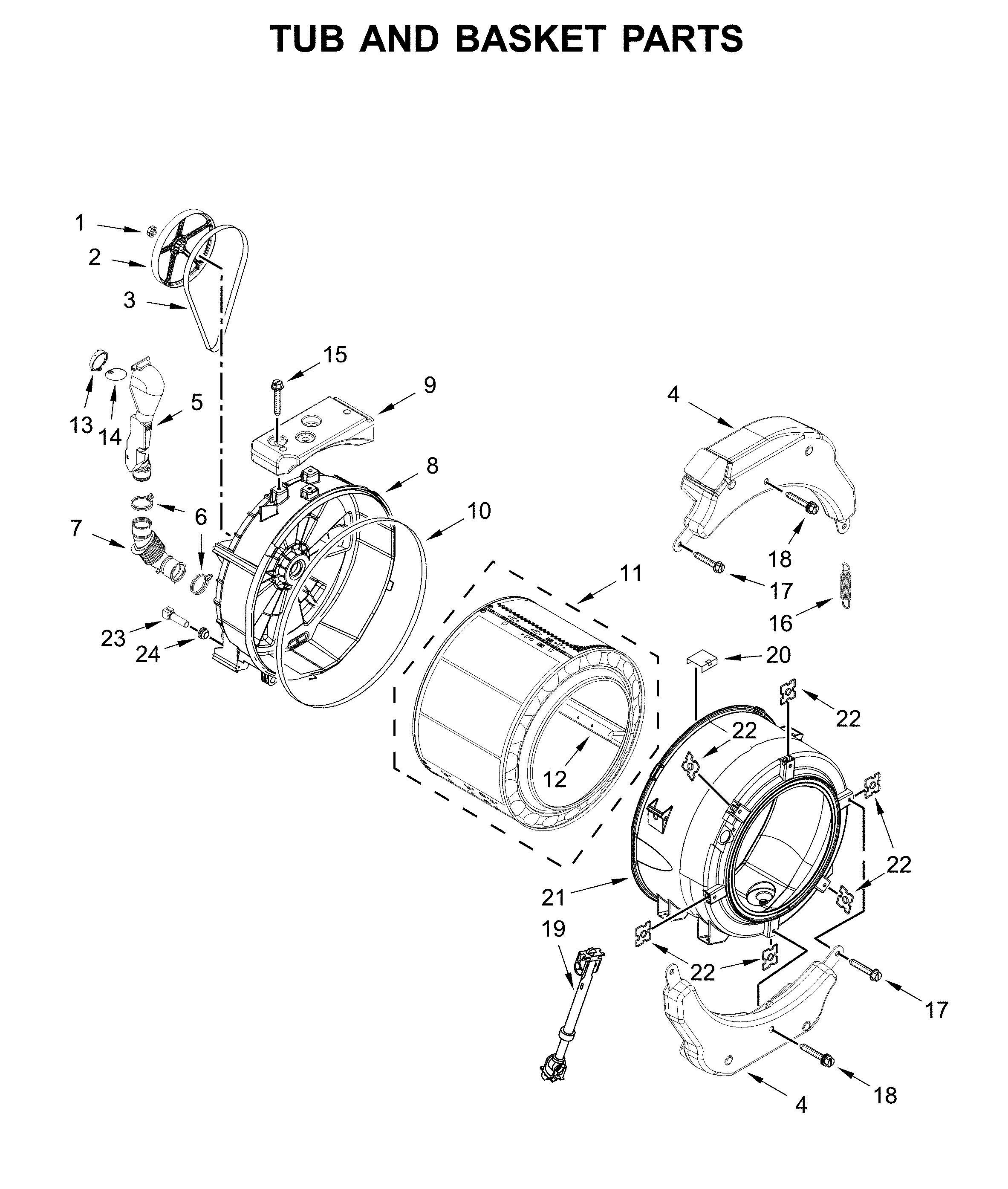

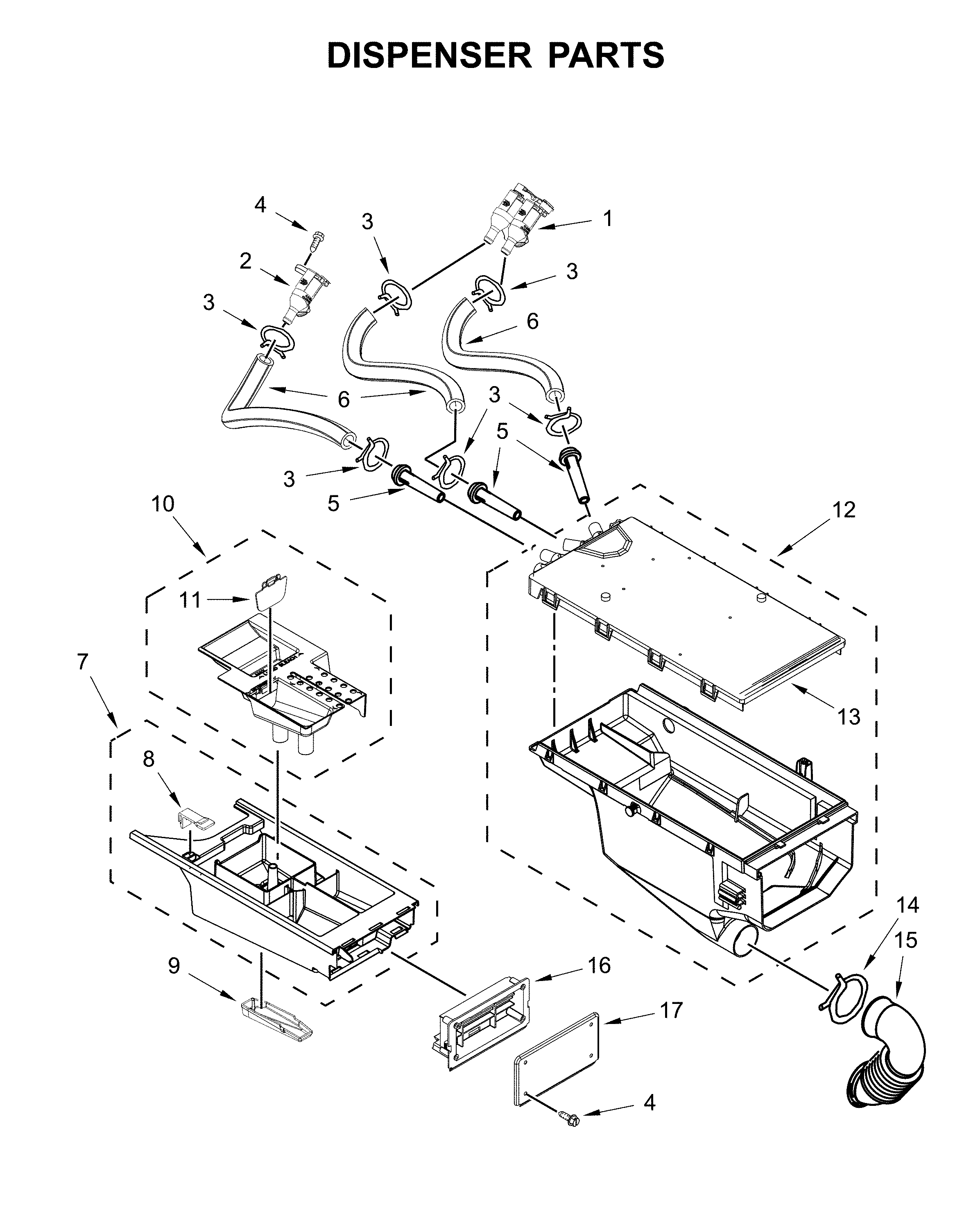

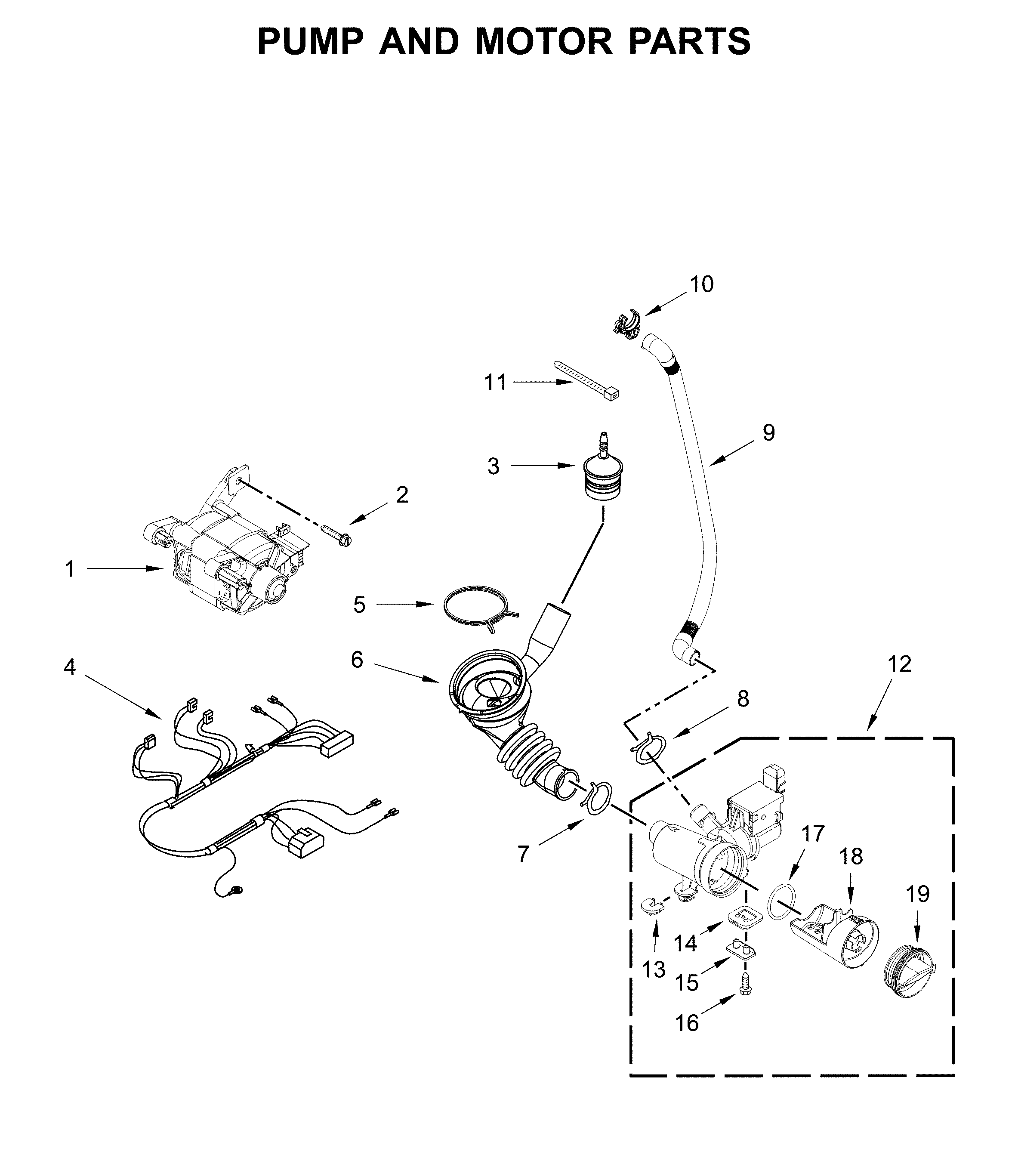

SELECT DIAGRAM
Browse Parts for
CET9100GQ0 LAUNDRY CENTER/COMBO
#4

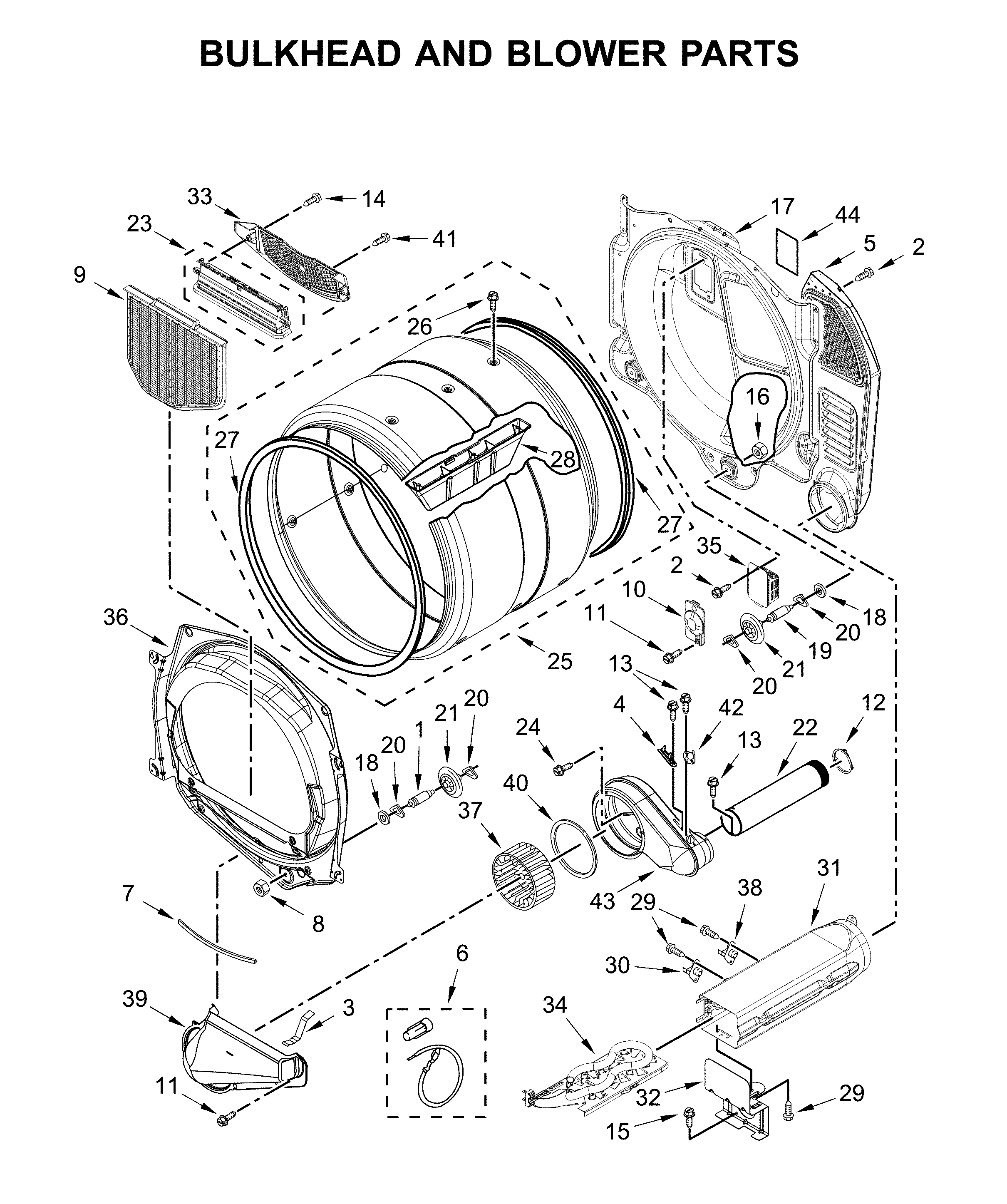

Bulkhead & blower parts diagram
Dryer thermal fuse
Part #3392519
Replaced by #WP3392519
?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
$17.09 |
10% OFF Phone Price : $19.09
In Stock
#21
Bulkhead & blower parts diagram
Dryer drum support roller
Part #W10314171
Replaced by #WPW10314173
?
Manufacturer substitution
This part replaces W10314171. Substitute parts can look different from the original.
$14.03 |
12% OFF Phone Price : $16.03
In Stock
#42
Bulkhead & blower parts diagram
Dryer thermistor
Part #8577274
Replaced by #WP8577274
?
Manufacturer substitution
This part replaces 8577274. Substitute parts can look different from the original.
$31.79 |
16% OFF Phone Price : $37.79
In Stock
#NI11
Optional parts not included diagram
Dryer repair kit
Part #80047
Replaced by #4392067
?
Manufacturer substitution
This part replaces 80047. Substitute parts can look different from the original.
$45.89 |
12% OFF Phone Price : $51.89
In Stock
#37
Bulkhead & blower parts diagram
Dryer blower wheel
Part #697772
Replaced by #WP697772
?
Manufacturer substitution
This part replaces 697772. Substitute parts can look different from the original.
$41.47 |
13% OFF Phone Price : $47.47
In Stock
#38
Bulkhead & blower parts diagram
Whirlpool dryer thermal cut-off fuse kit (replaces 3404151, 3404152, 8318314)
Part #279973
$40.24 |
13% OFF Phone Price : $46.24
In Stock
#9
Bulkhead & blower parts diagram
Screen
Part #W10049370
Replaced by #W10120998
?
Manufacturer substitution
This part replaces W10049370. Substitute parts can look different from the original.
$60.28 |
9% OFF Phone Price : $66.28
In Stock
#23

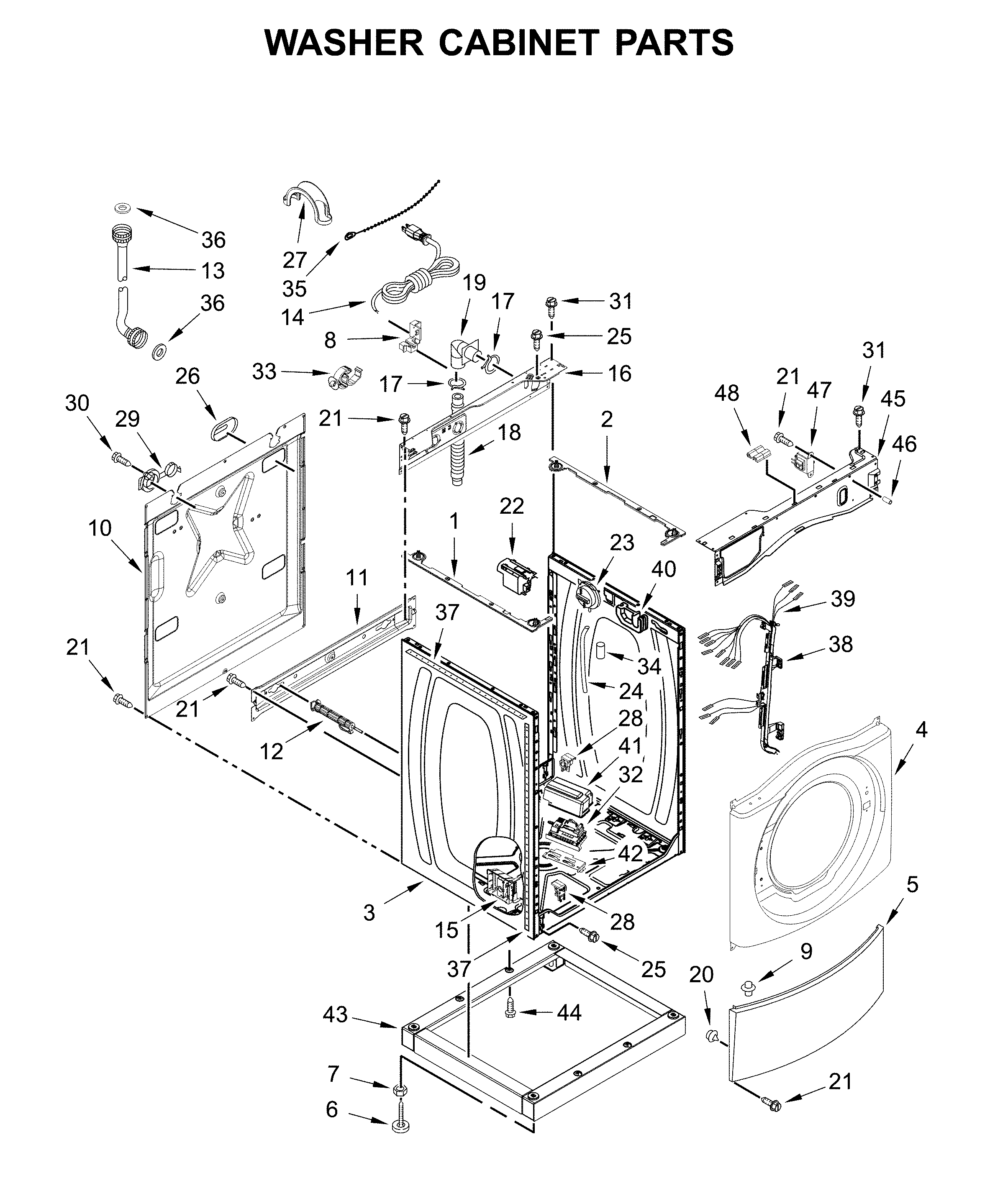

Washer cabinet parts diagram
Washer water-level pressure switch
Part #W10448876
Replaced by #WPW10448876
?
Manufacturer substitution
This part replaces W10448876. Substitute parts can look different from the original.
$37.85 |
14% OFF Phone Price : $43.85
In Stock
#29

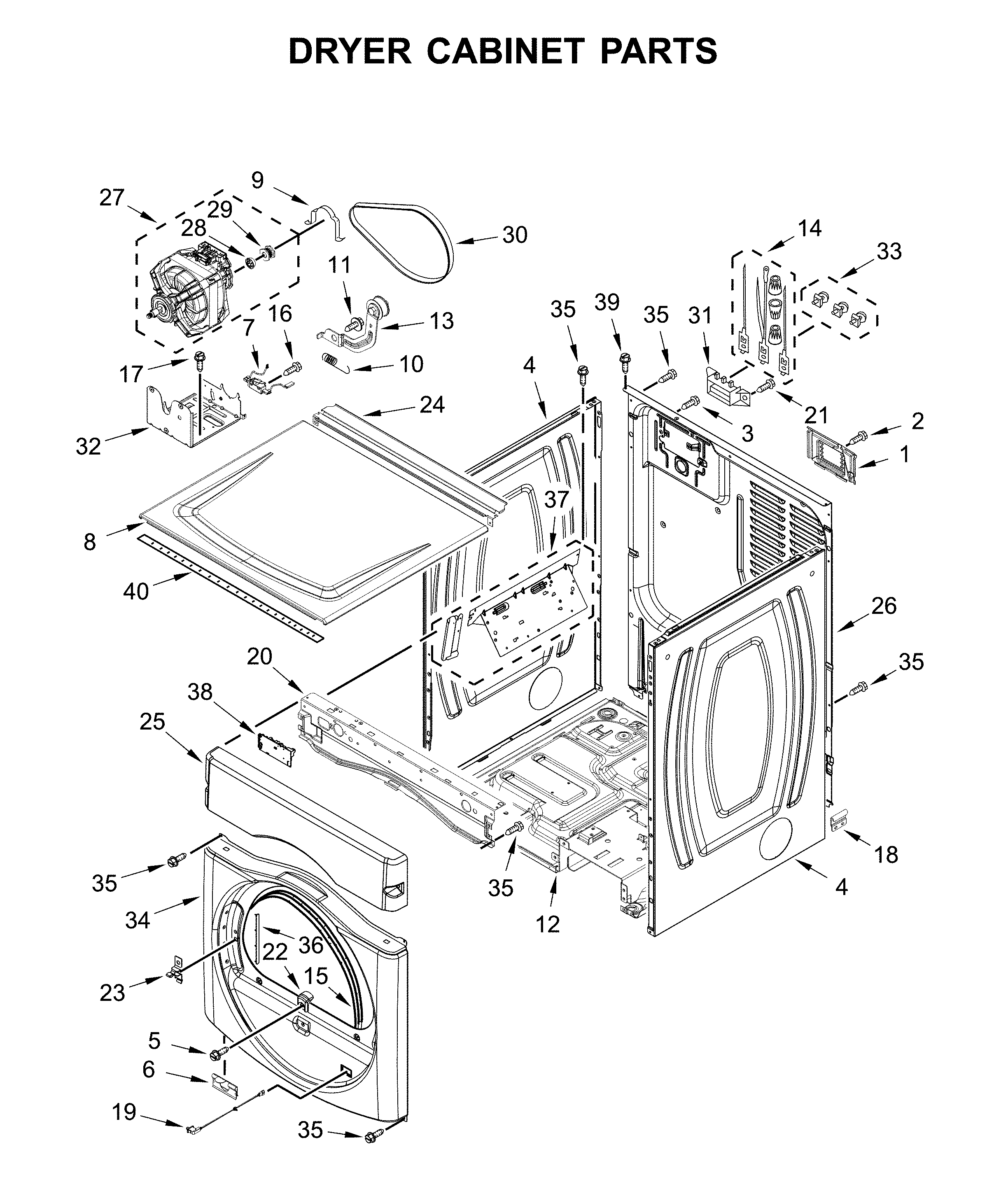

Dryer cabinet parts diagram
Motor pulley
Part #3394341
Replaced by #WP8066184
?
Manufacturer substitution
This part replaces 3394341. Substitute parts can look different from the original.
$32.76 |
15% OFF Phone Price : $38.76
In Stock
#20
Bulkhead & blower parts diagram
Dryer support roller tri-ring washer
Part #W10512946
Replaced by #WPW10512946
?
Manufacturer substitution
This part replaces W10512946. Substitute parts can look different from the original.
$6.53 |
13% OFF Phone Price : $7.53
In Stock
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
- $8.29 |11% OFF Phone Price : $9.29
- $81.99 |7% OFF Phone Price : $87.99
- $31.19 |16% OFF Phone Price : $37.19
- $23.48 |20% OFF Phone Price : $29.48
Most common symptoms to help you fix your laundry centers
Choose a symptom to see related laundry center repairs.
Main causes: lack of water supply, failed lid switch or lid lock, bad water level pressure switch, control system failur…
Main causes: bad lid switch or lid lock, drive motor failure, broken motor coupler, bad timer, faulty electronic control…
Main causes: blocked exhaust vent, clogged lint screen, bad timer, moisture sensing problems, weak gas valve coils, bad …
Main causes: broken dryer drive belt, weak drive motor, binding drum seals…
Main causes: control system failure, broken heating element, bad gas valve coils, gas supply failure, voltage supply pro…
Main causes: unbalanced load, broken suspension springs or shocks, worn snubber ring…
Main causes: door not fully shut, bad door switch, faulty push-to-start switch, wiring failure, bad drive motor, blown f…
Main causes: clogged drain system, blocked drain hose, bad drain pump…
Main causes: broken lid switch or lid lock, faulty drive motor, drain system problem, broken drive system components…
Most common repair guides to help fix your laundry centers
These step-by-step repair guides will help you safely fix what’s broken on your laundry center.
How to replace a laundry center washer timer
If the washer doesn't fill, spin or drain, the timer could be the problem. …
Repair difficulty
Time required
15 minutes or less
How to replace a laundry center washer snubber ring
If the washer tub bangs the cabinet during the spin cycle even though the load is balanced, you might need to replace th…
Repair difficulty
Time required
15 minutes or less
How to replace a laundry center dryer door switch
The dryer won’t start if the door switch is defective. Your can replace it in about 15 minutes.…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your laundry centers
Use the advice and tips in these articles and videos to get the most out of your laundry center.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn how to repair broken, frayed or damaged wires in your appliances.…
