Sharp
Warming Drawer

Model # KB6100NS Official Sharp warming drawer

Here are the diagrams and repair parts for Official Sharp KB6100NS warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Wire Rack UAMI-B019MRE0
#215

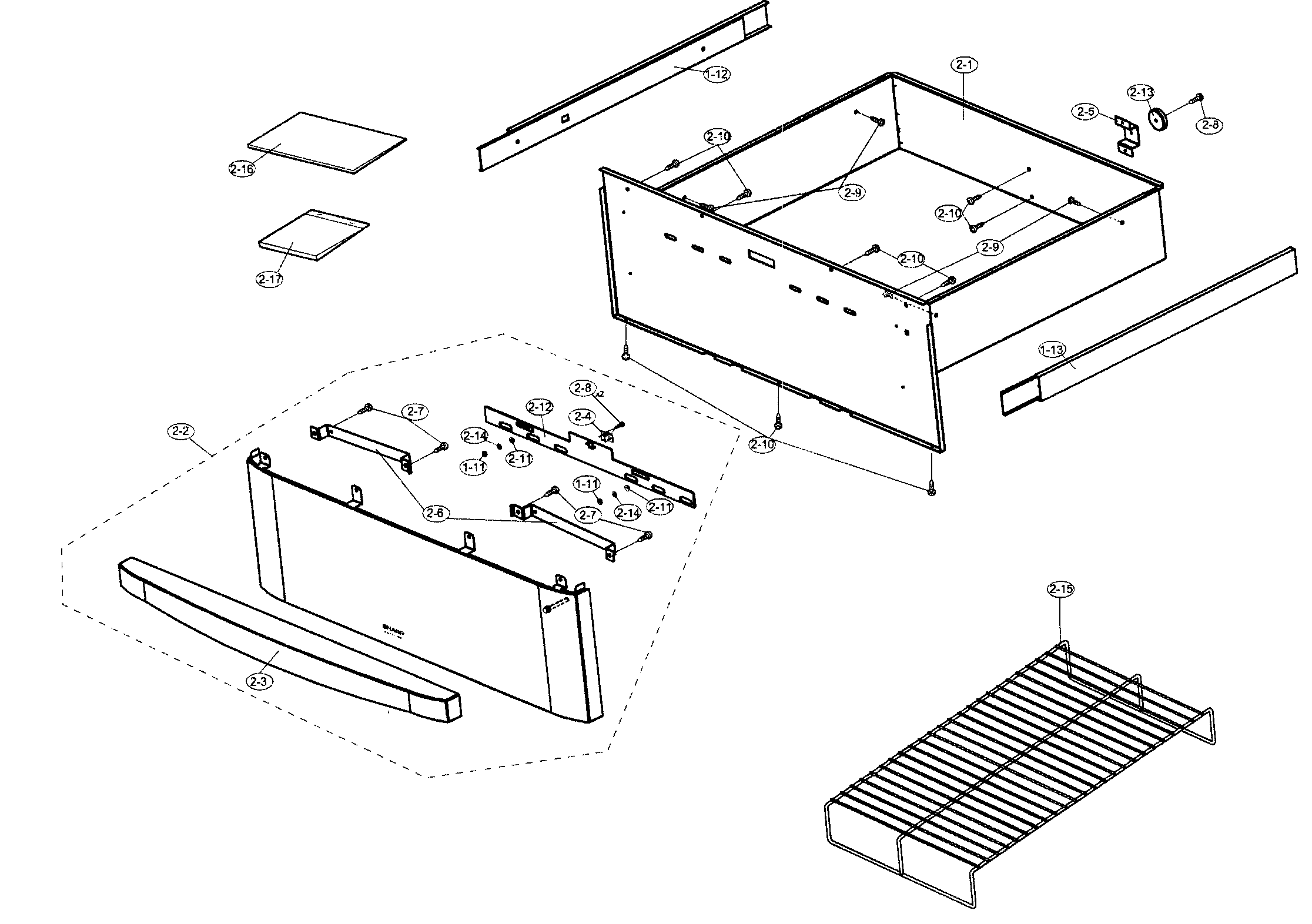

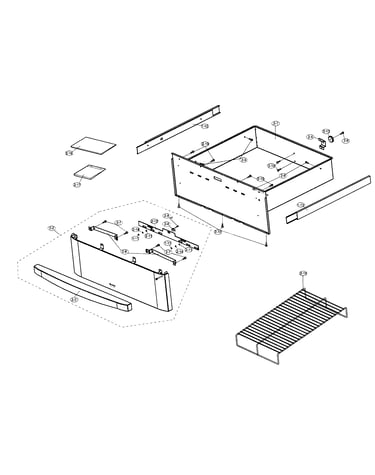

Drawer assy diagram

Wire rack

Part #UAMI-B019MRE0

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-BZB049MRE0
#29

Drawer assy diagram

Screw

Part #LX-BZB049MRE0

The manufacturer no longer makes this part, and there's no substitute part

Slide Knob JKNB-B003MRE0
#24

Drawer assy diagram

Slide knob

Part #JKNB-B003MRE0

The manufacturer no longer makes this part, and there's no substitute part

Insulation PSHE-B002MRE0
#115

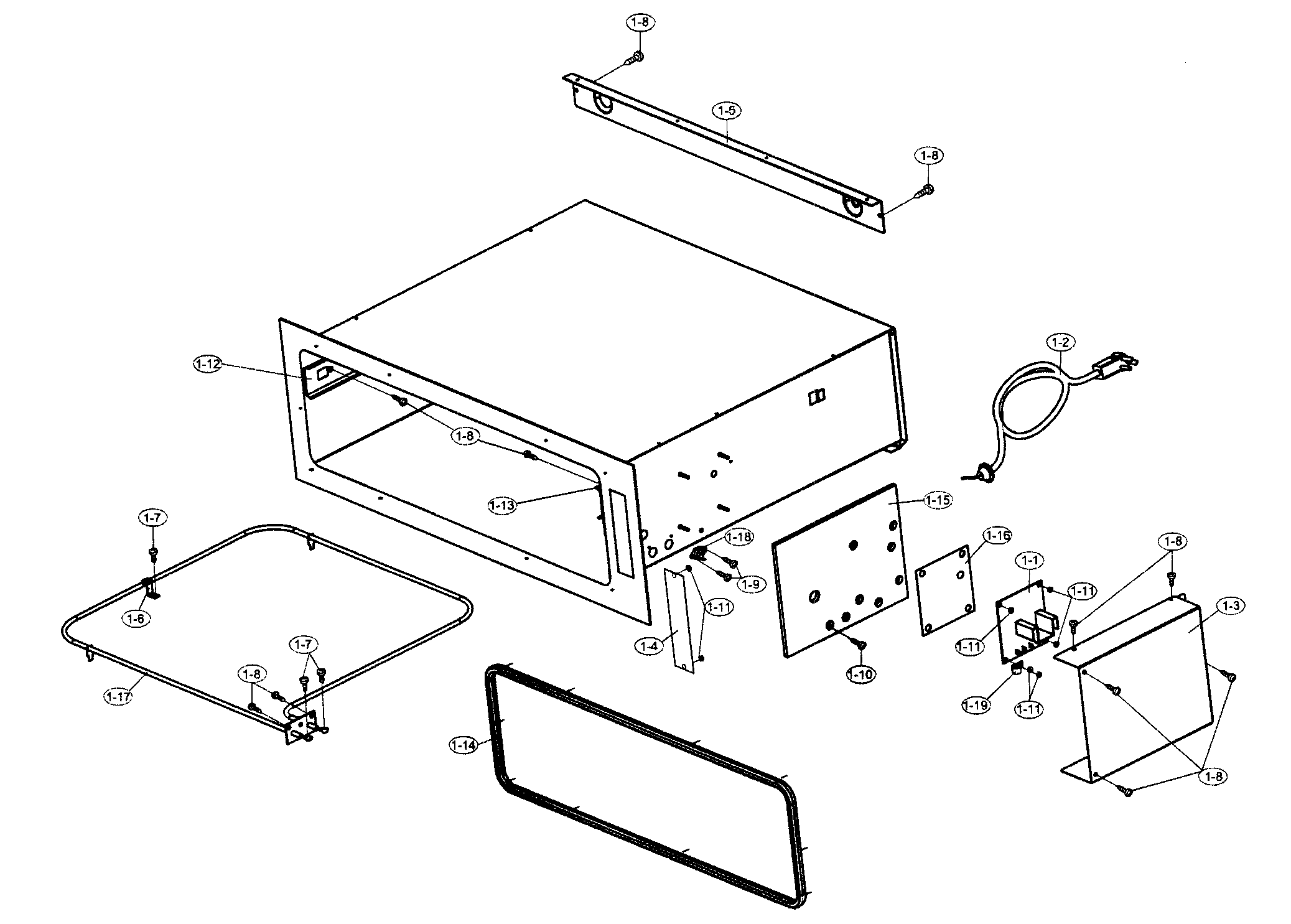

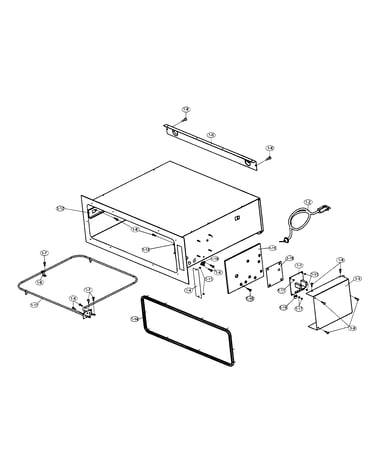

Cabinet assy diagram

Insulation

Part #PSHE-B002MRE0

The manufacturer no longer makes this part, and there's no substitute part

Handle JHNDPB087MRT0
#23

Drawer assy diagram

Handle

Part #JHNDPB087MRT0

The manufacturer no longer makes this part, and there's no substitute part

Panel GCOVHB069MRE0
#22

Drawer assy diagram

Panel

Part #GCOVHB069MRE0

The manufacturer no longer makes this part, and there's no substitute part

Washer LX-WZB021MRE0
#214

Drawer assy diagram

Washer

Part #LX-WZB021MRE0

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-BZB045MRE0
#28

Drawer assy diagram

Screw

Part #LX-BZB045MRE0

The manufacturer no longer makes this part, and there's no substitute part

Mag Bracket LANGTB261MRP0
#25

Drawer assy diagram

Mag bracket

Part #LANGTB261MRP0

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-BZB043MRE0
#17

Cabinet assy diagram

Screw

Part #LX-BZB043MRE0

The manufacturer no longer makes this part, and there's no substitute part
