Range/Microwave Combo

Model # RM980PXYW0 Official Whirlpool microwave & lower oven combo

Here are the diagrams and repair parts for Official Whirlpool RM980PXYW0 microwave & lower oven combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

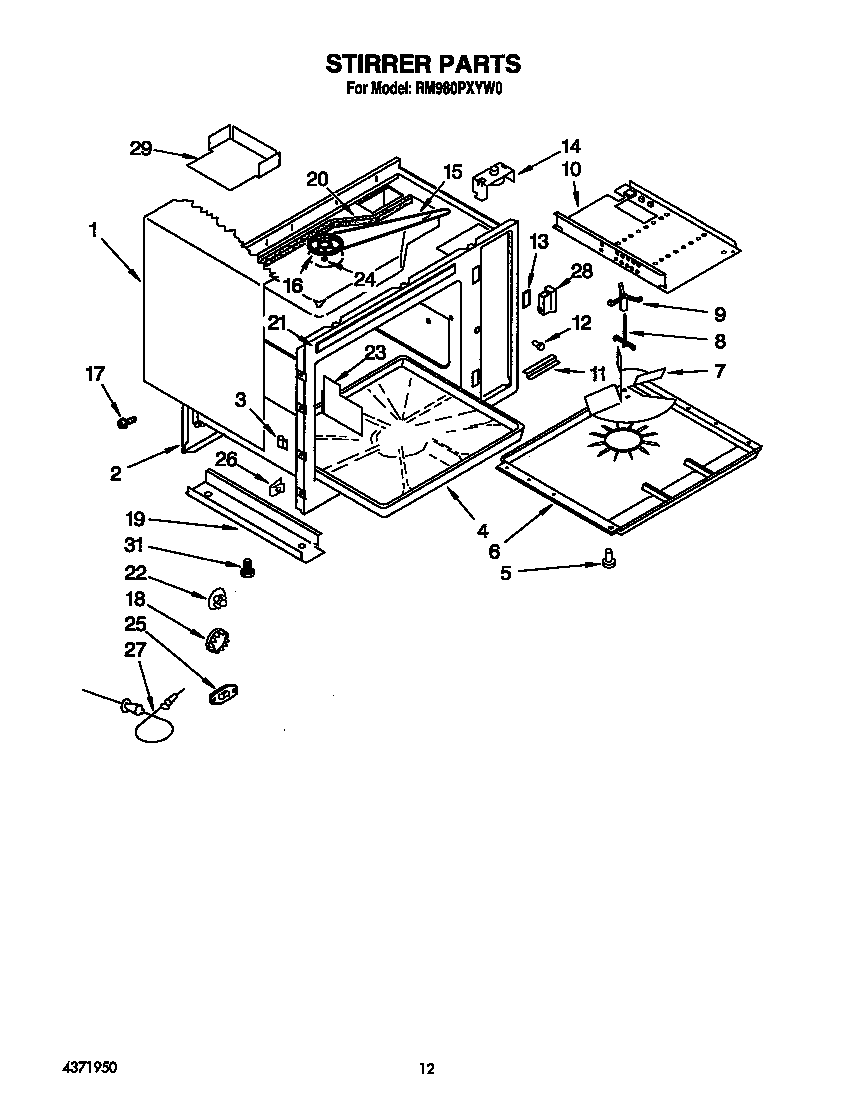

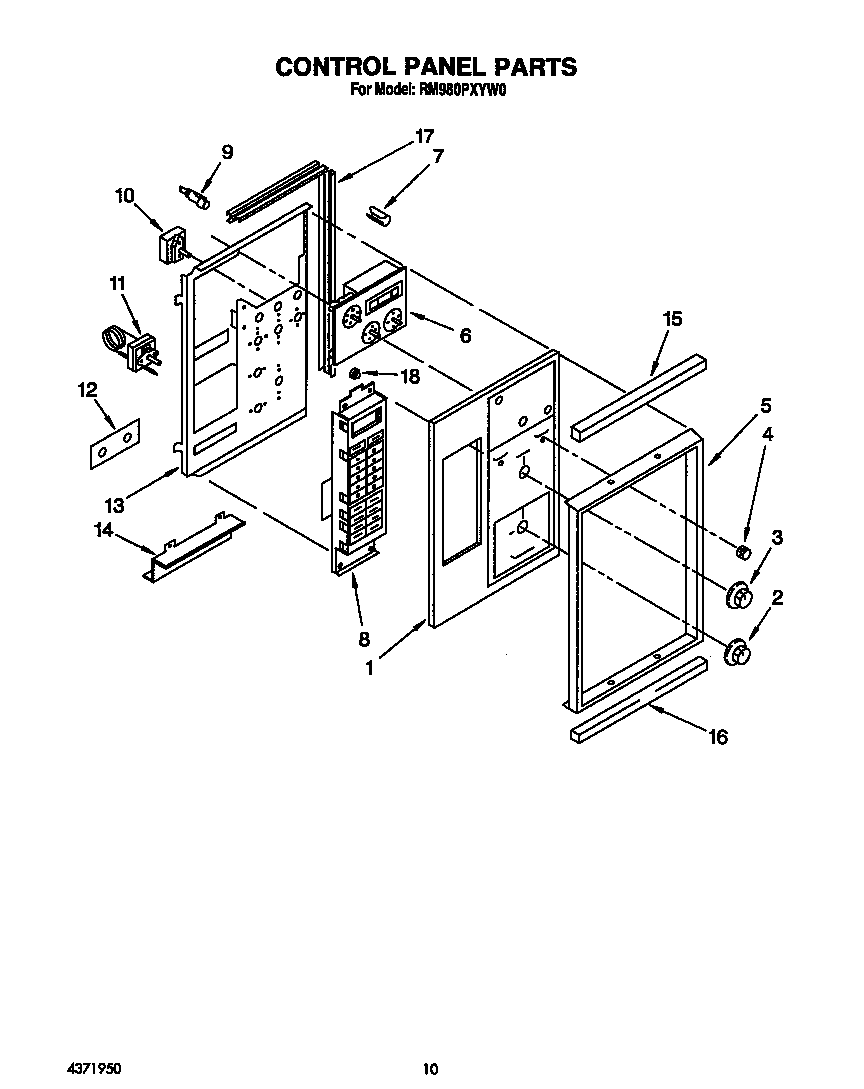

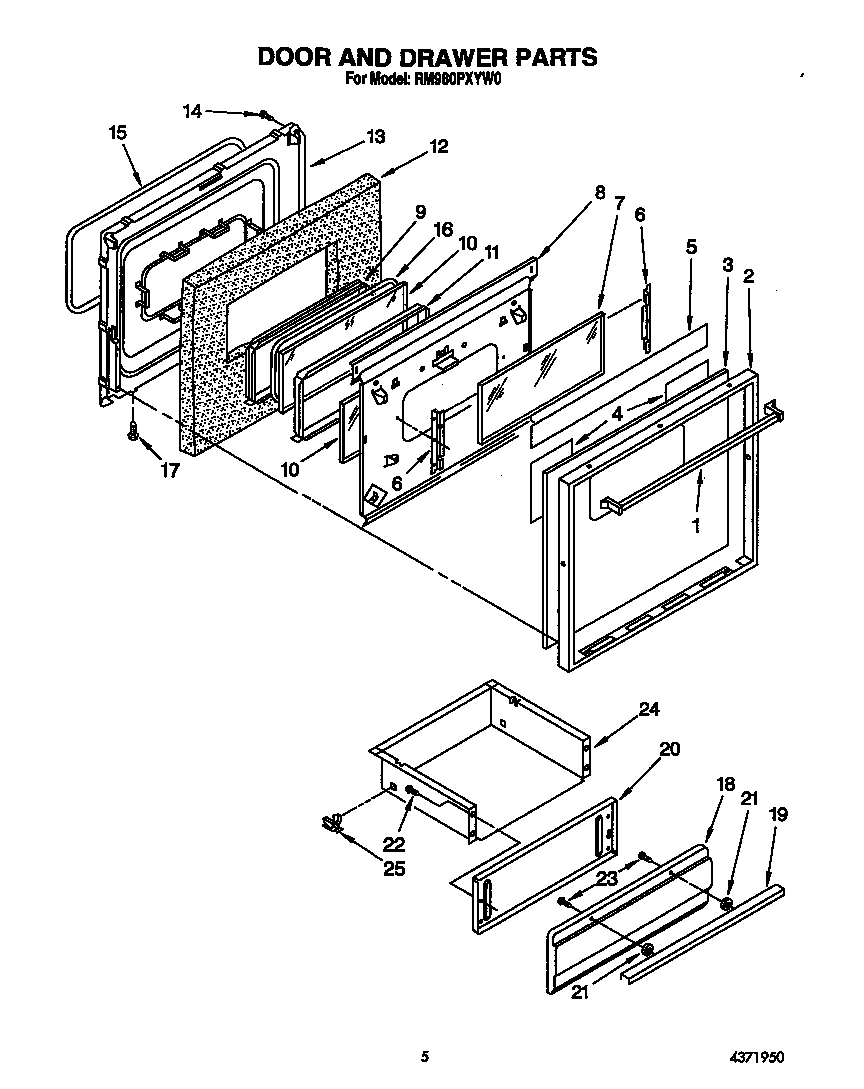

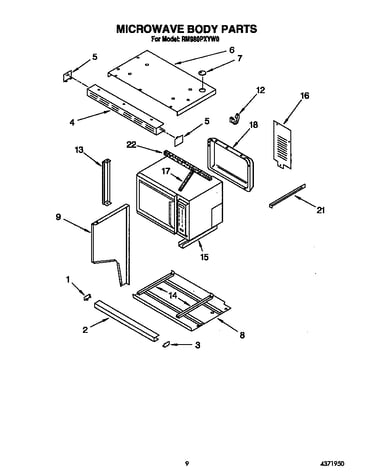

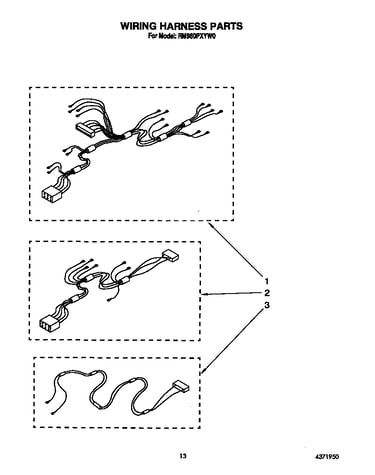

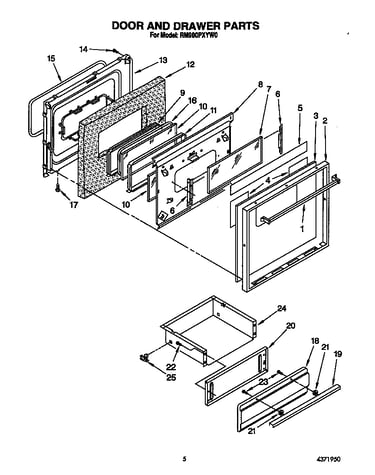

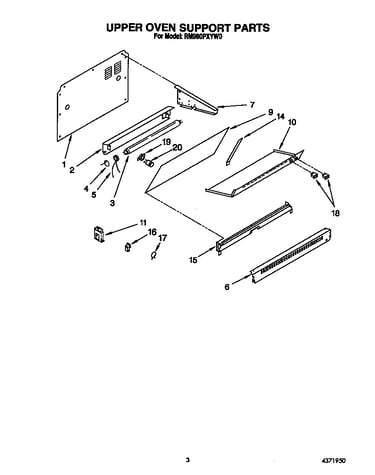

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 236 parts  |
Light Bulb 816641
#5

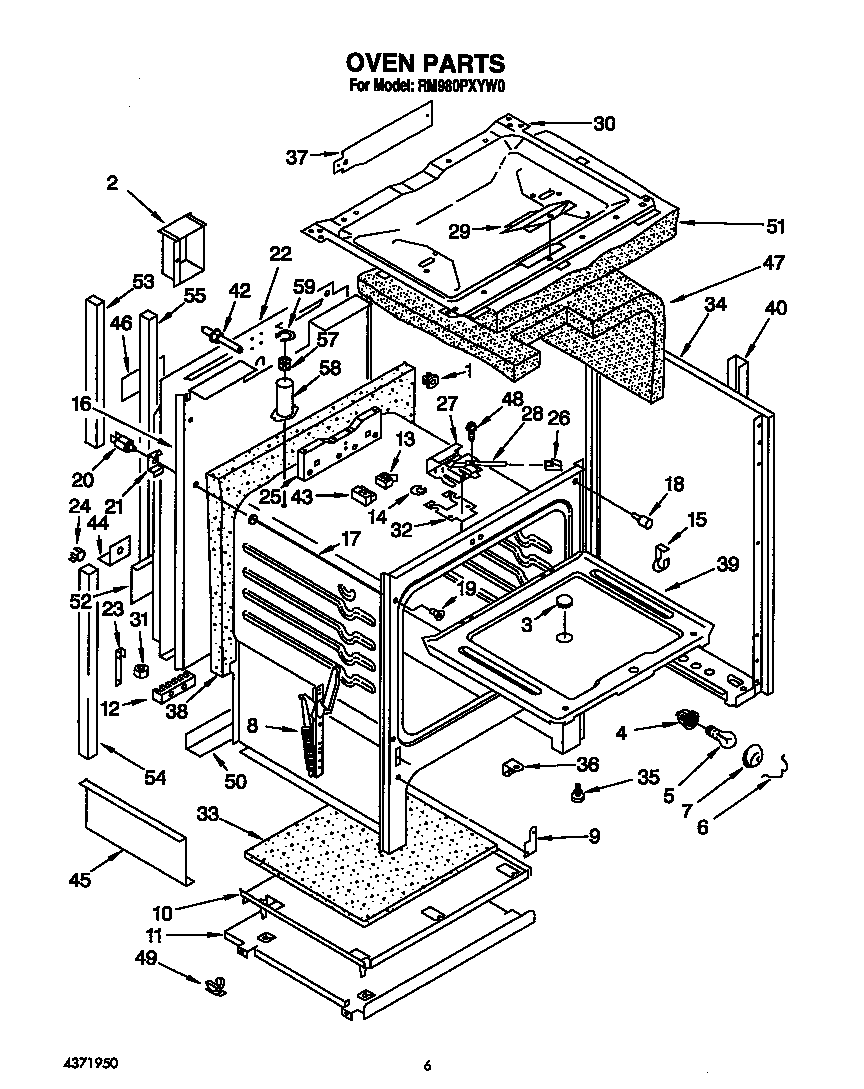

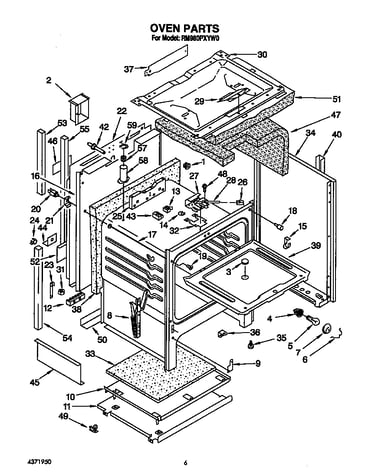

Oven diagram

Light bulb

Part #816641

Replaced by #40A15

?
Manufacturer substitution
This part replaces 816641. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Magnetron 4371775
#1

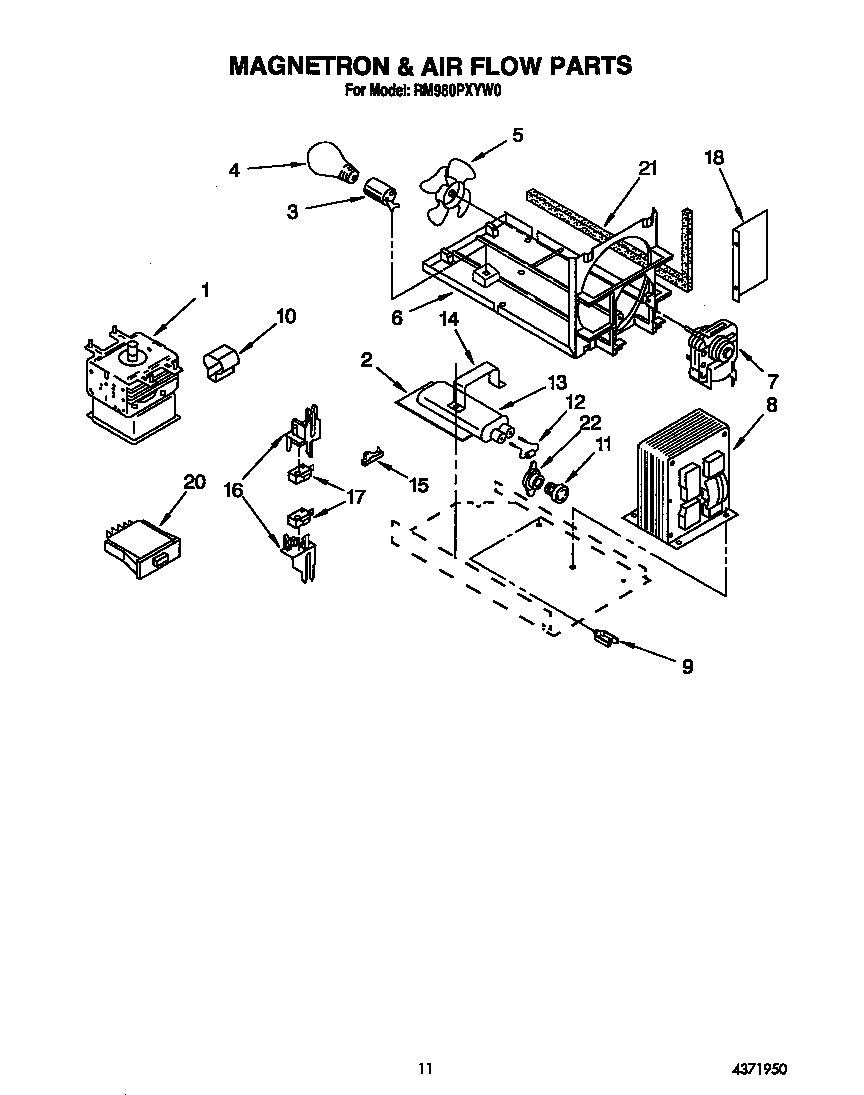

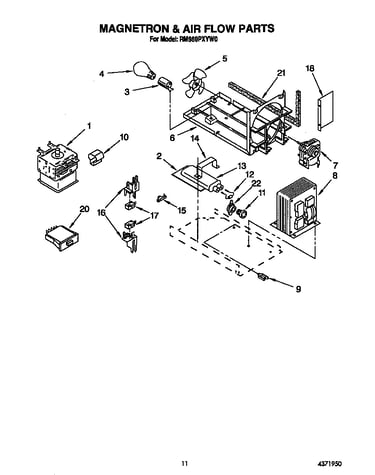

Magnetron and air flow diagram

Magnetron

Part #4371775

The manufacturer no longer makes this part, and there's no substitute part

Receptacle Element 4371919
#4

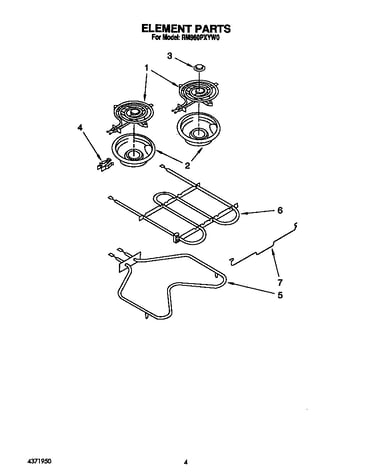

Element diagram

Receptacle element

Part #4371919

Replaced by #330031

?
Manufacturer substitution
This part replaces 4371919. Substitute parts can look different from the original.
BEST SELLER
$10.13 |
16% OFF Phone Price : $12.13
In Stock
Surface Element 4371947
#1B

Element diagram

Surface element

Part #4371947

Replaced by #WP660532

?
Manufacturer substitution
This part replaces 4371947. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Infinite Switch 4371914
#8A

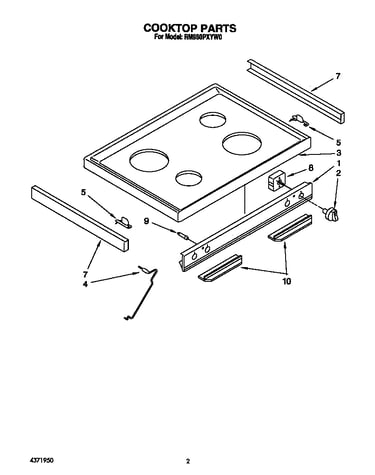

Cooktop diagram

Infinite switch

Part #4371914

Replaced by #W10900107

?
Manufacturer substitution
This part replaces 4371914. Substitute parts can look different from the original.
$39.99 |
13% OFF Phone Price : $45.99
In Stock
Infinite Switch 4371915
#8B

Cooktop diagram

Infinite switch

Part #4371915

Replaced by #W10900107

?
Manufacturer substitution
This part replaces 4371915. Substitute parts can look different from the original.
$39.99 |
13% OFF Phone Price : $45.99
In Stock
Surface Element 4371948
#1A

Element diagram

Surface element

Part #4371948

Replaced by #WP660533

?
Manufacturer substitution
This part replaces 4371948. Substitute parts can look different from the original.
$26.68 |
18% OFF Phone Price : $32.68
In Stock
Terminal Block 4371409
#12

Oven diagram

Terminal block

Part #4371409

Replaced by #WP8203546

?
Manufacturer substitution
This part replaces 4371409. Substitute parts can look different from the original.
This item is not returnable
$16.75 |
11% OFF Phone Price : $18.75
In Stock
Light Socket 816668
#4

Oven diagram

Light socket

Part #816668

Replaced by #W10856866

?
Manufacturer substitution
This part replaces 816668. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Nut 4371832
#7

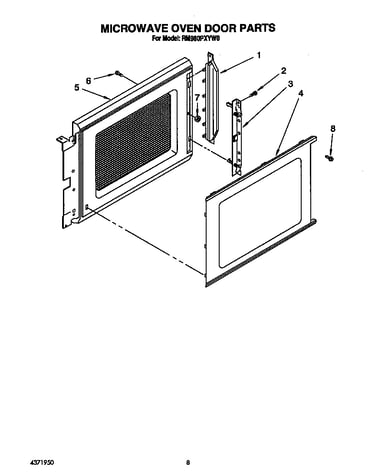

Microwave oven door diagram

Nut

Part #4371832

Replaced by #WP486255

?
Manufacturer substitution
This part replaces 4371832. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
