Model # 415162340 Official Kenmore gas grill

Here are the diagrams and repair parts for Official Kenmore 415162340 gas grill, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for415162340 Outdoor Grills

  • Bezel 4157169
    #36

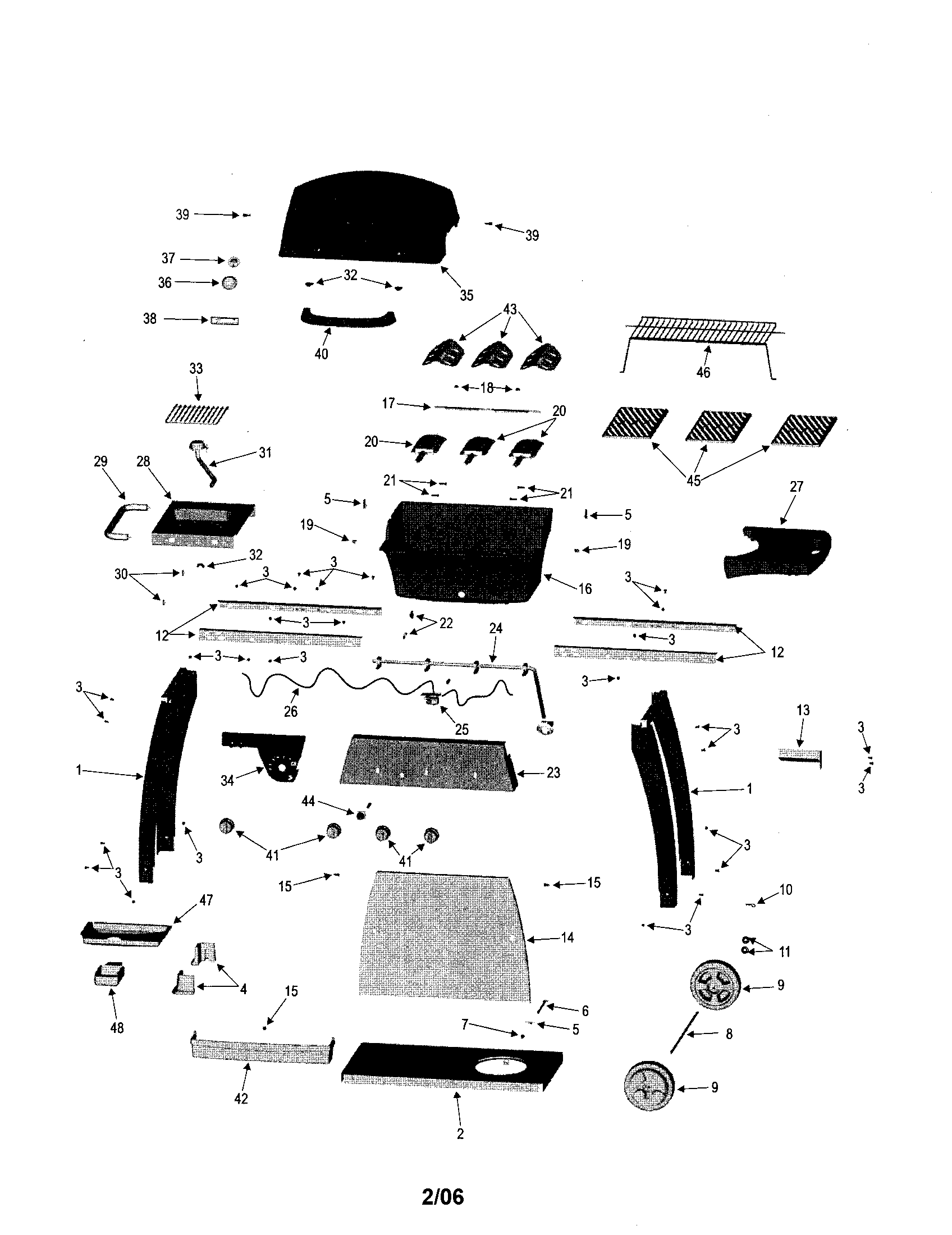

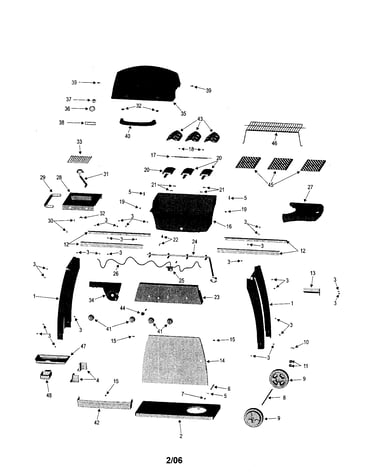

    Gas grill diagram

    Bezel

    Part #4157169

    Replaced by #G404-0034-W1

    ?
    Manufacturer substitution
    This part replaces 4157169. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
  • Char-broil Gas Grill Gas Hose Heat Shield 7000388
    #13

    Gas grill diagram

    Char-broil gas grill gas hose heat shield

    Part #7000388

    This item is not returnable
    In Stock
  • Char-broil Gas Grill Grease Tray 7000046
    #48

    Gas grill diagram

    Char-broil gas grill grease tray

    Part #7000046

    $11.39
    15% OFF Phone Price : $13.39
    In Stock
  • Char-broil Gas Grill Side Burner Igniter Wire 7000894
    #26

    Gas grill diagram

    Char-broil gas grill side burner igniter wire

    Part #7000894

    This item is not returnable
    $11.39
    15% OFF Phone Price : $13.39
    In Stock
  • Char-broil Gas Grill Wing Nut, 2-pack 4080063
    #32

    Gas grill diagram

    Char-broil gas grill wing nut, 2-pack

    Part #4080063

    This item is not returnable
    In Stock
  • Control Knob 7000312
    #41

    Gas grill diagram

    Control knob

    Part #7000312

    Replaced by #29102017

    ?
    Manufacturer substitution
    This part replaces 7000312. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
  • Logo Plate 4157167
    #38

    Gas grill diagram

    Logo plate

    Part #4157167

    Replaced by #80010544

    ?
    Manufacturer substitution
    This part replaces 4157167. Substitute parts can look different from the original.
    In Stock
  • Temperature Gauge 7000361
    #37

    Gas grill diagram

    Temperature gauge

    Part #7000361

    Replaced by #G431-0020-W1

    ?
    Manufacturer substitution
    This part replaces 7000361. Substitute parts can look different from the original.
    This item is not returnable
    $14.12
    12% OFF Phone Price : $16.12
    In Stock
  • Char-broil Gas Grill Flame Tamer 7000045
    #43

    Gas grill diagram

    Char-broil gas grill flame tamer

    Part #7000045

    The manufacturer no longer makes this part, and there's no substitute part

  • Char-broil Gas Grill Lid Handle 7000199
    #40

    Gas grill diagram

    Char-broil gas grill lid handle

    Part #7000199

    The manufacturer no longer makes this part, and there's no substitute part
