Model # 536905903 Official Craftsman 20" snow blower

Here are the diagrams and repair parts for Official Craftsman 536905903 20" snow blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 182 parts  |

Lock Nut 9424215
Lock nut

Part #9424215

Replaced by #703251

?
Manufacturer substitution
This part replaces 9424215. Substitute parts can look different from the original.
$8.07
11% OFF Phone Price : $9.07
In Stock
Lock Nut 9413447
Lock nut

Part #9413447

The manufacturer no longer makes this part, and there's no substitute part

Formd Washer 22025
#10

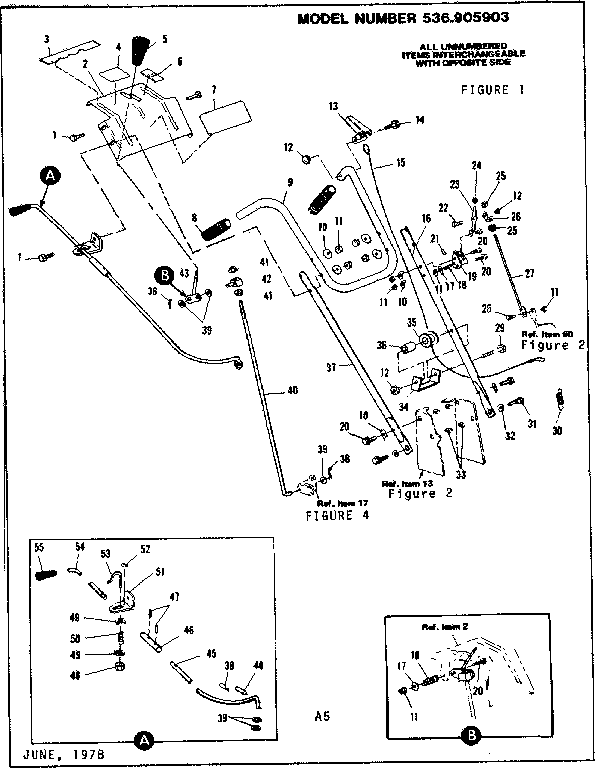

Handle assembly diagram

Formd washer

Part #22025

Replaced by #311936MA

?
Manufacturer substitution
This part replaces 22025. Substitute parts can look different from the original.
This item is not returnable
$12.71
14% OFF Phone Price : $14.71
In Stock
Locknut 18 271184
Locknut 18

Part #271184

The manufacturer no longer makes this part, and there's no substitute part

Chain 40730
#3A

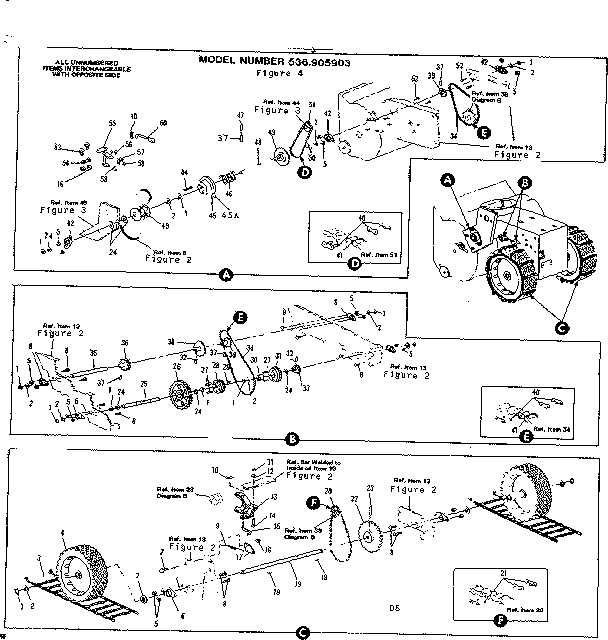

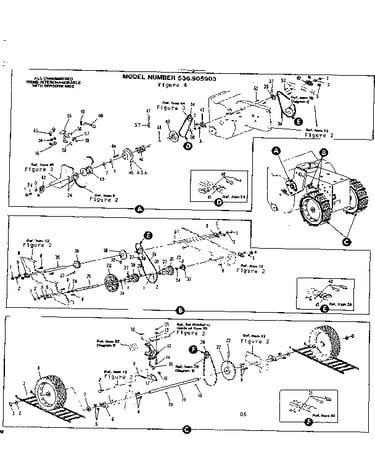

Wheel assembly diagram

Chain

Part #40730

Replaced by #51524MA

?
Manufacturer substitution
This part replaces 40730. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$75.74
7% OFF Phone Price : $81.74
In Stock
Chain 40729
#3

Wheel assembly diagram

Chain

Part #40729

Replaced by #51524MA

?
Manufacturer substitution
This part replaces 40729. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$75.74
7% OFF Phone Price : $81.74
In Stock
Bearing 40592
#7

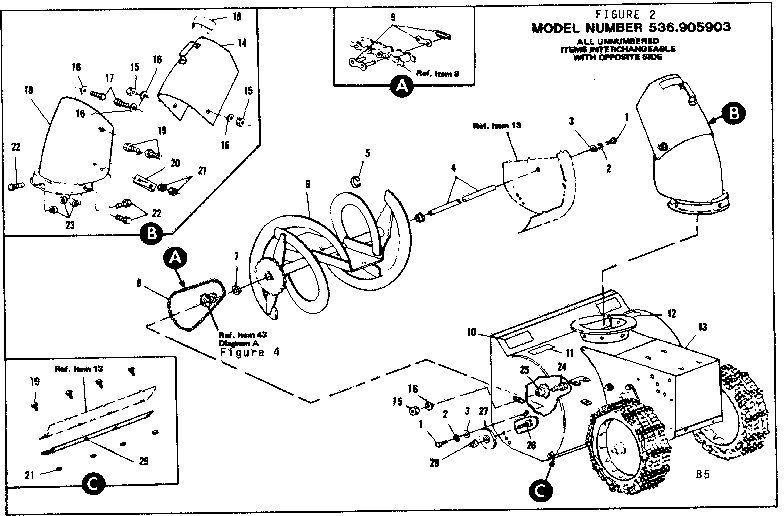

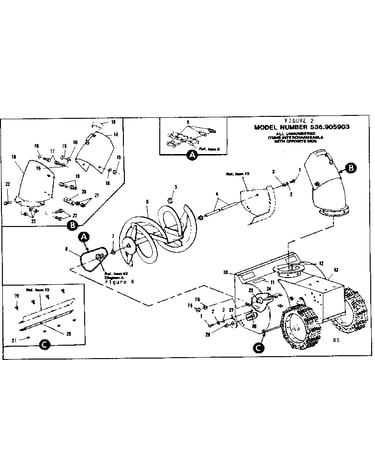

Chute and impeller assembly diagram

Bearing

Part #40592

Replaced by #40592MA

?
Manufacturer substitution
This part replaces 40592. Substitute parts can look different from the original.
In Stock
Car Bolt 455999
#8

Wheel assembly diagram

Car bolt

Part #455999

Replaced by #711688MA

?
Manufacturer substitution
This part replaces 455999. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 35497
#47

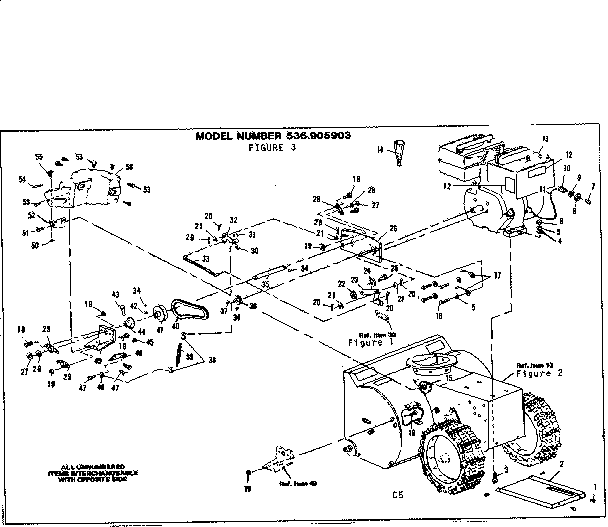

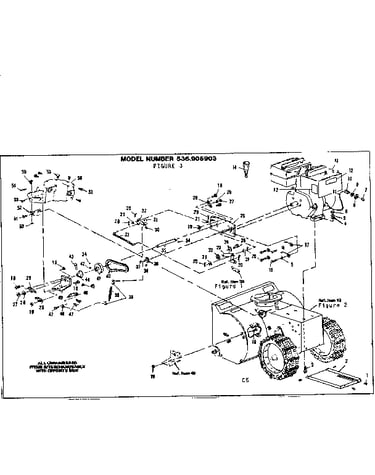

Engine diagram

Screw

Part #35497

Replaced by #703985

?
Manufacturer substitution
This part replaces 35497. Substitute parts can look different from the original.
This item is not returnable
$6.89
13% OFF Phone Price : $7.89
In Stock
Cap Screw 122052
#1

Handle assembly diagram

Cap screw

Part #122052

Replaced by #578794MA

?
Manufacturer substitution
This part replaces 122052. Substitute parts can look different from the original.
$11.69
15% OFF Phone Price : $13.69
In Stock
