Model # WDSCL3 Official Frigidaire washer - 84-385-04

Here are the diagrams and repair parts for Official Frigidaire WDSCL3 washer - 84-385-04, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

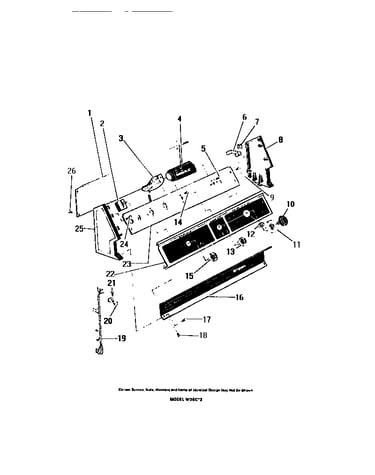

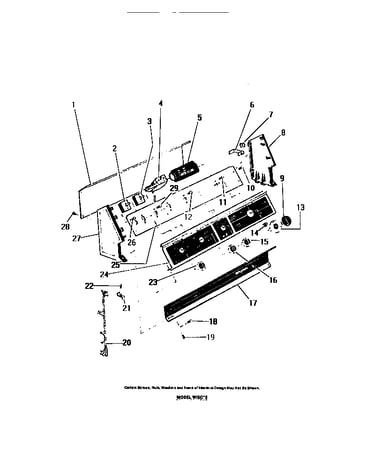

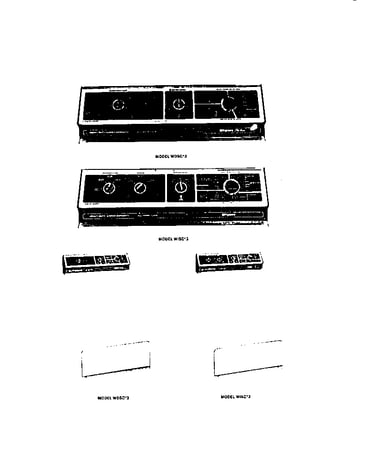

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 207 parts  |
Belt 8004064
#33

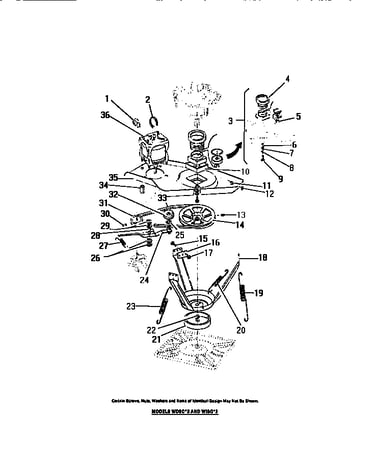

Motor, pulleys, belt, springs diagram

Belt

Part #8004064

Replaced by #5303280326

?
Manufacturer substitution
This part replaces 8004064. Substitute parts can look different from the original.
This item is not returnable
$33.14 |
15% OFF Phone Price : $39.14
In Stock
H/c Fill Hos 6561384
#1

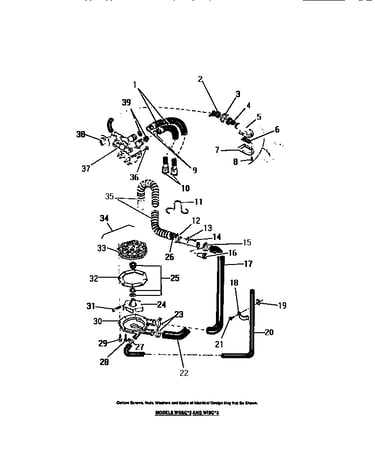

Pump, hoses, water valve diagram

H/c fill hos

Part #6561384

Replaced by #5303912532

?
Manufacturer substitution
This part replaces 6561384. Substitute parts can look different from the original.
$67.57 |
8% OFF Phone Price : $73.57
In Stock
Hose 8006675
#35

Pump, hoses, water valve diagram

Hose

Part #8006675

The manufacturer no longer makes this part, and there's no substitute part

Screw, 2-pack 8006545
#25

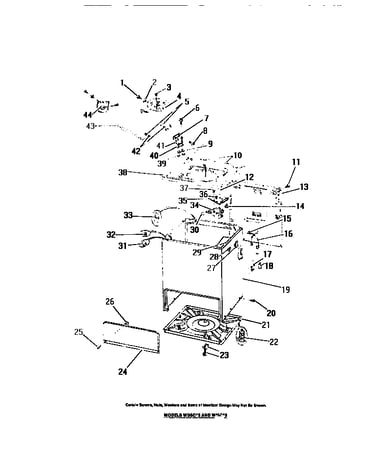

Cabinet, base, top, lid diagram

Screw, 2-pack

Part #8006545

The manufacturer no longer makes this part, and there's no substitute part

Grommet 8006674
#17

Outer tub, inner tub, sub top, agitator diagram

Grommet

Part #8006674

The manufacturer no longer makes this part, and there's no substitute part

Screen (2) 8002439
#39

Pump, hoses, water valve diagram

Screen (2)

Part #8002439

The manufacturer no longer makes this part, and there's no substitute part

Seal 8004067
#7

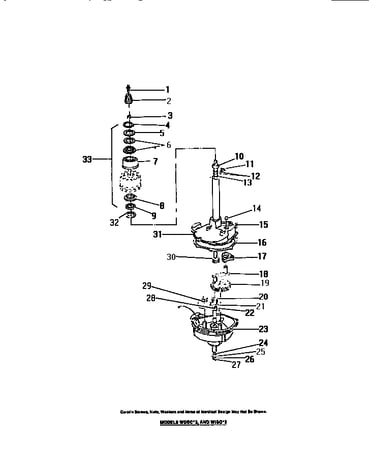

Mechanism diagram

Seal

Part #8004067

The manufacturer no longer makes this part, and there's no substitute part

Bumper, Lid (2) 8015520
#3

Cabinet, base, top, lid diagram

Bumper, lid (2)

Part #8015520

The manufacturer no longer makes this part, and there's no substitute part

Cord, Electrical Service 8015515
#16

Cabinet, base, top, lid diagram

Cord, electrical service

Part #8015515

The manufacturer no longer makes this part, and there's no substitute part

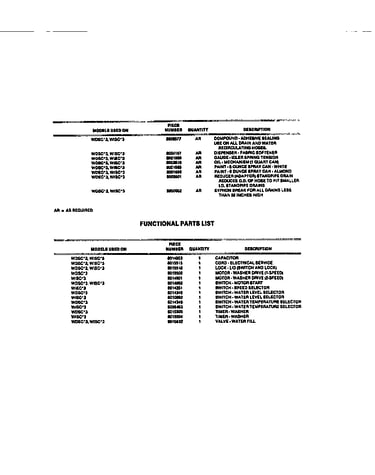

Oil Mechanism (1 Quart Can) 8002818

#NI

All parts diagram

Oil mechanism (1 quart can)

Part #8002818

The manufacturer no longer makes this part, and there's no substitute part
