Built-In Microwave

Model # IBMS1455DS00 Official Ikea microwave

Here are the diagrams and repair parts for Official Ikea IBMS1455DS00 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

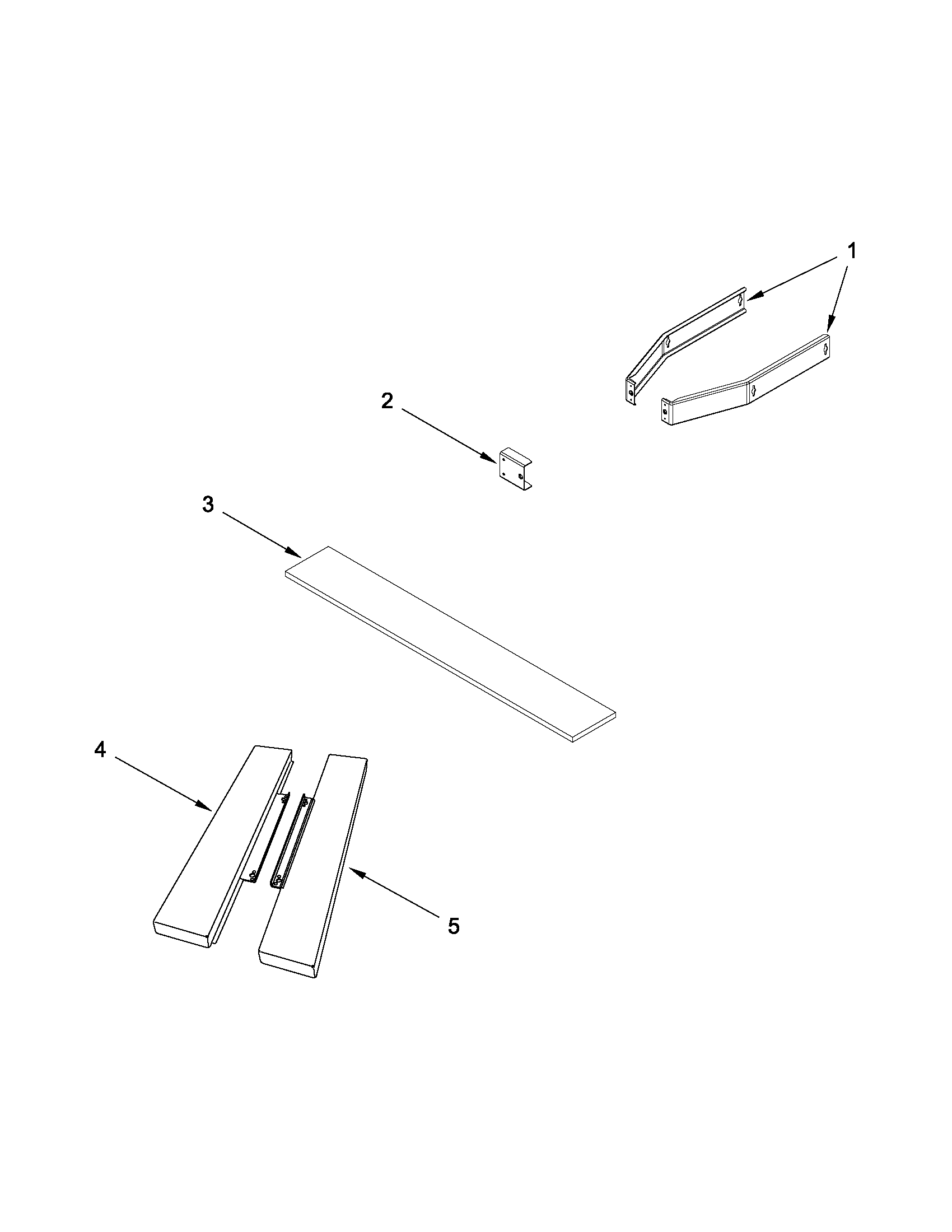

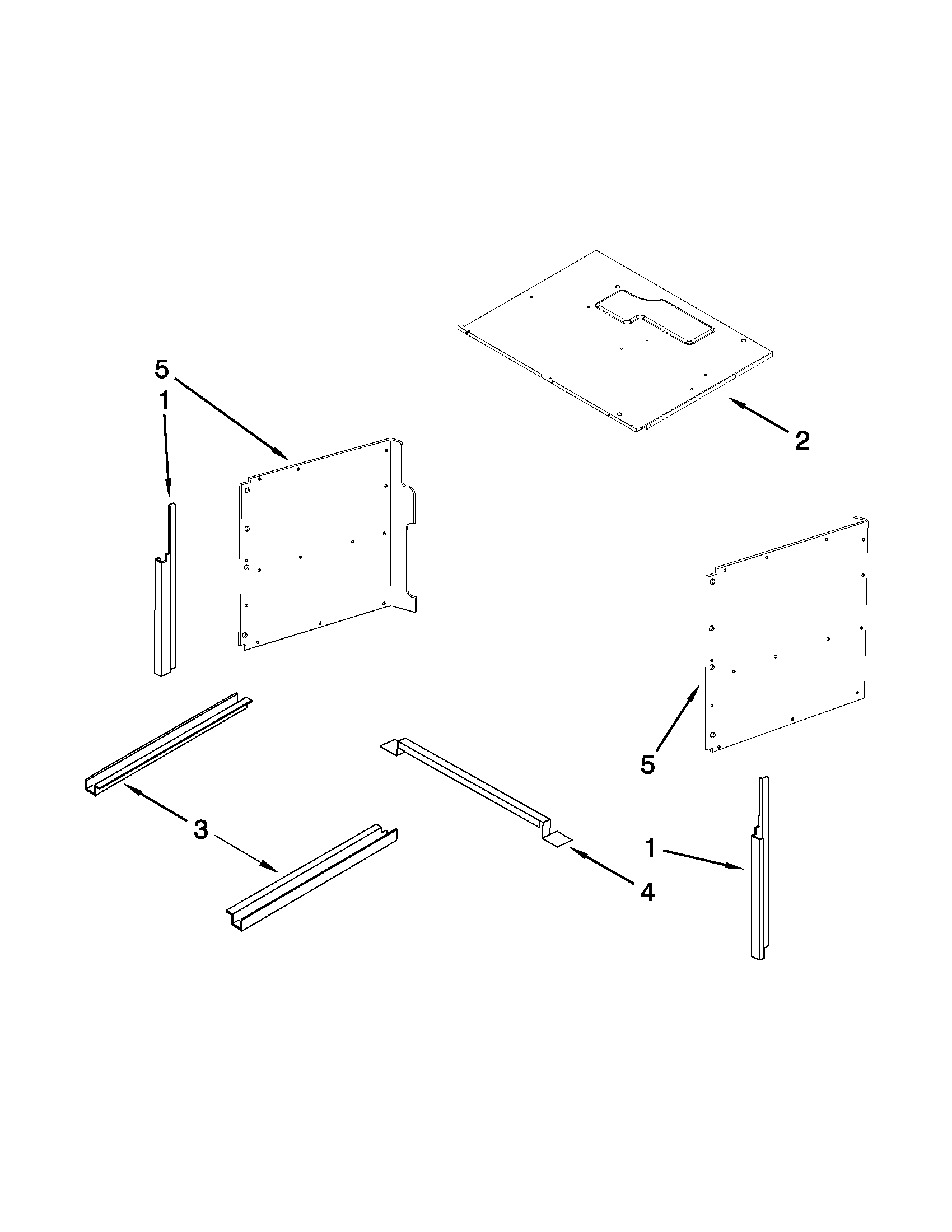

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Switch 461967848881
#6

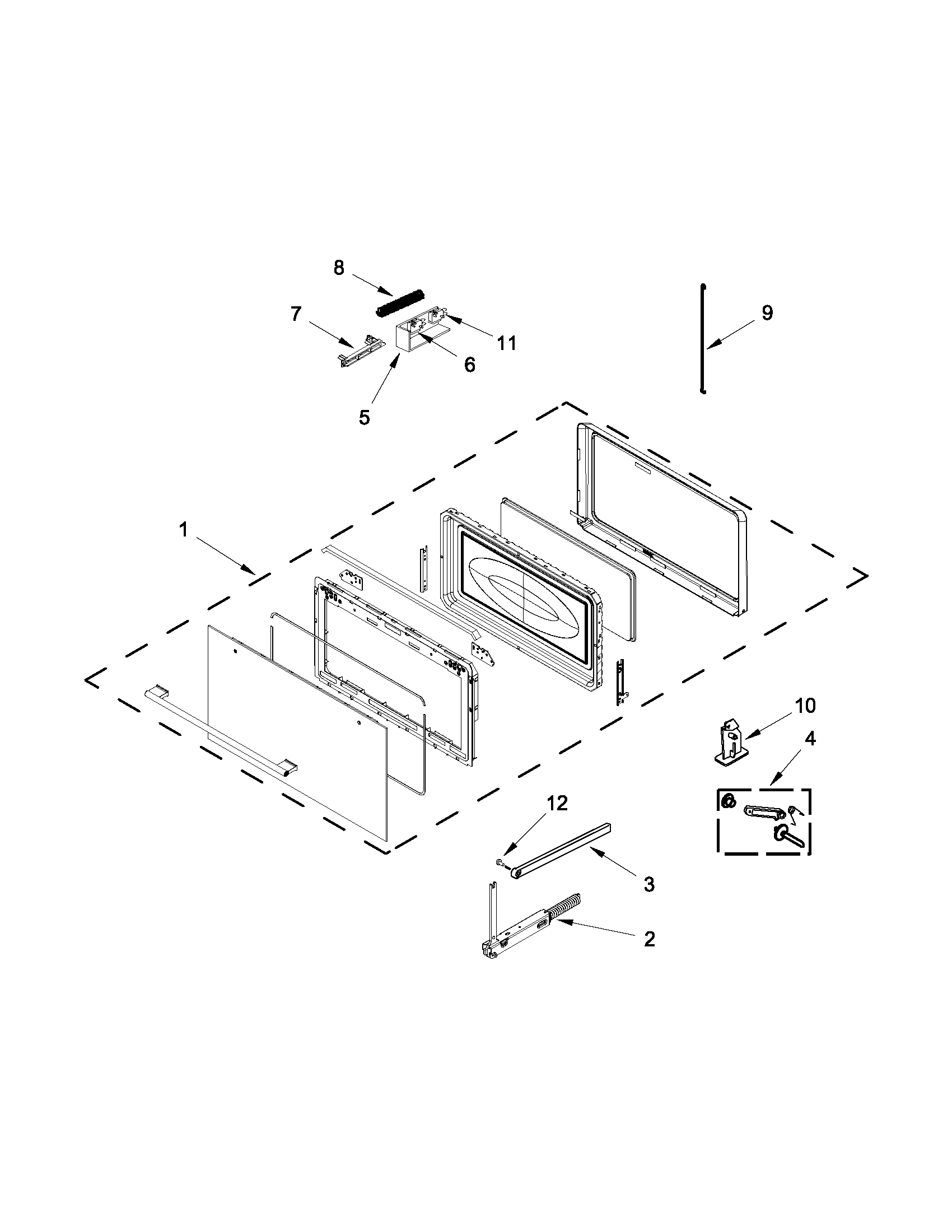

Door parts diagram

Switch

Part #461967848881

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 461967848881. Substitute parts can look different from the original.
BEST SELLER
$31.80 |
16% OFF Phone Price : $37.80
In Stock
Microwave Door Interlock Switch 4375346
#11

Door parts diagram

Microwave door interlock switch

Part #4375346

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4375346. Substitute parts can look different from the original.
BEST SELLER
$31.80 |
16% OFF Phone Price : $37.80
In Stock
Oven Baseless Lamp W10287972
#14

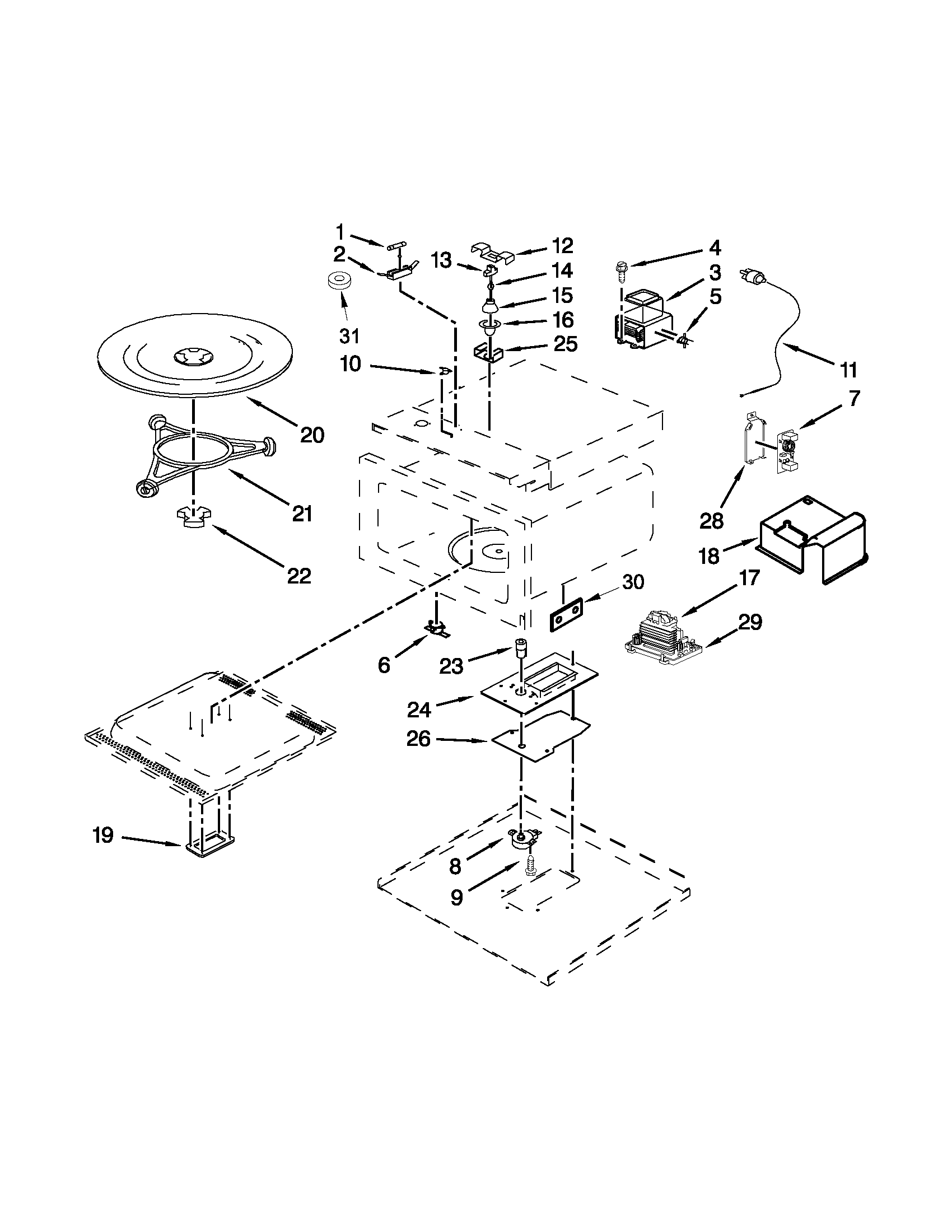

Oven interior parts diagram

Oven baseless lamp

Part #W10287972

Replaced by #W10886919

?
Manufacturer substitution
This part replaces W10287972. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$22.89 |
21% OFF Phone Price : $28.89
In Stock
Fuse (black) 4375321
#1

Oven interior parts diagram

Fuse (black)

Part #4375321

Replaced by #WP4375321

?
Manufacturer substitution
This part replaces 4375321. Substitute parts can look different from the original.
$14.13 |
12% OFF Phone Price : $16.13
In Stock
Damper Pin W10120470
#4

Door parts diagram

Damper pin

Part #W10120470

Replaced by #WPW10128850

?
Manufacturer substitution
This part replaces W10120470. Substitute parts can look different from the original.
$52.98 |
10% OFF Phone Price : $58.98
In Stock
Bushing W10120469
#12

Door parts diagram

Bushing

Part #W10120469

Replaced by #WPW10128850

?
Manufacturer substitution
This part replaces W10120469. Substitute parts can look different from the original.
$52.98 |
10% OFF Phone Price : $58.98
In Stock
Microwave Magnetron Thermostat 4375079
#5

Oven interior parts diagram

Microwave magnetron thermostat

Part #4375079

Replaced by #WP4375079

?
Manufacturer substitution
This part replaces 4375079. Substitute parts can look different from the original.
$35.31 |
15% OFF Phone Price : $41.31
In Stock
Microwave Button Holder W10251250
#7

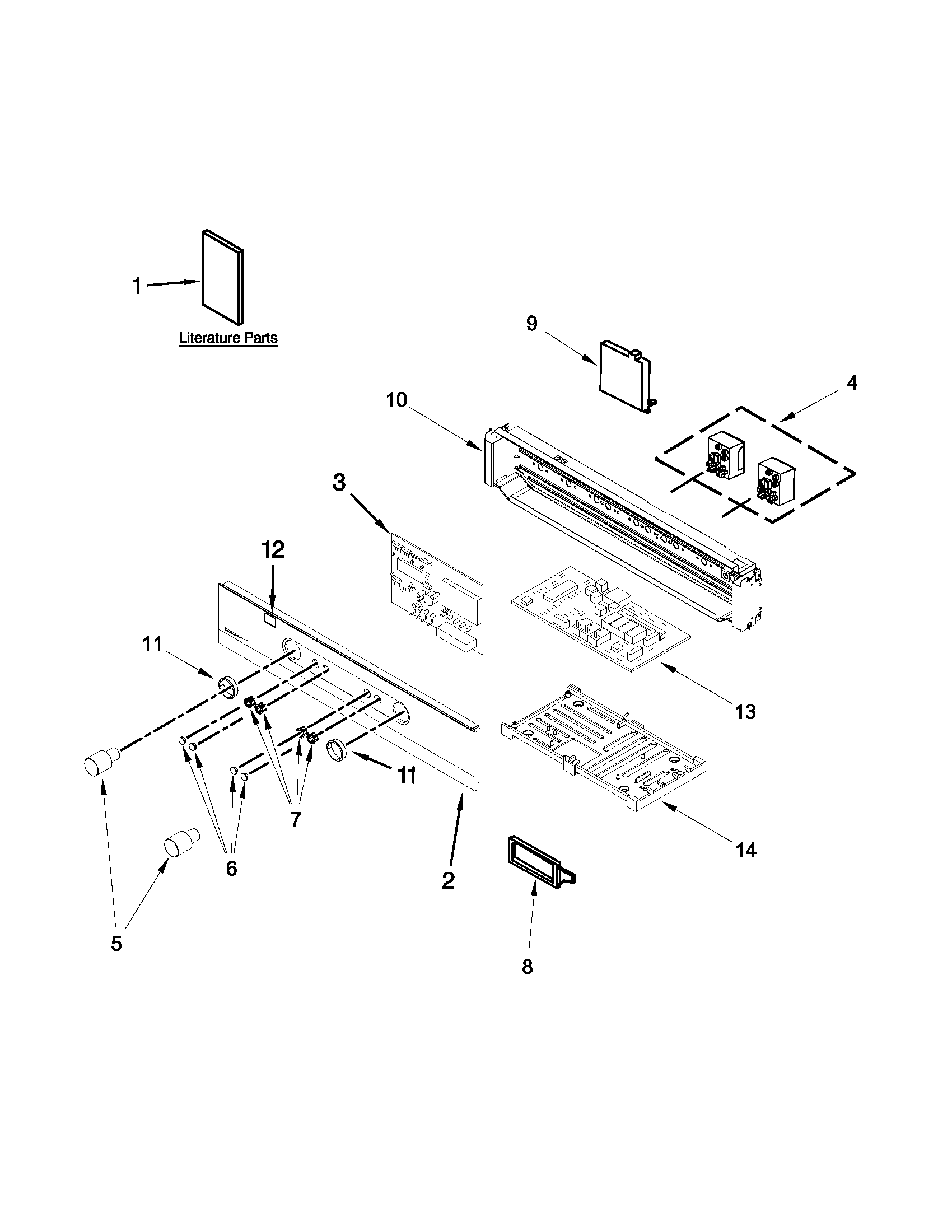

Control panel parts diagram

Microwave button holder

Part #W10251250

Replaced by #W11116990

?
Manufacturer substitution
This part replaces W10251250. Substitute parts can look different from the original.
This item is not returnable
$20.51 |
23% OFF Phone Price : $26.51
In Stock
Push Rod Obi 461967750464
#7

Door parts diagram

Push rod obi

Part #461967750464

Replaced by #WPW10120235

?
Manufacturer substitution
This part replaces 461967750464. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Transformer 8205692
#3

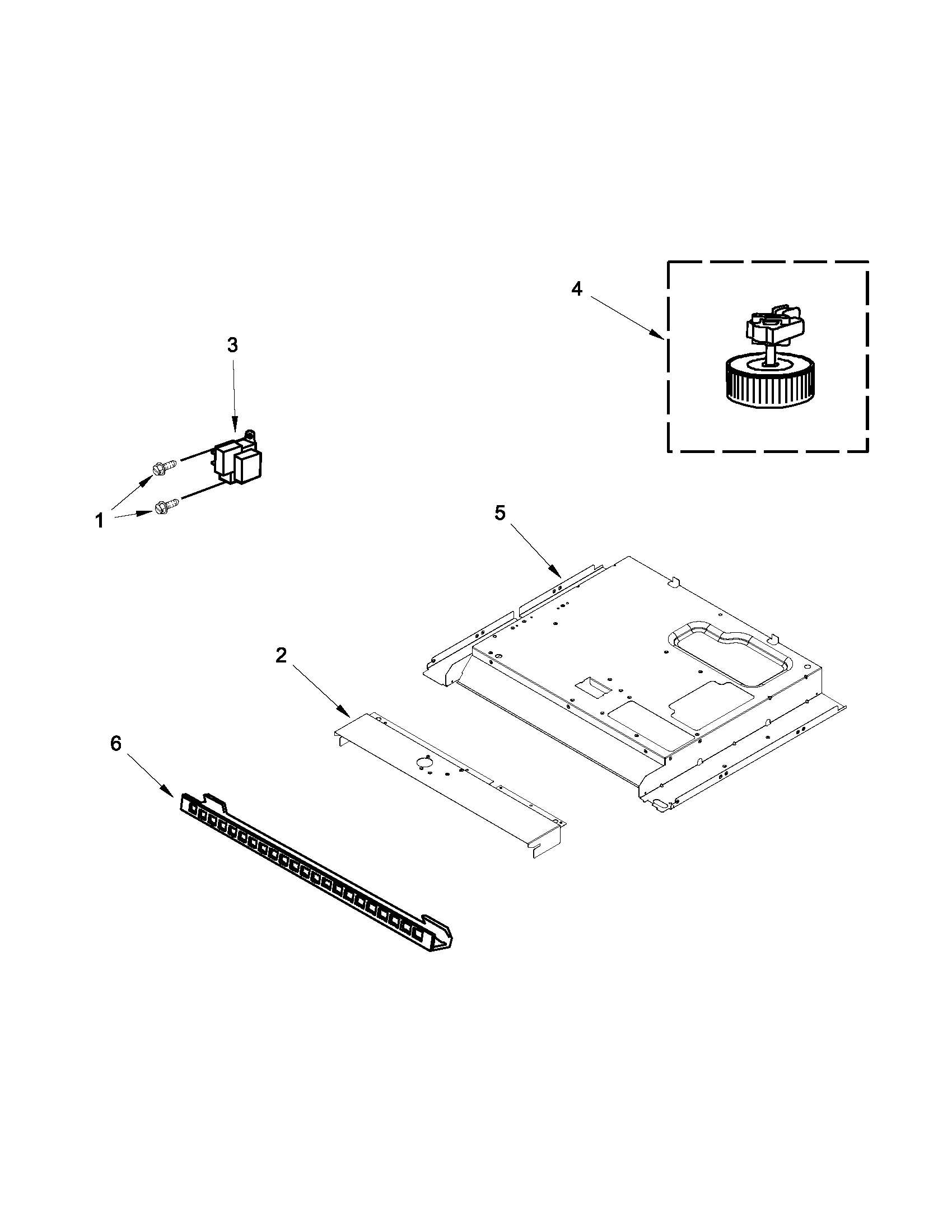

Top venting parts diagram

Transformer

Part #8205692

Replaced by #W11238401

?
Manufacturer substitution
This part replaces 8205692. Substitute parts can look different from the original.
$135.55 |
8% OFF Phone Price : $147.55
In Stock
