Craftsman
Gas Walk-Behind Mower

Model # 917388980 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917388980 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 207 parts  |
Lawn Mower Wheel, 8 X 1-3/4-in 194348X460
#37

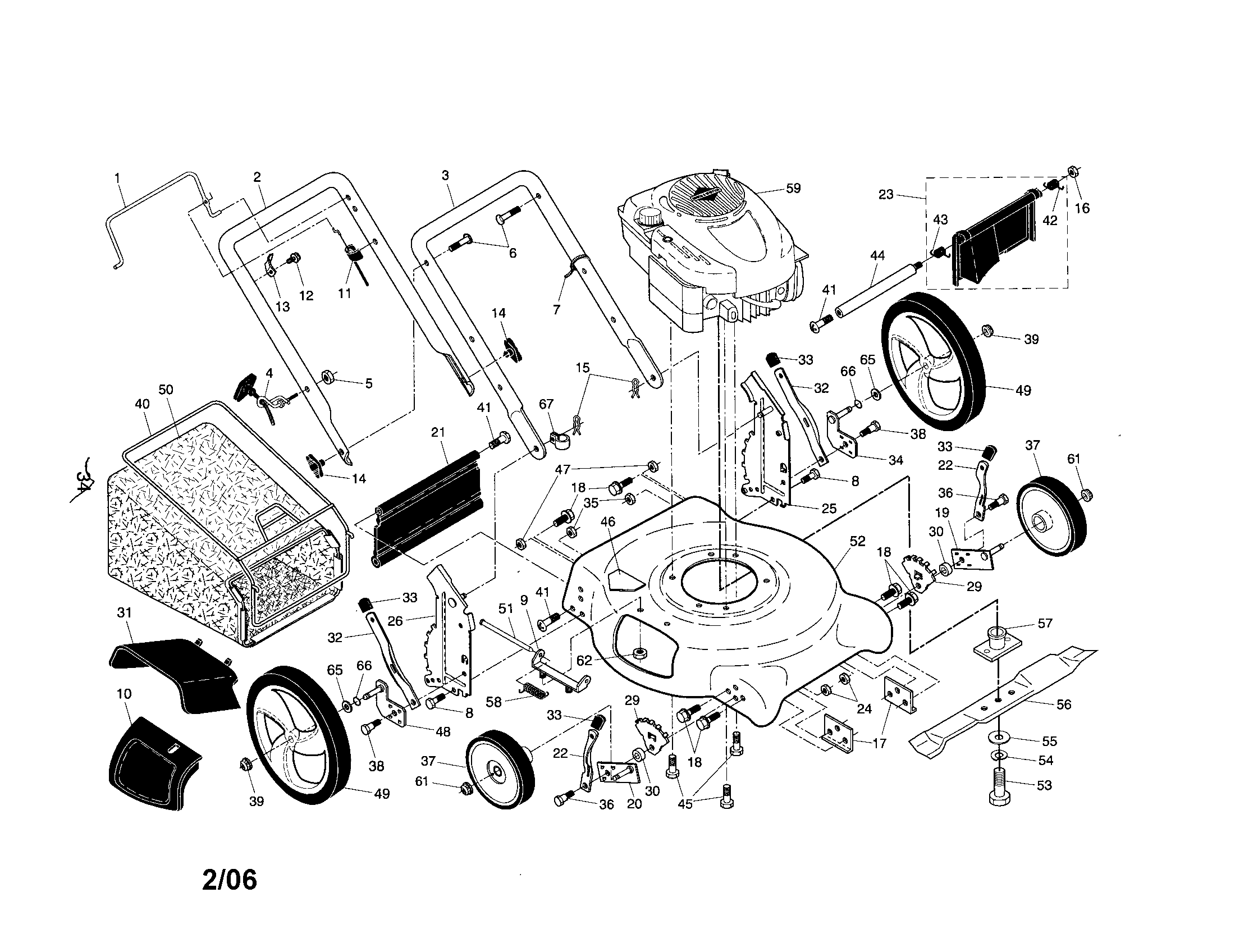

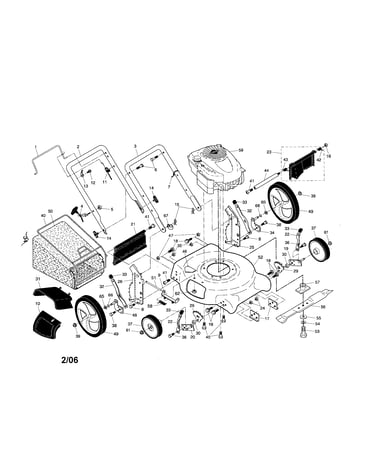

Handle/engine/wheels/bag/deck diagram

Lawn mower wheel, 8 x 1-3/4-in

Part #194348X460

Replaced by #583720201

?
Manufacturer substitution
This part replaces 194348X460. Substitute parts can look different from the original.
BEST SELLER
$25.18 |
19% OFF Phone Price : $31.18
In Stock
Discharge Guard 165760
#31

Handle/engine/wheels/bag/deck diagram

Discharge guard

Part #165760

Replaced by #589482402

?
Manufacturer substitution
This part replaces 165760. Substitute parts can look different from the original.
BEST SELLER
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Gbag.2061016 403197
#50

Handle/engine/wheels/bag/deck diagram

Gbag.2061016

Part #403197

Replaced by #532410666

?
Manufacturer substitution
This part replaces 403197. Substitute parts can look different from the original.
BEST SELLER
$68.54 |
8% OFF Phone Price : $74.54
In Stock
Lawn & Garden Equipment Lock Nut 73800400
#62

Handle/engine/wheels/bag/deck diagram

Lawn & garden equipment lock nut

Part #73800400

Replaced by #582478602

?
Manufacturer substitution
This part replaces 73800400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Nut 132004
#5

Handle/engine/wheels/bag/deck diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#41

Handle/engine/wheels/bag/deck diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Guide.rope.s 194788
#4

Handle/engine/wheels/bag/deck diagram

Guide.rope.s

Part #194788

Replaced by #586122501

?
Manufacturer substitution
This part replaces 194788. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Mulcher Door 165754
#10

Handle/engine/wheels/bag/deck diagram

Mulcher door

Part #165754

Replaced by #532165754

?
Manufacturer substitution
This part replaces 165754. Substitute parts can look different from the original.
This item is not returnable
$13.31 |
13% OFF Phone Price : $15.31
In Stock
Torsion Spring 152124
#58

Handle/engine/wheels/bag/deck diagram

Torsion spring

Part #152124

Replaced by #532152124

?
Manufacturer substitution
This part replaces 152124. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Walk-behind Lawn Mower Selector Knob 87877
#33

Handle/engine/wheels/bag/deck diagram

Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
