Model # MFF2055YEB02 Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag MFF2055YEB02 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

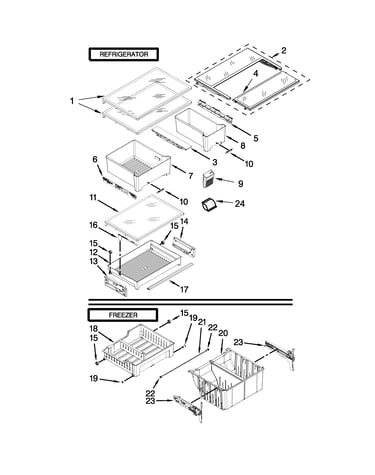

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 228 parts  |
Refrigerator Filter W10569758
#4

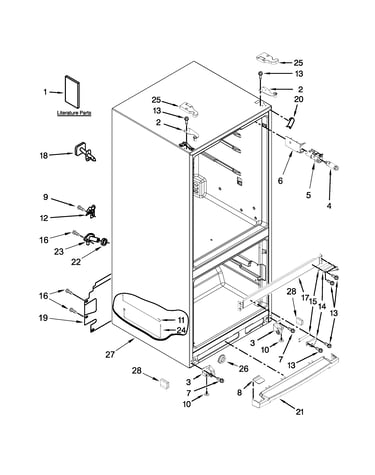

Cabinet parts diagram

Refrigerator filter

Part #W10569758

Replaced by #EDR1RXD1

?
Manufacturer substitution
This part replaces W10569758. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Air Filter W10315189
#25

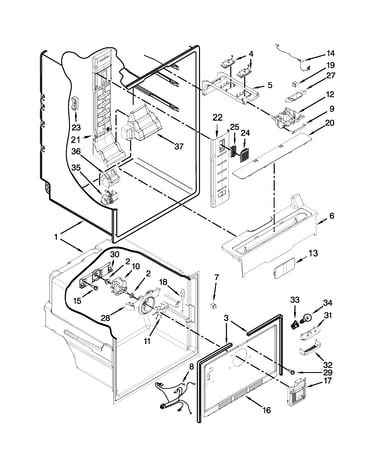

Liner parts diagram

Refrigerator air filter

Part #W10315189

Replaced by #W10311524

?
Manufacturer substitution
This part replaces W10315189. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$16.74 |
11% OFF Phone Price : $18.74
In Stock
Refrigerator Ice Maker Assembly W10632400
#100

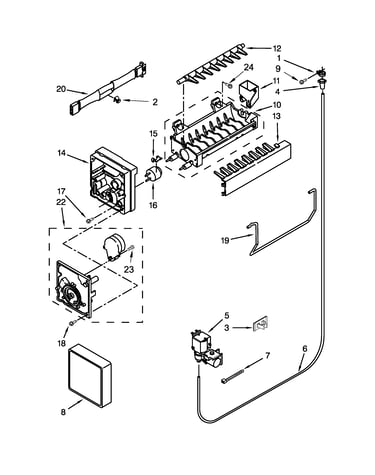

Icemaker parts diagram

Refrigerator ice maker assembly

Part #W10632400

Replaced by #4317943

?
Manufacturer substitution
This part replaces W10632400. Substitute parts can look different from the original.
BEST SELLER
$93.89 |
6% OFF Phone Price : $99.89
In Stock
Upright Freezer Run Capacitor 2169373
#32

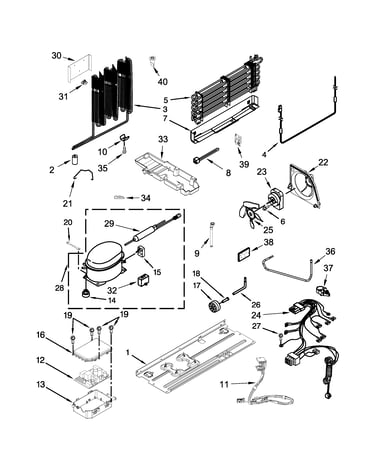

Unit parts diagram

Upright freezer run capacitor

Part #2169373

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces 2169373. Substitute parts can look different from the original.
BEST SELLER
$52.20 |
10% OFF Phone Price : $58.20
In Stock
Light Swit 12466105
#7

Liner parts diagram

Light swit

Part #12466105

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466105. Substitute parts can look different from the original.
BEST SELLER
$20.47 |
23% OFF Phone Price : $26.47
In Stock
Refrigerator Door Cam W10470155
#6

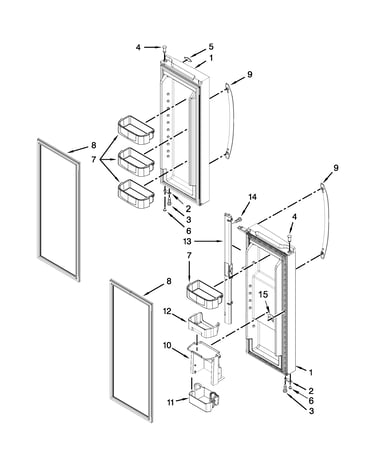

Refrigerator door parts diagram

Refrigerator door cam

Part #W10470155

Replaced by #WPW10470155

?
Manufacturer substitution
This part replaces W10470155. Substitute parts can look different from the original.
BEST SELLER
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Refrigerator Door W10413519
#1E

Refrigerator door parts diagram

Refrigerator door

Part #W10413519

Replaced by #LW10413519

?
Manufacturer substitution
This part replaces W10413519. Substitute parts can look different from the original.
BEST SELLER
$452.99 |
$12.00 OFF Phone Price : $464.99
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Optional parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Refrigerator Screw 2262176
#16

Cabinet parts diagram

Refrigerator screw

Part #2262176

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 2262176. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Sears Refrigerator Service Valve (replaces 876620) 876764
#NI

Unit parts diagram

Sears refrigerator service valve (replaces 876620)

Part #876764

BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
