Model # ECT80 Official AO Smith water heater

Here are the diagrams and repair parts for Official AO Smith ECT80 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Element 042286-022
#6

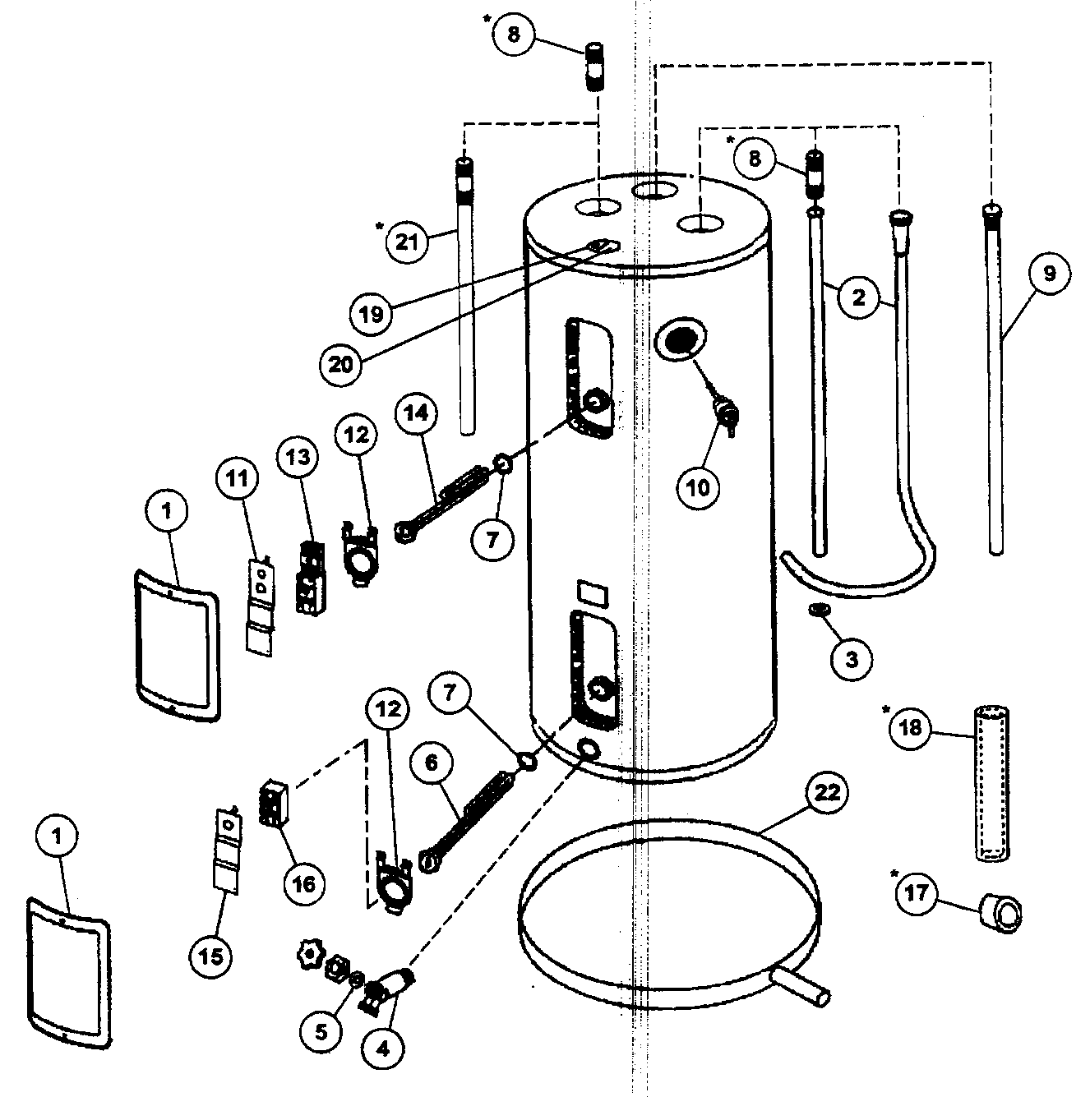

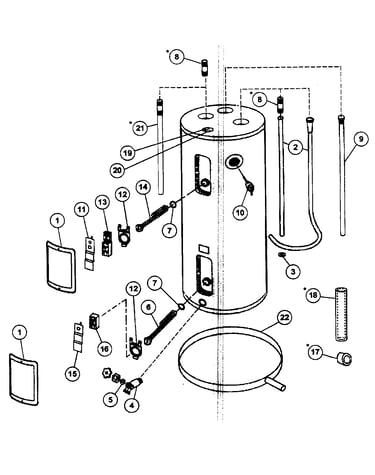

Water heater diagram

Element

Part #042286-022

Replaced by #100108290

?
Manufacturer substitution
This part replaces 042286-022. Substitute parts can look different from the original.
$33.33
In Stock
Terminal Cover 182360-000
#11

Water heater diagram

Terminal cover

Part #182360-000

Replaced by #100109598

?
Manufacturer substitution
This part replaces 182360-000. Substitute parts can look different from the original.
$22.86
In Stock
Thermostat 182359-000
#16

Water heater diagram

Thermostat

Part #182359-000

Replaced by #100110039

?
Manufacturer substitution
This part replaces 182359-000. Substitute parts can look different from the original.
$28.89
In Stock
Anode Rod 183523-033
#9

Water heater diagram

Anode rod

Part #183523-033

Replaced by #100109594

?
Manufacturer substitution
This part replaces 183523-033. Substitute parts can look different from the original.
$55.56
In Stock
Dip Tube 183900-052
#2

Water heater diagram

Dip tube

Part #183900-052

Replaced by #100108609

?
Manufacturer substitution
This part replaces 183900-052. Substitute parts can look different from the original.
$30.00
In Stock
Element 042286-021
#14

Water heater diagram

Element

Part #042286-021

Replaced by #100108283

?
Manufacturer substitution
This part replaces 042286-021. Substitute parts can look different from the original.
$27.14
In Stock
Thermostat 182354-000
#13

Water heater diagram

Thermostat

Part #182354-000

Replaced by #100109846

?
Manufacturer substitution
This part replaces 182354-000. Substitute parts can look different from the original.
$53.33
In Stock
Box Cover 184660-000
#20

Water heater diagram

Box cover

Part #184660-000

Replaced by #184660-000

?
Manufacturer substitution
This part replaces 184660-000. Substitute parts can look different from the original.
$17.99
In Stock
Access Panel 181260-000
#1

Water heater diagram

Access panel

Part #181260-000

Replaced by #100109599

?
Manufacturer substitution
This part replaces 181260-000. Substitute parts can look different from the original.
$30.00
In Stock
Insulation 183256-000
#17

Water heater diagram

Insulation

Part #183256-000

Replaced by #9003716005

?
Manufacturer substitution
This part replaces 183256-000. Substitute parts can look different from the original.
$23.49
In Stock
