Frigidaire
Electric Cooktop

Model # PLEC36S9ECC Official Frigidaire cooktop

Here are the diagrams and repair parts for Official Frigidaire PLEC36S9ECC cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

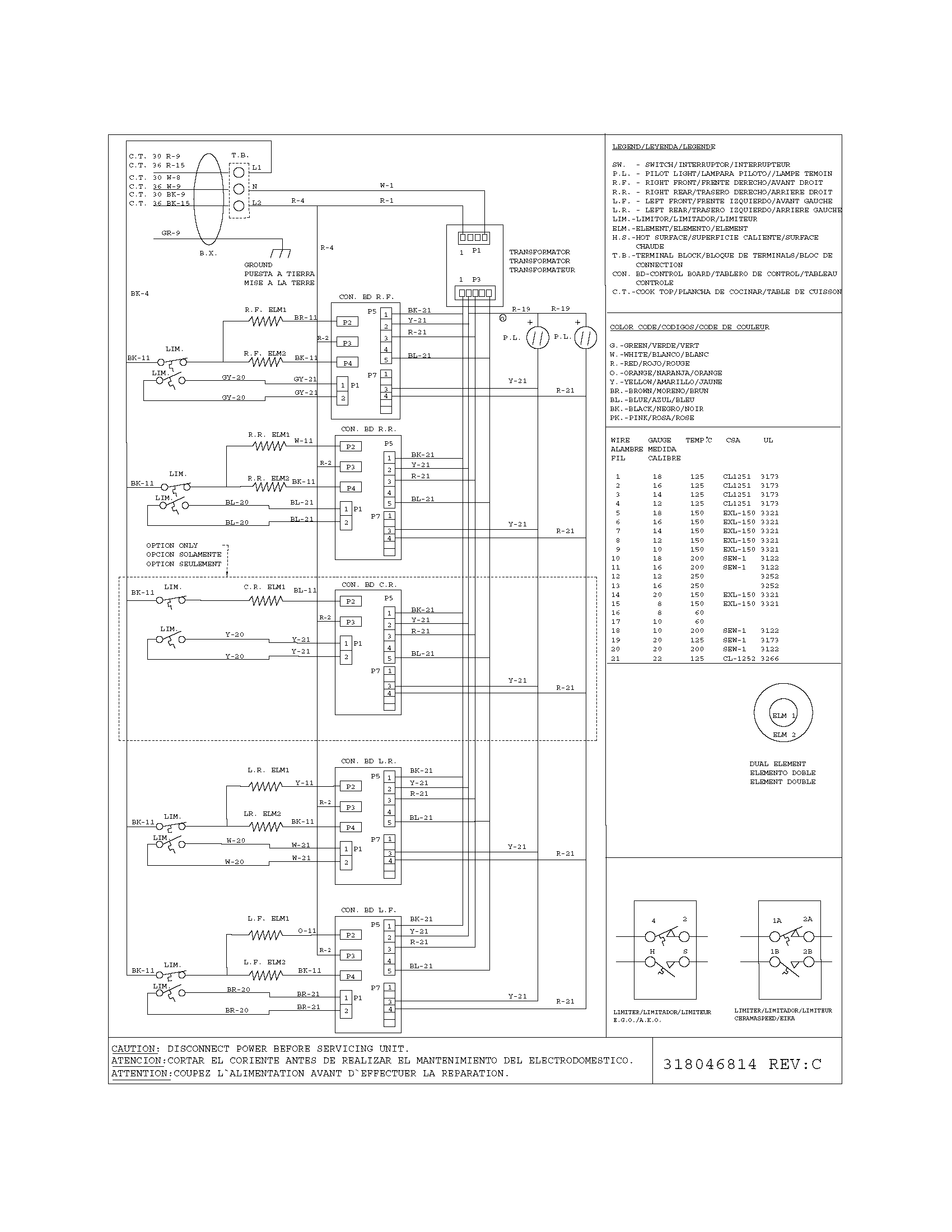

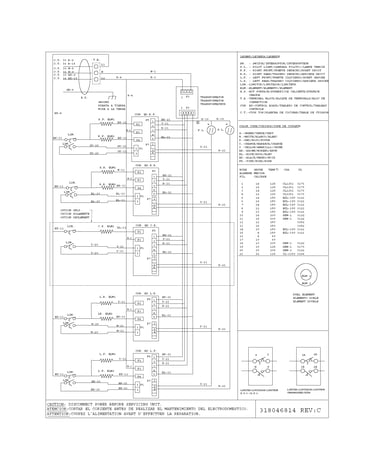

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Element 318198830
#15

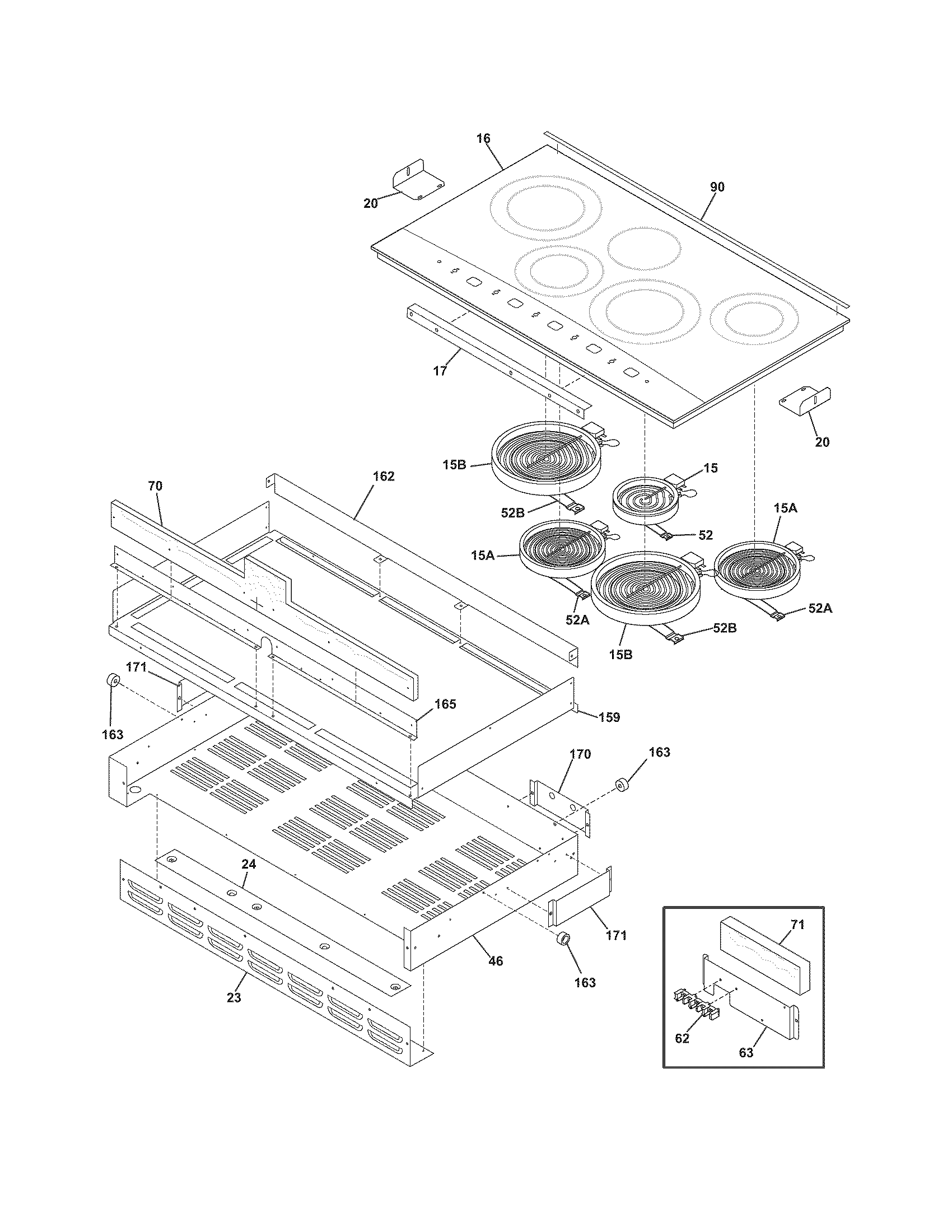

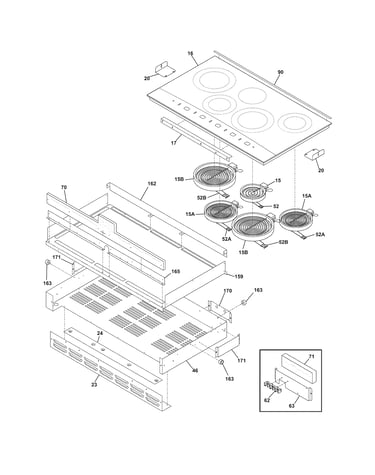

Maintop diagram

Element

Part #318198830

Replaced by #318178110

?
Manufacturer substitution
This part replaces 318198830. Substitute parts can look different from the original.
BEST SELLER
$149.34 |
7% OFF Phone Price : $161.34
In Stock
Element 318198932
#15B

Maintop diagram

Element

Part #318198932

Replaced by #316555800

?
Manufacturer substitution
This part replaces 318198932. Substitute parts can look different from the original.
BEST SELLER
$162.16 |
7% OFF Phone Price : $174.16
In Stock
Cooktop Element 318198936
#15A

Maintop diagram

Cooktop element

Part #318198936

Replaced by #318198952

?
Manufacturer substitution
This part replaces 318198936. Substitute parts can look different from the original.
$151.30 |
7% OFF Phone Price : $163.30
In Stock
Range Lock Washer 316247800
#55A

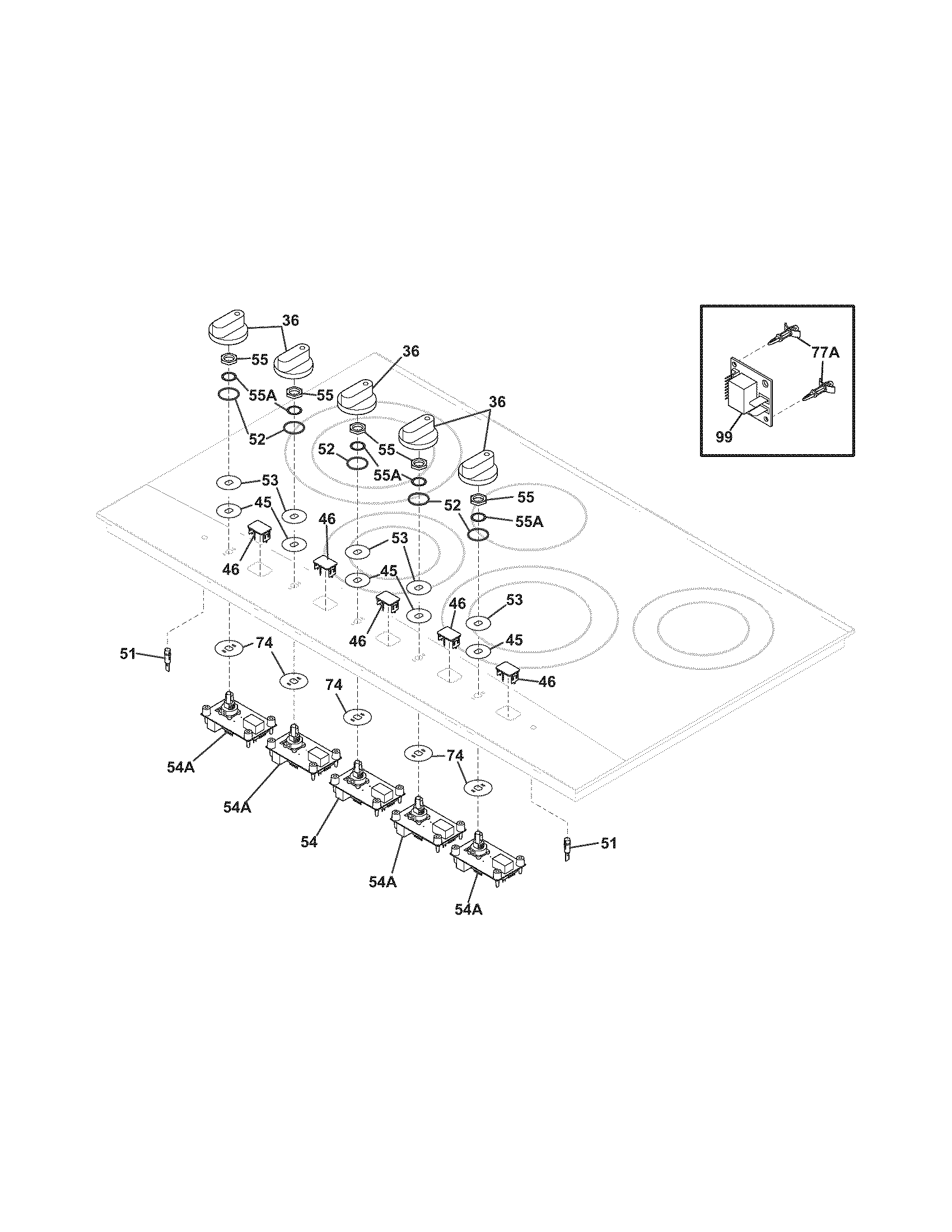

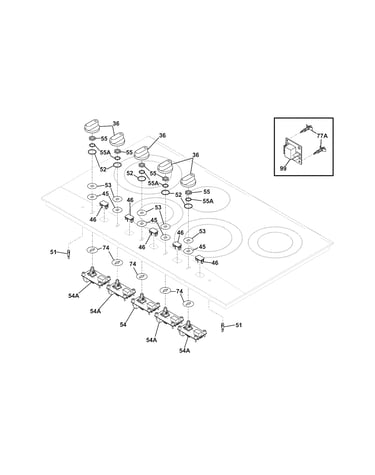

Controls diagram

Range lock washer

Part #316247800

This item is not returnable
$16.77
In Stock
Range Nut 316247700
#55

Controls diagram

Range nut

Part #316247700

This item is not returnable
$16.77
In Stock
Range Surface Element Transformer 316435703
#99

Controls diagram

Range surface element transformer

Part #316435703

$242.31 |
5% OFF Phone Price : $254.31
In Stock
Range Screw 5303323140
#NI

Maintop diagram

Range screw

Part #5303323140

$11.17
In Stock
Cooktop Burner Knob Gasket 318337100
#52

Controls diagram

Cooktop burner knob gasket

Part #318337100

$13.29
In Stock
Cooktop Dual Element Potentiometer (replaces 316443401k) 316443401
#54A

Controls diagram

Cooktop dual element potentiometer (replaces 316443401k)

Part #316443401

$253.22 |
5% OFF Phone Price : $265.22
In Stock
Cooktop Single Element Electronic Control 316443400
#54

Controls diagram

Cooktop single element electronic control

Part #316443400

$339.62
In Stock
