KitchenAid
Gas Cooktop

Model # KGCT365AWH0 Official KitchenAid gas cooktop

Here are the diagrams and repair parts for Official KitchenAid KGCT365AWH0 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Spark Module 3184855
#27

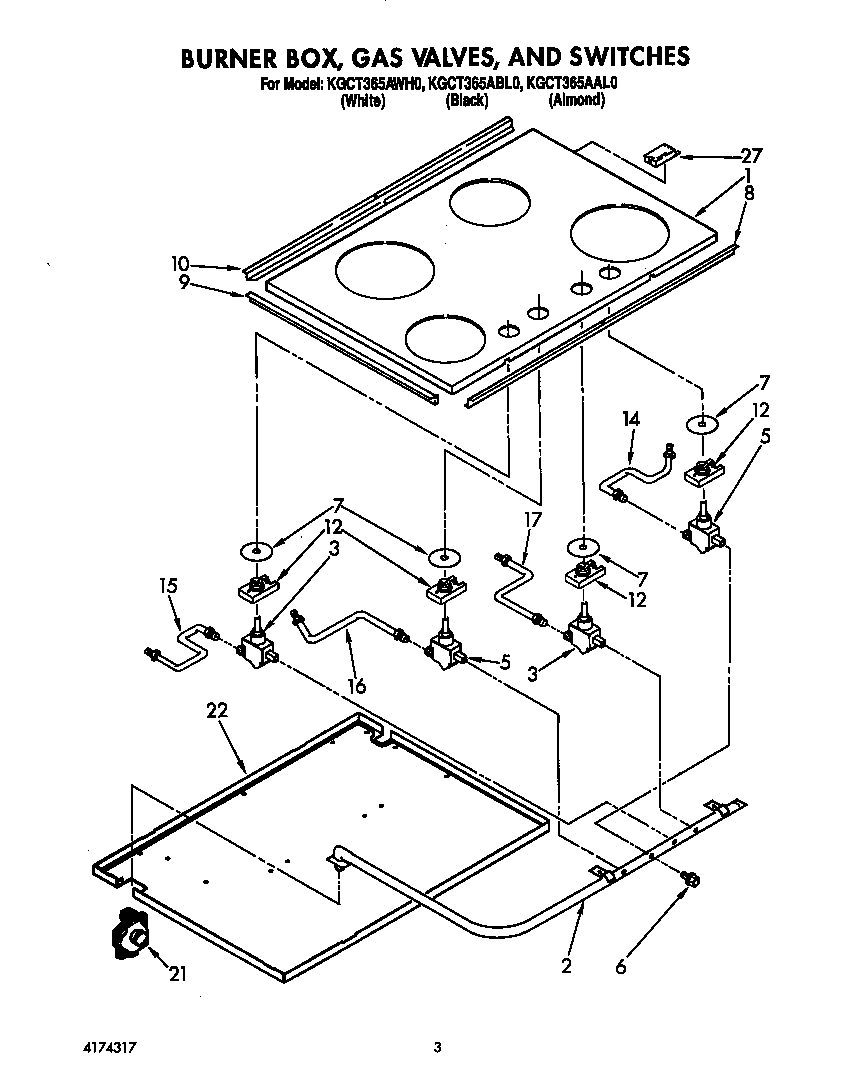

Burner box, gas valves, and switches diagram

Spark module

Part #3184855

Replaced by #WP4454392

?
Manufacturer substitution
This part replaces 3184855. Substitute parts can look different from the original.
$157.82 |
7% OFF Phone Price : $169.82
In Stock
Gasket Switch 3185430
#7

Burner box, gas valves, and switches diagram

Gasket switch

Part #3185430

Replaced by #WP3188425

?
Manufacturer substitution
This part replaces 3185430. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Screw 246132
#5A

Burner box, gas valves, and switches diagram

Screw

Part #246132

Replaced by #WP965173

?
Manufacturer substitution
This part replaces 246132. Substitute parts can look different from the original.
This item is not returnable
$5.85
In Stock
Range Burner Control Knob 3182569
#17C

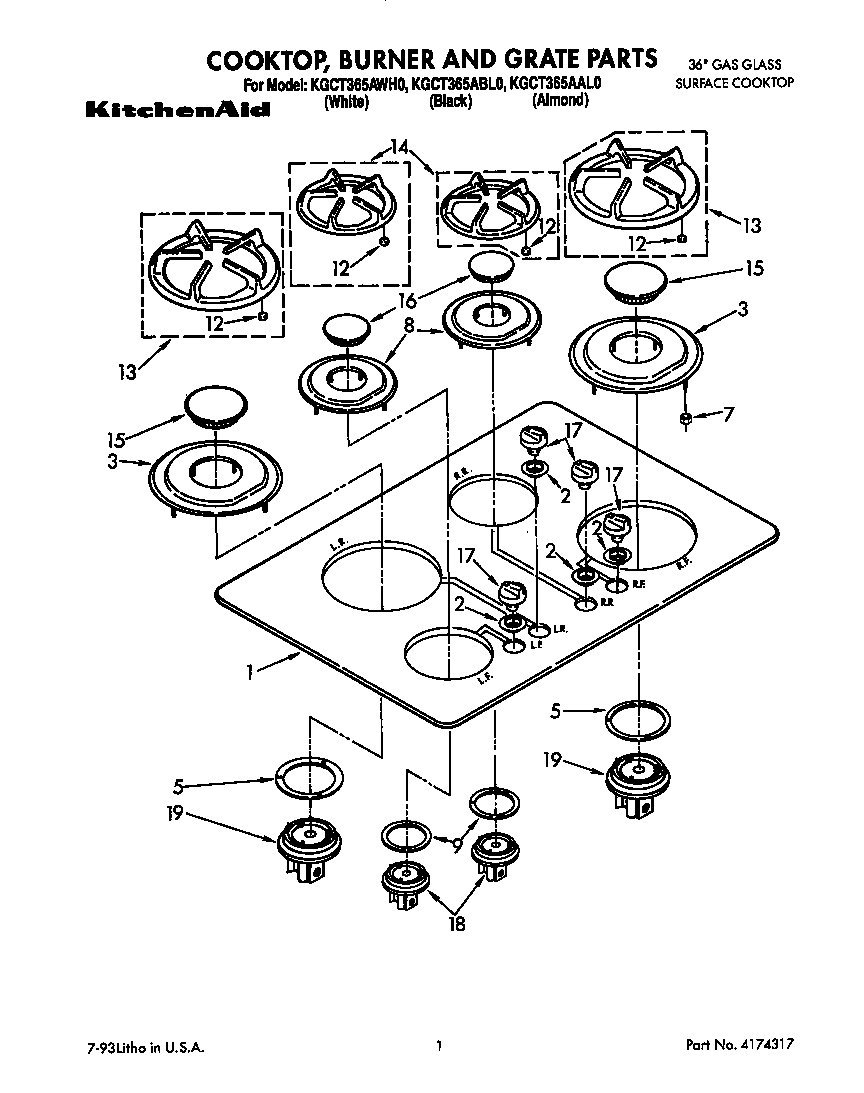

Cooktop, burner and grate diagram

Range burner control knob

Part #3182569

Replaced by #WP3182569

?
Manufacturer substitution
This part replaces 3182569. Substitute parts can look different from the original.
This item is not returnable
$23.48 |
20% OFF Phone Price : $29.48
In Stock
Range Burner Control Knob 3182568
#17A

Cooktop, burner and grate diagram

Range burner control knob

Part #3182568

Replaced by #WP3182568

?
Manufacturer substitution
This part replaces 3182568. Substitute parts can look different from the original.
This item is not returnable
$22.35 |
21% OFF Phone Price : $28.35
In Stock
Cable Tie 309330
#2D

Wiring harness diagram

Cable tie

Part #309330

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 309330. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Grommet-wh 3180081
#2A

Cooktop, burner and grate diagram

Grommet-wh

Part #3180081

Replaced by #WP3180081

?
Manufacturer substitution
This part replaces 3180081. Substitute parts can look different from the original.
This item is not returnable
$6.70 |
13% OFF Phone Price : $7.70
In Stock
Range Surface Burner Igniter 3185804
#4

Sealed gas burner kit diagram

Range surface burner igniter

Part #3185804

Replaced by #WP3185804

?
Manufacturer substitution
This part replaces 3185804. Substitute parts can look different from the original.
This item is not returnable
$34.99 |
15% OFF Phone Price : $40.99
In Stock
Grommet-bl 3180079
#2B

Cooktop, burner and grate diagram

Grommet-bl

Part #3180079

Replaced by #W10854242

?
Manufacturer substitution
This part replaces 3180079. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Cooktop Burner Control Knob 3182567
#17B

Cooktop, burner and grate diagram

Cooktop burner control knob

Part #3182567

Replaced by #WP3182567

?
Manufacturer substitution
This part replaces 3182567. Substitute parts can look different from the original.
This item is not returnable
$25.57 |
19% OFF Phone Price : $31.57
In Stock
