Frigidaire
Upright Freezer

Model # FFFU14M1QWB Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFFU14M1QWB freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Freezer Dryer Filter 297396810
#4

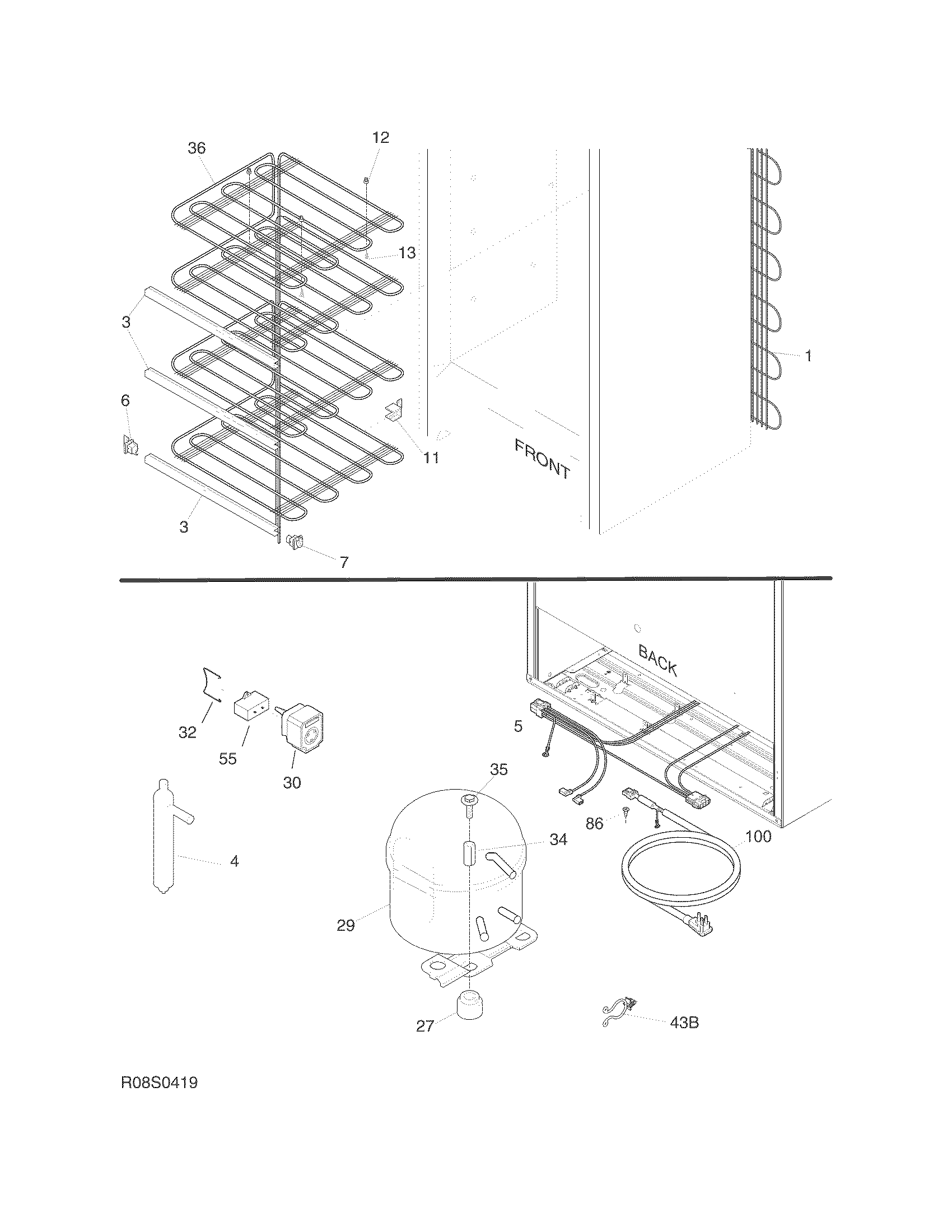

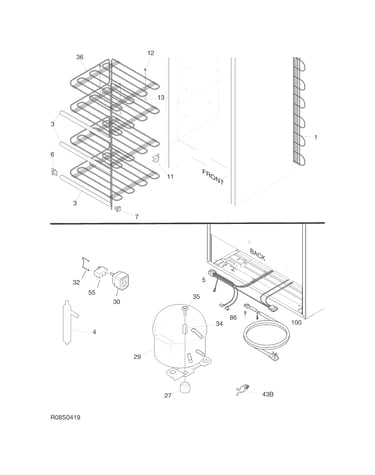

System diagram

Freezer dryer filter

Part #297396810

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 297396810. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Gibson Refrigerator Run Capacitor (replaces 216985001, 297286804) 297286803
#55

System diagram

Gibson refrigerator run capacitor (replaces 216985001, 297286804)

Part #297286803

BEST SELLER
$35.37 |
15% OFF Phone Price : $41.37
In Stock
Gibson Freezer Door Key (replaces 216702900, 7297147700) 297147700
#5

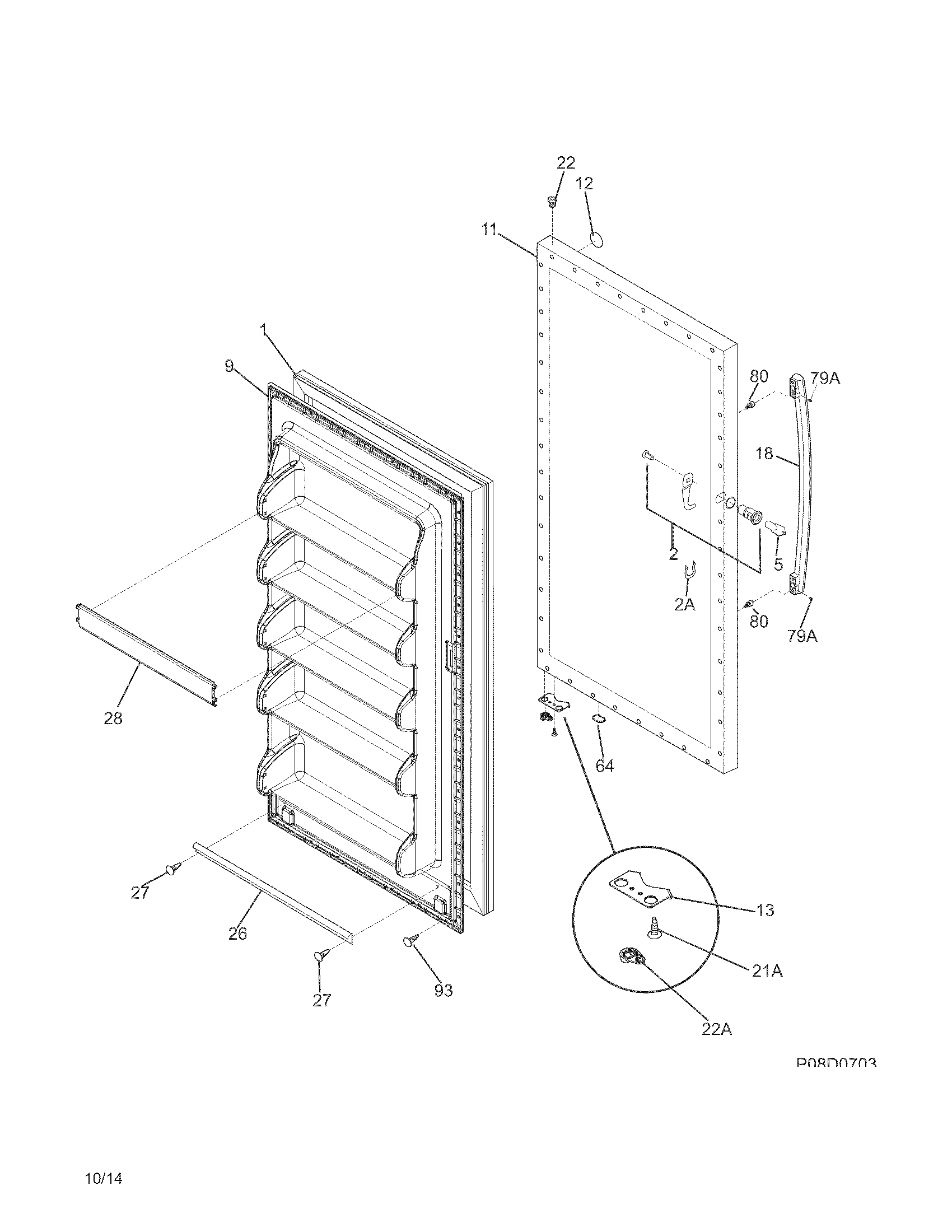

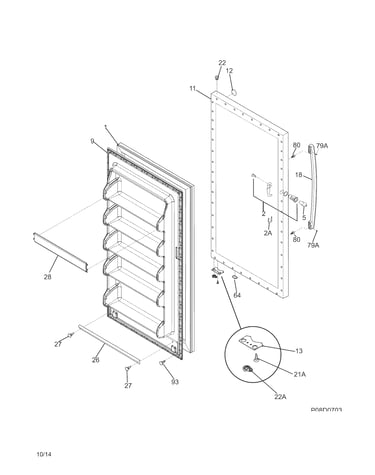

Door diagram

Gibson freezer door key (replaces 216702900, 7297147700)

Part #297147700

BEST SELLER
$9.07 |
10% OFF Phone Price : $10.07
In Stock
Compressor 297437000
#29

System diagram

Compressor

Part #297437000

Replaced by #5304507767

?
Manufacturer substitution
This part replaces 297437000. Substitute parts can look different from the original.
BEST SELLER
$362.44 |
$12.00 OFF Phone Price : $374.44
In Stock
Freezer Drain Plug (replaces 5306593887) 216502600
#3

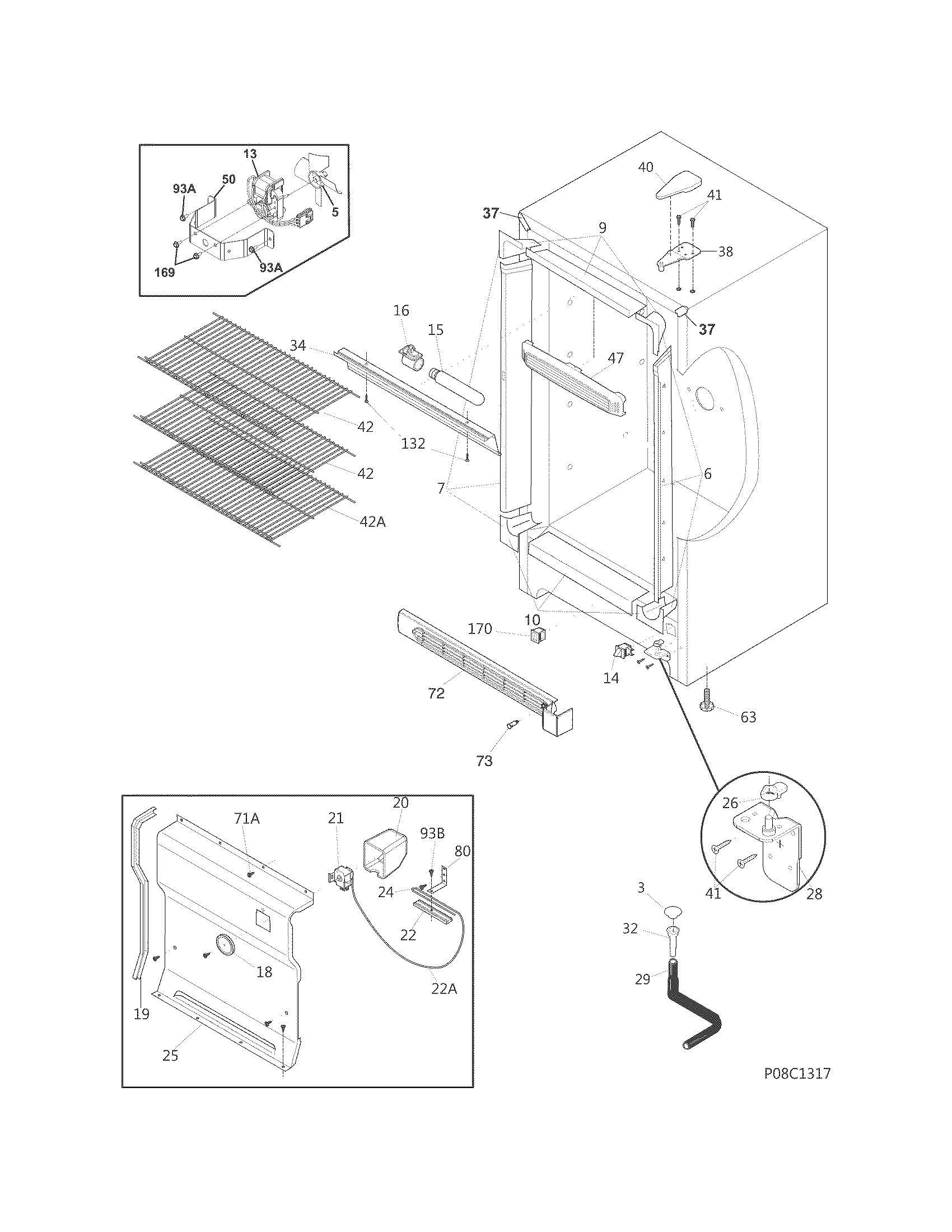

Cabinet diagram

Freezer drain plug (replaces 5306593887)

Part #216502600

BEST SELLER
This item is not returnable
$13.04 |
13% OFF Phone Price : $15.04
In Stock
Freezer Door Gasket 216522374
#1

Door diagram

Freezer door gasket

Part #216522374

Replaced by #5304506126

?
Manufacturer substitution
This part replaces 216522374. Substitute parts can look different from the original.
BEST SELLER
$170.50 |
7% OFF Phone Price : $182.50
In Stock
Freezer Light Bulb (replaces 216222700, 240588001) 216846400
#15

Cabinet diagram

Freezer light bulb (replaces 216222700, 240588001)

Part #216846400

$40.15 |
13% OFF Phone Price : $46.15
In Stock
Drain 297382000
#32

Cabinet diagram

Drain

Part #297382000

Replaced by #5304511843

?
Manufacturer substitution
This part replaces 297382000. Substitute parts can look different from the original.
This item is not returnable
$13.42 |
13% OFF Phone Price : $15.42
In Stock
Freezer Door Lock (replaces 297090000, 297213400) 297318600
#2

Door diagram

Freezer door lock (replaces 297090000, 297213400)

Part #297318600

This item is not returnable
$27.76 |
18% OFF Phone Price : $33.76
In Stock
White-westinghouse Freezer Shelf Support (replaces 3091418) 297001600
#6

System diagram

White-westinghouse freezer shelf support (replaces 3091418)

Part #297001600

This item is not returnable
$16.49 |
11% OFF Phone Price : $18.49
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

View all

Why don't the lights in my freezer work?

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

Read more

What should I do when my freezer's high-temperature alarm sounds?

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Read more

Why isn't my freezer cooling?

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Read more

Why does my freezer have a lot of frost inside?

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Read more

Why is my freezer too warm?

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …

Read more

Why is my freezer hot on the outside?

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Read more

Why isn't my freezer running?

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…

Read more

Why is my freezer so noisy?

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …

Read more
