Model # PDT760SIF7II Official GE dishwasher

Here are the diagrams and repair parts for Official GE PDT760SIF7II dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

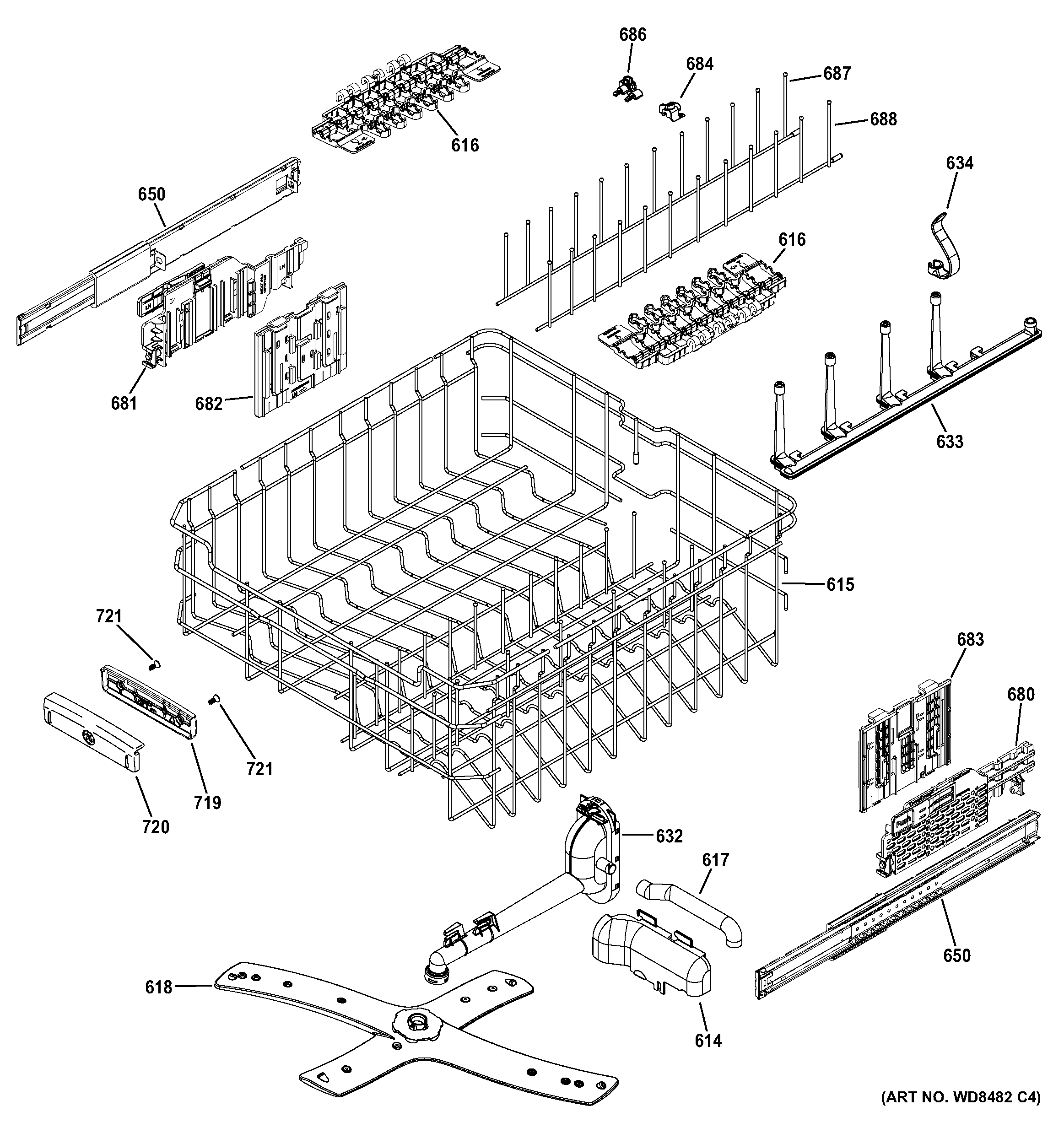

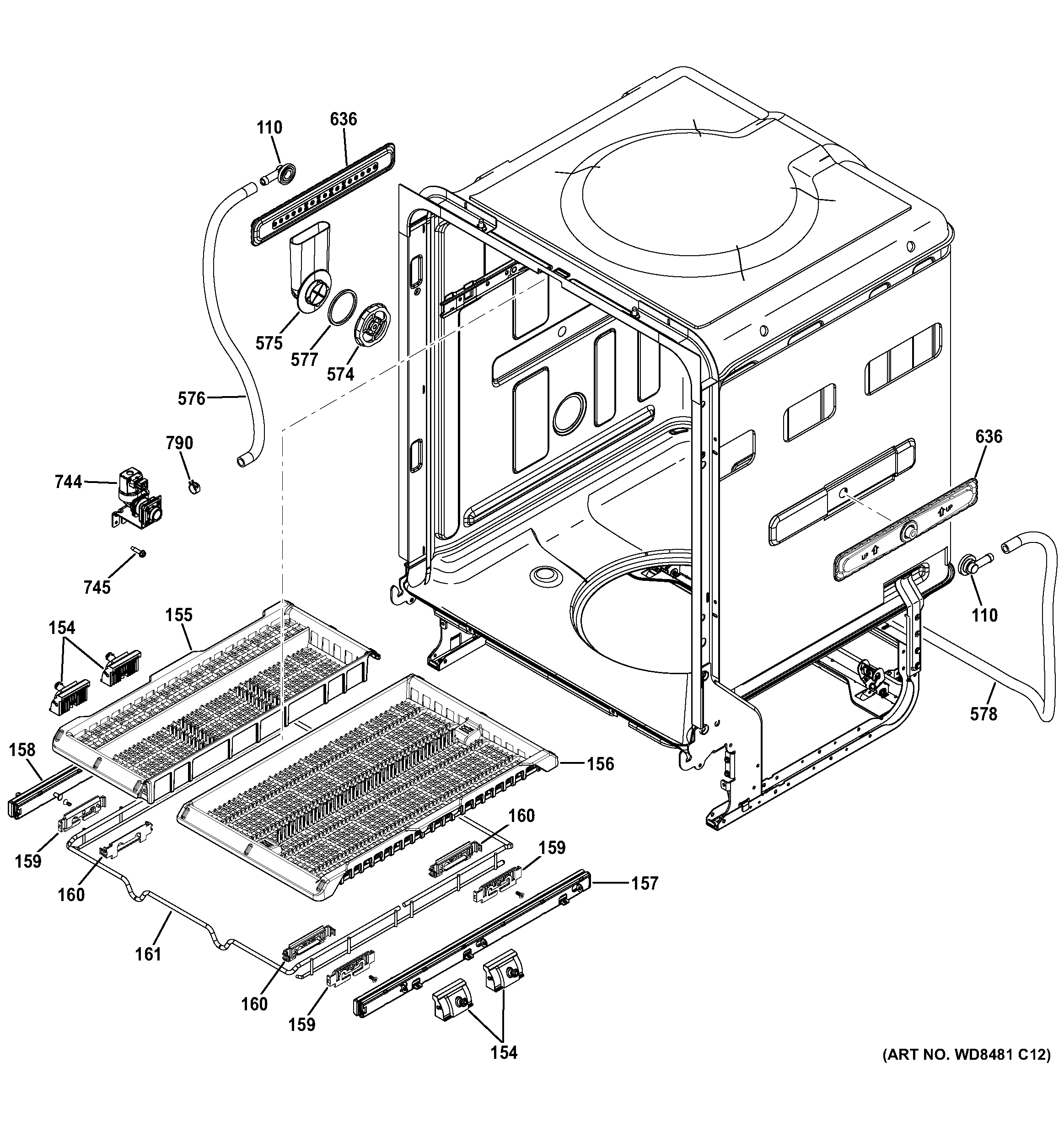

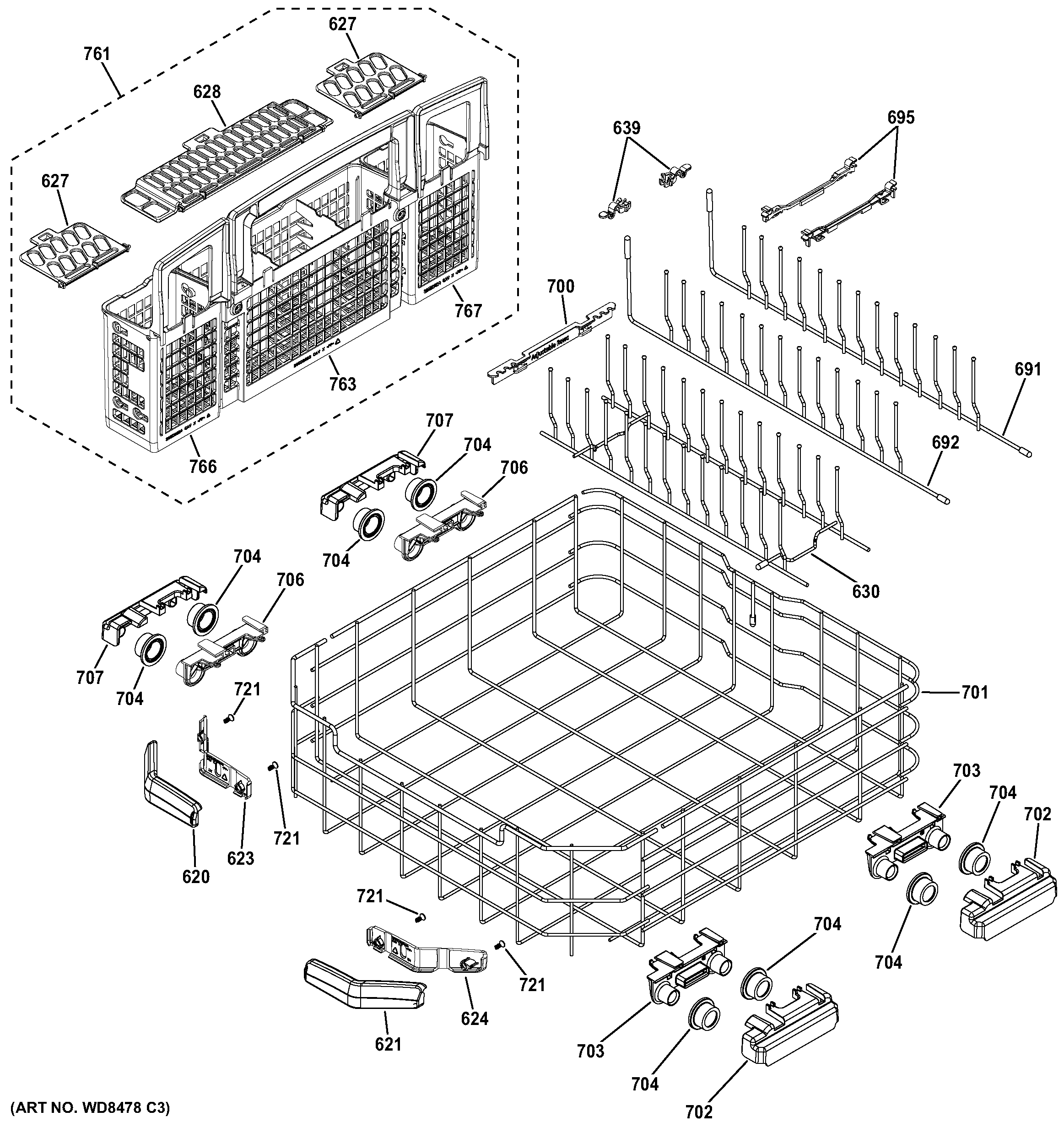

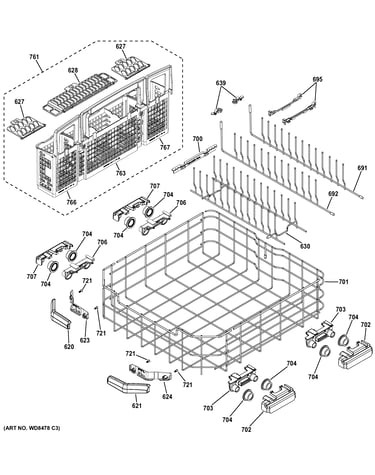

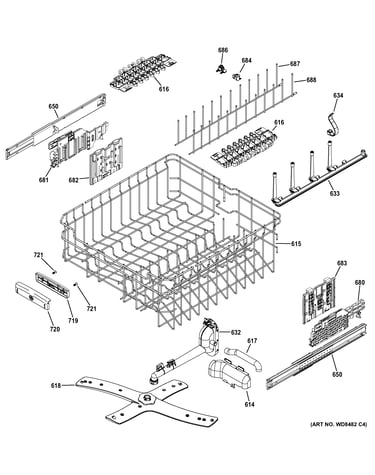

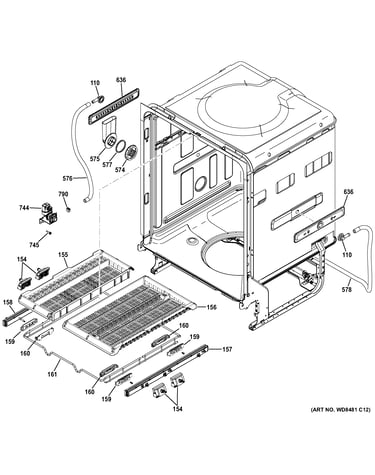

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |
Dishwasher Door Latch Lock WD21X10490
#803

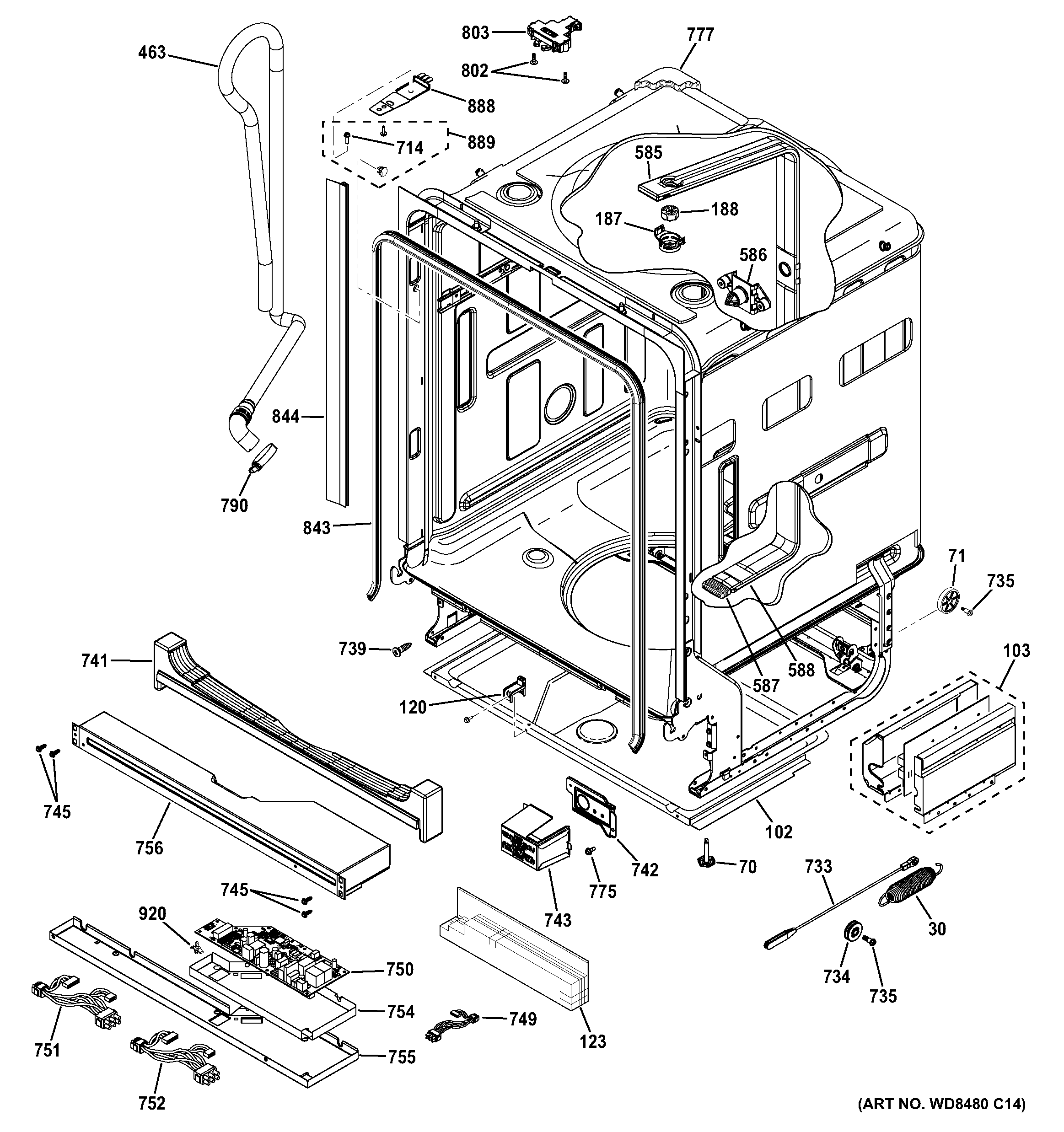

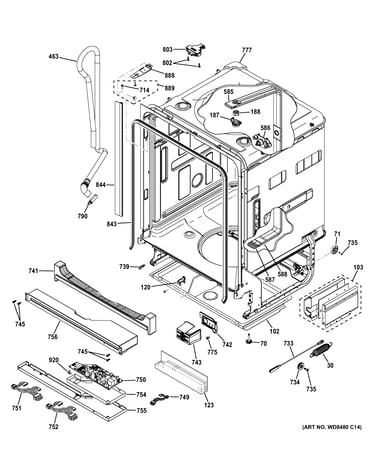

Body parts (1) diagram

Dishwasher door latch lock

Part #WD21X10490

BEST SELLER
$28.66 |
17% OFF Phone Price : $34.66
In Stock
Kit - Piranh WD01X10572
#335

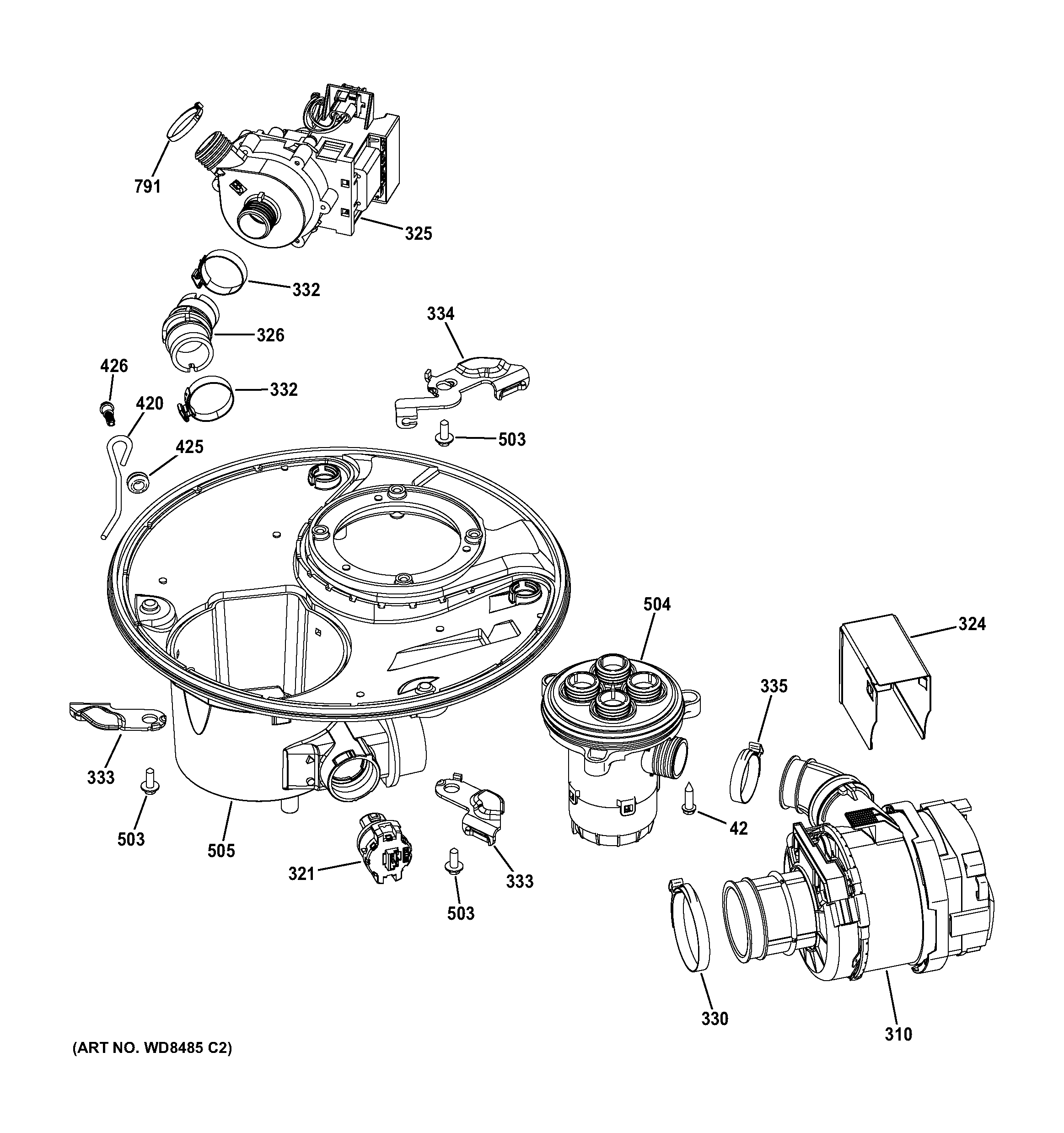

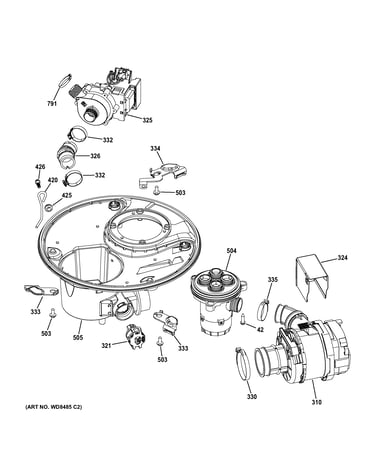

Sump & motor mechanism diagram

Kit - piranh

Part #WD01X10572

Replaced by #WD35X10382

?
Manufacturer substitution
This part replaces WD01X10572. Substitute parts can look different from the original.
BEST SELLER
$36.75 |
14% OFF Phone Price : $42.75
In Stock
Kit - Piranh WD01X10573
#332

Sump & motor mechanism diagram

Kit - piranh

Part #WD01X10573

Replaced by #WD35X10382

?
Manufacturer substitution
This part replaces WD01X10573. Substitute parts can look different from the original.
BEST SELLER
$36.75 |
14% OFF Phone Price : $42.75
In Stock
Clamp WD01X20302
#792

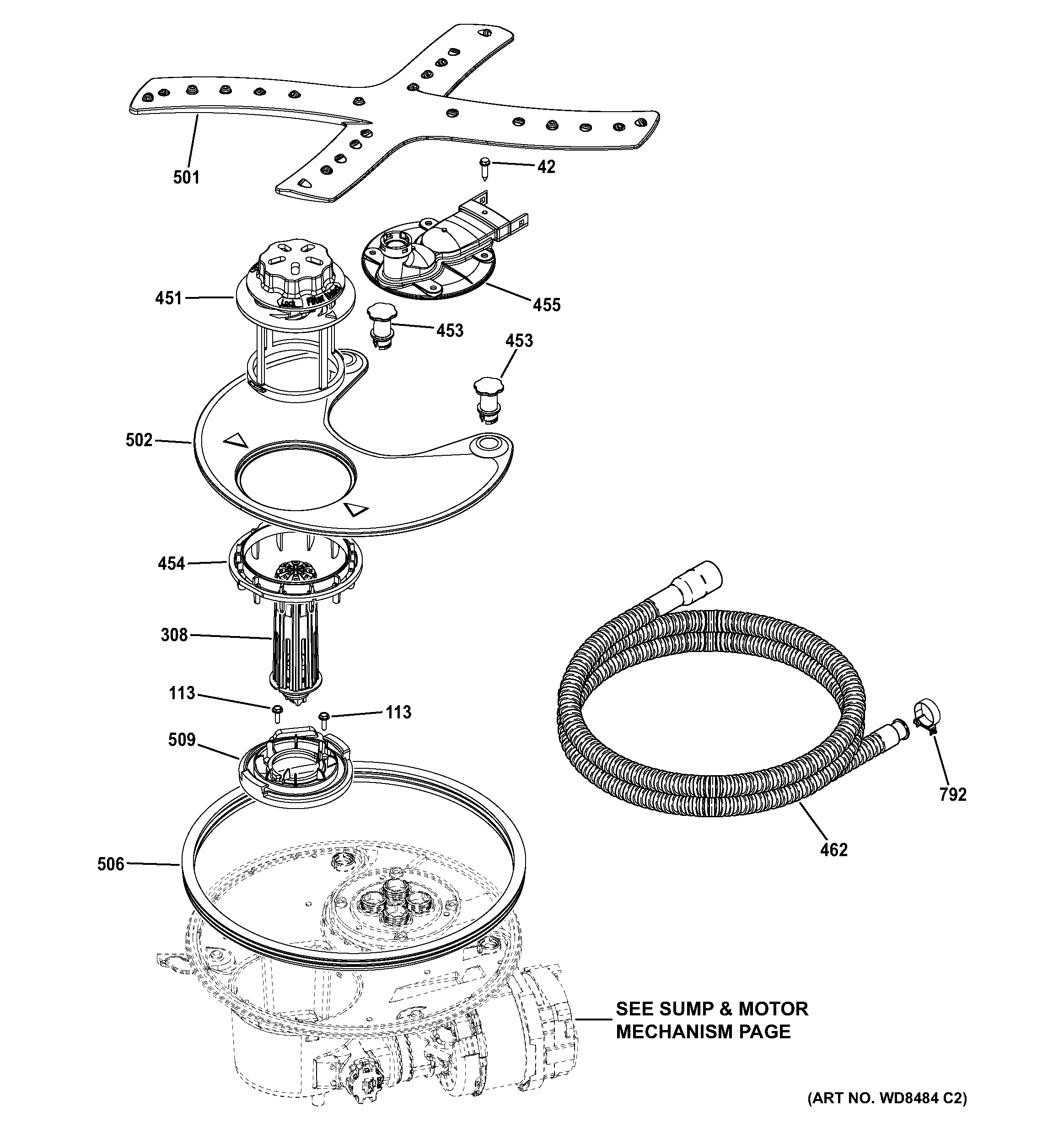

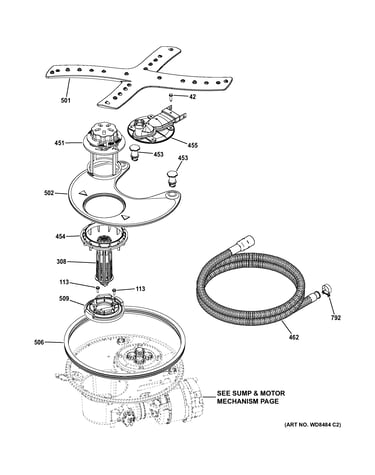

Sump & filter assembly diagram

Clamp

Part #WD01X20302

Replaced by #WD35X10382

?
Manufacturer substitution
This part replaces WD01X20302. Substitute parts can look different from the original.
BEST SELLER
$36.75 |
14% OFF Phone Price : $42.75
In Stock
Dishwasher Tub Gasket WD08X20675
#843

Body parts (1) diagram

Dishwasher tub gasket

Part #WD08X20675

Replaced by #WD08X22095

?
Manufacturer substitution
This part replaces WD08X20675. Substitute parts can look different from the original.
BEST SELLER
$15.67 |
11% OFF Phone Price : $17.67
In Stock
Dishwasher Door Vent Seal (replaces Wd08x23666) WD08X10092
#816

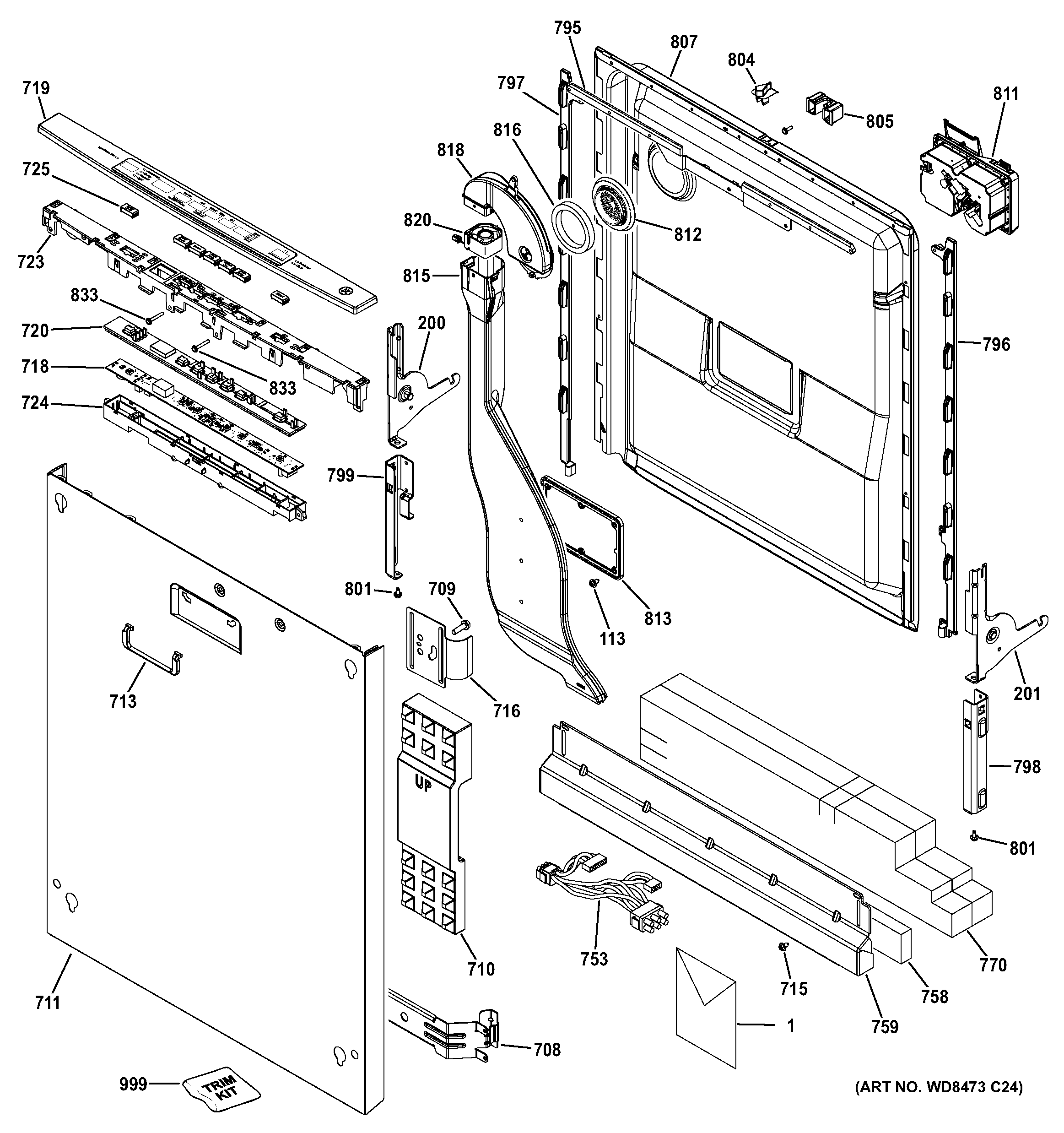

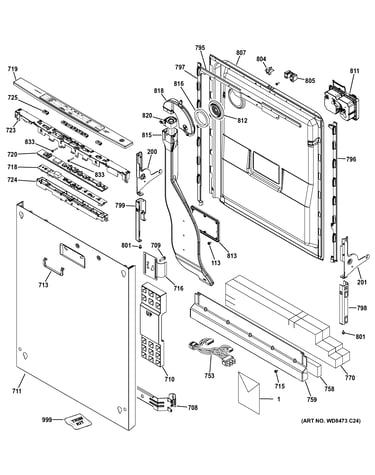

Escutcheon & door assembly diagram

Dishwasher door vent seal (replaces wd08x23666)

Part #WD08X10092

BEST SELLER
$25.51 |
19% OFF Phone Price : $31.51
In Stock
Variable Pump WD26X20306
#325

Sump & motor mechanism diagram

Variable pump

Part #WD26X20306

Replaced by #WD26X25104

?
Manufacturer substitution
This part replaces WD26X20306. Substitute parts can look different from the original.
BEST SELLER
$58.89
In Stock
Dishwasher Terminal Block Cover WD12X10412
#743

Body parts (1) diagram

Dishwasher terminal block cover

Part #WD12X10412

This item is not returnable
$16.32 |
11% OFF Phone Price : $18.32
In Stock
Dishwasher Installation Screw Set WD35X10383
#888

Body parts (1) diagram

Dishwasher installation screw set

Part #WD35X10383

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Dishwasher Installation Bracket WD01X10598
#889

Body parts (1) diagram

Dishwasher installation bracket

Part #WD01X10598

Replaced by #WD01X21740

?
Manufacturer substitution
This part replaces WD01X10598. Substitute parts can look different from the original.
$23.33 |
20% OFF Phone Price : $29.33
In Stock
