Model # SGV68U53UC/C6 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SGV68U53UC-C6 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

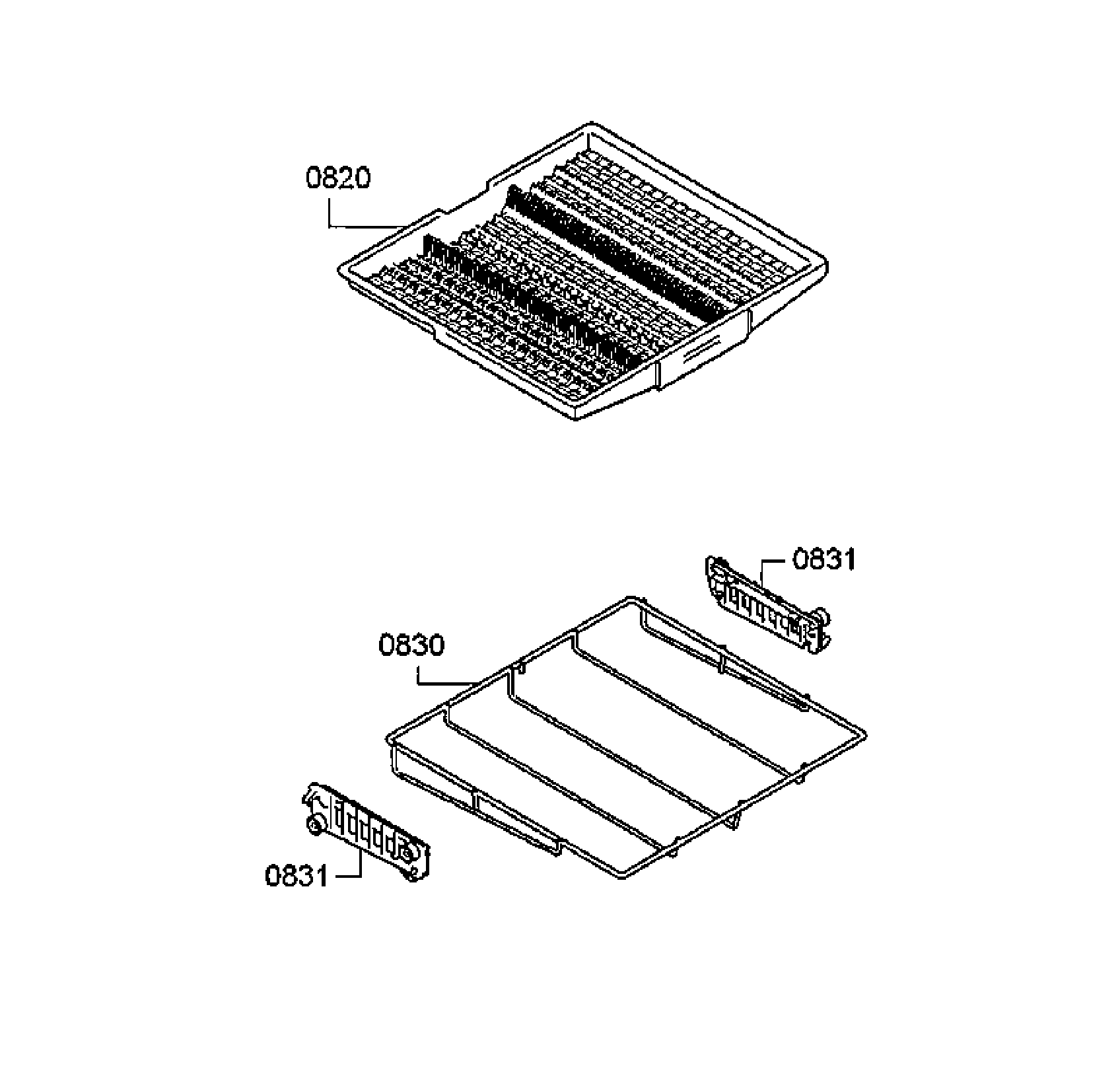

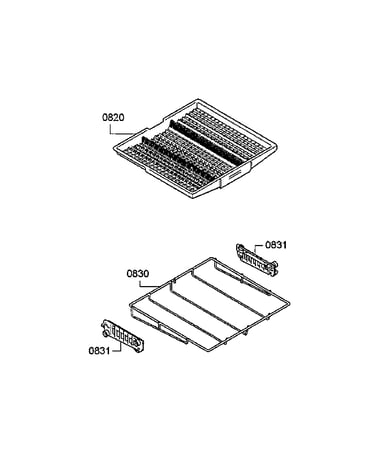

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Dishwasher Hose Clamp (replaces 00417502, 00606311, 172272) 00172272
#453

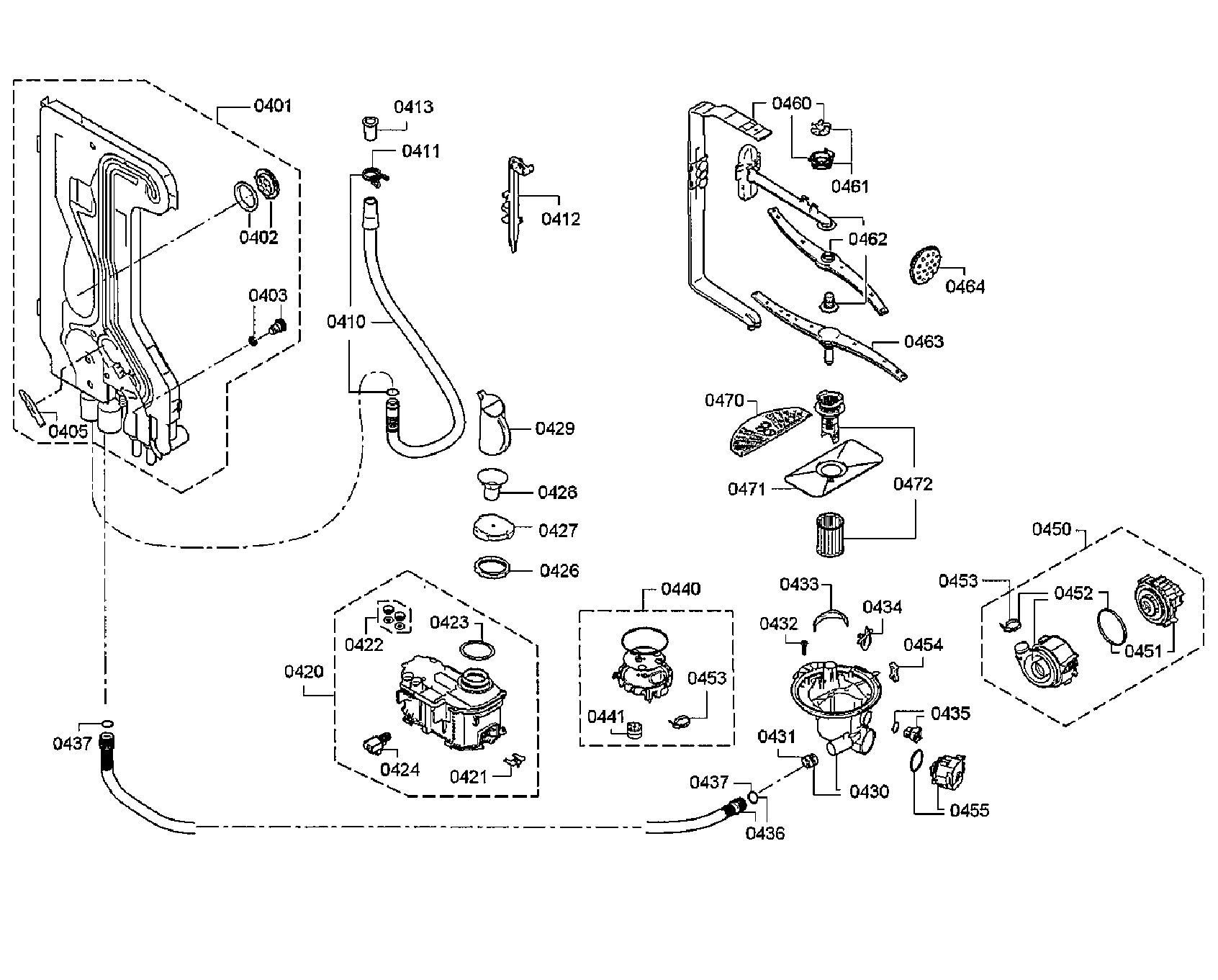

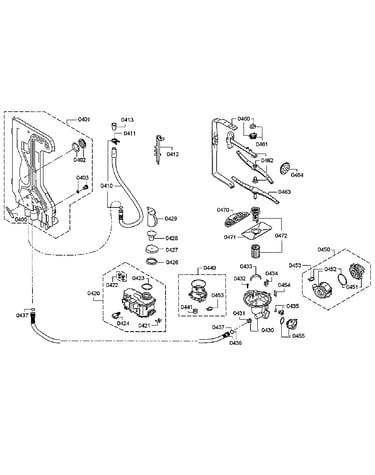

Pump asy diagram

Dishwasher hose clamp (replaces 00417502, 00606311, 172272)

Part #00172272

BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Dishwasher Dishrack Roller, Lower (replaces 611475) 00611475
#721

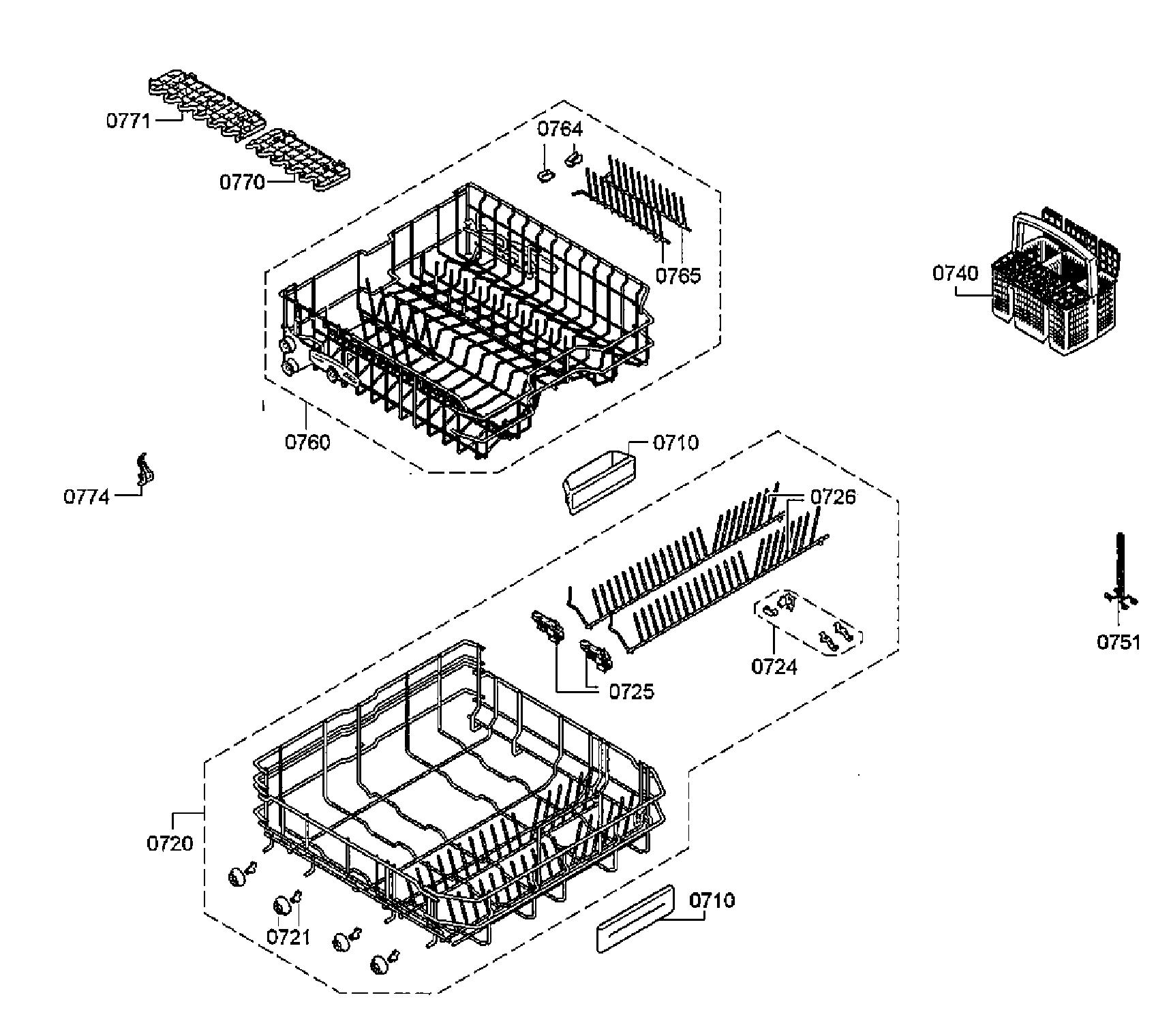

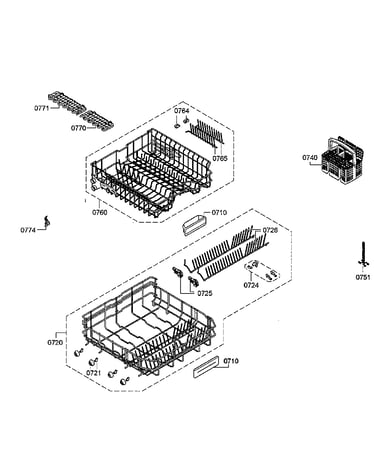

Basket diagram

Dishwasher dishrack roller, lower (replaces 611475)

Part #00611475

BEST SELLER
$14.27 |
12% OFF Phone Price : $16.27
In Stock
Dishwasher Sump (replaces 00752078, 668102) 00668102
#430

Pump asy diagram

Dishwasher sump (replaces 00752078, 668102)

Part #00668102

BEST SELLER
$71.79 |
8% OFF Phone Price : $77.79
In Stock
Dishwasher Door Cable Roller (replaces 00611372, 00628834, 00628835, 623536, 628834, 628835) 00623536
#622

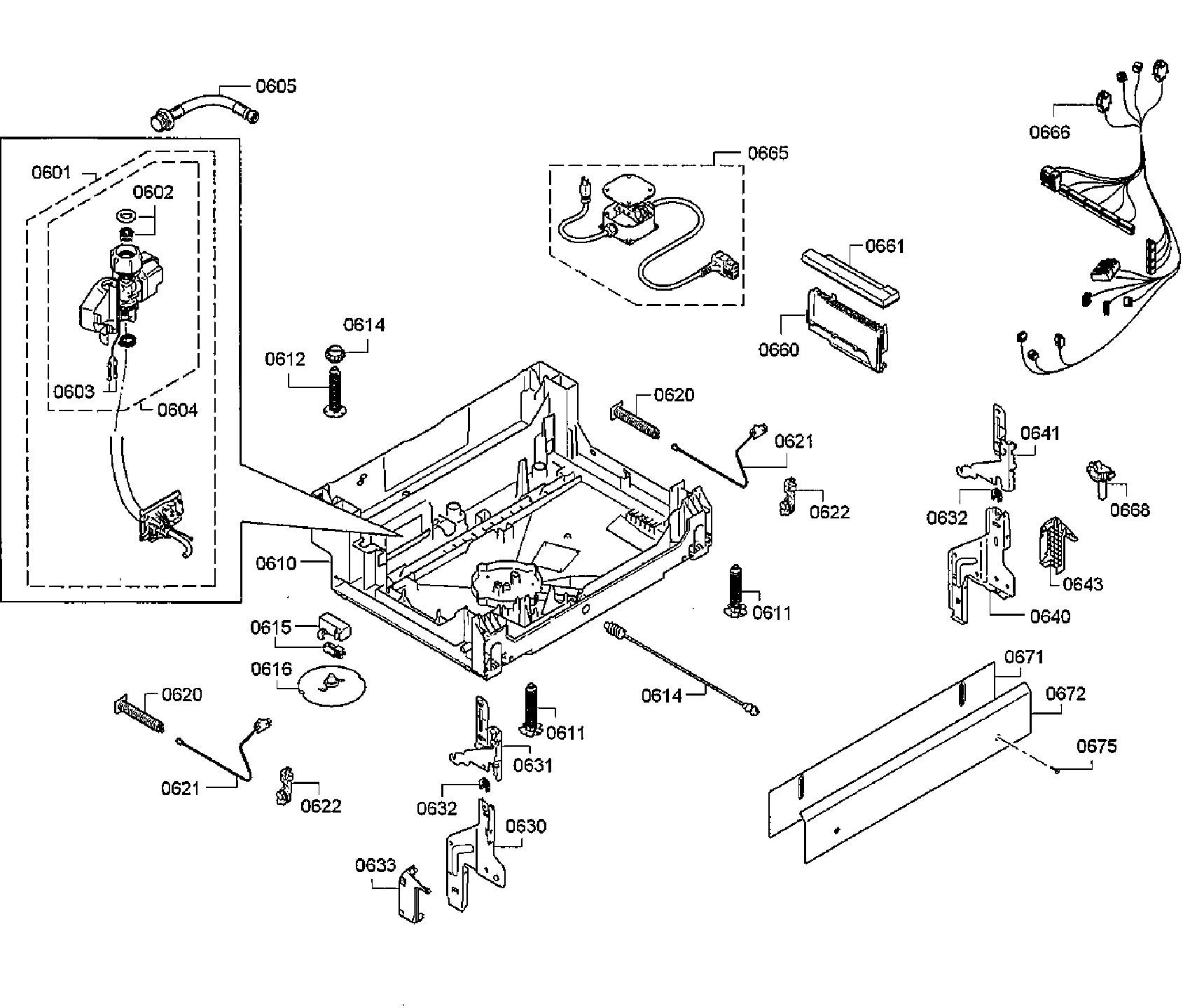

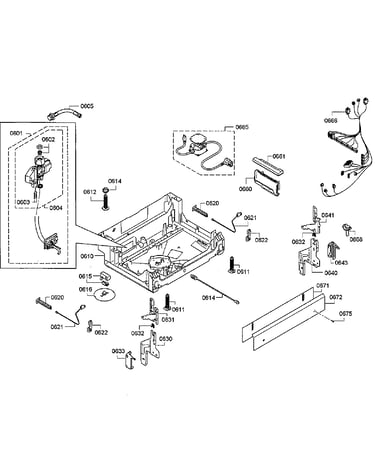

Base diagram

Dishwasher door cable roller (replaces 00611372, 00628834, 00628835, 623536, 628834, 628835)

Part #00623536

BEST SELLER
$20.16 |
23% OFF Phone Price : $26.16
In Stock
Dishwasher On/off Switch (replaces 620775) 00620775
#125

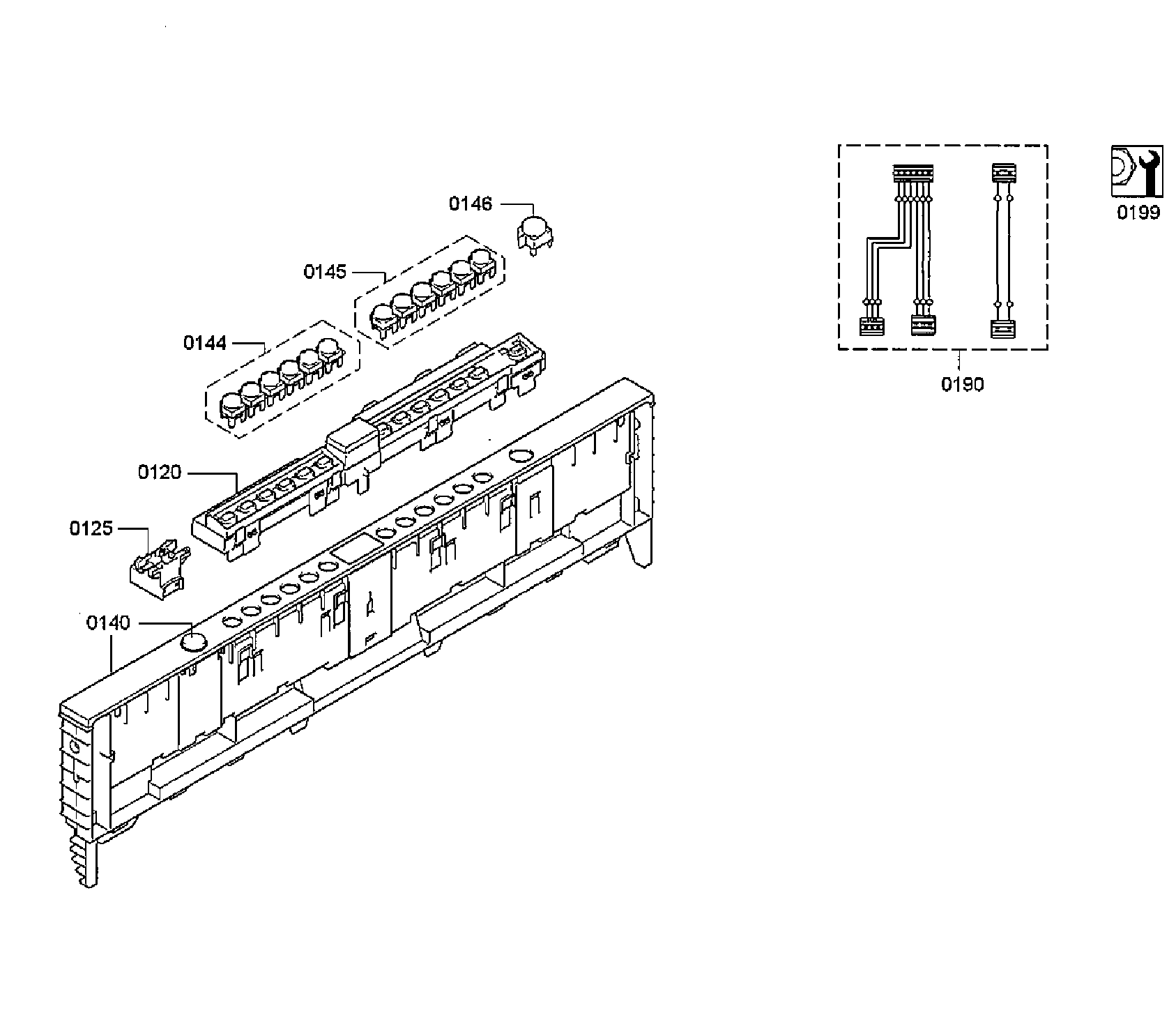

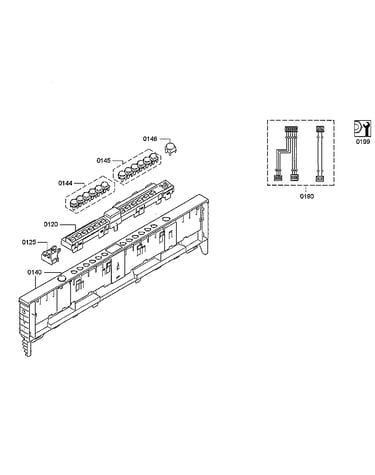

Control panel diagram

Dishwasher on/off switch (replaces 620775)

Part #00620775

$38.99 |
13% OFF Phone Price : $44.99
In Stock
Dishwasher Float Assembly (replaces 622036) 00622036
#616

Base diagram

Dishwasher float assembly (replaces 622036)

Part #00622036

This item is not returnable
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Appliance Screw 00151703
#223

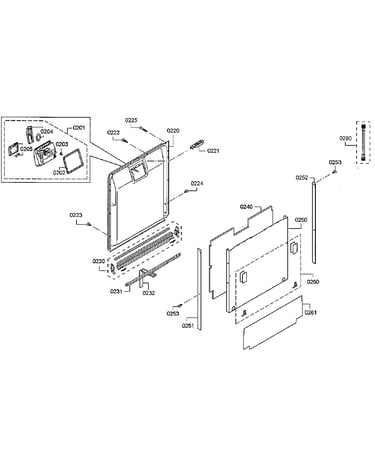

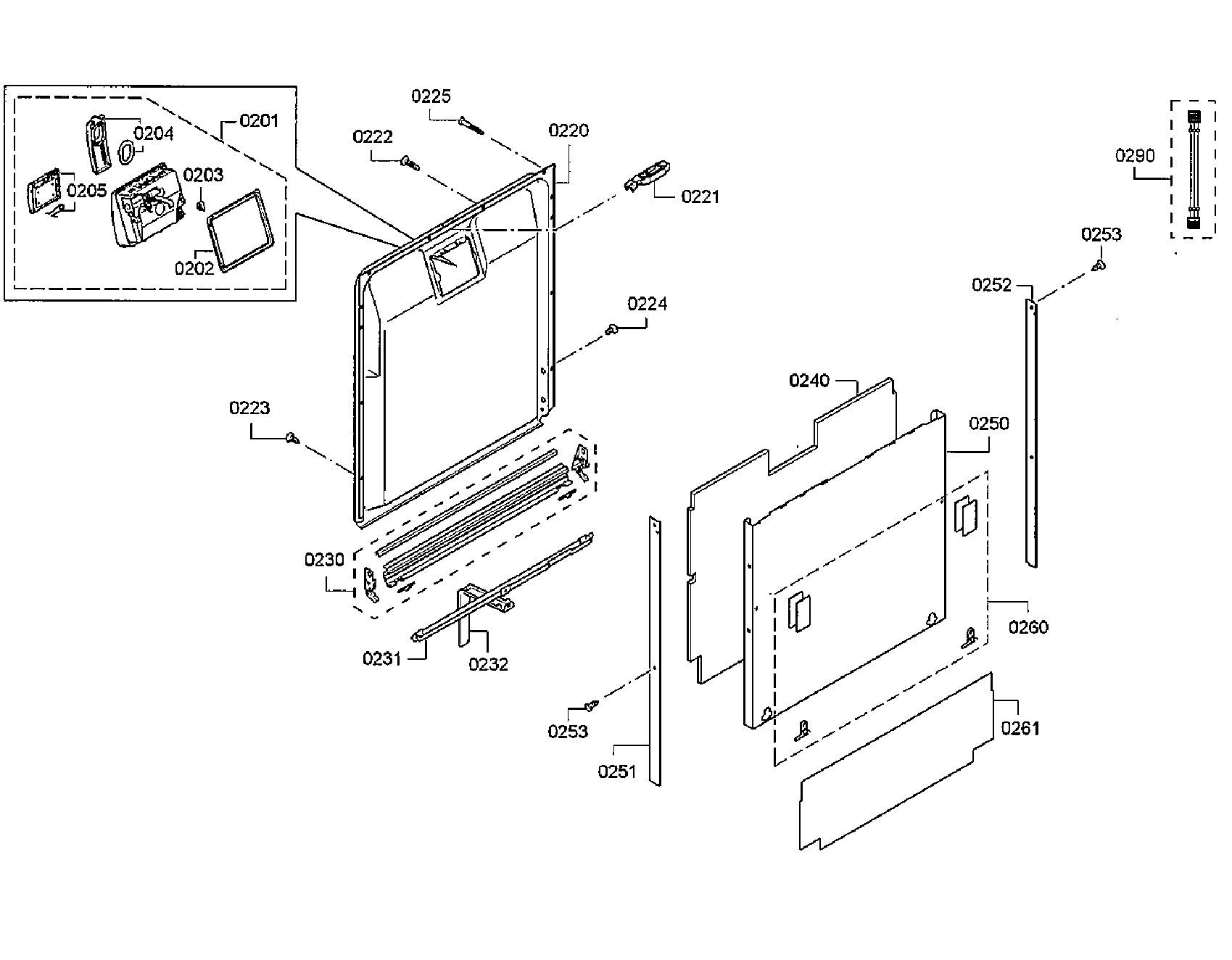

Door asy diagram

Appliance screw

Part #00151703

This item is not returnable
$11.47 |
15% OFF Phone Price : $13.47
In Stock
Dishwasher Wire Harness (replaces 00611663, 00630611, 648135) 00648135
#190

Control panel diagram

Dishwasher wire harness (replaces 00611663, 00630611, 648135)

Part #00648135

$80.49 |
7% OFF Phone Price : $86.49
In Stock
Dishwasher Door Seal (replaces 263096) 00263096
#310

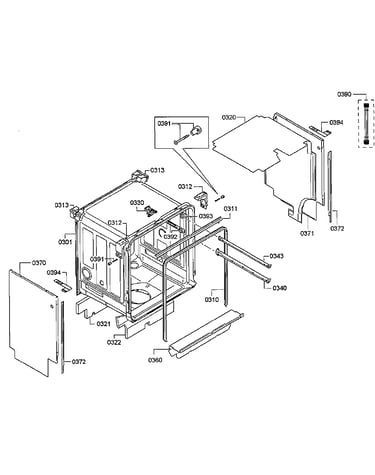

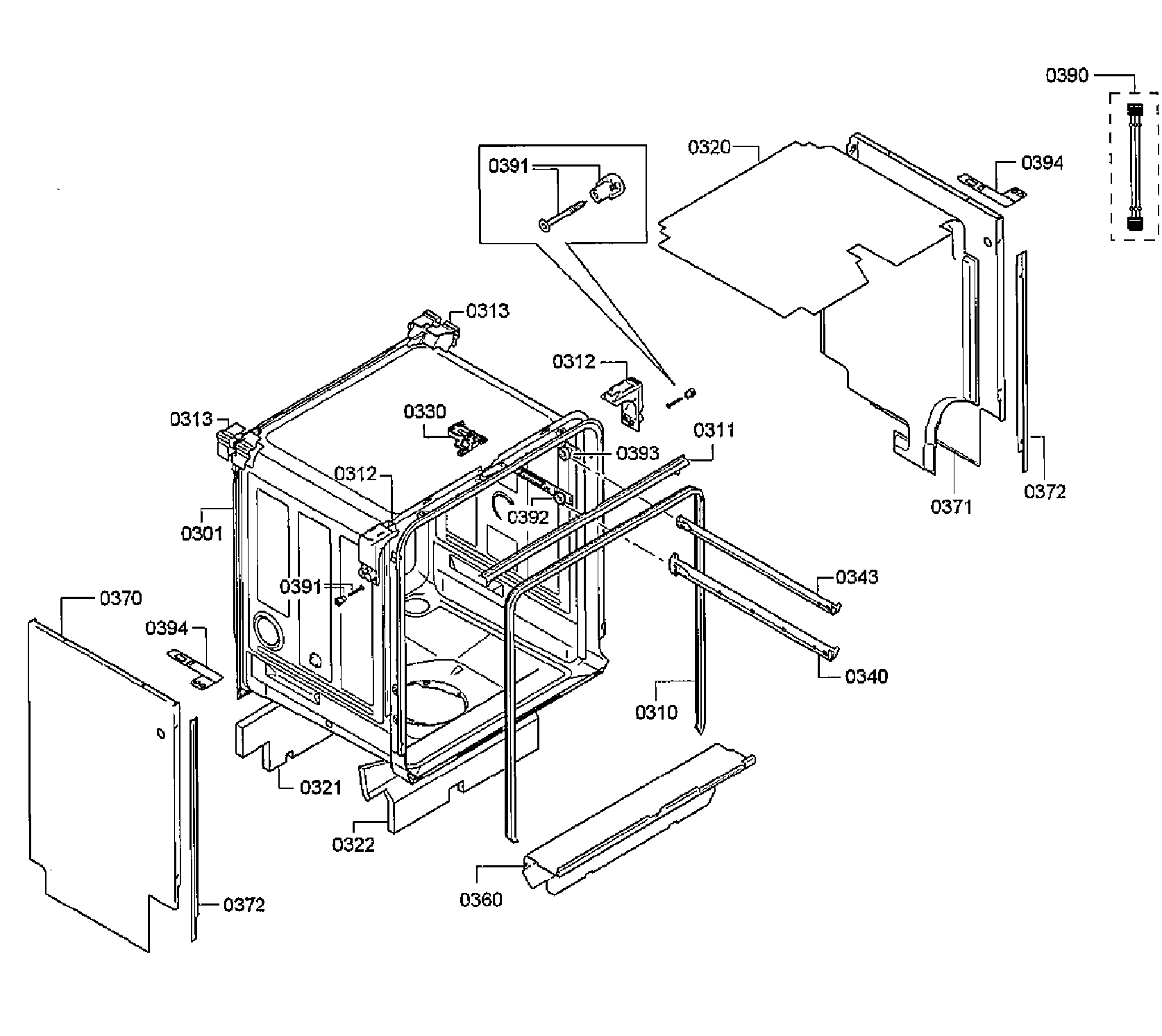

Frame diagram

Dishwasher door seal (replaces 263096)

Part #00263096

$77.20 |
7% OFF Phone Price : $83.20
In Stock
Dishwasher Door Hinge Lever Bearing (replaces 00170830, 00421781, 00488250, 00580333, 165296) 00165296
#632

Base diagram

Dishwasher door hinge lever bearing (replaces 00170830, 00421781, 00488250, 00580333, 165296)

Part #00165296

This item is not returnable
$17.89 |
10% OFF Phone Price : $19.89
In Stock
