Model # 315279620 Official Craftsman 5" random orbital sander

Here are the diagrams and repair parts for Official Craftsman 315279620 5" random orbital sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

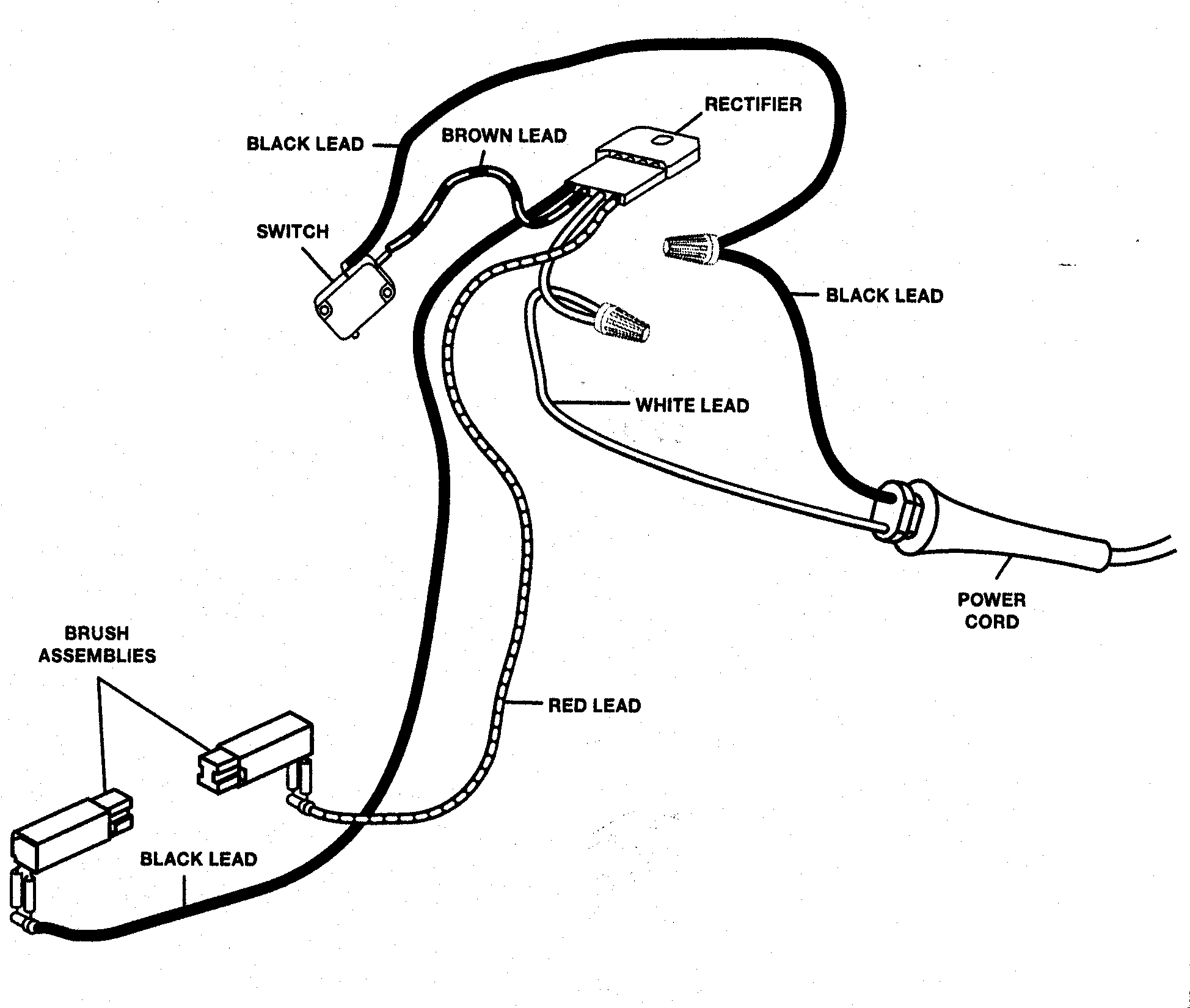

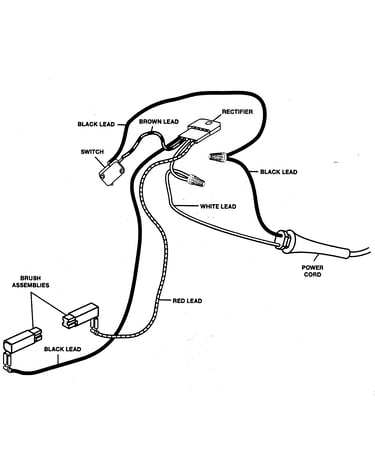

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Bend Relief 590274007
#22

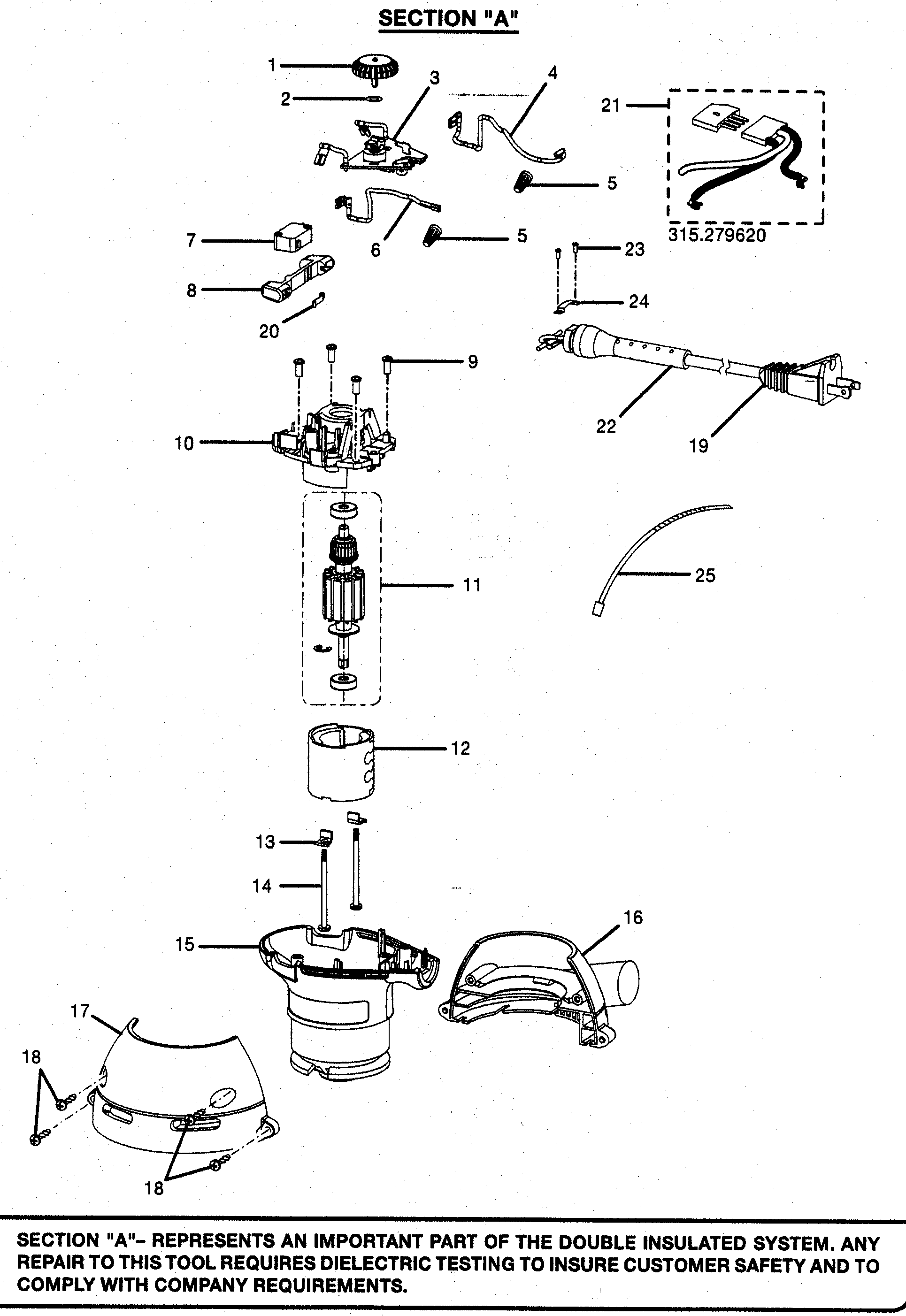

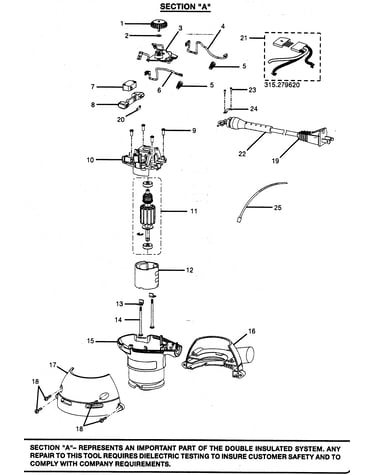

Motor assy diagram

Bend relief

Part #590274007

The manufacturer no longer makes this part, and there's no substitute part

Support 512355001
#16

Motor assy diagram

Support

Part #512355001

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief 590924001
#24

Motor assy diagram

Power tool power cord strain relief

Part #590924001

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 870126001
#5

Motor assy diagram

Twist-on wire connector

Part #870126001

The manufacturer no longer makes this part, and there's no substitute part

Blade,retail N/A
#14

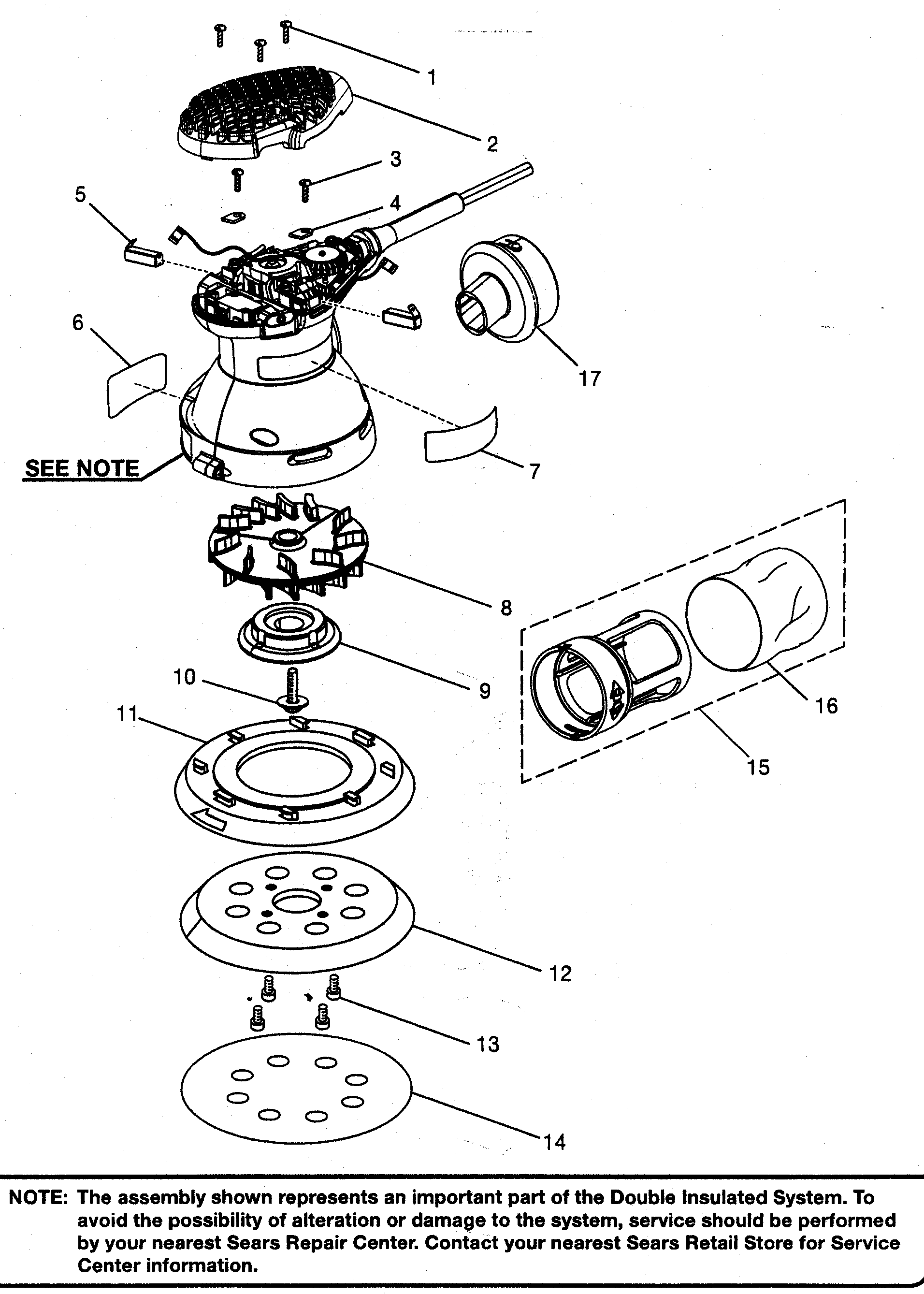

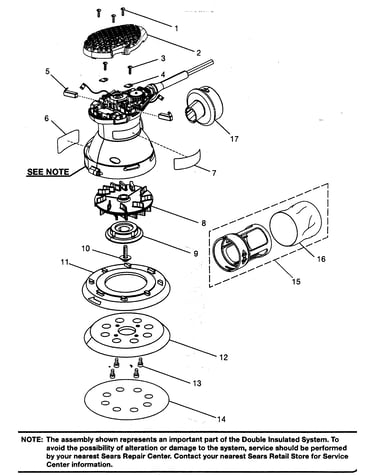

Sander diagram

Blade,retail

Part #N/A

The manufacturer no longer makes this part, and there's no substitute part

Screw 968700007
#23

Motor assy diagram

Screw

Part #968700007

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 730377013
#19

Motor assy diagram

Power cord

Part #730377013

The manufacturer no longer makes this part, and there's no substitute part

Cable Tie 900333004
#25

Motor assy diagram

Cable tie

Part #900333004

The manufacturer no longer makes this part, and there's no substitute part

Armature 200216009
#11

Motor assy diagram

Armature

Part #200216009

The manufacturer no longer makes this part, and there's no substitute part

Fan/cntrbl 640835001
#8

Sander diagram

Fan/cntrbl

Part #640835001

The manufacturer no longer makes this part, and there's no substitute part
