Model # FCF14SUAWW Official GE freezer - a series
Here are the diagrams and repair parts for Official GE FCF14SUAWW freezer - a series, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 74 parts |
#49

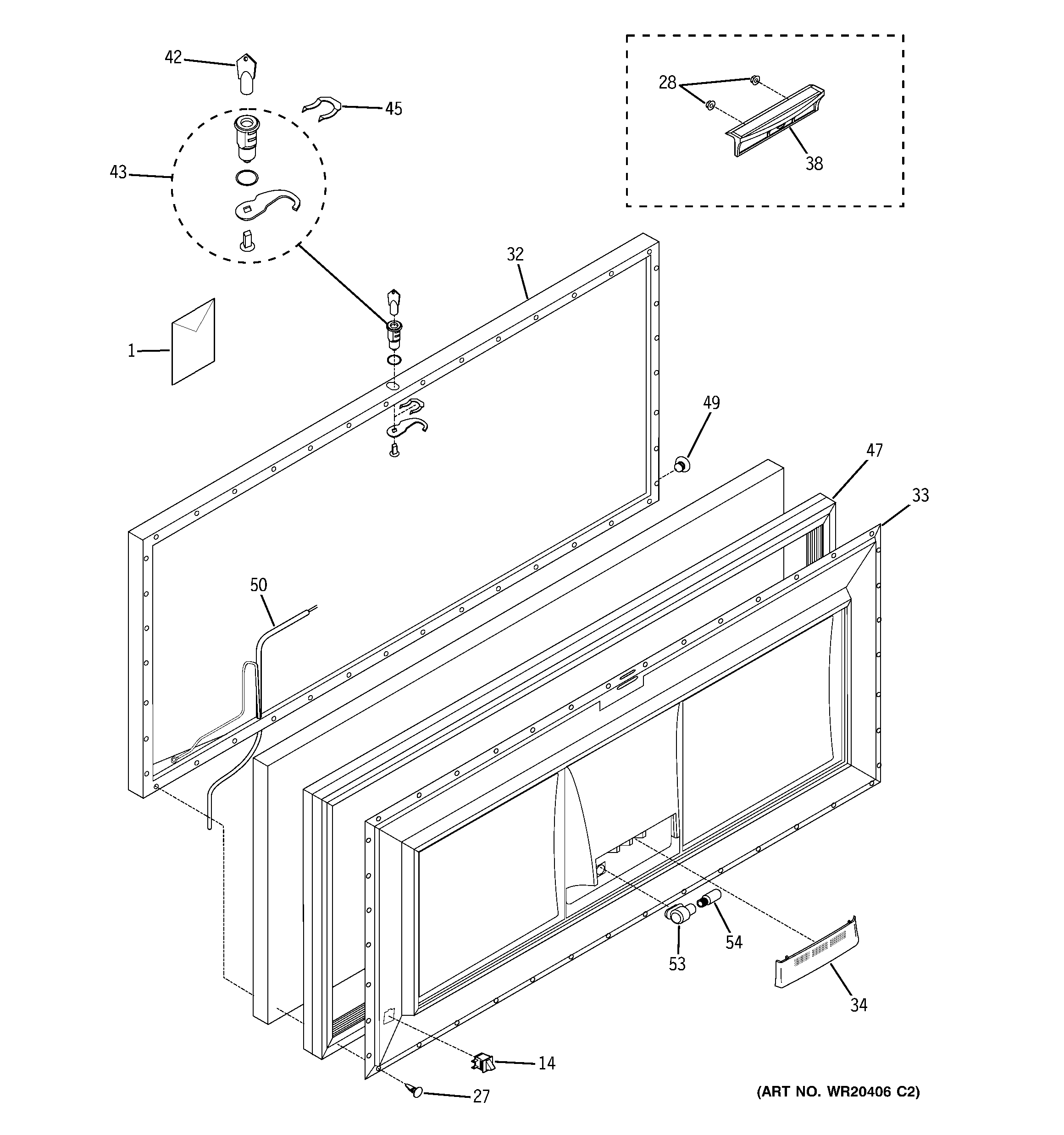

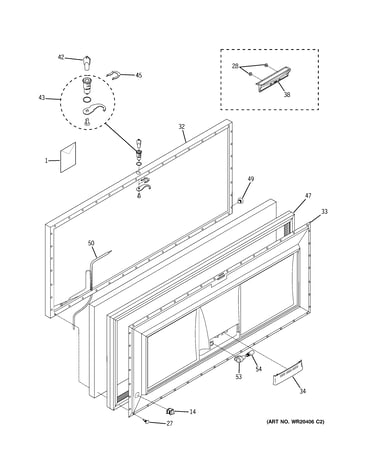

Freezer door diagram
Plugbutton1/
Part #WR02X11935
$9.31
In Stock
#40

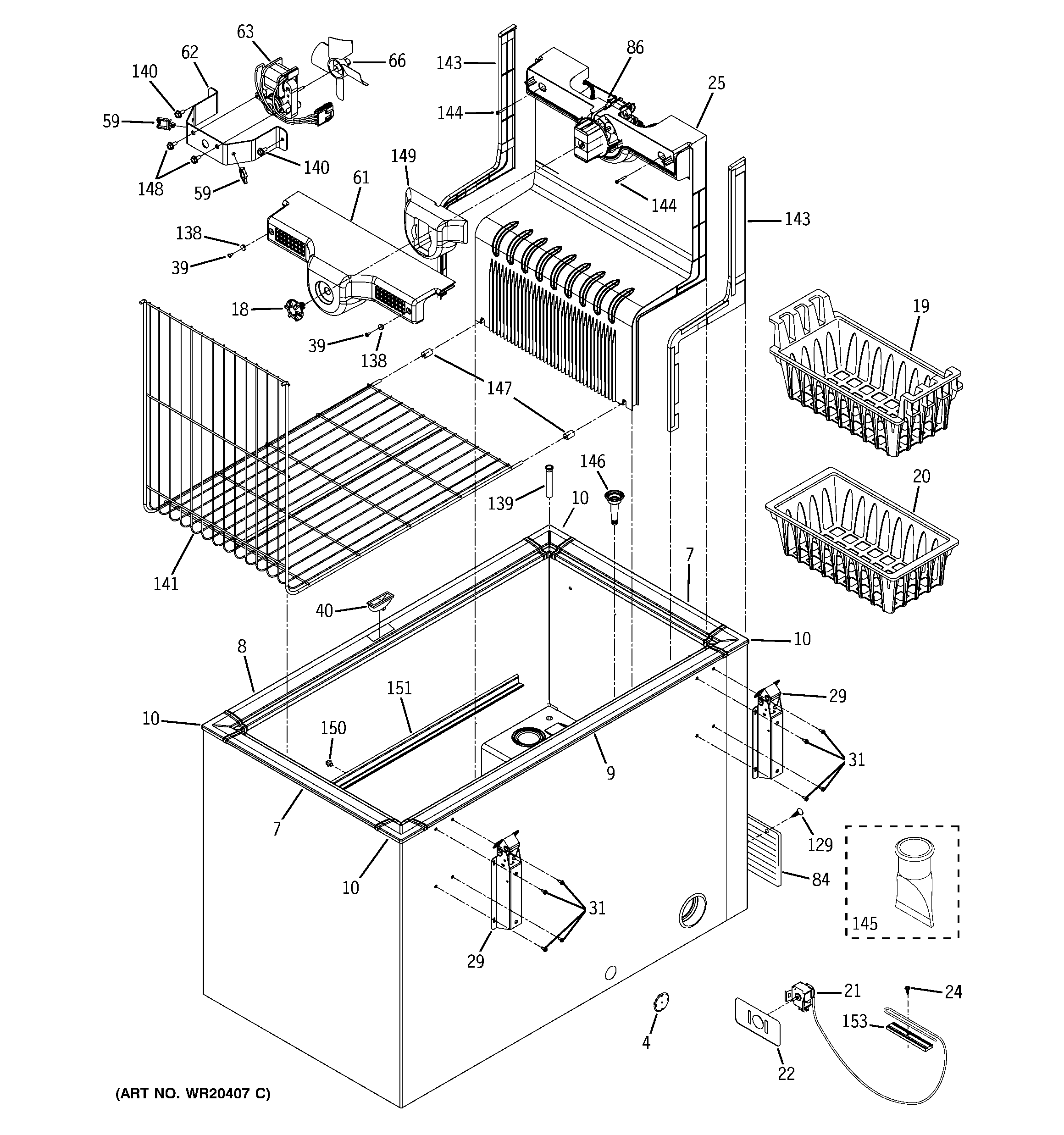

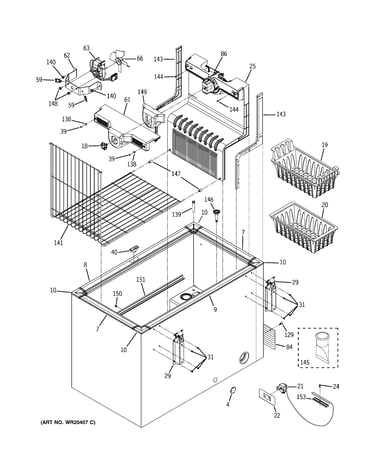

Cabinet diagram
Catch-lock w
Part #WR02X12337
$8.33
In Stock
#50
Freezer door diagram
Wire harness
Part #WR23X10457
$88.44
In Stock
#43
Freezer door diagram
Lock assembly
Part #WR05X10028
$34.07
In Stock
#28
Freezer door diagram
Fastener, .3
Part #WR01X10492
$9.91
In Stock
#153
Cabinet diagram
Clamp capillary tube
Part #WR02X11441
$8.11
In Stock
#150
Cabinet diagram
Support track
Part #WR02X12326
$8.11
In Stock
#155

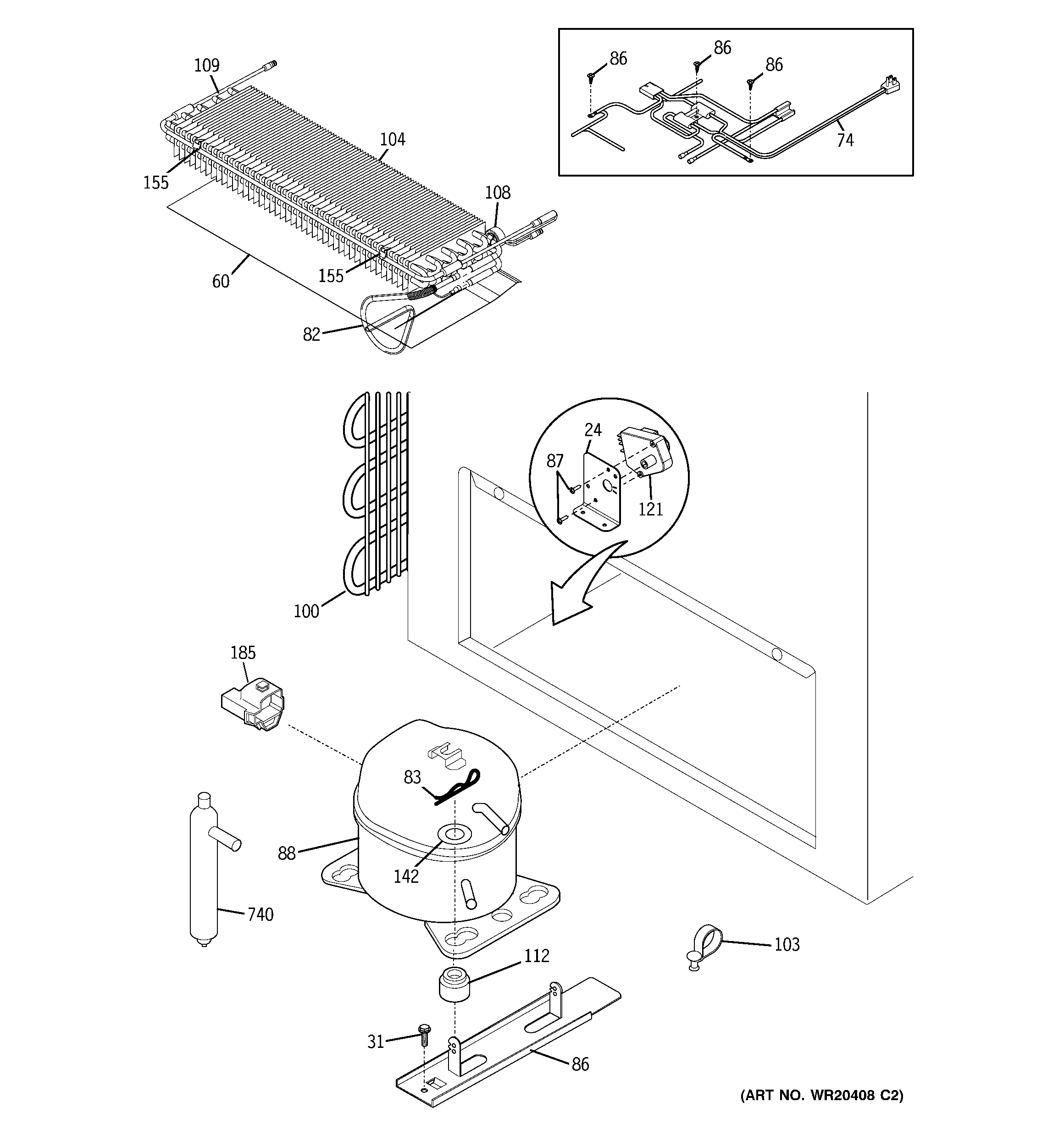

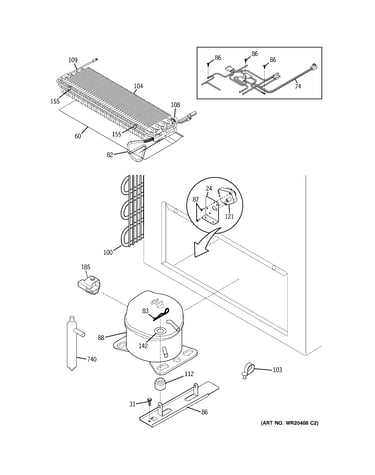

Unit parts diagram
Strap-evap/h
Part #WR02X11458
$33.20 |
15% OFF Phone Price : $39.20
In Stock
#14
Freezer door diagram
Freezer door switch
Part #WR23X10303
$64.46 |
9% OFF Phone Price : $70.46
In Stock
#740
Unit parts diagram
Filter drier
Part #WR86X10032
Replaced by #WR86X10005
?
Manufacturer substitution
This part replaces WR86X10032. Substitute parts can look different from the original.
$58.31 |
9% OFF Phone Price : $64.31
In Stock
