Model # JCTP30DP2BB Official GE electric oven

Here are the diagrams and repair parts for Official GE JCTP30DP2BB electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Appliance Light Bulb, 40-watt 40A15
#257

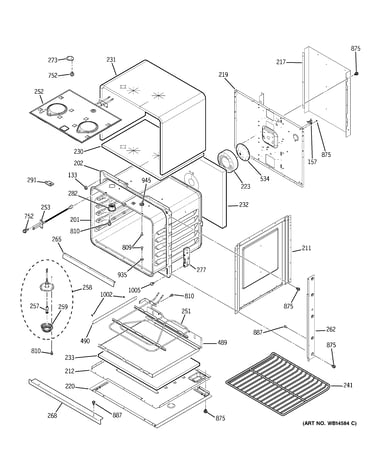

Body parts diagram

Appliance light bulb, 40-watt

Part #40A15

Replaced by #40A15

?
Manufacturer substitution
This part replaces 40A15. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Pack Window WB56T10152
#338

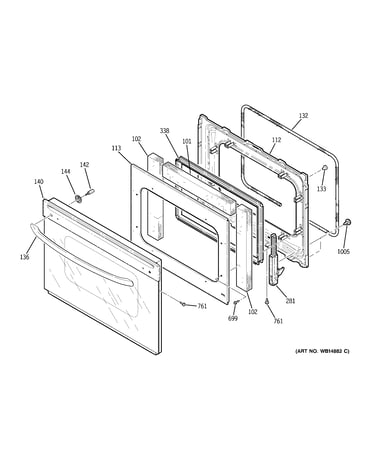

Door diagram

Pack window

Part #WB56T10152

Replaced by #WB56X22160

?
Manufacturer substitution
This part replaces WB56T10152. Substitute parts can look different from the original.
BEST SELLER
$359.05 |
$12.00 OFF Phone Price : $371.05
In Stock
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#159

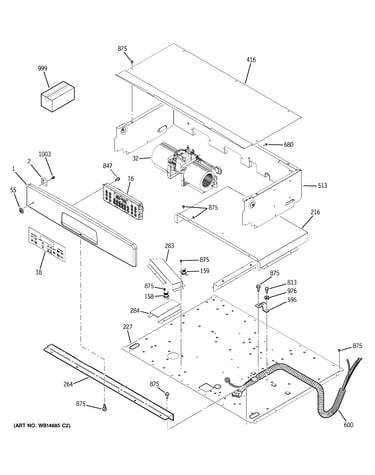

Control panel diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wall Oven High-limit Thermostat WB24T10081
#157

Body parts diagram

Wall oven high-limit thermostat

Part #WB24T10081

This item is not returnable
$22.54 |
21% OFF Phone Price : $28.54
In Stock
Sensor Assembly WB21T10018
#253

Body parts diagram

Sensor assembly

Part #WB21T10018

This item is not returnable
$23.58 |
20% OFF Phone Price : $29.58
In Stock
Wall Oven Door Lock Assembly WB14T10082
#150

Door lock diagram

Wall oven door lock assembly

Part #WB14T10082

$112.06 |
10% OFF Phone Price : $124.06
In Stock
Range Oven Rack WB48T10050
#241

Body parts diagram

Range oven rack

Part #WB48T10050

$64.46 |
9% OFF Phone Price : $70.46
Back Order
Range Bake Element WB44T10110
#251

Body parts diagram

Range bake element

Part #WB44T10110

$81.99 |
7% OFF Phone Price : $87.99
In Stock
Spacer Reinforcement WB02T10452
#142

Door diagram

Spacer reinforcement

Part #WB02T10452

This item is not returnable
$13.21 |
13% OFF Phone Price : $15.21
In Stock
Wall Oven Control Board WB27T11407
#16

Control panel diagram

Wall oven control board

Part #WB27T11407

Replaced by #WB27T11434

?
Manufacturer substitution
This part replaces WB27T11407. Substitute parts can look different from the original.
This item is not returnable
$261.06 |
$12.00 OFF Phone Price : $273.06
In Stock
