Model # FFC20D7HW1 Official Frigidaire freezer - p5995329744

Here are the diagrams and repair parts for Official Frigidaire FFC20D7HW1 freezer - p5995329744, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Filter Drier 216634500
#4

System diagram

Filter drier

Part #216634500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216634500. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Key 216388700
#5

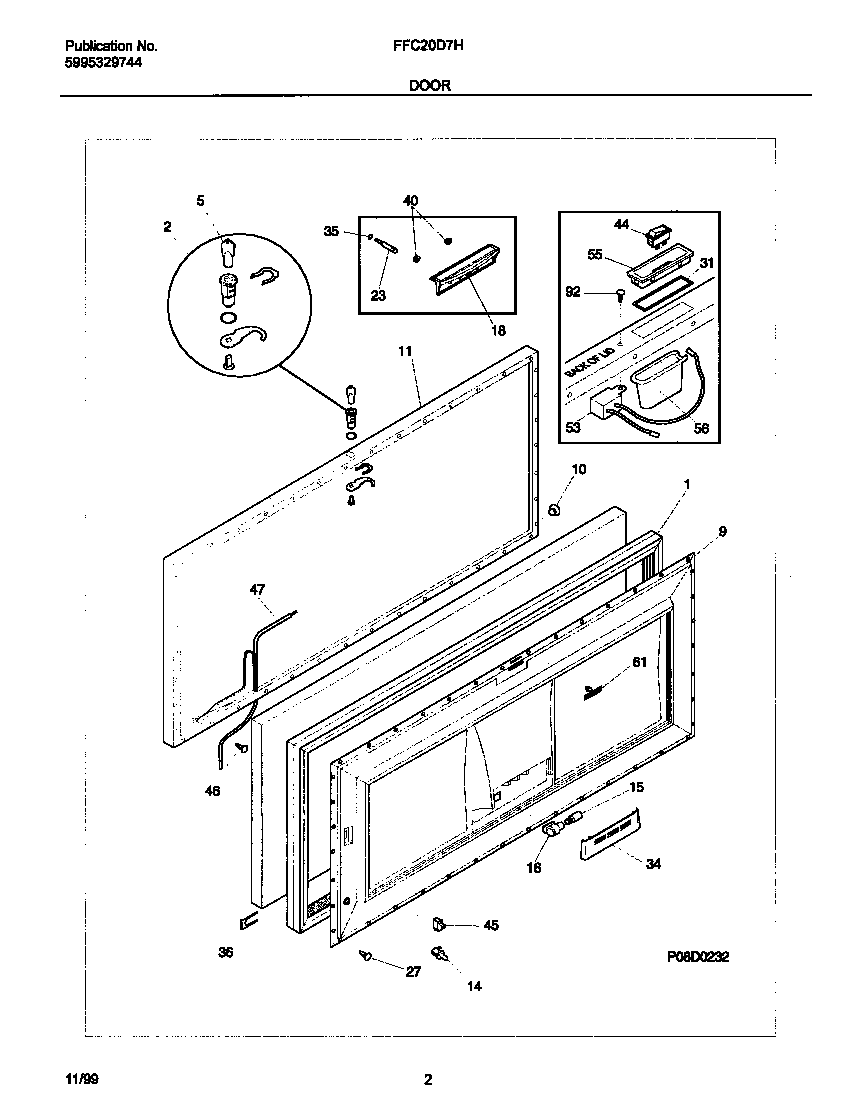

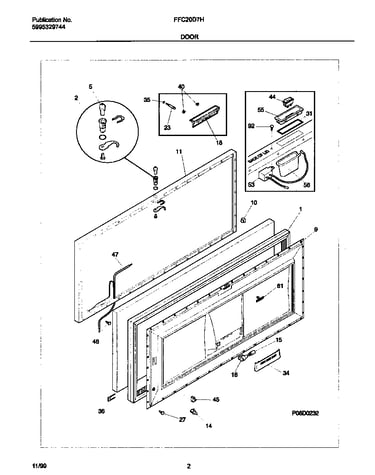

Door diagram

Key

Part #216388700

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216388700. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Compressor 216470500
#29

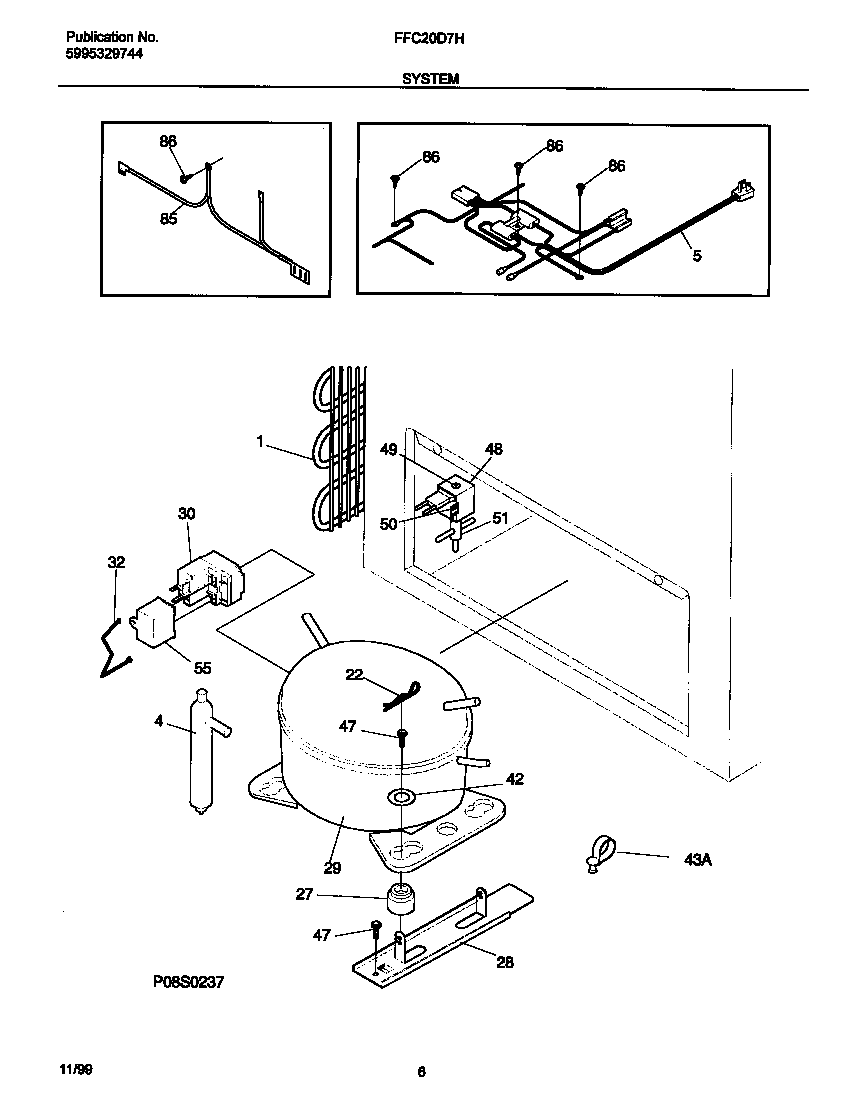

System diagram

Compressor

Part #216470500

Replaced by #5304511983

?
Manufacturer substitution
This part replaces 216470500. Substitute parts can look different from the original.
BEST SELLER
$493.71 |
$12.00 OFF Phone Price : $505.71
In Stock
Freezer Drain Plug (replaces 5306593887) 216502600
#4

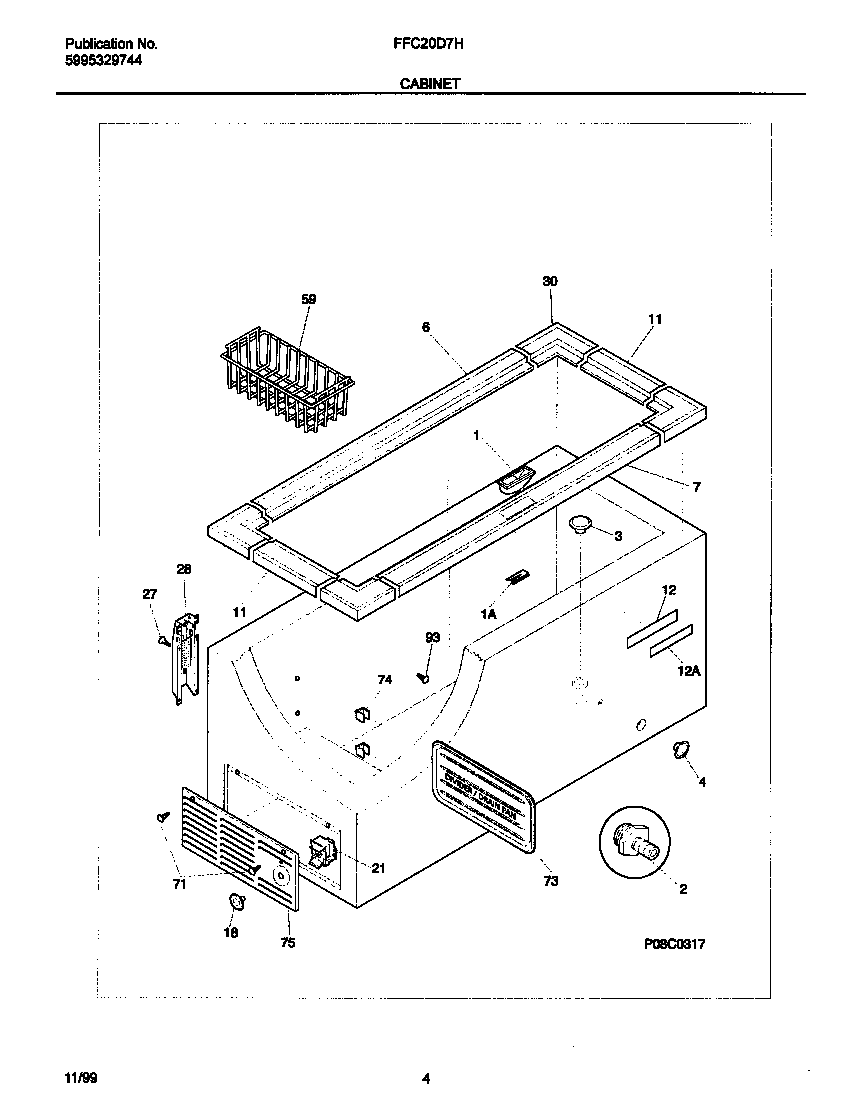

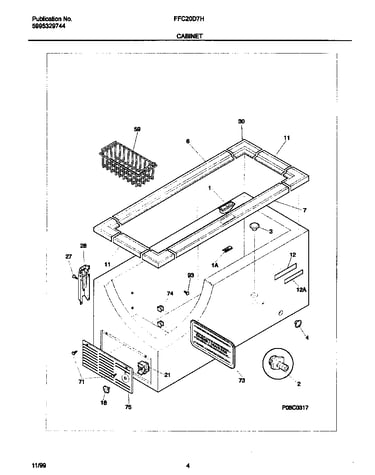

Cabinet diagram

Freezer drain plug (replaces 5306593887)

Part #216502600

BEST SELLER
This item is not returnable
$13.04 |
13% OFF Phone Price : $15.04
In Stock
Lamp Bulb 216222700
#15

Door diagram

Lamp bulb

Part #216222700

Replaced by #216846400

?
Manufacturer substitution
This part replaces 216222700. Substitute parts can look different from the original.
$40.15 |
13% OFF Phone Price : $46.15
In Stock
Freezer Inner Door Panel Rivet 5303212828
#27

Door diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |
9% OFF Phone Price : $21.49
In Stock
Freezer Lid Gasket 216481401
#1

Door diagram

Freezer lid gasket

Part #216481401

Replaced by #216481411

?
Manufacturer substitution
This part replaces 216481401. Substitute parts can look different from the original.
$161.63 |
7% OFF Phone Price : $173.63
In Stock
Touch Paint 5303305324

#NI

All parts diagram

Touch paint

Part #5303305324

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 5303305324. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Hinge 216035300
#28

Cabinet diagram

Hinge

Part #216035300

Replaced by #297322000

?
Manufacturer substitution
This part replaces 216035300. Substitute parts can look different from the original.
$91.53 |
6% OFF Phone Price : $97.53
In Stock
Clip 5309948647
#40

Door diagram

Clip

Part #5309948647

Replaced by #216922700

?
Manufacturer substitution
This part replaces 5309948647. Substitute parts can look different from the original.
This item is not returnable
$13.31 |
13% OFF Phone Price : $15.31
In Stock
