Model # GSD6100K00WW Official GE dishwasher

Here are the diagrams and repair parts for Official GE GSD6100K00WW dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Recess Sprng WR02X10585
#801

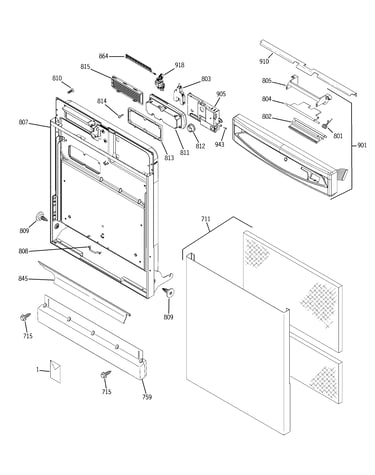

Escutcheon & door assembly diagram

Recess sprng

Part #WR02X10585

Replaced by #WR02X10585

?
Manufacturer substitution
This part replaces WR02X10585. Substitute parts can look different from the original.
BEST SELLER
$7.91 |
11% OFF Phone Price : $8.91
In Stock
Dishwasher Drain Hose (replaces Wd24x10003) WD24X10014
#462

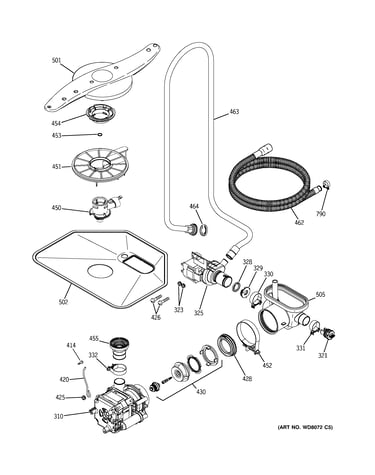

Motor-pump mechanism diagram

Dishwasher drain hose (replaces wd24x10003)

Part #WD24X10014

BEST SELLER
$30.06 |
17% OFF Phone Price : $36.06
In Stock
Dishwasher Tub Gasket WD08X10018
#843

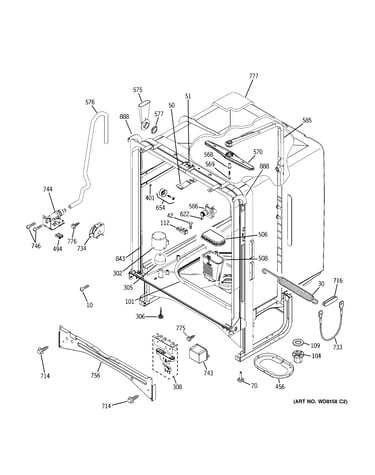

Body parts diagram

Dishwasher tub gasket

Part #WD08X10018

BEST SELLER
$33.32 |
15% OFF Phone Price : $39.32
In Stock
Dishwasher Dishrack Roller And Stud WD12X10074
#705

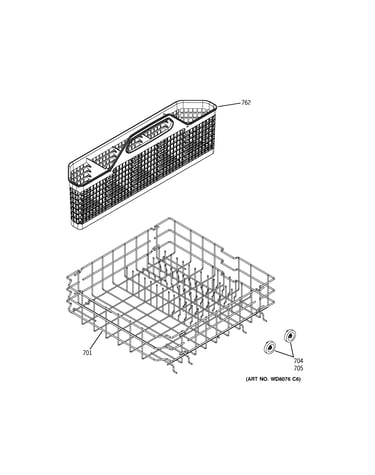

Lower rack assembly diagram

Dishwasher dishrack roller and stud

Part #WD12X10074

Replaced by #WD35X21038

?
Manufacturer substitution
This part replaces WD12X10074. Substitute parts can look different from the original.
BEST SELLER
$32.91 |
15% OFF Phone Price : $38.91
In Stock
Low Roll Rack WD28X10075
#701

Lower rack assembly diagram

Low roll rack

Part #WD28X10075

Replaced by #WD28X25960

?
Manufacturer substitution
This part replaces WD28X10075. Substitute parts can look different from the original.
$157.66 |
7% OFF Phone Price : $169.66
In Stock
Flood Switch WD21X10168
#308

Body parts diagram

Flood switch

Part #WD21X10168

Replaced by #WD12X10151

?
Manufacturer substitution
This part replaces WD21X10168. Substitute parts can look different from the original.
$77.13 |
7% OFF Phone Price : $83.13
In Stock
Actuator Handle WD13X10008
#804

Escutcheon & door assembly diagram

Actuator handle

Part #WD13X10008

Replaced by #WD13X10045

?
Manufacturer substitution
This part replaces WD13X10008. Substitute parts can look different from the original.
This item is not returnable
$22.54 |
21% OFF Phone Price : $28.54
In Stock
Roller Stud WD12X10073
#703

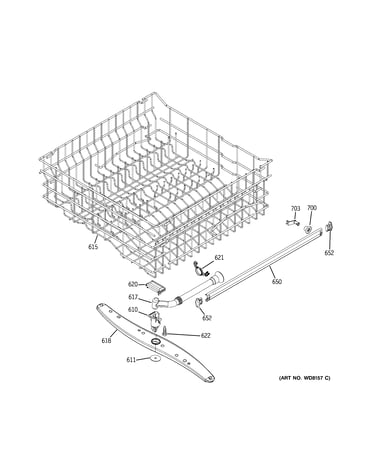

Upper rack assembly diagram

Roller stud

Part #WD12X10073

Replaced by #WD35X20994

?
Manufacturer substitution
This part replaces WD12X10073. Substitute parts can look different from the original.
$31.51 |
16% OFF Phone Price : $37.51
In Stock
Slide Roller WD12X10148
#700

Upper rack assembly diagram

Slide roller

Part #WD12X10148

Replaced by #WD35X20994

?
Manufacturer substitution
This part replaces WD12X10148. Substitute parts can look different from the original.
$31.51 |
16% OFF Phone Price : $37.51
In Stock
Spray Bearing WD01X10268
#611

Upper rack assembly diagram

Spray bearing

Part #WD01X10268

Replaced by #WD02X10169

?
Manufacturer substitution
This part replaces WD01X10268. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
