Model # 315271830 Official Craftsman drill

Here are the diagrams and repair parts for Official Craftsman 315271830 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

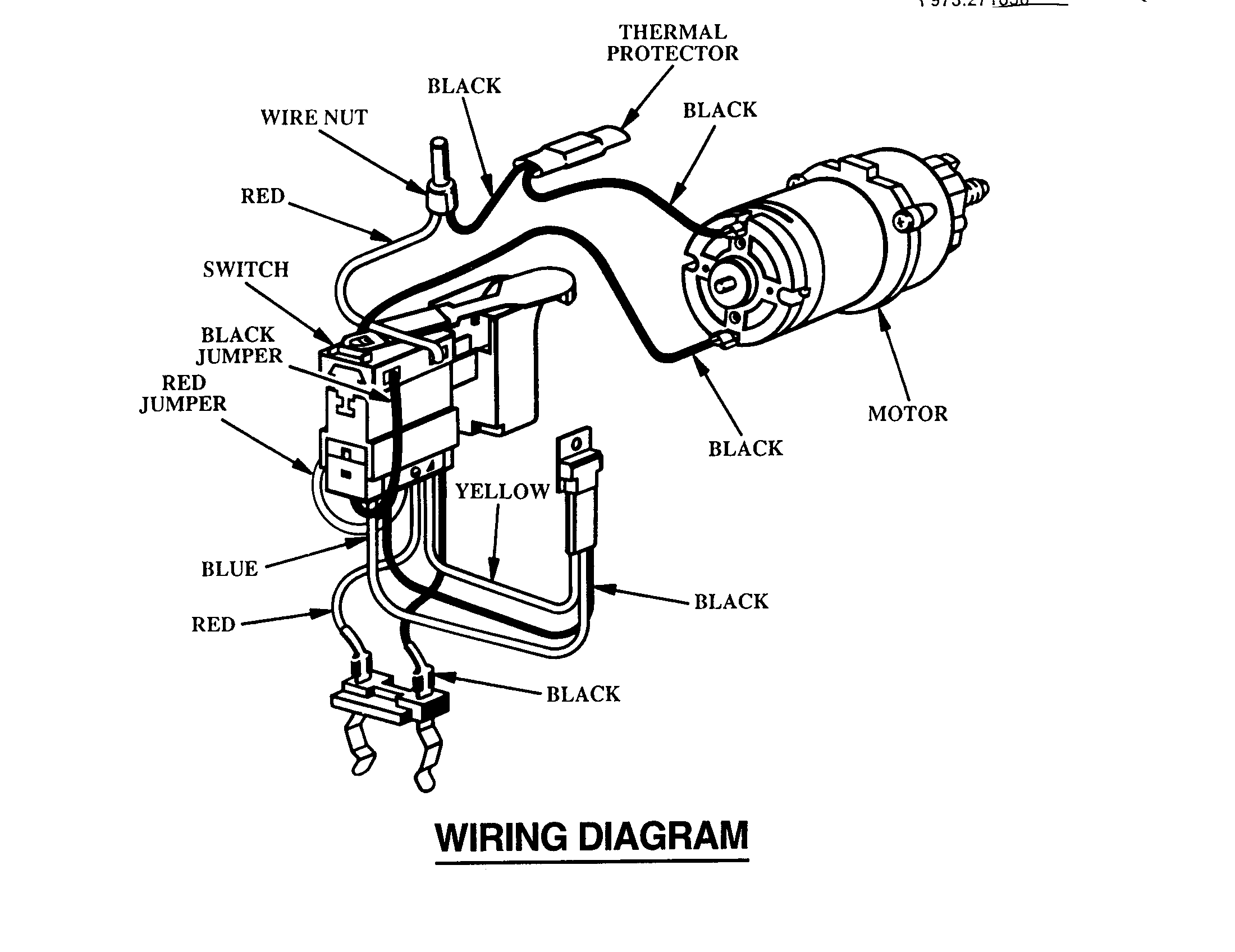

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Heat Sink 974363-000
#20

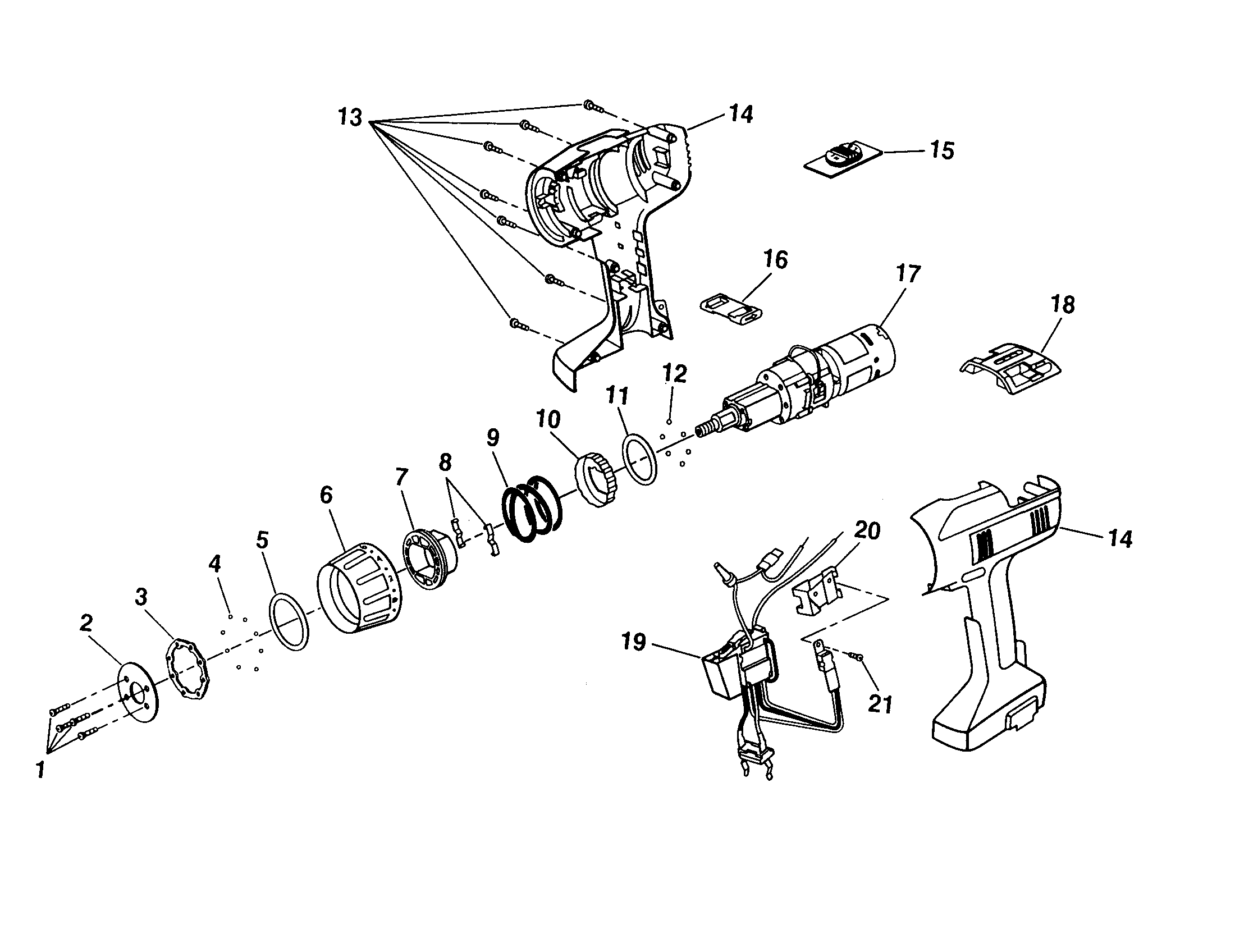

Housing/motor diagram

Heat sink

Part #974363-000

The manufacturer no longer makes this part, and there's no substitute part

Spring 974357-000
#9

Housing/motor diagram

Spring

Part #974357-000

The manufacturer no longer makes this part, and there's no substitute part

Ring 974360-000
#10

Housing/motor diagram

Ring

Part #974360-000

The manufacturer no longer makes this part, and there's no substitute part

Drill/driver On/off Switch 977354-000
#19

Housing/motor diagram

Drill/driver on/off switch

Part #977354-000

The manufacturer no longer makes this part, and there's no substitute part

Drill Chuck Screw 616478-003
#1

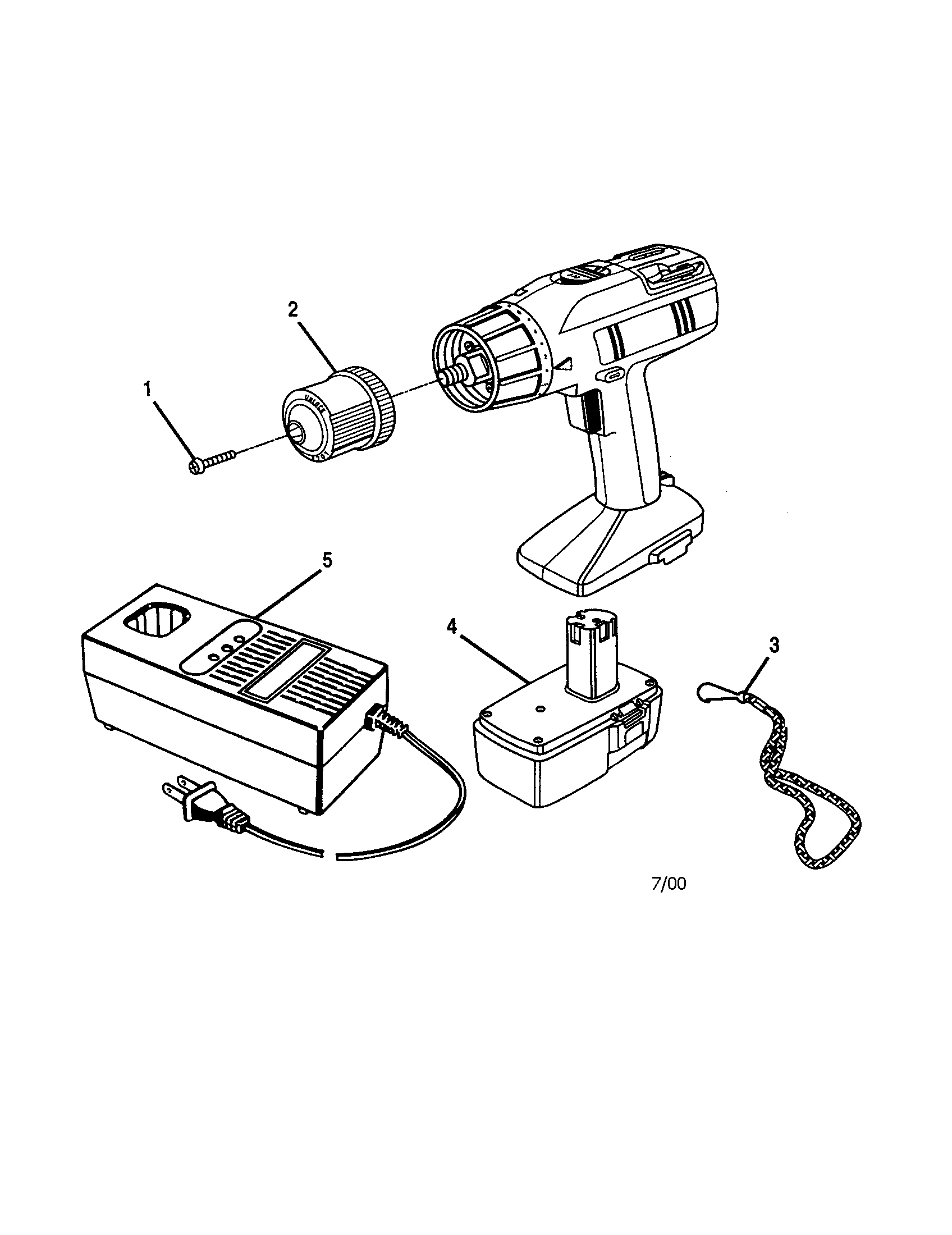

Battery charger/pack diagram

Drill chuck screw

Part #616478-003

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 9-11039
#5

Battery charger/pack diagram

Battery pack

Part #9-11039

The manufacturer no longer makes this part, and there's no substitute part

Clutch Washer 974356-000
#11

Housing/motor diagram

Clutch washer

Part #974356-000

The manufacturer no longer makes this part, and there's no substitute part

Ball Ret 974361-000
#3

Housing/motor diagram

Ball ret

Part #974361-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 974367-000
#1

Housing/motor diagram

Screw

Part #974367-000

The manufacturer no longer makes this part, and there's no substitute part

Clip 974362-000
#8

Housing/motor diagram

Clip

Part #974362-000

The manufacturer no longer makes this part, and there's no substitute part
