Frigidaire
Room Air Conditioner

Model # FAL123Y1A3 Official Frigidaire room air conditioner - 5995290185

Here are the diagrams and repair parts for Official Frigidaire FAL123Y1A3 room air conditioner - 5995290185, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

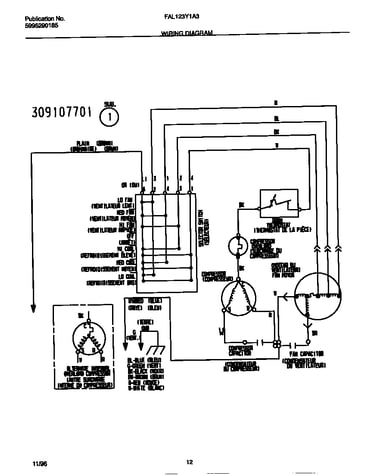

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Screw 5303303691
#29

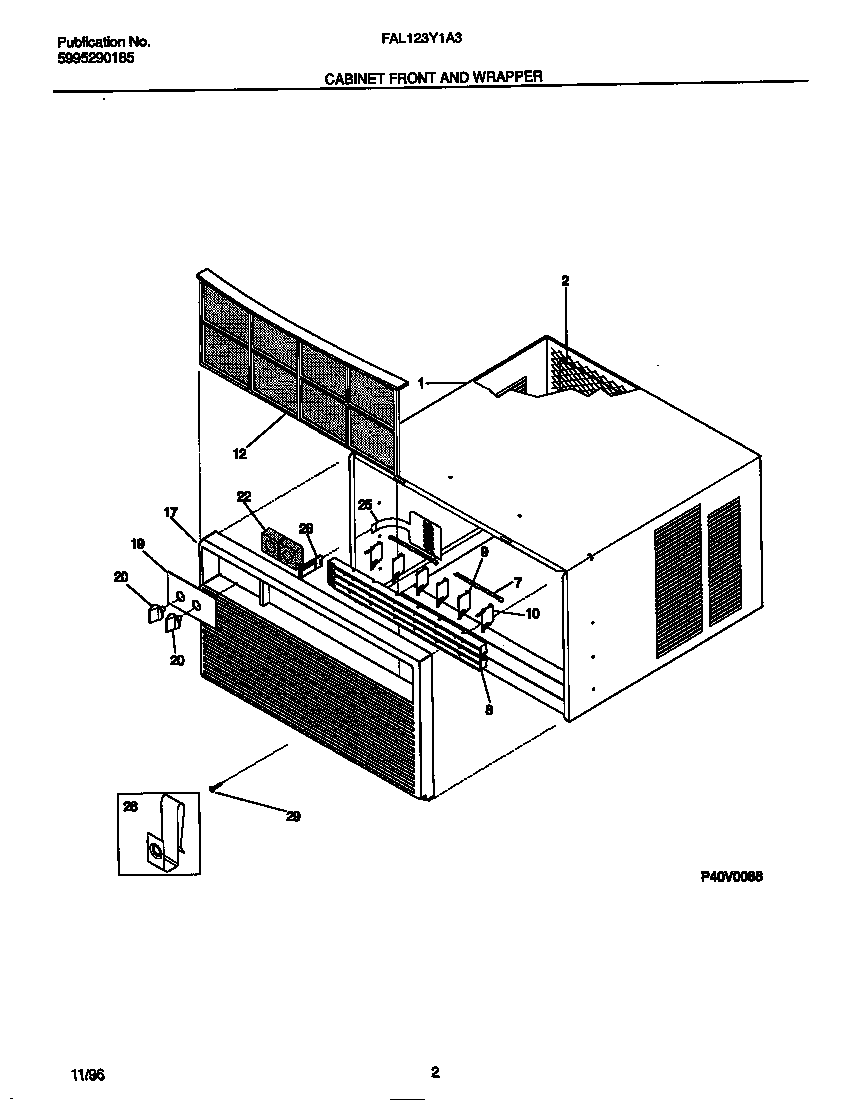

Cabinet front and wrapper diagram

Screw

Part #5303303691

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303303691. Substitute parts can look different from the original.
$14.69
In Stock
Bracket Screw 3015312
#18

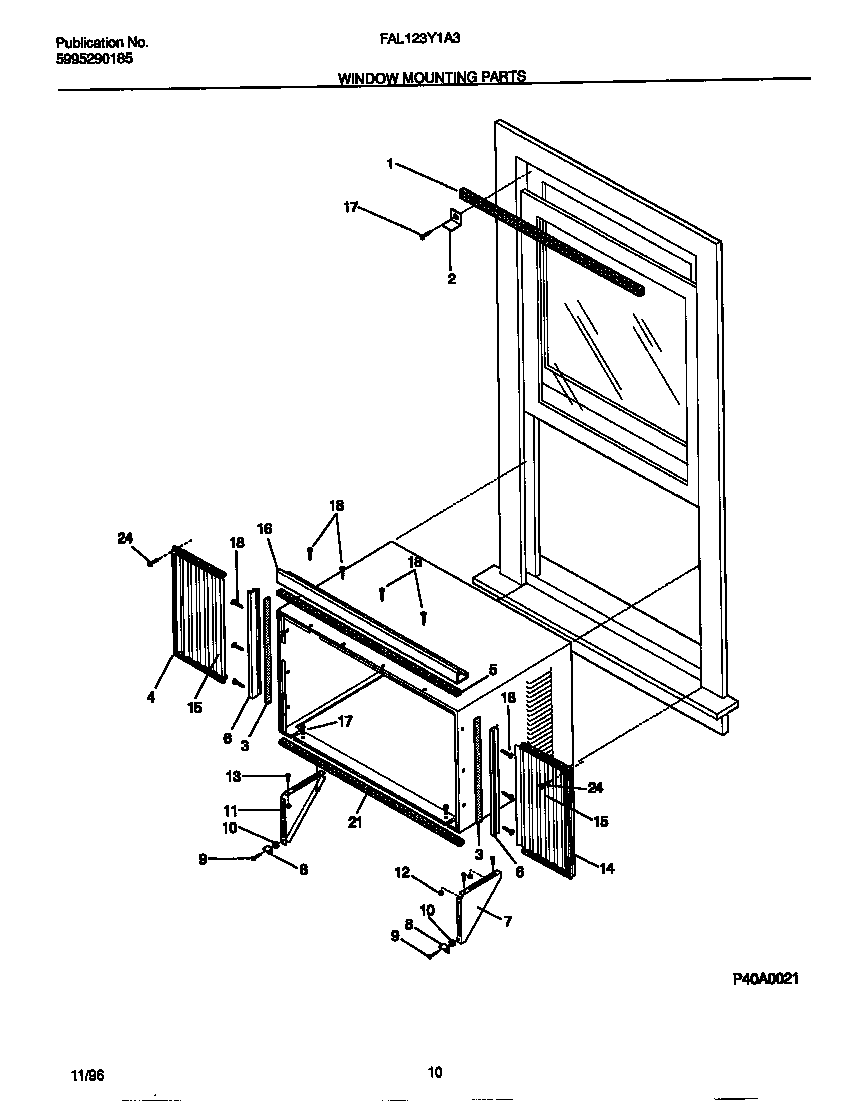

Window mounting parts diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Room Air Conditioner Screw 5303015427
#14

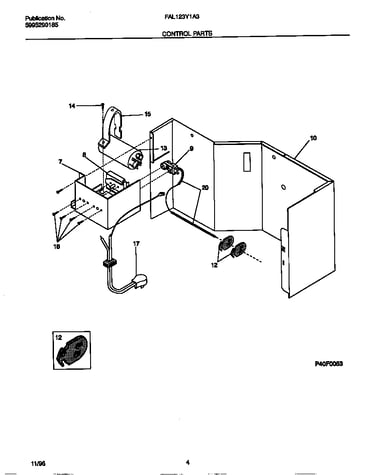

Control parts diagram

Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Rear Panel 5303303597
#2

Cabinet front and wrapper diagram

Rear panel

Part #5303303597

$18.99
In Stock
Link-louver 309304101
#7

Cabinet front and wrapper diagram

Link-louver

Part #309304101

$8.27
In Stock
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#17

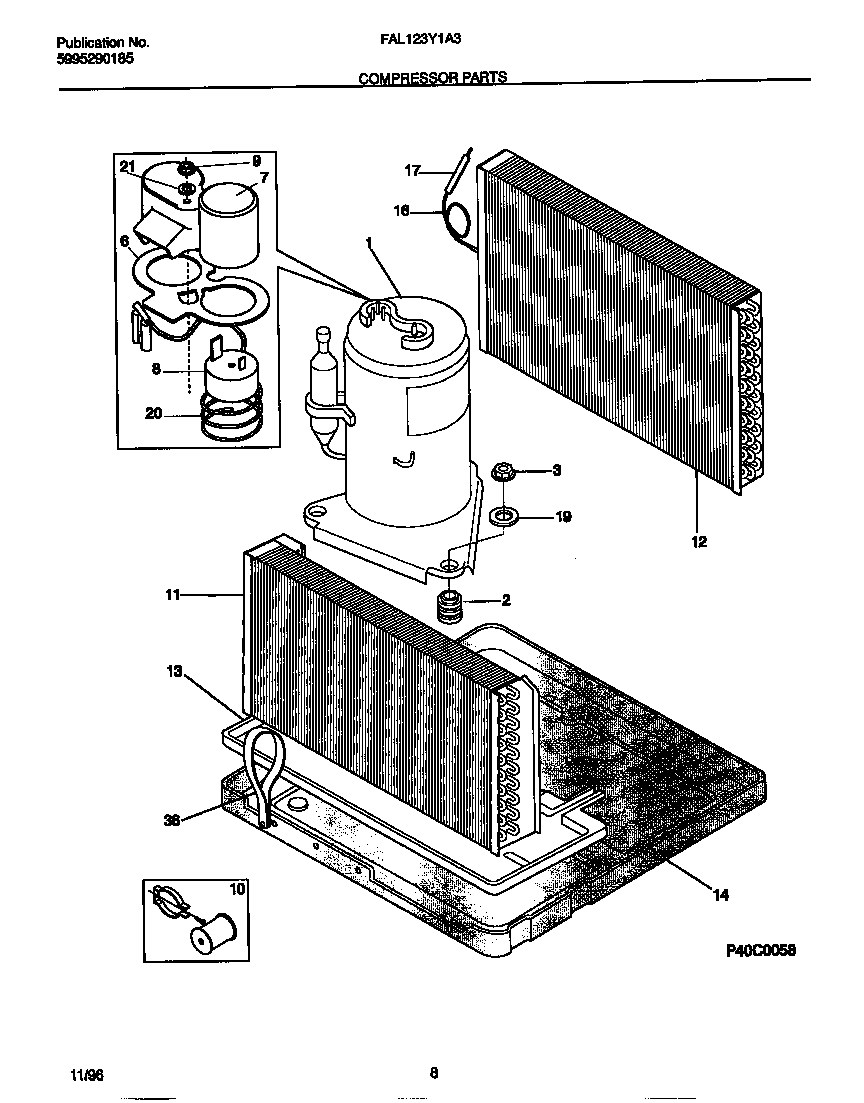

Compressor parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Room Air Conditioner Accordion Filler 5303301247
#15

Window mounting parts diagram

Room air conditioner accordion filler

Part #5303301247

$52.47 |
10% OFF Phone Price : $58.47
In Stock
Nut-hex 3017023
#12

Window mounting parts diagram

Nut-hex

Part #3017023

Replaced by #316205500

?
Manufacturer substitution
This part replaces 3017023. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Screw 3202975
#2

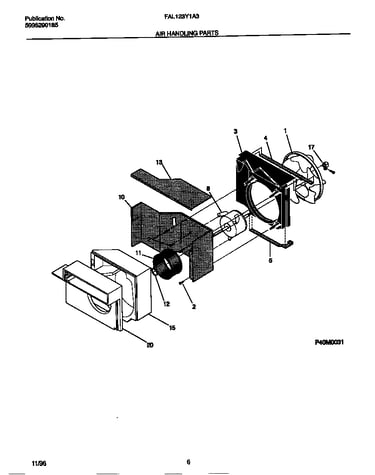

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Gasket 3002603
#1

Window mounting parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
