Model # WEG730H0DB0 Official Whirlpool gas range
Here are the diagrams and repair parts for Official Whirlpool WEG730H0DB0 gas range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

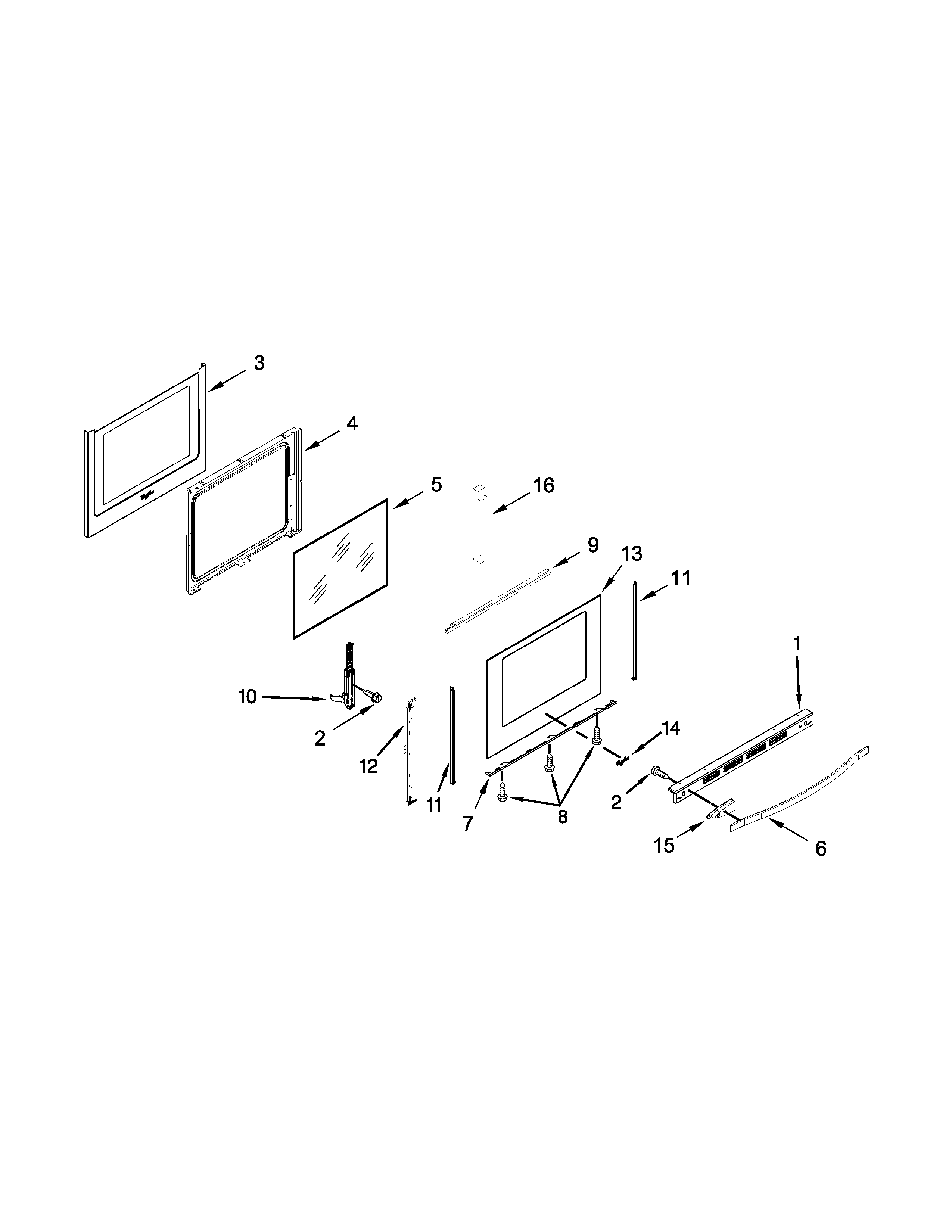

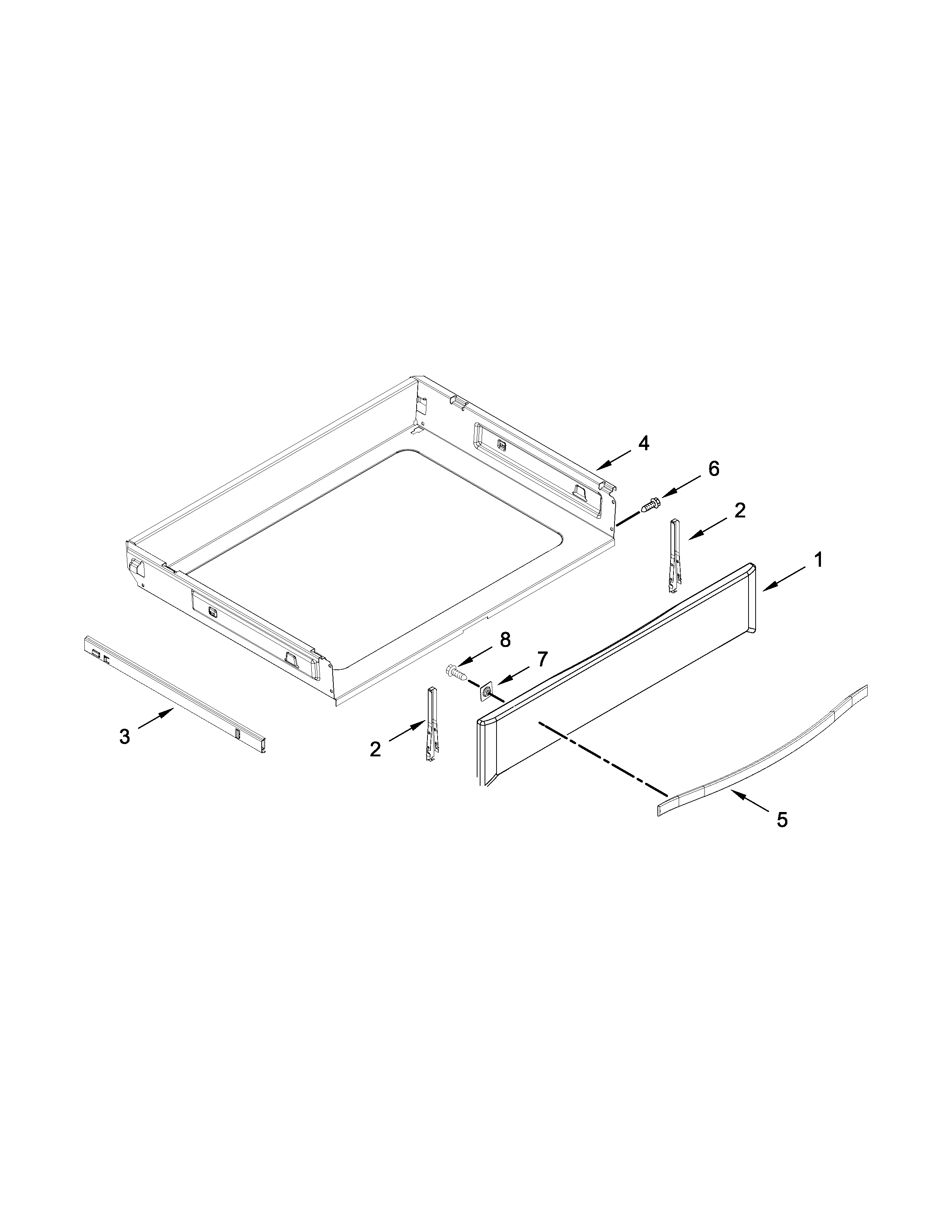

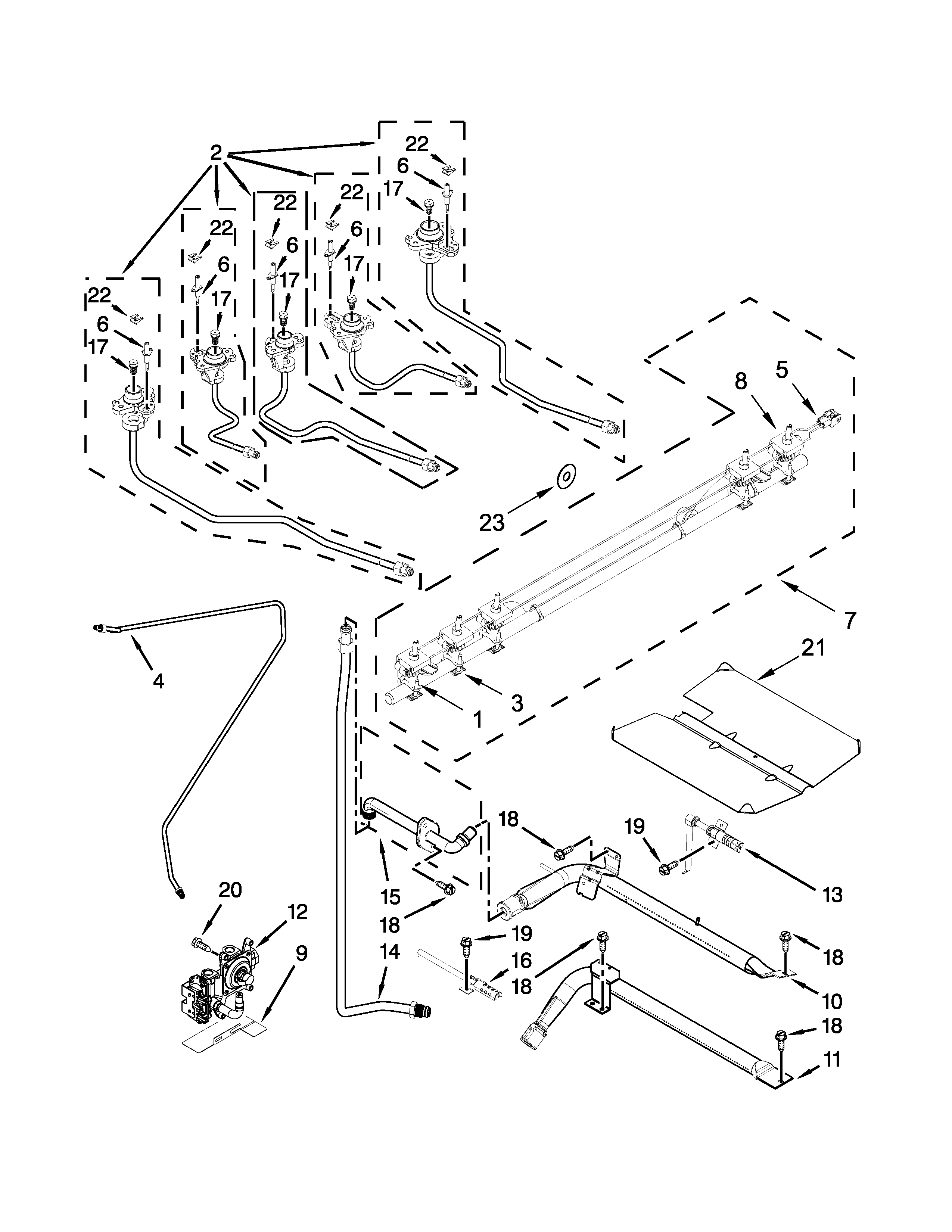

SELECT DIAGRAM
Browse Parts forWEG730H0DB0 Ranges
- #12

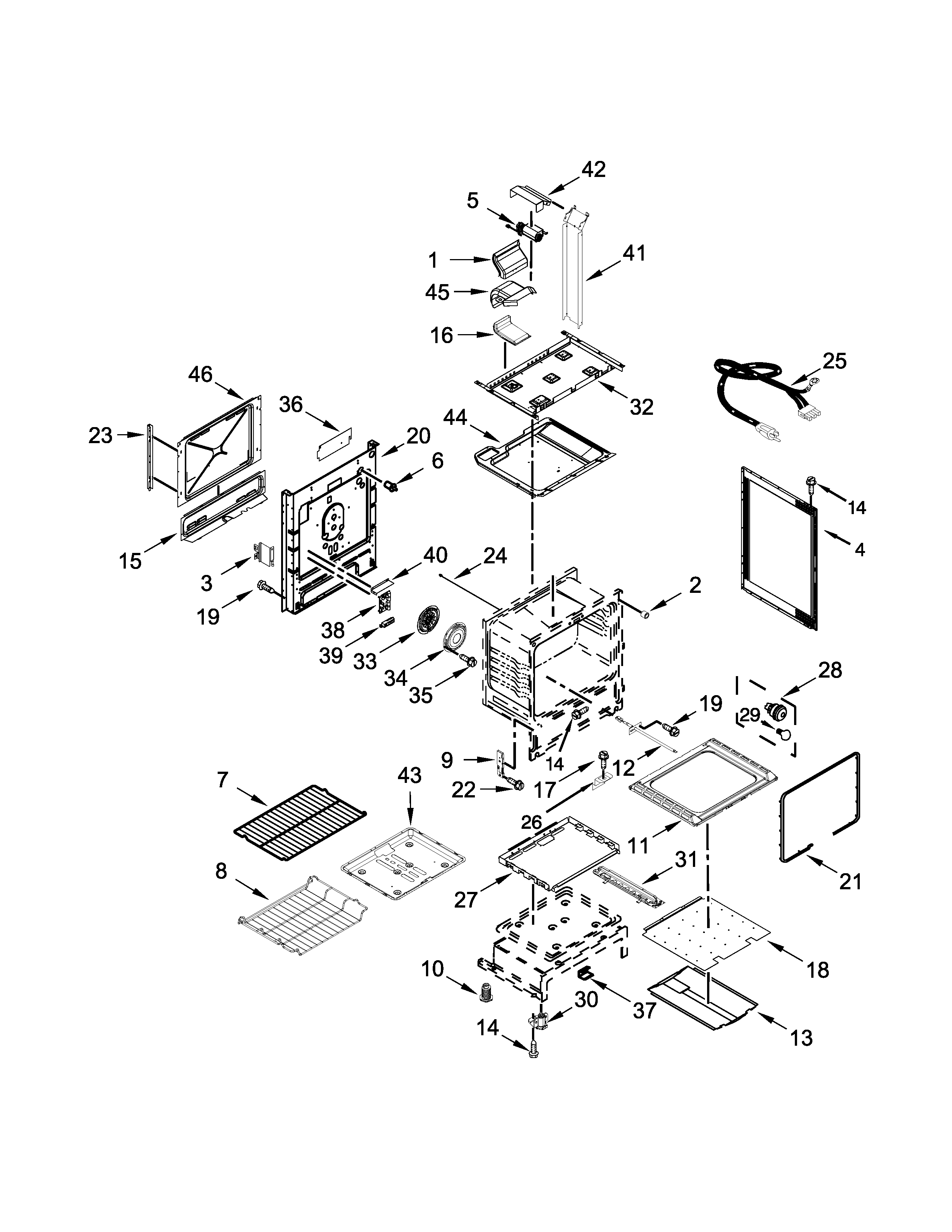

Chassis parts diagram
Oven sensorPart #W10586204
Replaced by #W10833885
?Manufacturer substitutionThis part replaces W10586204. Substitute parts can look different from the original.$85.35 |7% OFF Phone Price : $91.35In Stock - #9

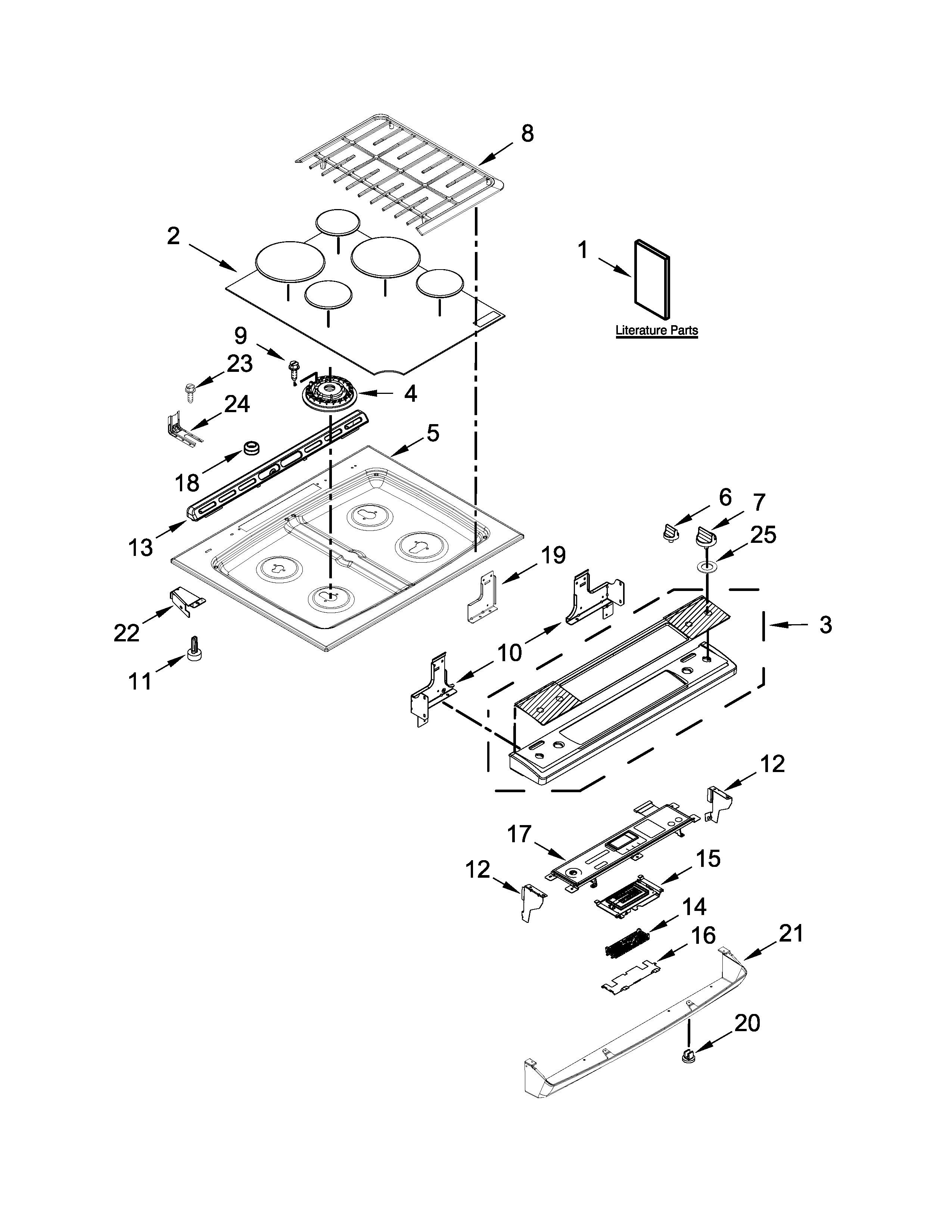

Cooktop parts diagram
ScrewPart #3400701
Replaced by #WP3368921
?Manufacturer substitutionThis part replaces 3400701. Substitute parts can look different from the original.This item is not returnable$2.83 |44% OFF Was : $5.05In Stock - #4
Cooktop parts diagram
Range surface burner basePart #W10256028
Replaced by #WPW10256028
?Manufacturer substitutionThis part replaces W10256028. Substitute parts can look different from the original.$101.09 |11% OFF Phone Price : $113.09In Stock - #NI
Cooktop parts diagram
KeypadPart #W10575120
Replaced by #W11025616
?Manufacturer substitutionThis part replaces W10575120. Substitute parts can look different from the original.$37.26 |14% OFF Phone Price : $43.26In Stock - #38
Chassis parts diagram
Cooktop modulePart #W10457998
Replaced by #W10860916
?Manufacturer substitutionThis part replaces W10457998. Substitute parts can look different from the original.$203.94 |6% OFF Phone Price : $215.94In Stock - Screw
Part #W10362924
Replaced by #W11233072
?Manufacturer substitutionThis part replaces W10362924. Substitute parts can look different from the original.$16.43 |11% OFF Phone Price : $18.43In Stock - #29
Chassis parts diagram
Light bulbPart #311255
Replaced by #8009
?Manufacturer substitutionThis part replaces 311255. Substitute parts can look different from the original.This item is not returnable$12.57 |14% OFF Phone Price : $14.57In Stock - Screw
Part #3196178
Replaced by #W11233072
?Manufacturer substitutionThis part replaces 3196178. Substitute parts can look different from the original.$16.43 |11% OFF Phone Price : $18.43In Stock - #1I
Cooktop parts diagram
Range oven lp conversion kitPart #W10566535
Replaced by #W11087486
?Manufacturer substitutionThis part replaces W10566535. Substitute parts can look different from the original.$52.16 |10% OFF Phone Price : $58.16In Stock - #39
Chassis parts diagram
Spark module (red)Part #W10475149
Replaced by #WPW10475149
?Manufacturer substitutionThis part replaces W10475149. Substitute parts can look different from the original.$122.05 |9% OFF Phone Price : $134.05In Stock
